Description:

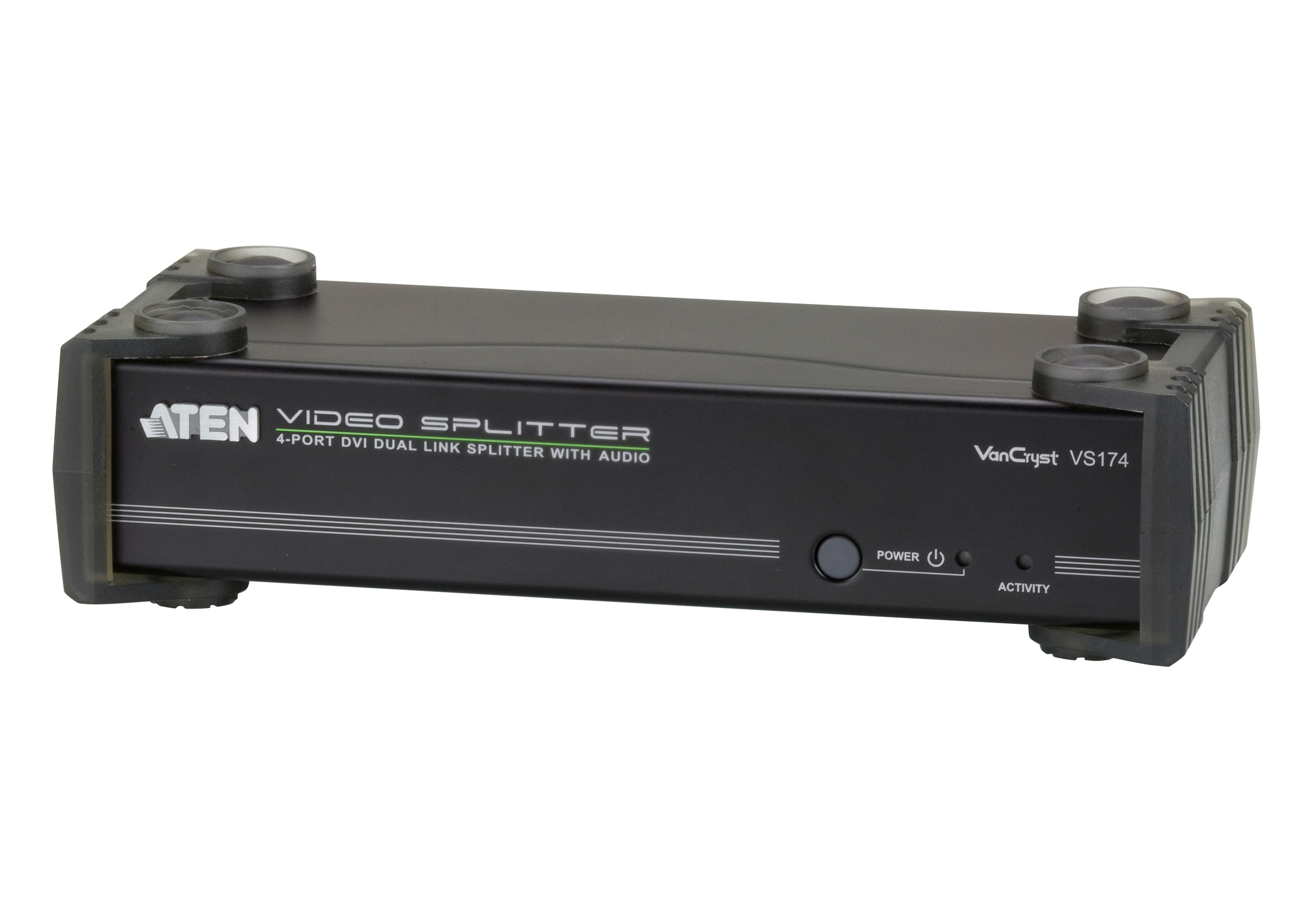

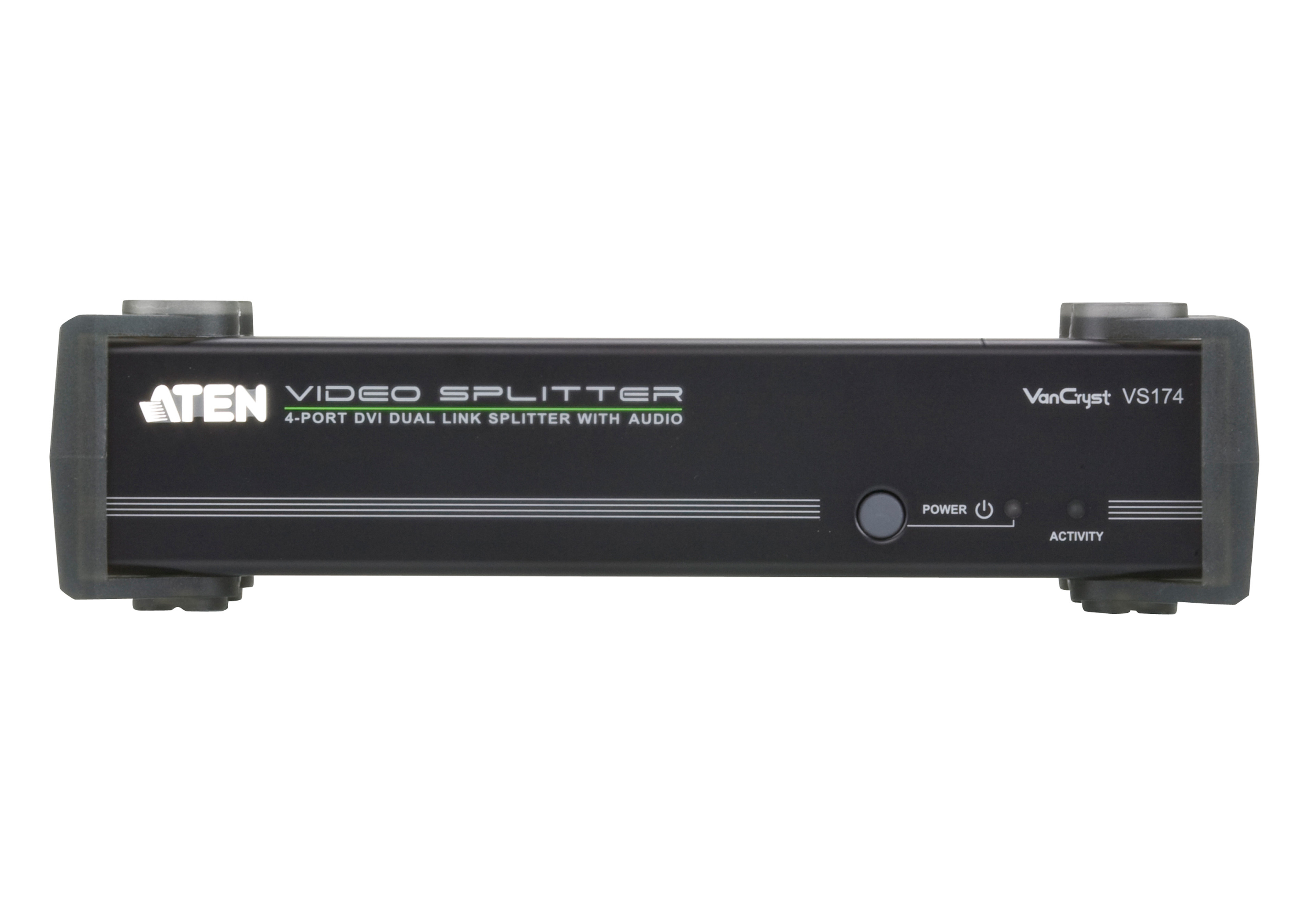

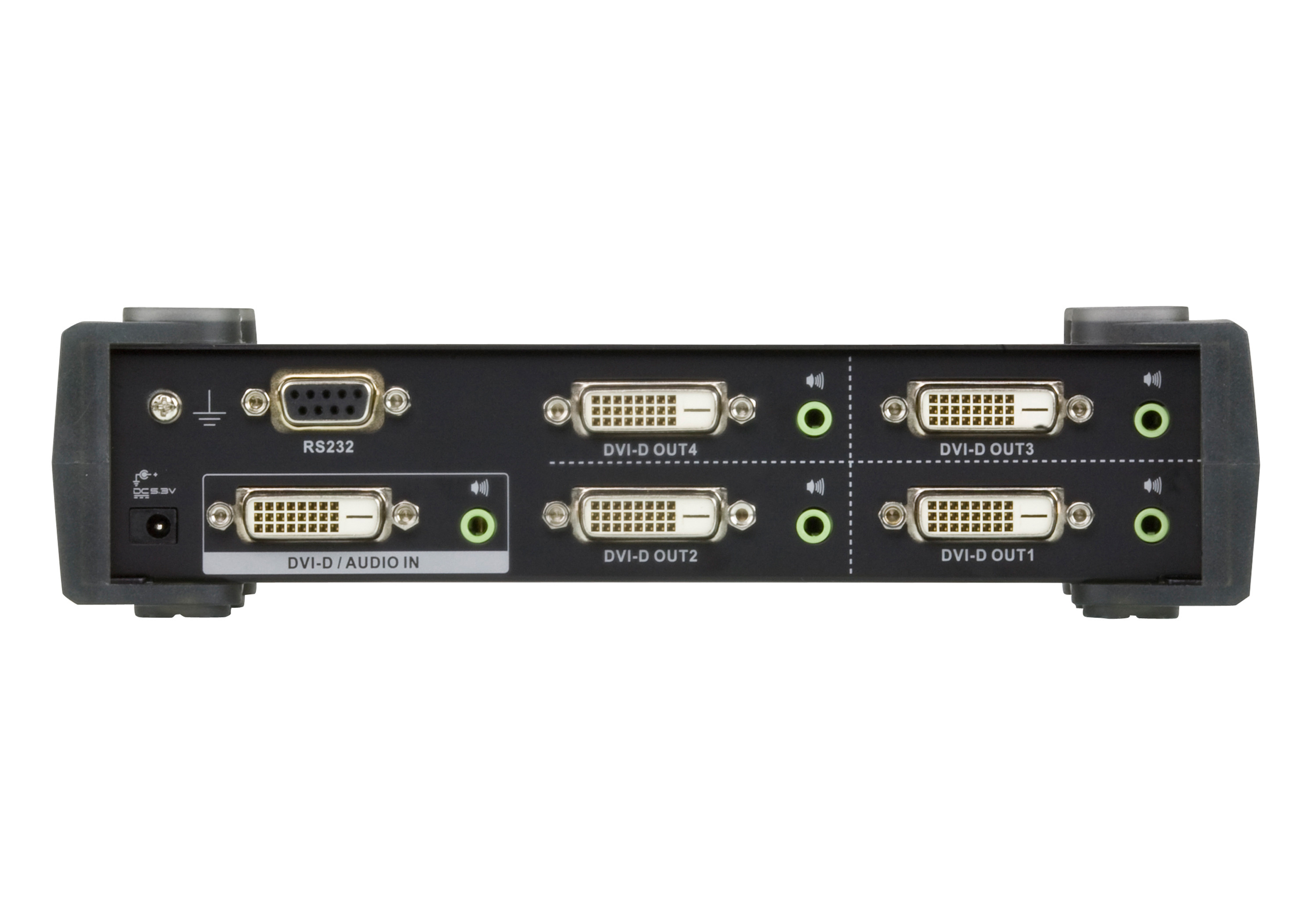

The VS174 4-Port DVI Dual Link Splitter with Audio combines DVI quality video and audio, taking signals from an audio/ video source and replicating them to four audio/video outputs. This video splitter uses dual link technology, which offers high bandwidth capacity for added transmission power and faster refresh rates, thereby providing better video quality of viewing resolutions up to 2560 x 1600
Specifications:
| Product Type: |
Signal Splitter |
| Brand Name: |
VanCryst |
| Number of DVI Outputs: |
4 |
| Number of Audio Line In: |
1 |
| Number of Audio Line Out: |
4 |
| Number of DVI Inputs: |
1 |
| General Information |
|---|
| Product Type: |
Signal Splitter |
| Manufacturer Part Number: |
VS174 |
| Manufacturer Website Address: |
http://www.aten-usa.com |
| Packaged Quantity: |
1 |
| Manufacturer: |
ATEN Technology Inc |
| Product Model: |
VS174 |
| Product Name: |
4-Port DVI Dual Link Splitter with Audio |
| Brand Name: |
VanCryst |
| Interfaces/Ports |
|---|
| Audio Line In: |
Yes |
| Audio Line Out: |
Yes |
| Serial Port: |
Yes |
| Number of DVI Outputs: |
4 |
| DVI In: |
Yes |
| DVI Out: |
Yes |
| Number of Audio Line In: |
1 |
| Number of Audio Line Out: |
4 |
| Number of DVI Inputs: |
1 |
| Miscellaneous |
|---|
| Additional Information: |
- Displays DVI audio/video to multiple DVI-compatible monitors or projectors
- Superior video quality - up to 2560 x 1600 @ 60 Hz including 2K-resolution (2048 x 2048 @ 60 Hz)
- Cascadable to 3 levels - provides up to 64 video signals
- Audio enabled
- Features RS-232 serial port for command controls
- RS-232 Chain Control - use RS-232 commands to control cascaded devices via a DVI Cable
- EDID Expert - selects the optimum EDID settings via RS-232
|
| Package Contents: |
- 4-Port DVI Dual Link Splitter with Audio
- 1 x Power Adapter
- 1 x User Instructions
|
| Environmentally Friendly: |
Yes |
| Environmental Certification: |
RoHS |
|
WEEE |
| Physical Characteristics |
|---|
| Material: |
Metal |
| Weight (Approximate): |
1.61 lb |
| Height: |
2.2" |
| Width: |
8.3" |
| Depth: |
3.5" |
| Power Description |
|---|
| Input Voltage: |
5.3 V DC |
