Description:

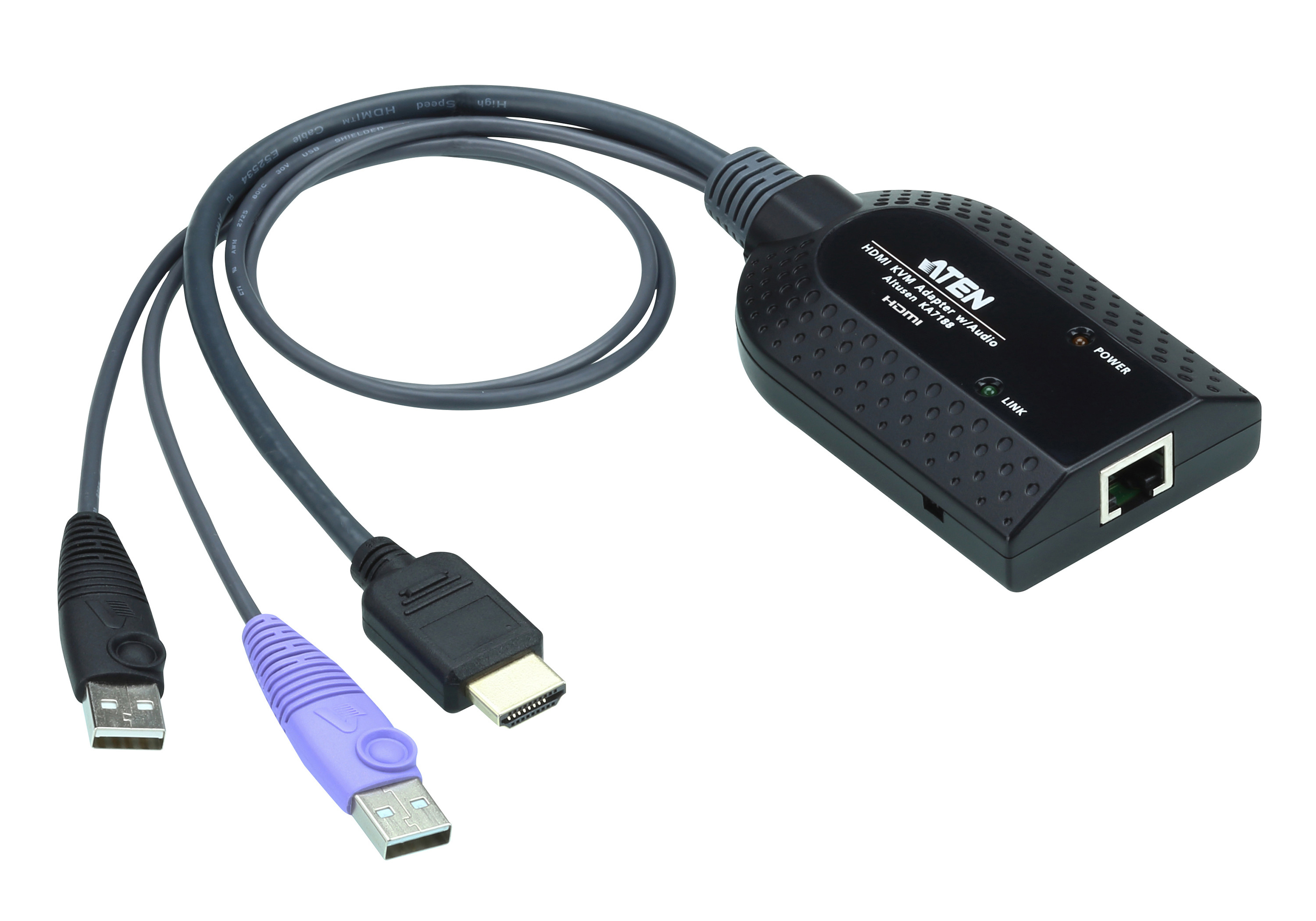

The KA7188 KVM Adapter Cable connects a KVM switch to the HDMI video and USB ports of a target computer.* The KA7188 supports HDMI output and provides two USB plugs to connect a target computer for keyboard/mouse, Virtual Media, or Smart Card/CAC Reader functions.**
The KA7188 supports Audio De-Embedder, which extracts the audio from an HDMI signal. More advanced features of KA7188 include the small size and lightweight design, as well as superior signal compensation and delay skew technologies for greatly enhanced video quality.
Specifications:
| Product Type: |
Server Interface Module |
| Brand Name: |
ATEN |
| Connector on First End: |
RJ-45 Female Network |
| Connector on Second End: |
HDMI Male Video |
|
Type A Male USB |
| General Information |
|---|
| Product Type: |
Server Interface Module |
| Manufacturer Part Number: |
KA7188 |
| Manufacturer Website Address: |
http://www.aten-usa.com |
| Packaged Quantity: |
1 |
| Manufacturer: |
ATEN Technology Inc |
| Product Name: |
USB HDMI Virtual Media KVM Adapter Cable |
| Brand Name: |
ATEN |
| Miscellaneous |
|---|
| Package Contents: |
- USB HDMI Virtual Media KVM Adapter Cable
- 1 x KA7188 KVM Adapter Cable
|
| Compatibility: |
Aten Remote Access IP Switch:
- KN1132V
- KN4140VA
- KN4124VA
- KN2140VA
|
| Country of Origin: |
Taiwan |
| Environmentally Friendly: |
Yes |
| Environmental Certification: |
RoHS |
|
WEEE |
| Physical Characteristics |
|---|
| Material: |
Plastic - Housing |
| Weight (Approximate): |
3.88 oz |
| Technical Information |
|---|
| Device Supported: |
KVM Switch |
|
Server |
| Features: |
LED |
| Connector on First End: |
1 x RJ-45 Female Network |
| Connector on Second End: |
1 x HDMI Male Video |
|
2 x Type A Male USB |
| Supported Resolution: |
1920 x 1200 |
|
1920 x 1200 |
| Warranty |
|---|
| Limited Warranty: |
3 Year |
