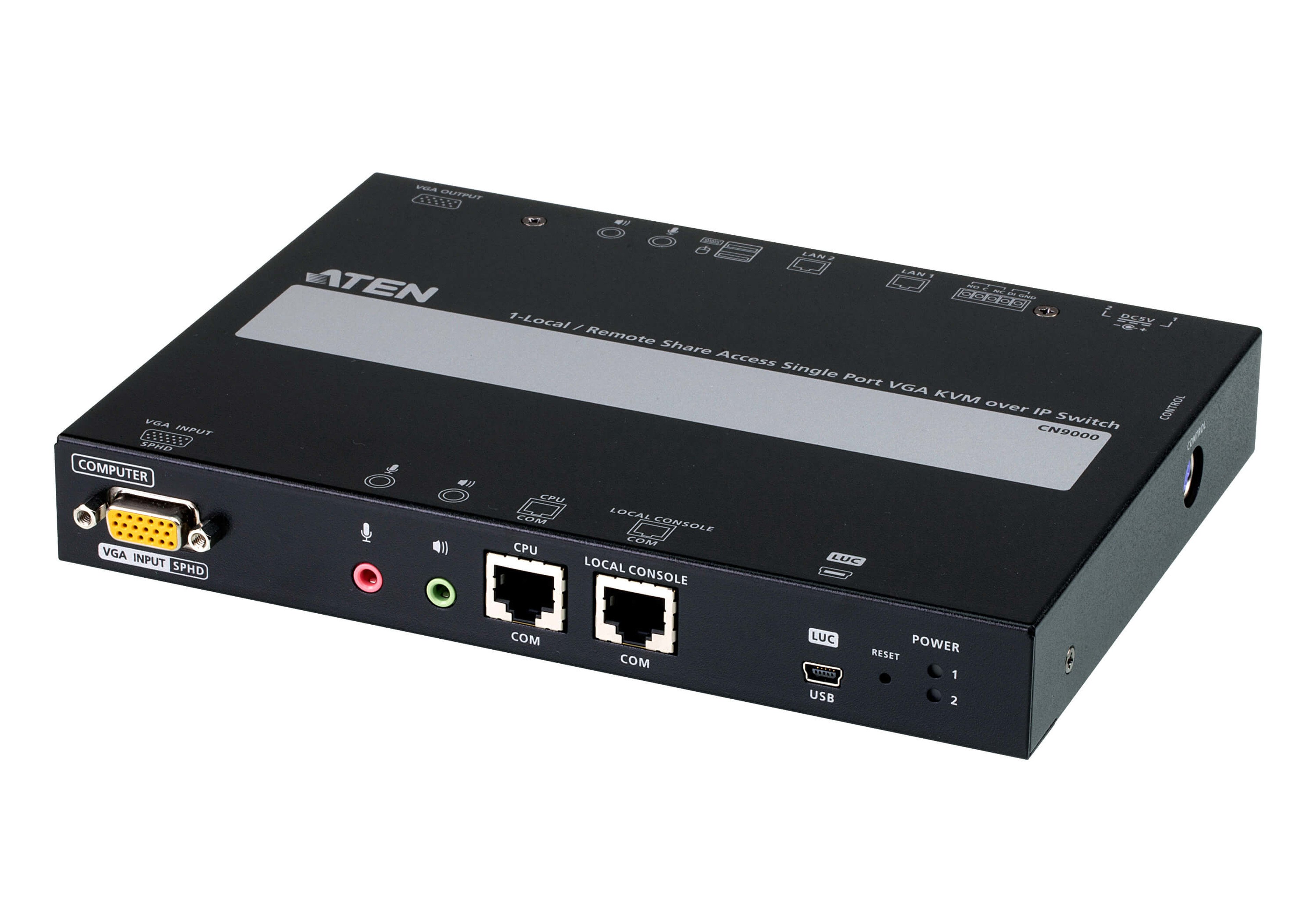

ATEN 1-Local/Remote Share Access Single Port VGA KVM over IP Switch - 1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 1920 x 1200 - 2 x Network (RJ-45) - 3 x USB2 x VGA - Desktop SLIM VERSION
The CN9000 VGA KVM over IP Switch allows remote access and control of the video, audio and virtual media of a PC or workstation, featuring VGA high video resolution up to 1920 x 1200 @ 60Hz at both the local and remote consoles. Equipped with USB and PS/2 (keyboard and mouse) support, CN9000 is compatible not only with modern-day workstations, but also legacy systems and older generation servers.

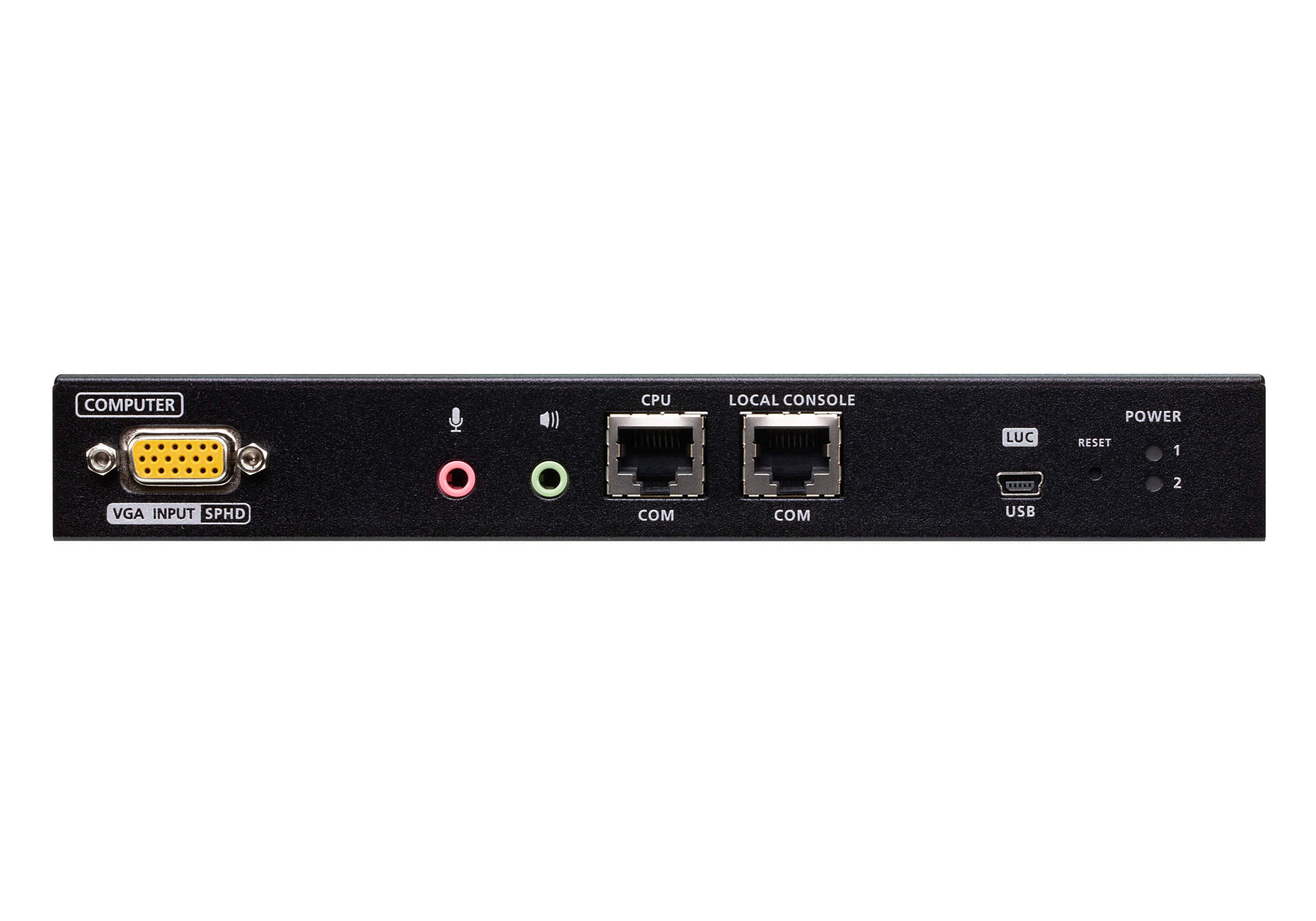

For user-friendly operation, a mini USB port on the front panel is designed as a Laptop USB Console (LUC) port for connection to a laptop, which allows the user to access the PC/server for easy routine maintenance without requiring an additional monitor, keyboard and mouse.

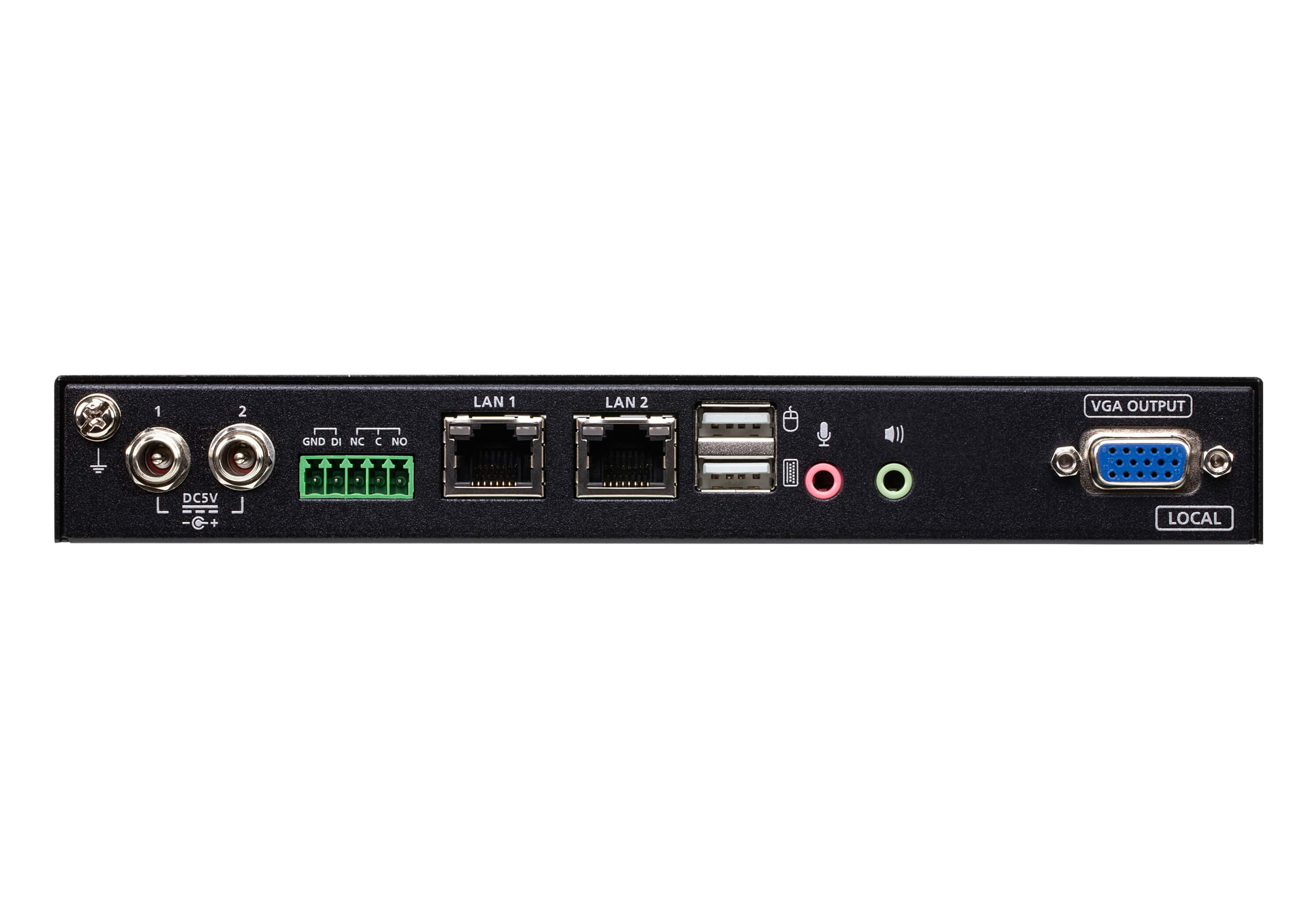

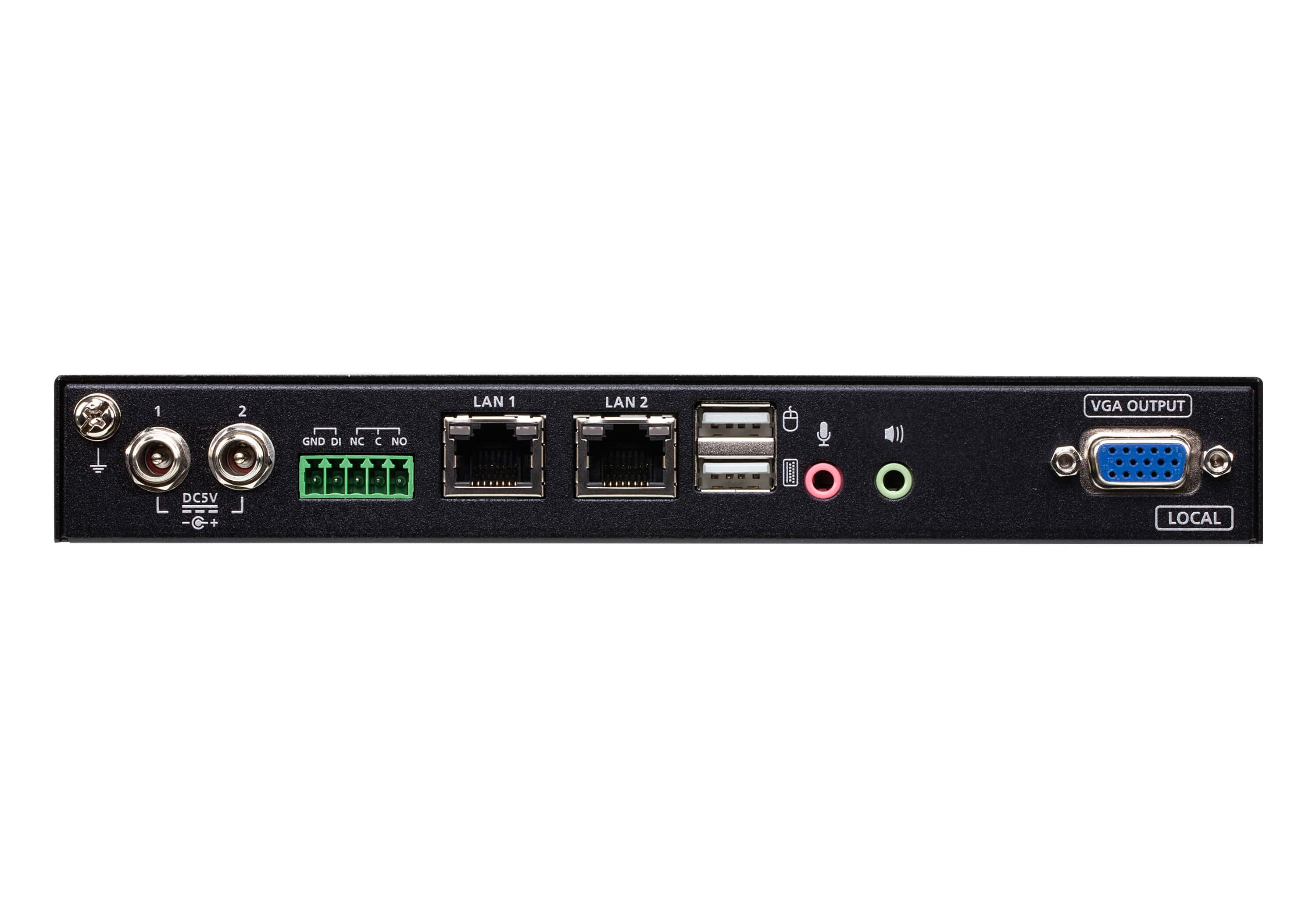

To ensure seamless connectivity, the CN9000 is equipped with dual LAN and dual power functionality to keep operation in the server room smooth and efficient. Its power status detection function automatically sends out event notifications when the device becomes offline (e.g. power failure) for device status monitoring. Moreover, the CN9000 features a 5-pin Relay / DI (digital input) terminal block allowing for remote reboot of the local server, and receiving digital inputs from a connected input/alarm device for notification of critical events.
For ease of remote management, the CN9000 WebClient Viewer supports remote desktop access without additional software applications. The VGA KVM over IP Switch provides a web-based GUI for remote access and management. With a unified multilanguage interface, it can effectively minimize user training time and increase productivity.
- High video resolution - up to 1920 x 1200 @ 60 Hz
- Laptop USB Console (LUC) - a dedicated mini USB port for direct, easy console operation via a laptop
- Provides over IP capability to KVM switches without over IP functionality
- Provides an FPGA graphics processor for better image quality and enhanced fps (frames per second) throughput for crisp video display response
- Dual power supply and dual LAN for power and network redundancy
- Supports 5-pin Relay/DI Terminal for environment monitoring and reboot control
- Supports Legacy PS/2 keyboard and mouse
- Complies to the RS-232 standards for serial control
- Up to 64 user accounts - up to 32 users can simultaneously share control
- Console access right management
| Maximum Video Resolution | 1920 x 1200 |
| Package Contents |
|
| Country of Origin | Taiwan |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| Product Type | KVM Switchbox |
| Manufacturer Part Number | CN9000 |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Packaged Quantity | 1 |
| Manufacturer | ATEN Technology, Inc |
| Product Model | CN9000 |
| Product Name | 1-Local/Remote Share Access Single Port VGA KVM over IP Switch |
| Brand Name | ATEN |
| Weight (Approximate) | 1.90 lb |
| Form Factor | Desktop |
| Height | 1.1" |
| Width | 0.3" |
| Depth | 6.1" |
| USB | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of USB Ports | 3 |
| Number of VGA Ports | 2 |
