Description:

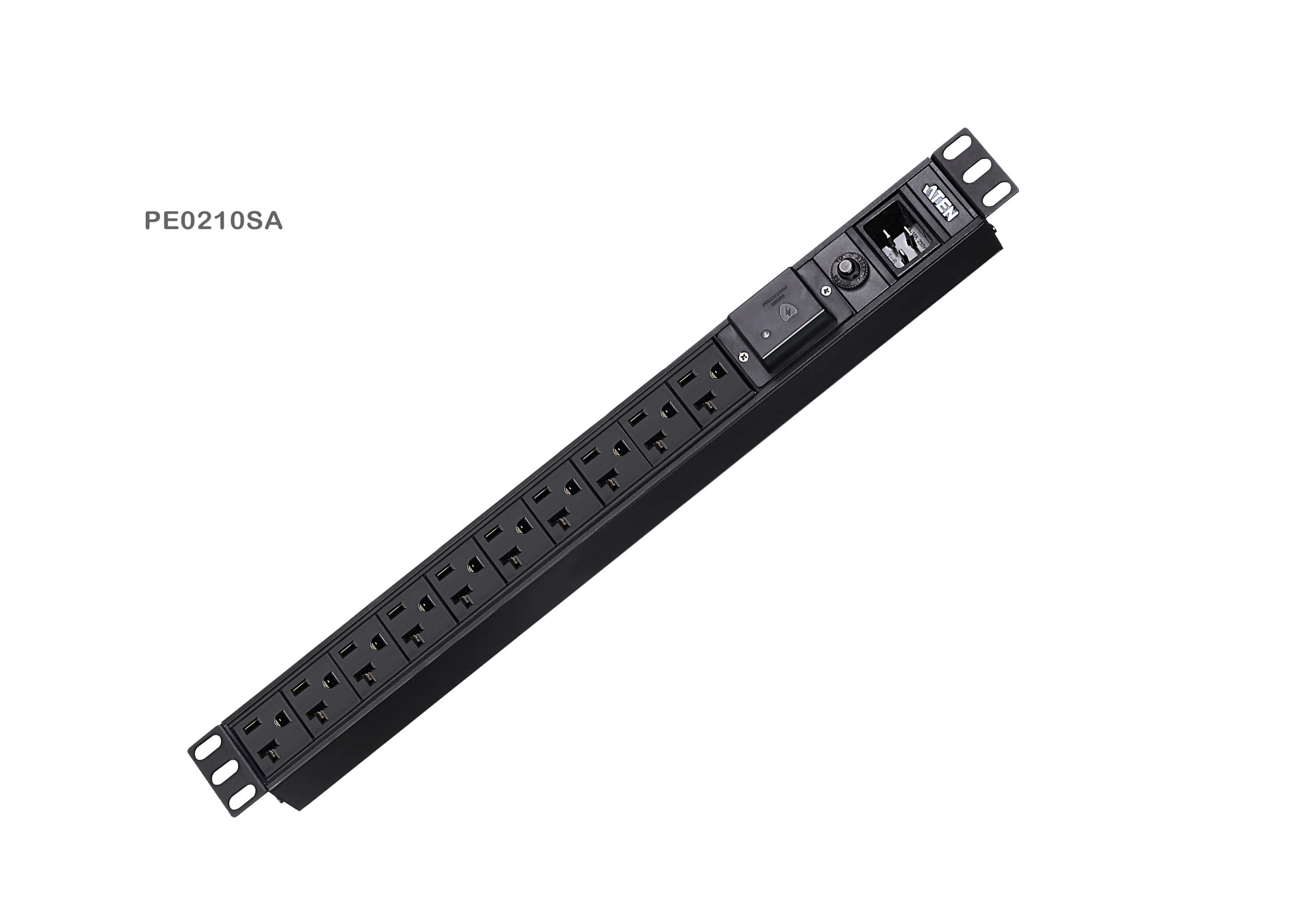

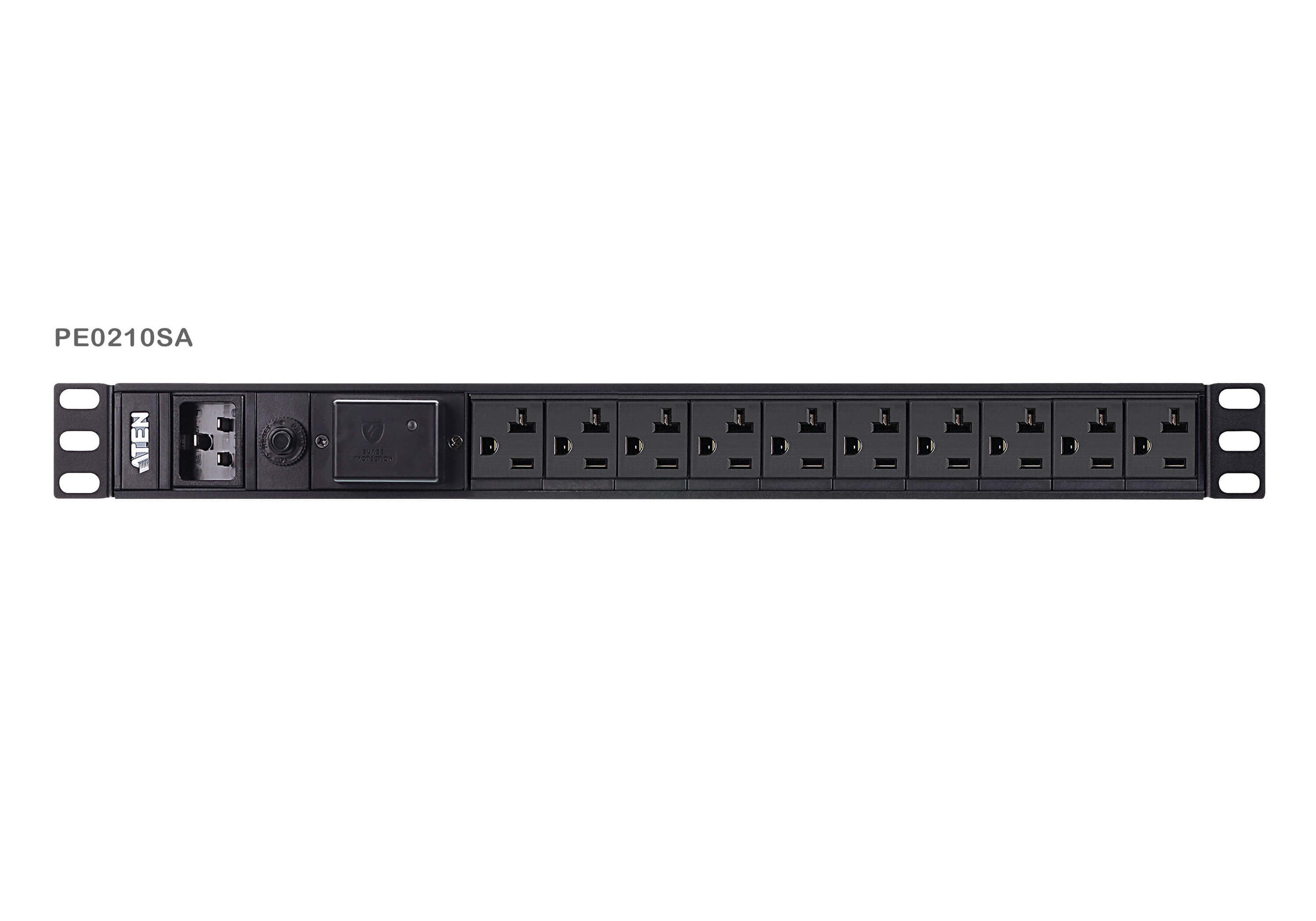

The Aten's PE0210S, a 10-outlet, 1U rack mount power distribution unit (PDU), provides IEC and NEMA output. It distributes power to 10 receptacles from a single plug with unfiltered electrical pass-through. The PE0210S also provides surge protection, prevents damage to your equipment from power surges and spikes. The integrated surge protector includes a LED indicator, letting you know the status of your equipment.
Aluminum housing helps prolong the units life with rugged casing made of impact-resistant material for maximum durability. Basic 1U PDU can be easily mounted to wall, wooden furniture, or work bench
Specifications:
| Product Type: |
PDU |
| Input Voltage: |
120 V AC |
| Input Receptacles: |
NEMA L5-20P |
| Input Current: |
20 A |
| Length: |
19" |
| Output Receptacles: |
10 x NEMA 5-20R |
| Protection Type: |
Surge Protection |
|
Overcurrent Protection |
| Rack Height: |
1U |
| Brand Name: |
Aten |
| Input Voltage Range: |
100 V AC - 120 V AC |
| PDU Type: |
Basic |
| Power Rating (VA): |
2400 VA |
| General Information |
|---|
| Product Type: |
PDU |
| Manufacturer Part Number: |
PE0210SA |
| Manufacturer Website Address: |
http://www.aten-usa.com |
| Manufacturer: |
ATEN Technology, Inc |
| Product Model: |
PE0210S |
| Product Name: |
PE0210S 10-Outlets PDU |
| Brand Name: |
Aten |
| Miscellaneous |
|---|
| Environmentally Friendly: |
Yes |
| Environmental Certification: |
RoHS |
|
WEEE |
| Physical Characteristics |
|---|
| Weight (Approximate): |
1.48 lb |
| Length: |
19" |
| Mount Type: |
Rack-mountable |
|
Wall-mountable |
| Rack Height: |
1U |
| Height: |
1.8" |
| Width: |
1.8" |
| Power Description |
|---|
| Input Voltage: |
120 V AC |
| Input Current: |
20 A |
| Input Voltage Range: |
100 V AC - 120 V AC |
| Power Rating (VA): |
2400 VA |
| Technical Information |
|---|
| Input Receptacles: |
NEMA L5-20P |
| Output Receptacles: |
10 x NEMA 5-20R |
| Protection Type: |
Overcurrent Protection |
|
Surge Protection |
| PDU Type: |
Basic |
