Description:

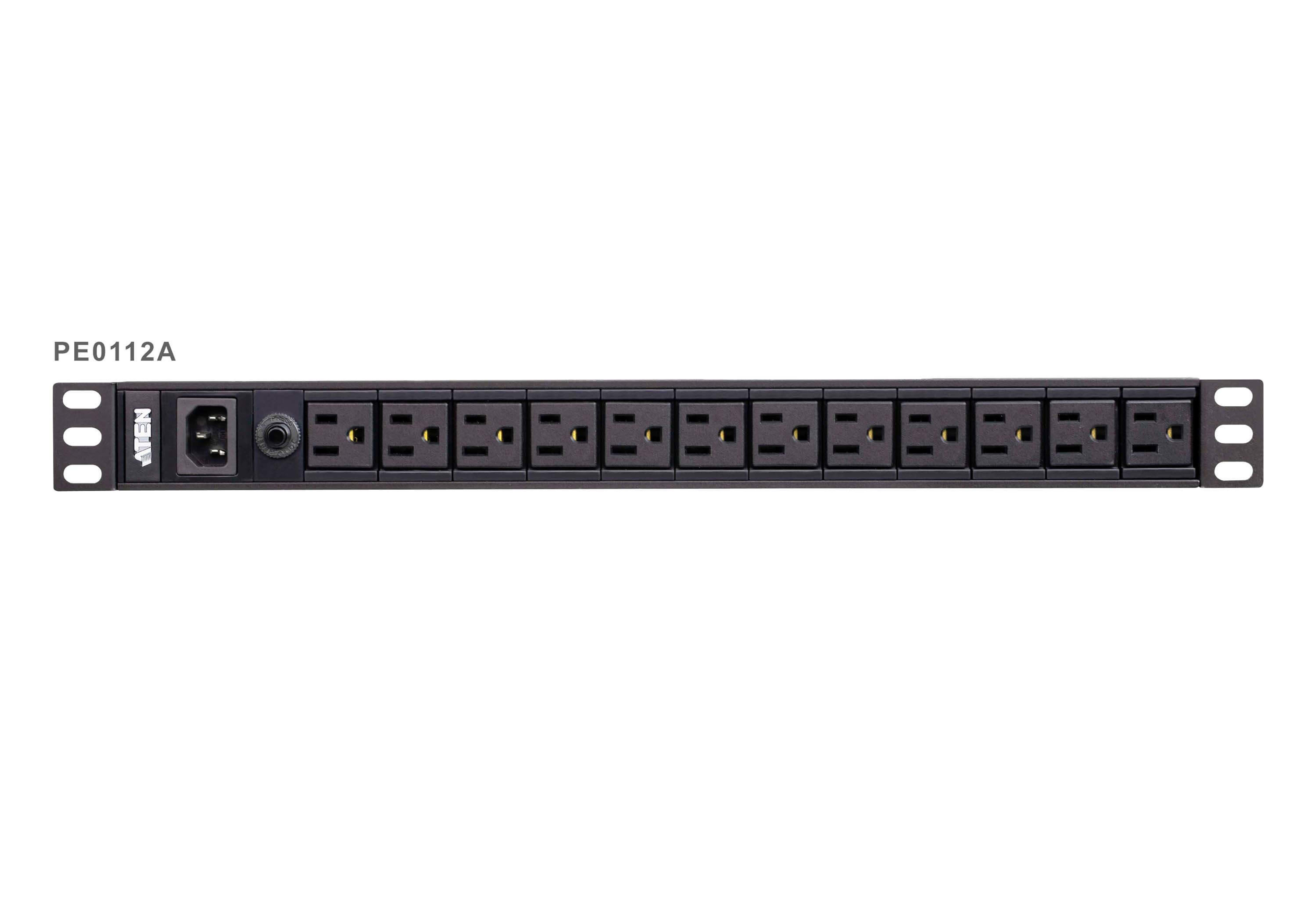

The PE0112 series Basic PDU contains 12 AC outlets and is available in IEC or NEMA socket configurations. The PE0112 series Basic PDU features a space-saving 1U design that allows it to be mounted vertically on the outside of a rack, resulting in a more use of space in the server room, while providing 12 AC outlets.
Specifications:
| Product Type: |
PDU |
| Input Voltage: |
120 V AC |
| Output Voltage: |
120 V AC |
| Input Receptacles: |
NEMA 5-15P |
| Input Current: |
15 A |
| Length: |
19.2" |
| Output Receptacles: |
12 x NEMA 5-15R |
| Protection Type: |
Overcurrent Protection |
| Rack Height: |
1U |
| Brand Name: |
Aten |
| Input Voltage Range: |
100 V AC - 120 V AC |
| Product Family: |
PE0112 |
| PDU Type: |
Basic |
| Mounting Orientation: |
Vertical |
| Power Rating (VA): |
1800 VA |
| General Information |
|---|
| Product Type: |
PDU |
| Manufacturer Part Number: |
PE0112A |
| Manufacturer Website Address: |
http://www.aten-usa.com |
| Packaged Quantity: |
1 |
| Manufacturer: |
ATEN Technology, Inc |
| Product Name: |
PE0112 12-Outlet PDU |
| Product Series: |
PE0112 |
| Brand Name: |
Aten |
| Miscellaneous |
|---|
| Package Contents: |
- PE0112 12-Outlet PDU
- 1 x Power Cord
- 1 x User Instructions
|
| Environmentally Friendly: |
Yes |
| Environmental Certification: |
RoHS |
|
WEEE |
| Physical Characteristics |
|---|
| Weight (Approximate): |
1.37 lb |
| Length: |
19.2" |
| Mount Type: |
Rack-mountable |
| Rack Height: |
1U |
| Height: |
1.8" |
| Width: |
1.7" |
| Mounting Orientation: |
Vertical |
| Power Description |
|---|
| Input Voltage: |
120 V AC |
| Output Voltage: |
120 V AC |
| Input Current: |
15 A |
| Input Voltage Range: |
100 V AC - 120 V AC |
| Power Rating (VA): |
1800 VA |
| Technical Information |
|---|
| Input Receptacles: |
NEMA 5-15P |
| Output Receptacles: |
12 x NEMA 5-15R |
| Protection Type: |
Overcurrent Protection |
| PDU Type: |
Basic |
