Description:

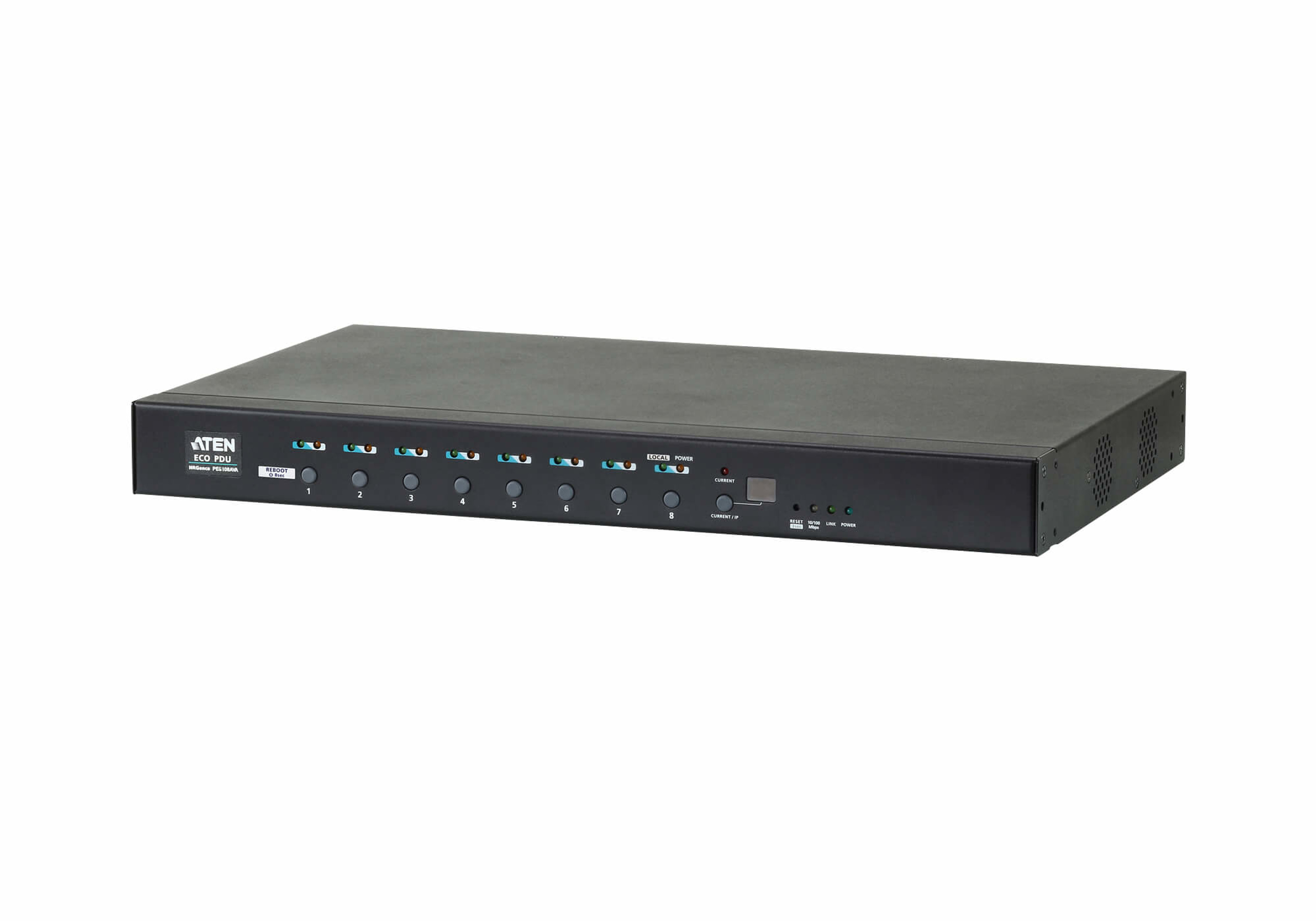

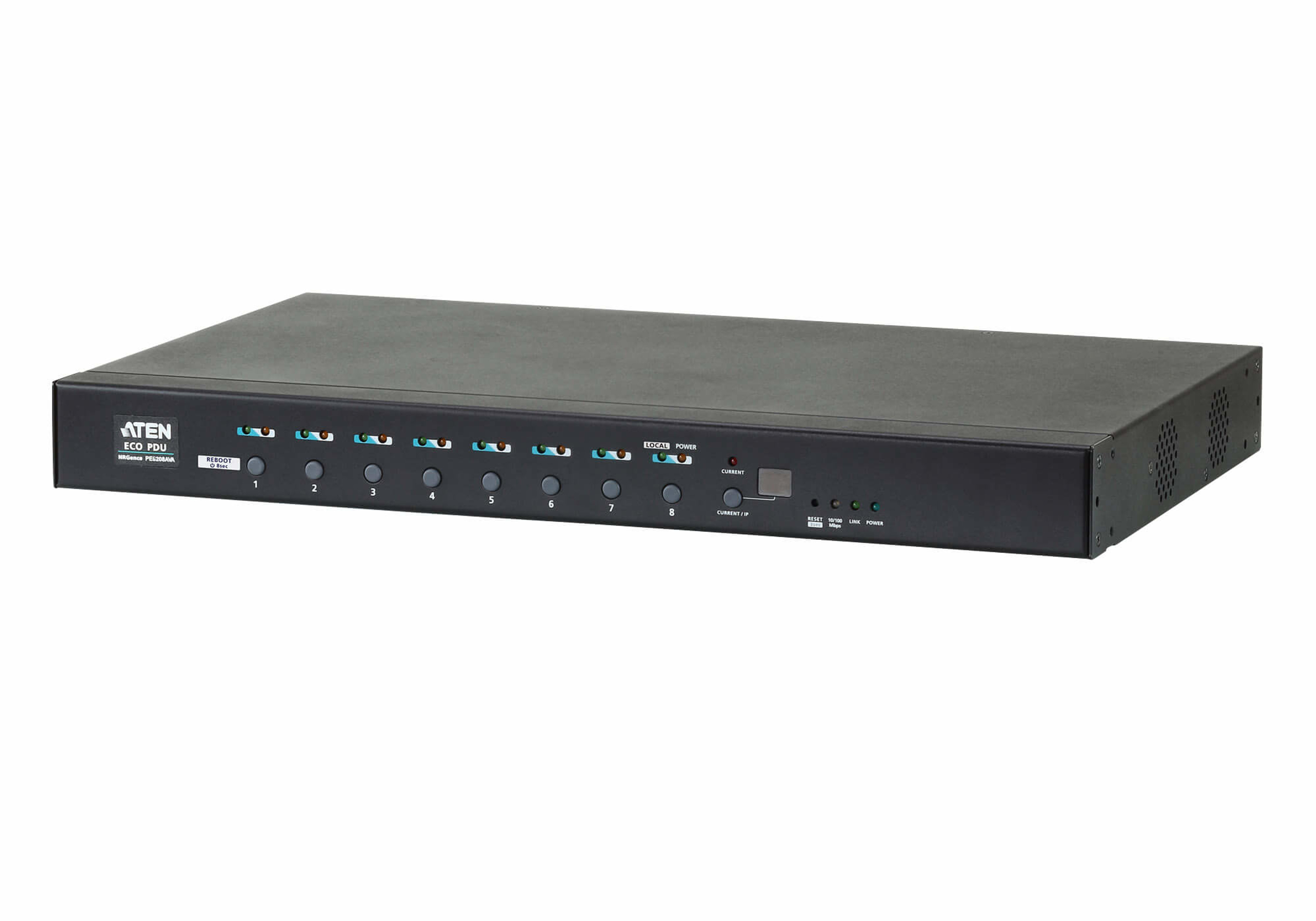

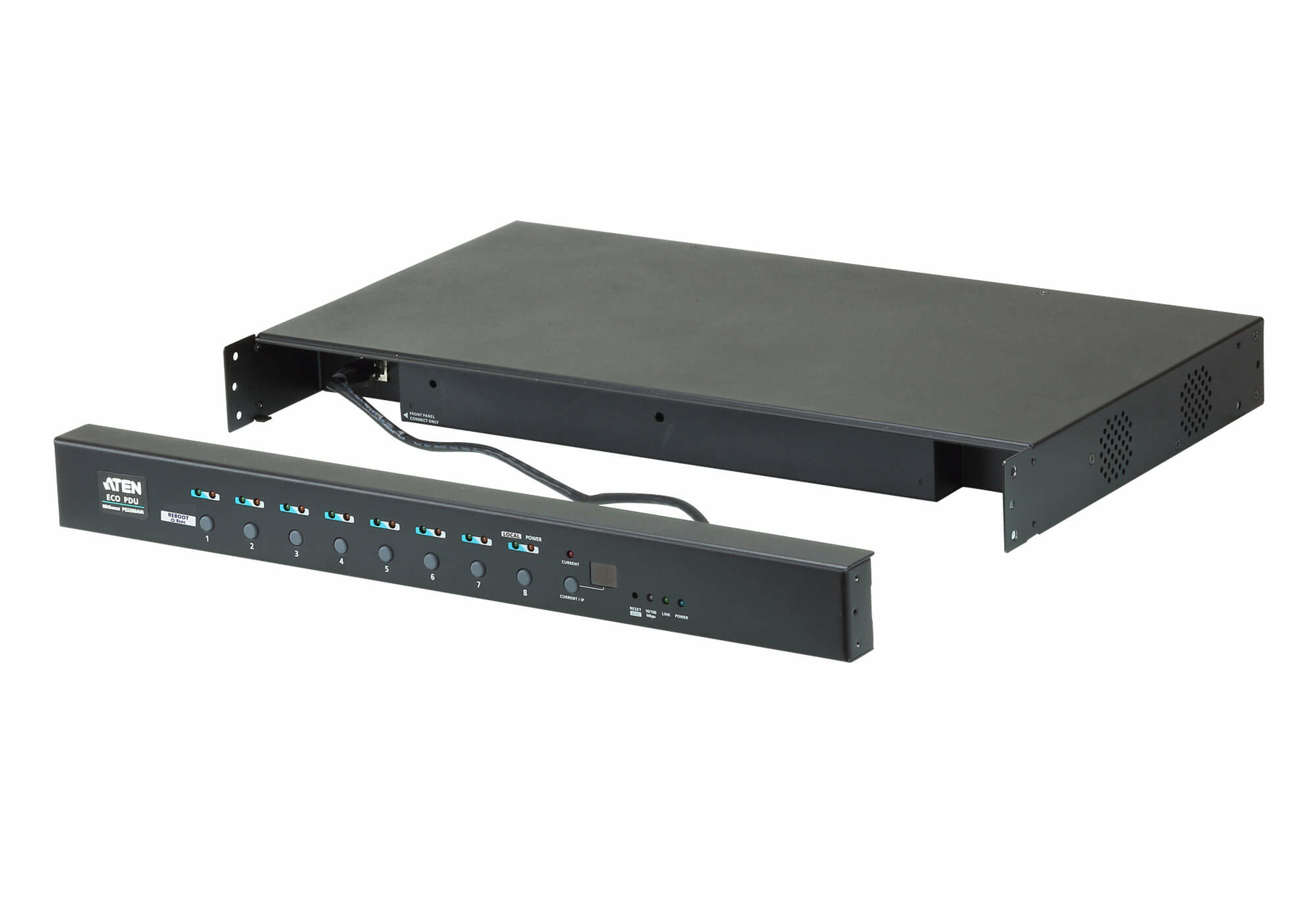

Ideal for Pro-A/V applications, the ATEN NRGence™ PE6208AV eco PDUs are intelligent, 1U rack PDUs that contain 8 AC outlets available in an IEC socket configuration. The unique design with detachable front panel is convenient and mounts with different Pro-A/V equipment in 19" racks with different depths. In addition to remotely controlling individual outlets over the LAN, the front panel pushbuttons offer an extra option to control the outlets locally, allowing the flexibility to easily shutdown Pro-A/V equipment on the spot or from a remote location - for reduced power consumption. The outlets feature a sequential power-ON function that ensures Pro-A/V systems are powered on safely. Furthermore, compatibility with the ATEN Control System and Control4 libraries allow the PE6208AV to integrate with any Pro-A/V equipment for full control of all devices without complex programming. The PE6208AV are optimal energy solutions for data centers as well. With the combination of ATEN eco PDUs and eco Sensors Energy Management software, a data center will be equipped with real-time monitoring, measurement, and analysis of energy consumption - with reports of power usage, PUE, RCI, and RTI to meet the ISO 50001 requirements. These indices reflect the data center's energy usage and offer energy saving suggestions for optimizing energy use and reducing costs
Specifications:
Product Type: |
PDU |
Input Voltage: |
120 V AC |
|
230 V AC |
Input Receptacles: |
IEC 60320 C20 |
|
NEMA 6-20P |
Input Current: |
16 A |
Length: |
17.3" |
Output Receptacles: |
8 x IEC 60320 C13 |
Protection Type: |
Overload Protection |
Rack Height: |
1U |
Brand Name: |
ATEN |
Product Family: |
NRGence |
PDU Type: |
Metered |
Remote Outlet Switching: |
Yes |
Power Rating (VA): |
3680 VA |
General Information |
Product Type: |
PDU |
Manufacturer Part Number: |
PE6208AV |
Manufacturer Website Address: |
http://www.aten-usa.com |
Packaged Quantity: |
1 |
Manufacturer: |
ATEN Technology Inc |
Product Model: |
PE6208AV |
Product Name: |
NRGence PE6208AV 8-Outlets PDU |
Product Line: |
NRGence |
Brand Name: |
ATEN |
Interfaces/Ports |
Network (RJ-45): |
Yes |
Management |
Management: |
Protocols:
- TCP/IP
- UDP
- HTTP
- HTTPS
- SSL
- DHCP
- SMTP
- ARP
- NTP
- DNS
- Auto Sense
- Ping
- Telnet
SNMP:
|
Remote Outlet Switching: |
Yes |
Miscellaneous |
Package Contents: |
- NRGence PE6208AV 8-Outlets PDU
- 1 x Power Cord
- 1 x RJ-45 Cable
- 1 x Cable Ties
- 1 x Footpad Set
- 1 x Mounting Kit
- 1 x User Instructions
|
Environmentally Friendly: |
Yes |
Environmental Certification: |
RoHS |
|
WEEE |
Physical Characteristics |
Weight (Approximate): |
6.61 lb |
Length: |
17.3" |
Mount Type: |
Rack-mountable |
Rack Height: |
1U |
Height: |
1.7" |
Width: |
8.7" |
Power Description |
Input Voltage: |
120 V AC |
|
230 V AC |
Input Current: |
16 A |
Output Voltage Range: |
100 V AC to 240 V AC |
Power Rating (VA): |
3680 VA |
Technical Information |
Input Receptacles: |
NEMA 6-20P |
|
IEC 60320 C20 |
Output Receptacles: |
8 x IEC 60320 C13 |
Protection Type: |
Overload Protection |
PDU Type: |
Metered |
