Description:

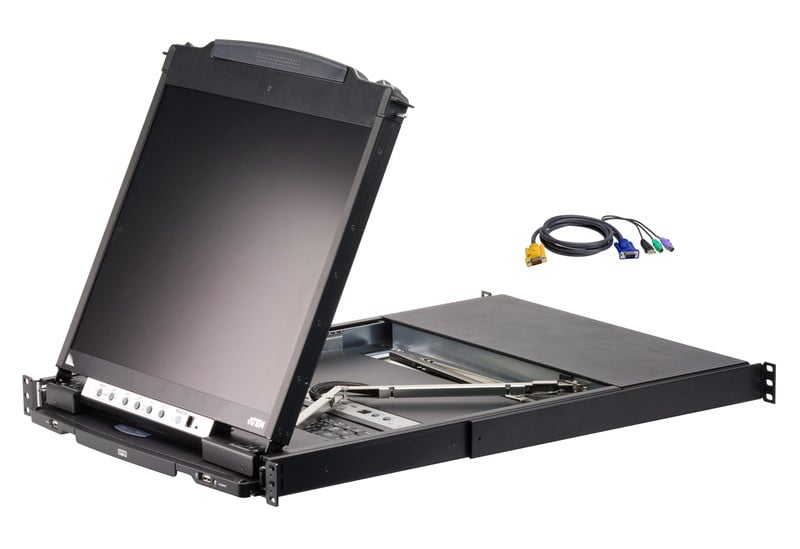

The Aten KL1516ANUKit is a bundle that includes the KL1516AN 19" 16-port Dual Rail LCD KVM and twelve 15ft. USB KVM Adapter Cables (KA7970). The KL1516AN LCD KVM Switch features independently retractable, dual slide 19" LED-backlit LCD monitor and keyboard with built-in touchpad. The KL1516AN KVM switch is a control unit that allows IT administrators to access and control multiple computers from the LCD console and an extra PS/2 or USB KVM console.
For increased reliability and efficiency, RJ-45 connectors and Cat 5e/6 cable are used to link to the computers. Utilizing KVM Adapter Cables for the final linkup, the KL1516AN permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation.
Designed with unique and powerful features
This switch has been designed with unique and powerful features that enable administrators to manage their entire server room and data center devices easily and conveniently. For example, the advanced Adapter ID feature stores the Adapter Cable's configuration information – such as its ID, port name, OS, keyboard language, etc. This feature allows administrators to relocate servers to different ports without having to reconfigure the adapters. Other advances found with this switch include enhanced video quality – extending the distance to the servers to up to 165 feet (50m) at a resolution of 1280 x 1024.
A KL1516AN installation provides one of the best and most economical solutions Aten offers to the SMB market. There is no better way to save time, space, and money than with a KL1516AN KVM switch.
Specifications:
| Model: KL1516ANUKit Specifications |
| Description |
19" 16-port Dual Rail LCD KVM with 15ft. USB KVM Adapter Cable |
| KL1508AN |
| Computer Connections |
| Direct |
16 |
| Maximum |
512 (via Daisy-chain) |
| Port Selection |
OSD, Hotkey, Pushbuttons |
| Connectors |
| Console Ports |
1 x HDB-15 Female (Blue) / 2 x USB Type A Female / 1 x 6-pin Mini-DIN Female (Purple) / 1 x 6-pin Mini-DIN Female (Green) |
| KVM Ports |
16 x RJ-45 Female |
| Daisy Chain Ports |
1 x DB-25 Male |
| Firmware Upgrade |
1 x RJ-11 Female |
| Power |
1 x 3-prong AC Socket |
| External Mouse Port |
1 x USB Type A Female |
| Switches |
| Port Selection |
16 x Pushbutton |
| Station Selection |
2 x Pushbutton |
| Reset |
1 x Semi-recessed Pushbutton |
| Firmware Upgrade |
1 x Slide |
| Power |
1 x Rocker |
| LCD Adjustment |
4 x Pushbutton |
| LCD Power |
1 x Pushbutton |
| LEDs |
| Online |
8 (Green) |
| Selected |
8 (Orange) |
| Power |
1 (Blue) |
| Station ID |
1 x 2 Digit 7-segment (Orange) |
| Lock |
1 x Num Lock (Green) / 1 x Caps Lock (Green) / 1 x Scroll Lock (Green) |
| LCD Power |
1 (Orange) |
| Emulation |
| Keyboard / Mouse |
PS/2, USB, Serial |
| Panel Spec |
| LCD Module |
19" TFT-LCD |
| Resolution |
1600 x 1200 @ 60 Hz (40 m); 1280 x 1024 @ 75 Hz (50 m) |
| Response time |
5 ms |
| Viewing Angle |
170° (H), 160° (V) |
| Pixel Pitch |
0.294 mm x 0.294 mm |
| Support Color |
16.7M colors |
| Contrast Ratio |
1000:1 |
| Luminance |
250 cd/m² |
| Video |
| Input Video Resolution |
1920 x 1200 @ 60 Hz |
| Second console |
1920 x 1200 @ 60 Hz |
| Scan Interval |
1–255 seconds |
| Maximum Input Power Rating |
100-240V AC; 50-60Hz; 1A |
| Power Consumption |
100V/23W; 230V/23W |
| Environmental |
| Operating Temperature |
0 - 40°C |
| Storage Temperature |
-20 - 60°C |
| Humidity |
0–80% RH, Non-condensing |
| Physical Properties |
| Housing |
Metal |
| Weight |
15.36 kg ( 33.83 lb ) |
| Dimensions (L x W x H) |
48.00 x 70.12 x 4.40 cm (18.9 x 27.61 x 1.73 in.) |
| USB KVM Adapter |
| Connectors |
| Link |
1 x RJ-45 Male with 4.5 m Cat5 cable |
| Computer |
1 x USB Male |
| 1 x HDB-15 Male |
| LEDs |
| Online |
1 (Orange) |
| Physical Properties |
| Housing |
Plastic |
| Weight |
0.24 kg ( 0.53 lb ) |
| Dimensions (L x W x H) |
7.93 x 3.70 x 1.55 cm (3.12 x 1.46 x 0.61 in.) |
