Aten KE6920T 2K DVI-D Dual-Link KVM over IP Transmitter with Dual SFP

Aten

Regular Price $1,592.00
Discount Price: $1,389.00
Product Overview:

ATEN 2K DVI-D Dual-Link KVM over IP Transmitter with Dual SFP - 1 Computer(s) - 1 Local User(s) - 32808.40 ft Range - 2K - 2560 x 2048 Maximum Video Resolution

MFG#:
KE6920T
Product Category:
KVM Over IP
Adding to cart… The item has been added

Description:

ATEN 2K DVI-D Dual-Link KVM over IP Transmitter with Dual SFP - 1 Computer(s) - 1 Local User(s) - 32808.40 ft Range - 2K - 2560 x 2048 Maximum Video Resolution - 1 x Network (RJ-45) - 3 x USB - 2 x DVI - Desktop, Rack-mountable

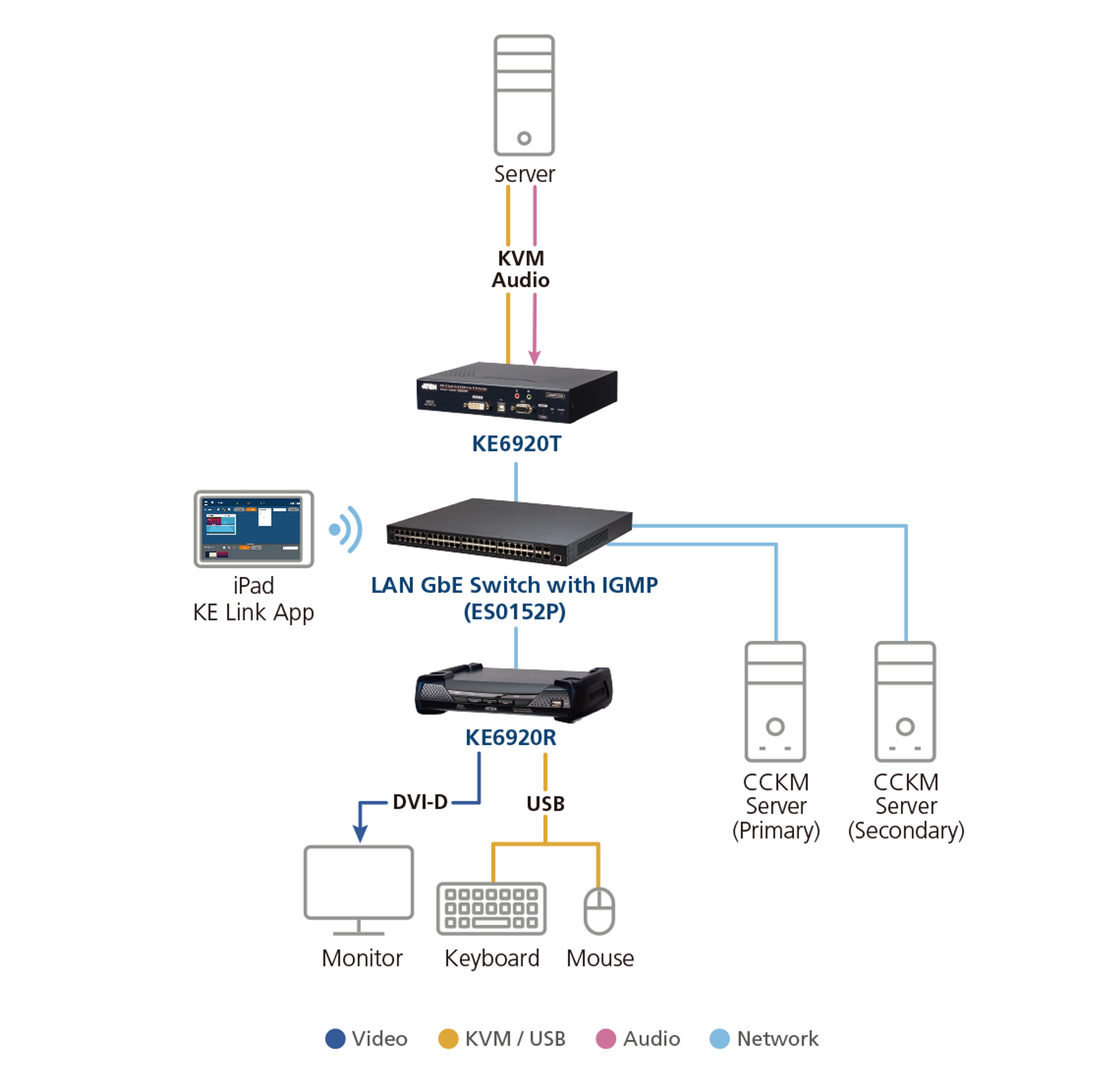

The KE6920 is a high performance IP-based extender consisting of a transmitter (KE6920T) and a receiver (KE6920R). The transmitter connects to a computer to deliver the computer's data to the receiver to collectively provide console access from a remote or separate location. The KE6920 allows extended access of computer systems remotely via USB consoles (USB keyboard, USB mouse, DVI monitor) over intranet, enabling users to place the computer system in secure and temperature controlled environments, which maybe isolated from users' workstation.

The KE6920 supports one DVI display at each end, providing video resolutions up to 2560 x 2048 @ 50Hz and flawless and lossless video compression quality with extremely low latency. The KE6920 supports network connections via the RJ-45 port or the two SFP slots. The transmitter and receiver can be connected either directly to each other, or via a high-speed network over a copper-based or fiber-based LAN. By connecting via the SFP slots with 1Gbps SFP fiber module expansions on fiber optic network, you can extend transmission distances up to 10km. The KE6920 also features dual power supplies for redundancy to ensure dependable services.

The KE6920 can be set on a desk, mounted on a wall or at the rear of a rack with its space saving 0U rack-mount design. As an IP-based matrix extender, the KE6920 can be used as a point-to-point / point-to-multipoint / multipoint-to-point extender, or integrated into a KVM over IP Matrix System (multipoint-to-multipoint) when combined with the KE Matrix Management Software (CCKM), providing more flexible applications in different working environments.

When integrated with the KE Matrix Management Software, the KE6920 supports more advanced features such as authentication lock, adaptive fast switching, connection redundancy, disconnection alert, boundless switching, "Push" and "Pull", video wall and multi-display setups, and profile scheduling that provide uninterrupted access with quick and easy control tools to use the KE6920 over a network. More functions include auto detection of all KE Series extenders in the same subnet for fast installation or configuration, username / password authentication and authorization, and the ability to define different types of connections that can be switched and shared. Security features AES encryption support for secured data transmissions, and RADIUS, LDAP, AD or remote user authentication methods provide an added layer of connection security. Moreover, with an OSD, RS-232 support, and Auto MDIX, the KE6920 is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.



Features
  • Supports video resolutions up to 2560 x 2048 @50Hz, including resolutions of 2560 x 1600 @60Hz and 2048 x 2048 @60Hz
  • Authentication Lock - automatically logs in when the power of the system is resumed after power off
  • Connection Redundancy - automatically connects to another transmitter (Tx) after disconnection with the original Tx, ensuring constant access to servers
  • Supports power/network failover - dual DC jacks for power redundancy and 1 RJ45 & 2 SFP fiber ports for network failover to ensure constant availability for mission-critical applications

Specifications:

Power Description
Power Consumption 10.87 W
Video
Maximum Video Resolution 2560 x 2048
Graphic Mode 2K
Technical Information
Connectivity Technology Wired
Maximum Operating Distance 32808.40 ft
Number of Computers Supported 1
Number of Local Users Supported 1
Device Type KVM Extender
Interfaces/Ports
USB Yes
DVI Yes
Number of Network (RJ-45) Ports 1
Network (RJ-45) Yes
Number of USB Ports 3
Number of DVI Ports 2
Miscellaneous
Package Contents
  • 2K DVI-D Dual-Link KVM over IP Transmitter with Dual SFP
  • 1 x Power Adapter & Power Cord
  • 1 x User Instructions
Certifications & Standards
  • CE
  • FCC
Environmentally Friendly Yes
Environmental Certification China RoHS
  WEEE
  RoHS
Physical Characteristics
Form Factor Rack-mountable
  Desktop
Transmitter Height 1.65"
Transmitter Width 6.43"
Transmitter Depth 8.46"
Transmitter Weight (Approximate) 2.54 lb
General Information
Product Type KVM Extender Transmitter
Manufacturer Part Number KE6920T
Manufacturer Website Address http://www.aten.com/us/en/
Packaged Quantity 1
Manufacturer ATEN Technology, Inc
Product Model KE6920T
Product Name 2K DVI-D Dual-Link KVM over IP Transmitter with Dual SFP
Product Line ALTUSEN
Brand Name ATEN
