Description:

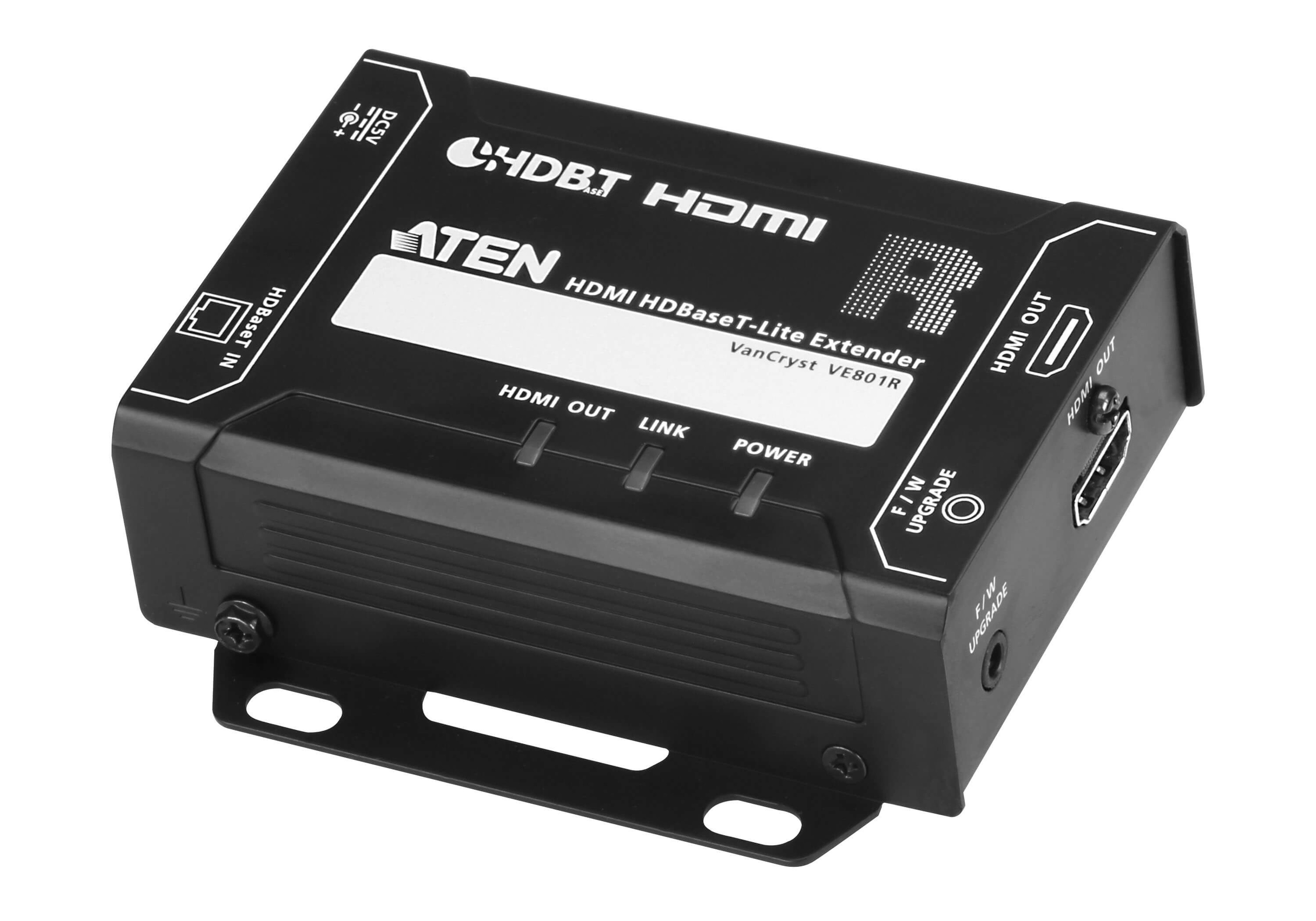

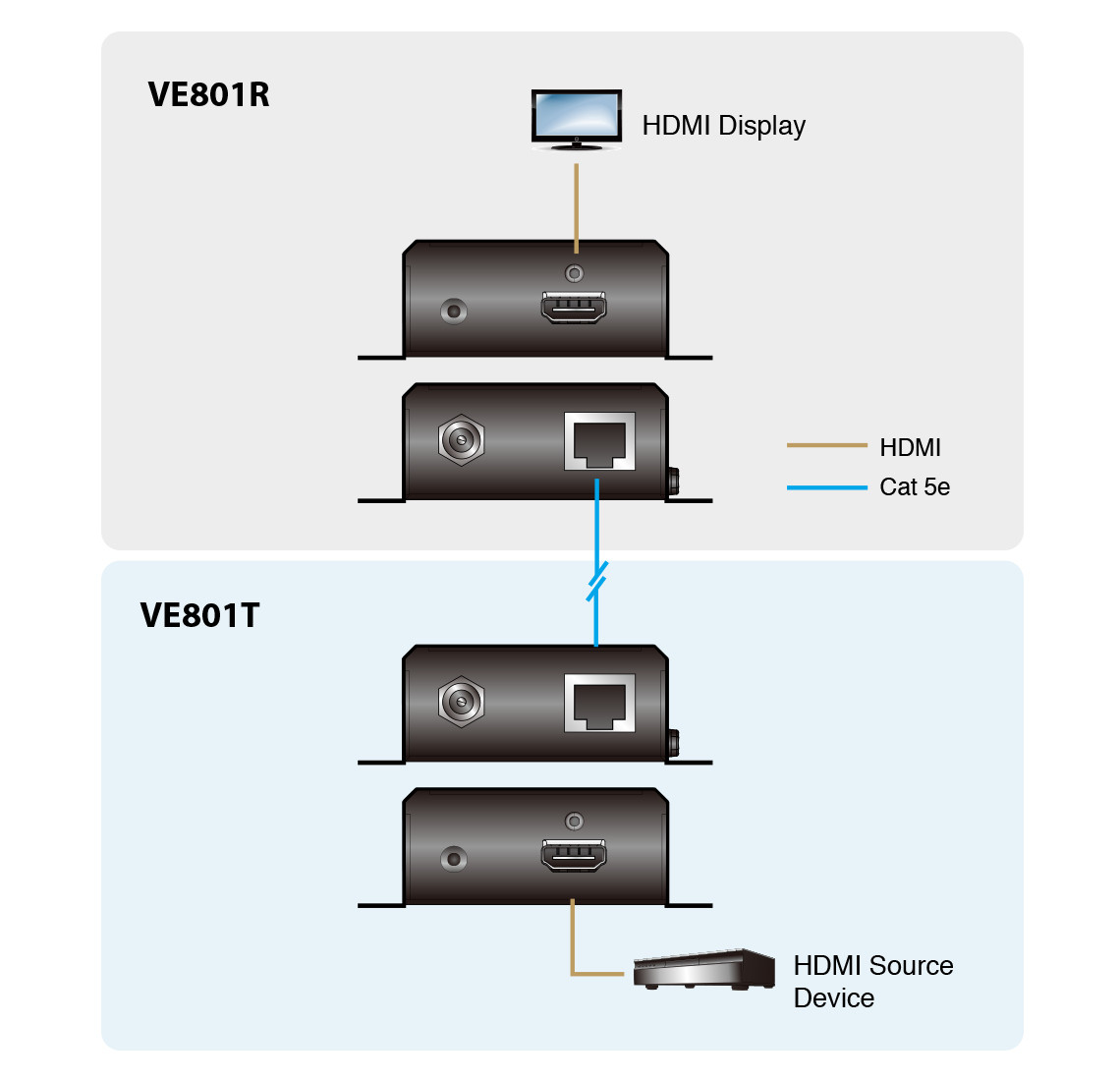

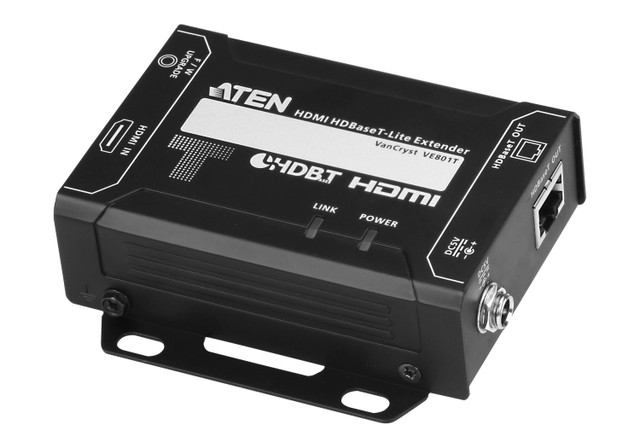

The VE801 HDMI HDBaseT-Lite Extender extends an HDBaseT signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801 all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801 is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances
Specifications:
| Product Type: |
Video Extender Transmitter/Receiver |
| Connectivity Technology: |
Wired |
| Form Factor: |
Rack-mountable |
| Brand Name: |
ATEN |
| Maximum Operating Distance: |
70.87" |
| Number of Network (RJ-45) Ports: |
2 |
| Product Family: |
VanCryst |
| Number of HDMI Inputs: |
1 |
| Media Type Supported: |
Twisted Pair |
| Number of Output Devices Supported: |
1 |
| Number of Input Devices Supported: |
1 |
| General Information |
|---|
| Product Type: |
Video Extender Transmitter/Receiver |
| Manufacturer Part Number: |
VE801 |
| Manufacturer Website Address: |
http://www.aten-usa.com |
| Manufacturer: |
ATEN Technology Inc |
| Product Model: |
VE801 |
| Product Name: |
HDMI HDBaseT-Lite Extender (HDBaseT Class B) |
| Product Line: |
VanCryst |
| Brand Name: |
ATEN |

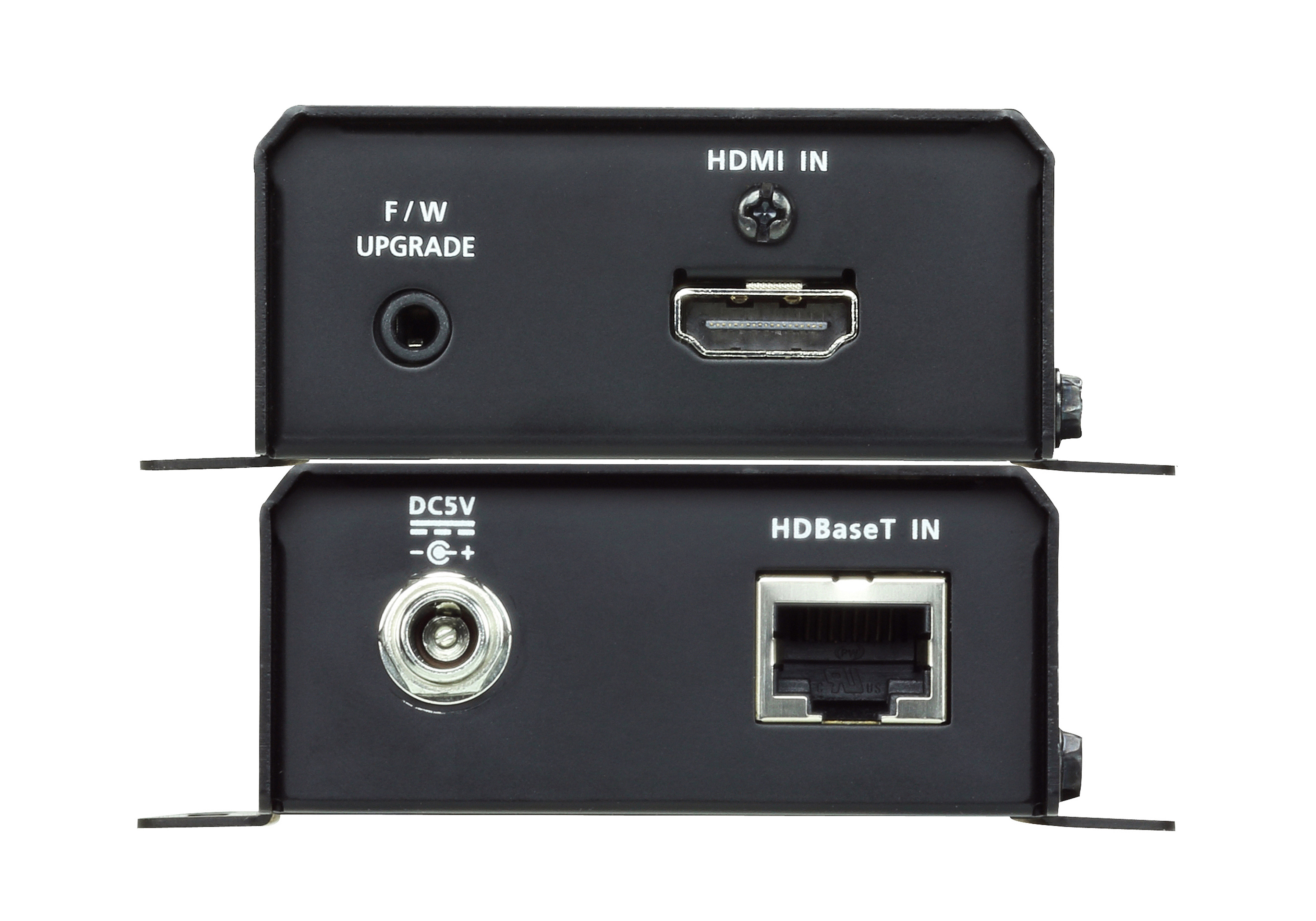

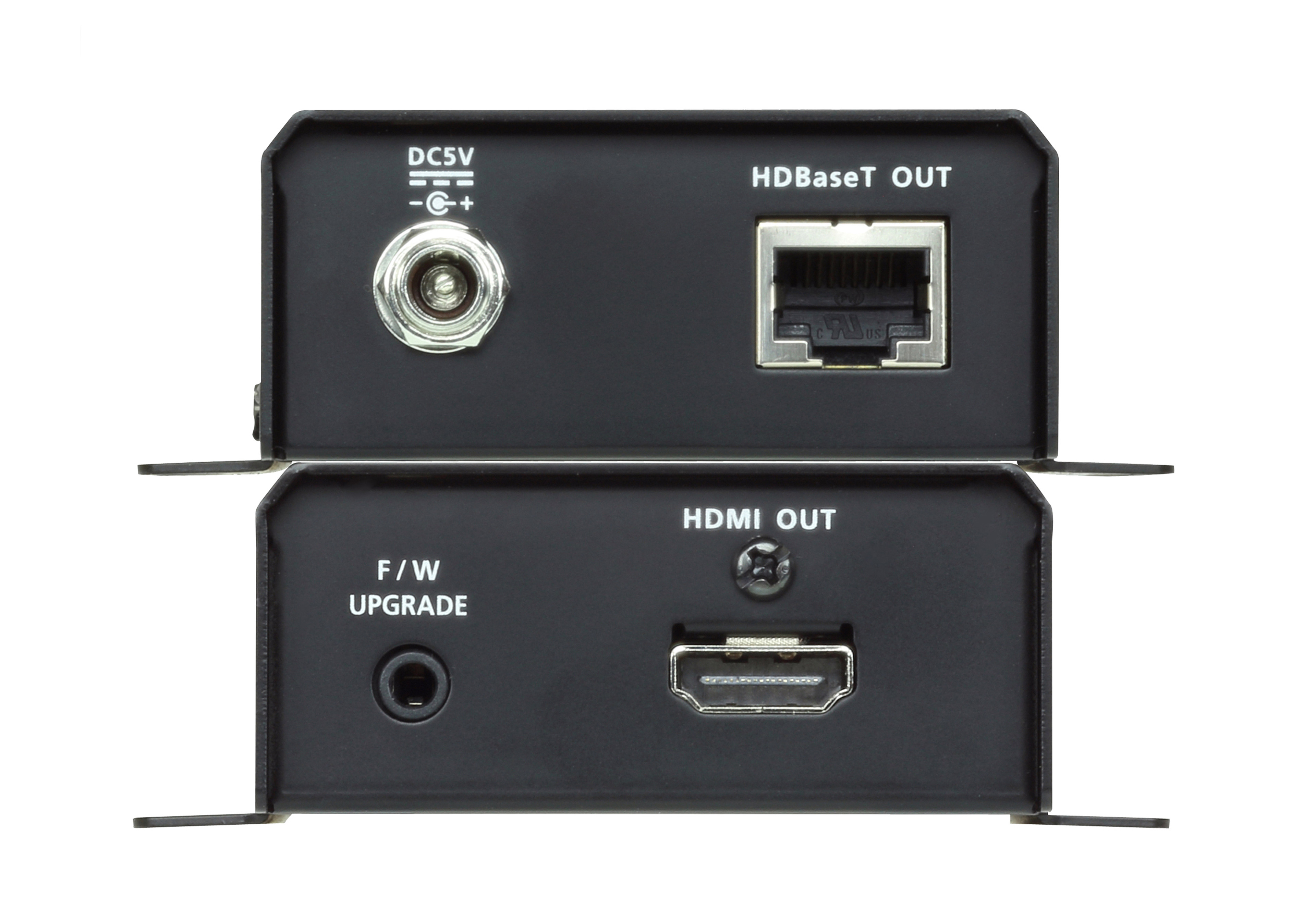

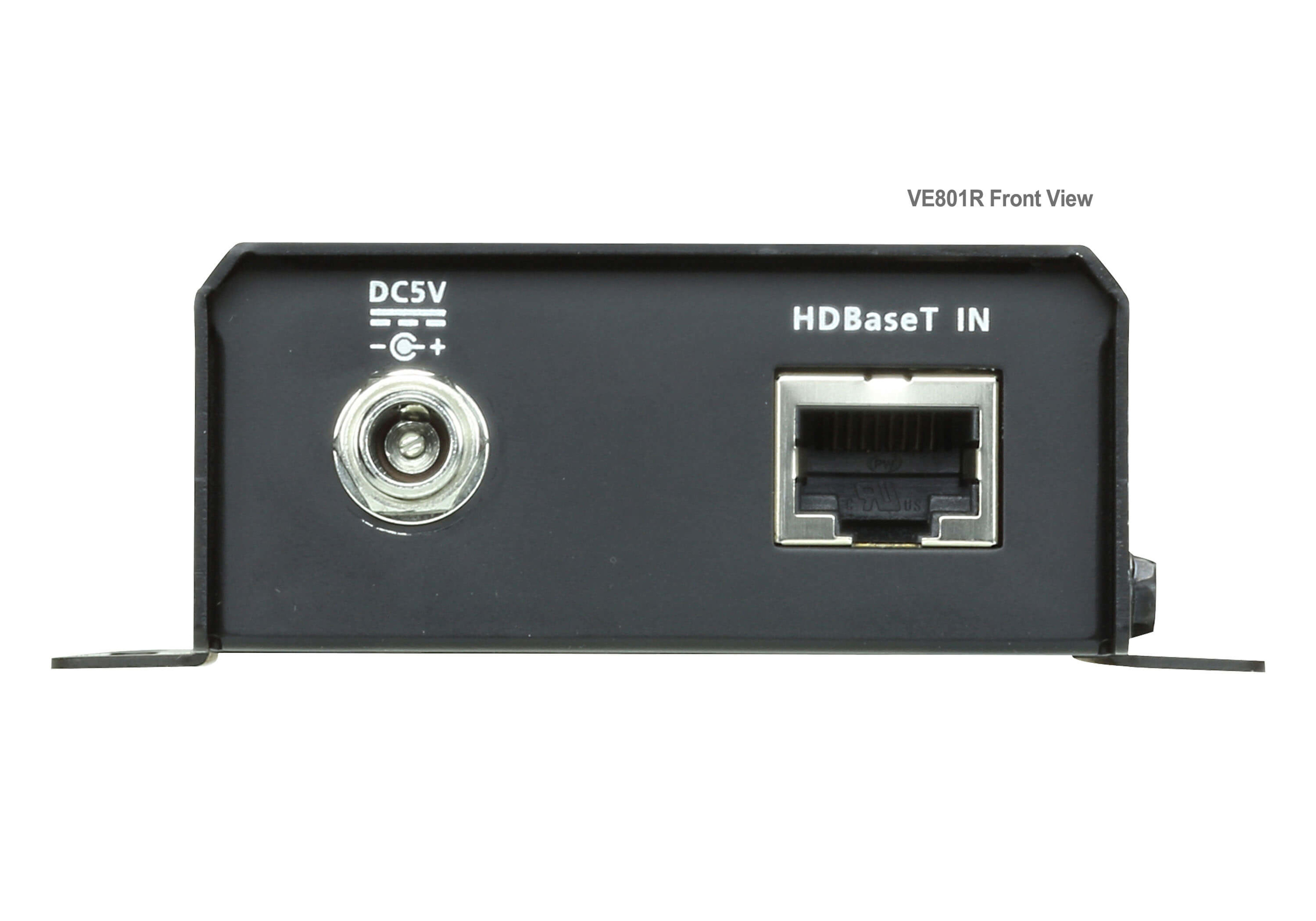

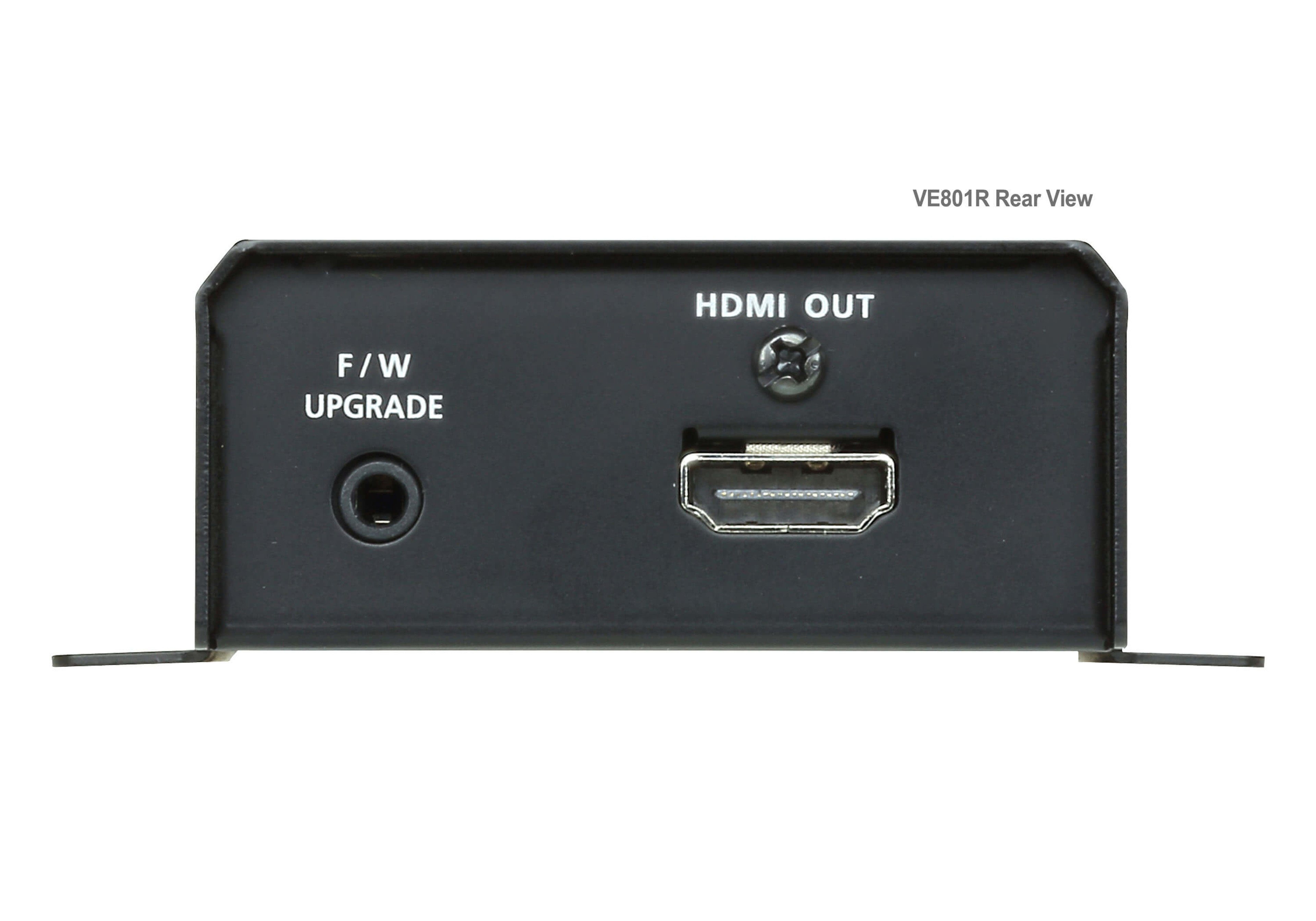

| Interfaces/Ports |
|---|
| Number of Network (RJ-45) Ports: |
2 |
| Network (RJ-45): |
Yes |
| Number of HDMI Inputs: |
1 |
| Number of HDMI Outputs: |
1 |
| HDMI In: |
Yes |
| HDMI Out: |
Yes |
| Media & Performance |
|---|
| Twisted Pair Cable Standard: |
Category 6a |
| Media Type Supported: |
Twisted Pair |
| Miscellaneous |
|---|
| Package Contents: |

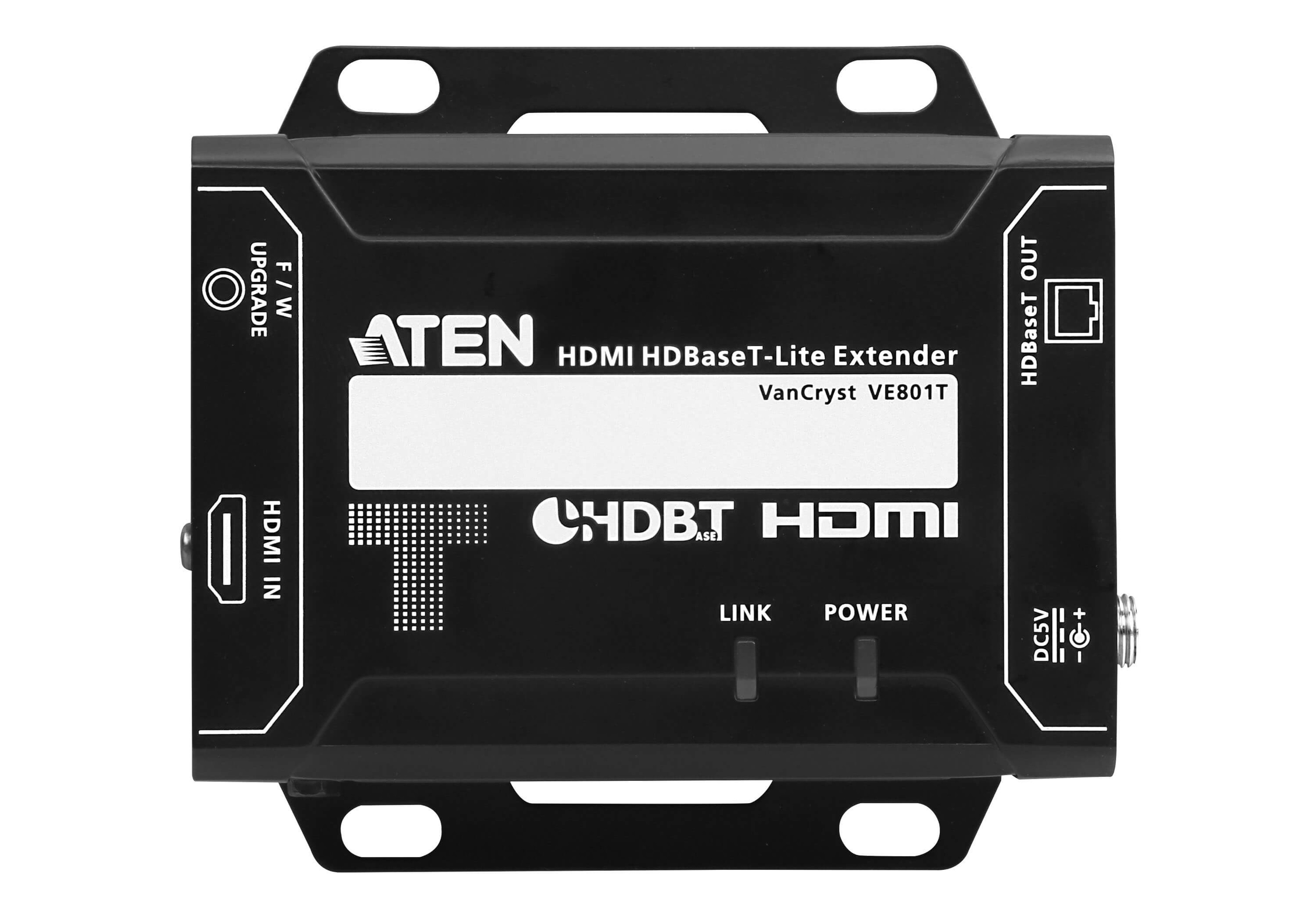

- 1 x VE801T HDMI HDBaseT-Lite Extender

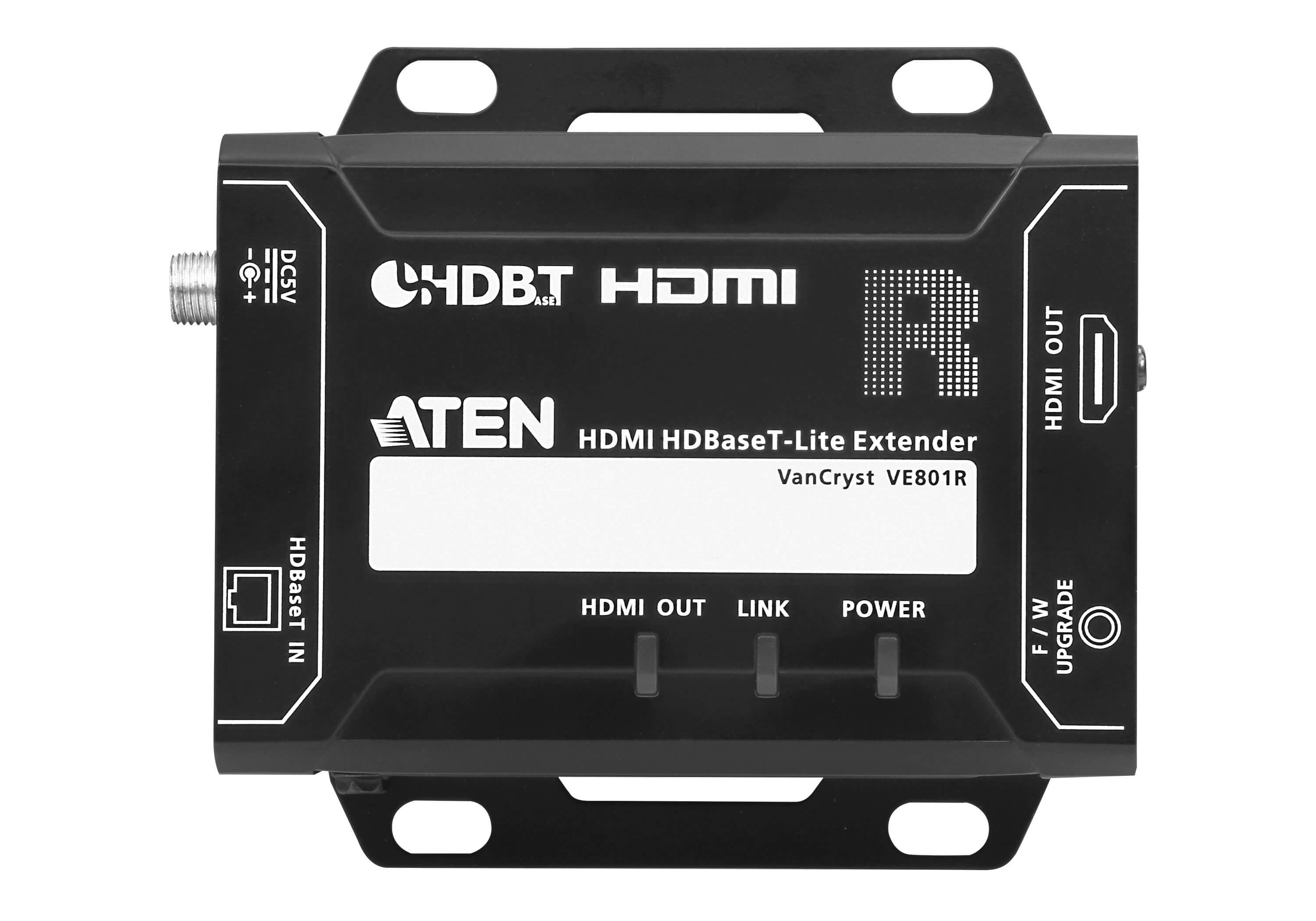

- 1 x VE801R HDMI HDBaseT-Lite Extender
- 2 x Power Adapters
- 1 x User Instructions
|
| Environmentally Friendly: |
Yes |
| Environmental Certification: |
RoHS |
|
WEEE |
| Physical Characteristics |
|---|
| Material: |
Metal |
| Form Factor: |
Rack-mountable |
| Transmitter Height: |
1.18" |
| Transmitter Width: |
3.43" |
| Transmitter Depth: |
4.06" |
| Transmitter Weight (Approximate): |
1.08 lb |
| Power Description |
|---|
| Input Voltage: |
5 V DC |
| Technical Information |
|---|
| Connectivity Technology: |
Wired |
| Maximum Operating Distance: |
70.87" |
| Number of Output Devices Supported: |
1 |
| Number of Input Devices Supported: |
1 |
| Video |
|---|
| Graphics Modes: |
4K |
| Maximum Video Resolution: |
4096 x 2160 |
