Description:

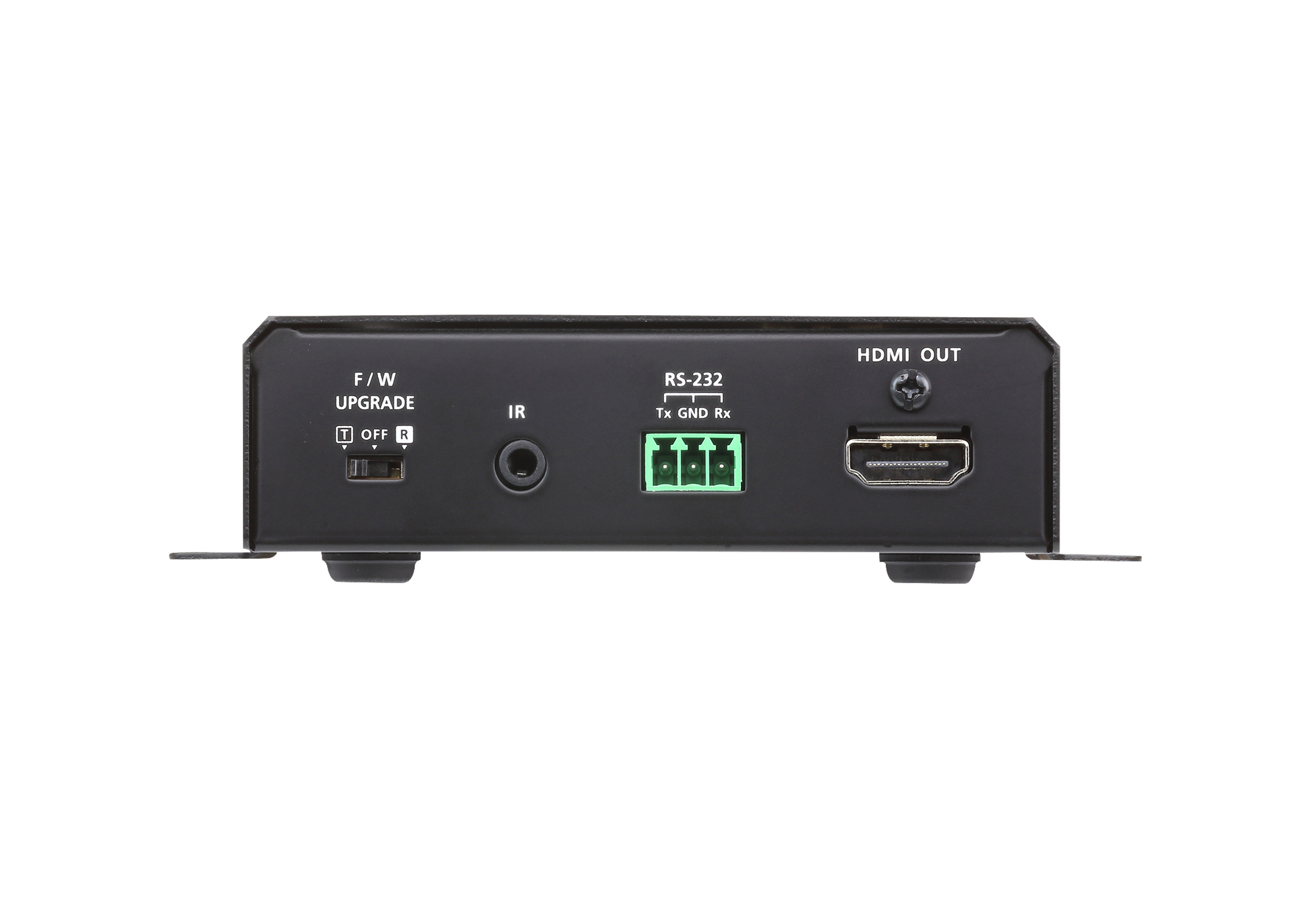

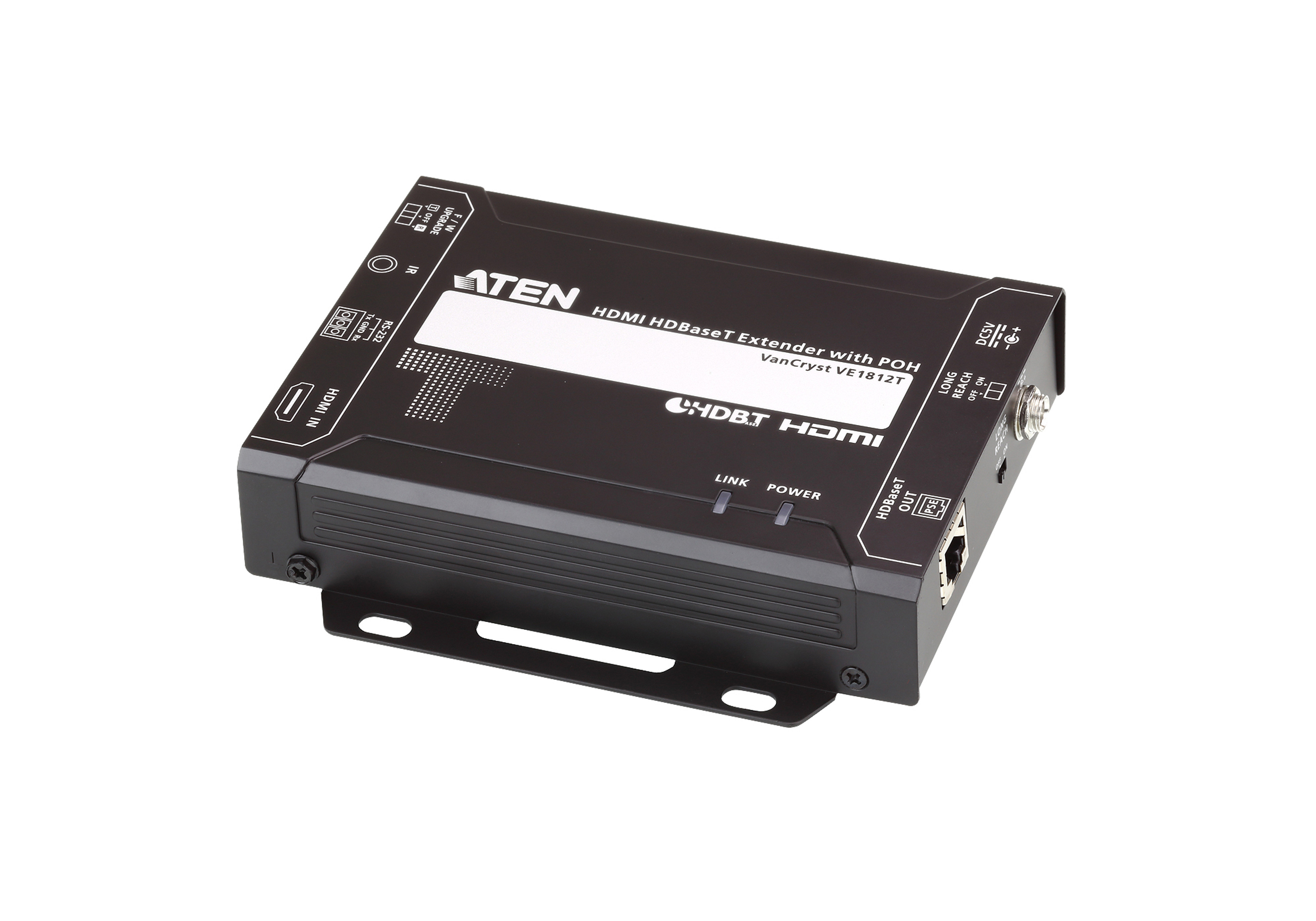

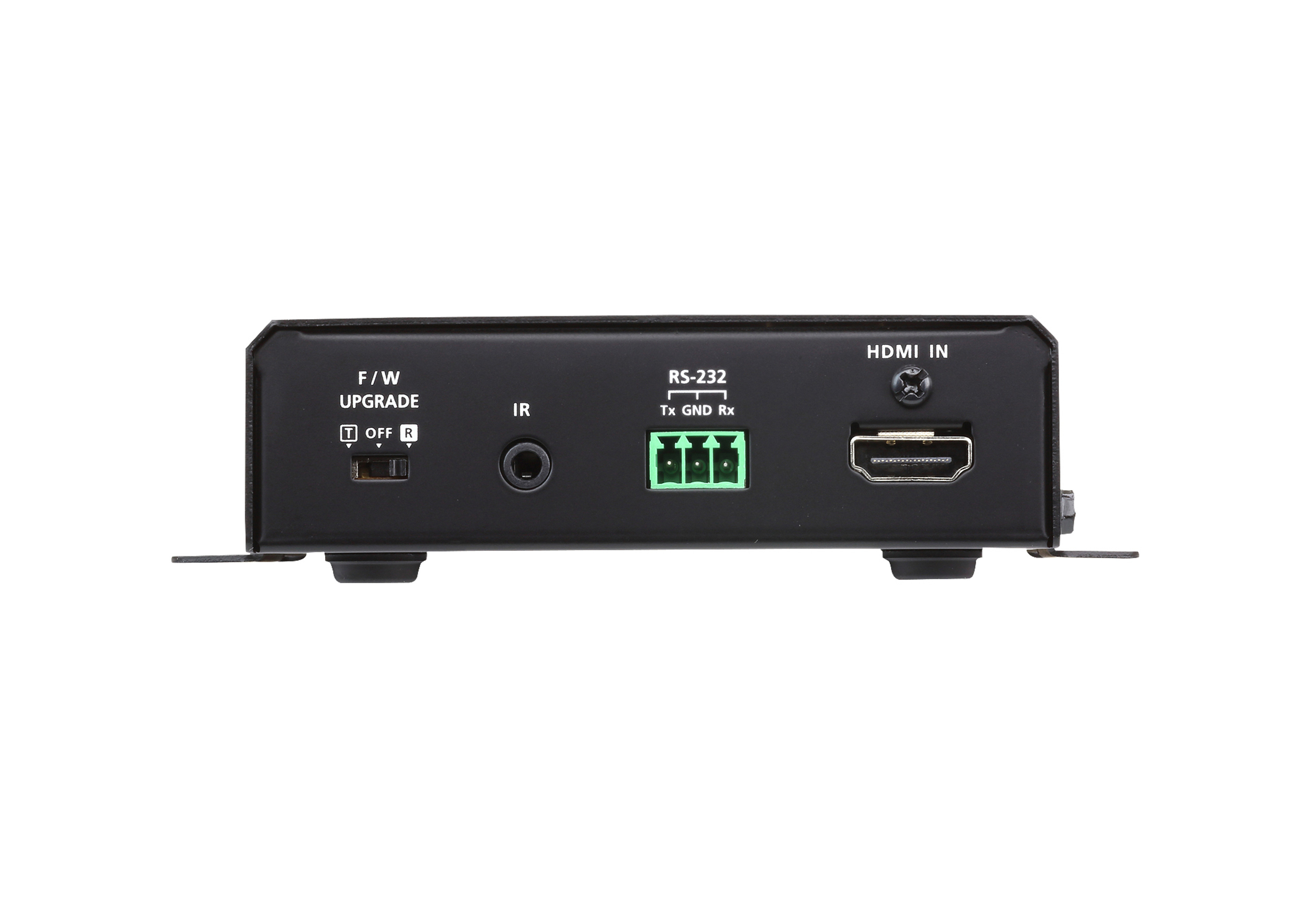

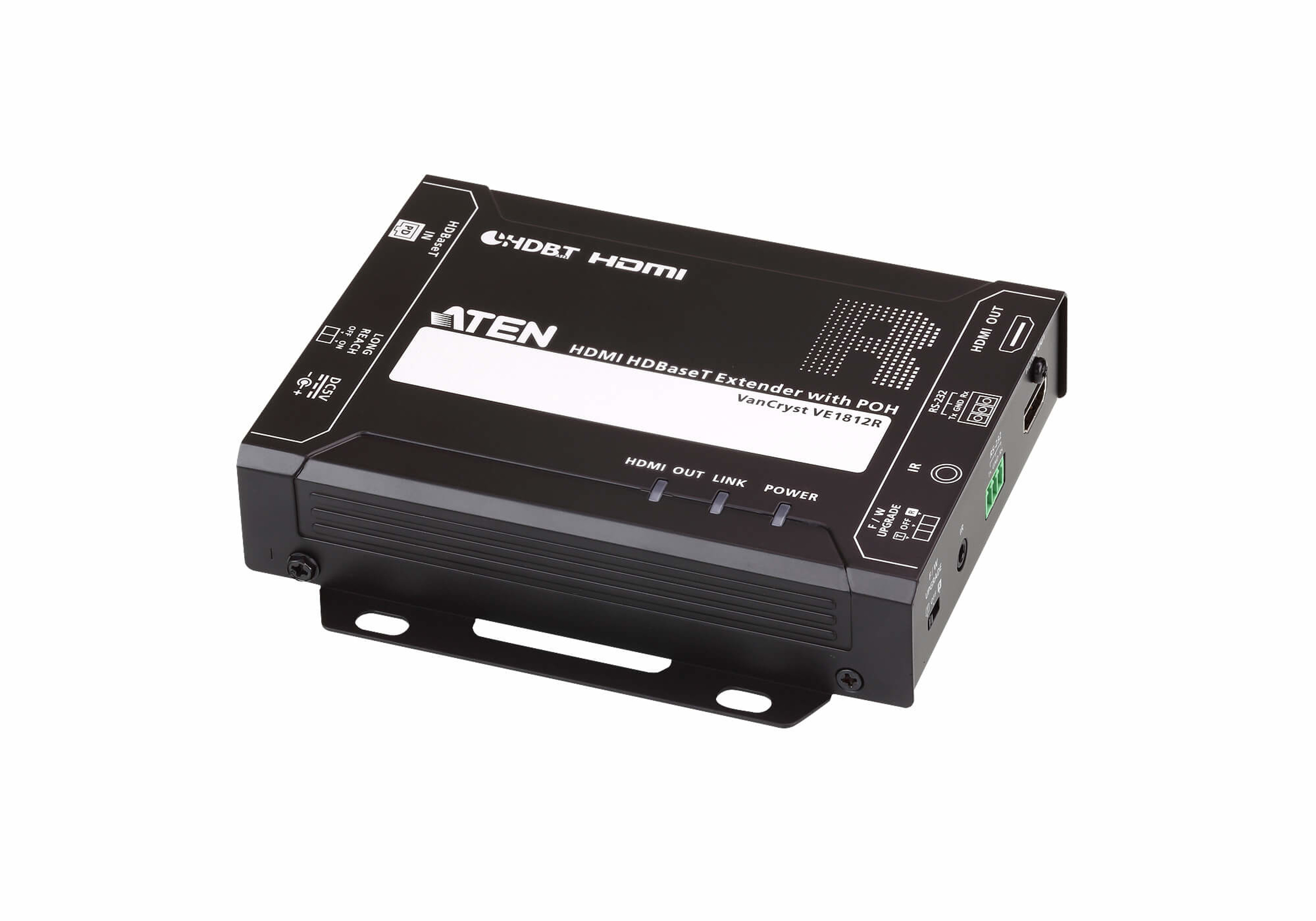

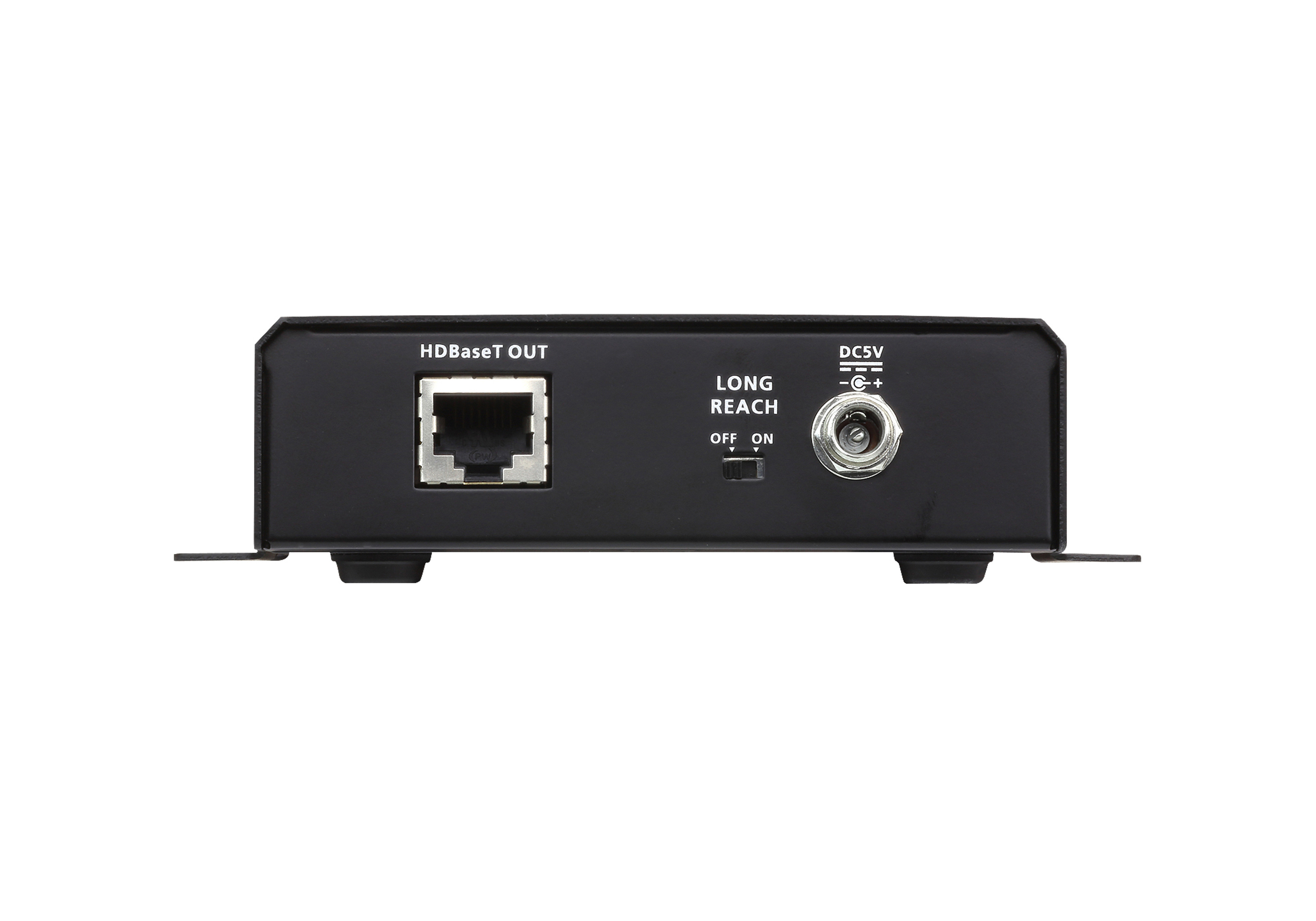

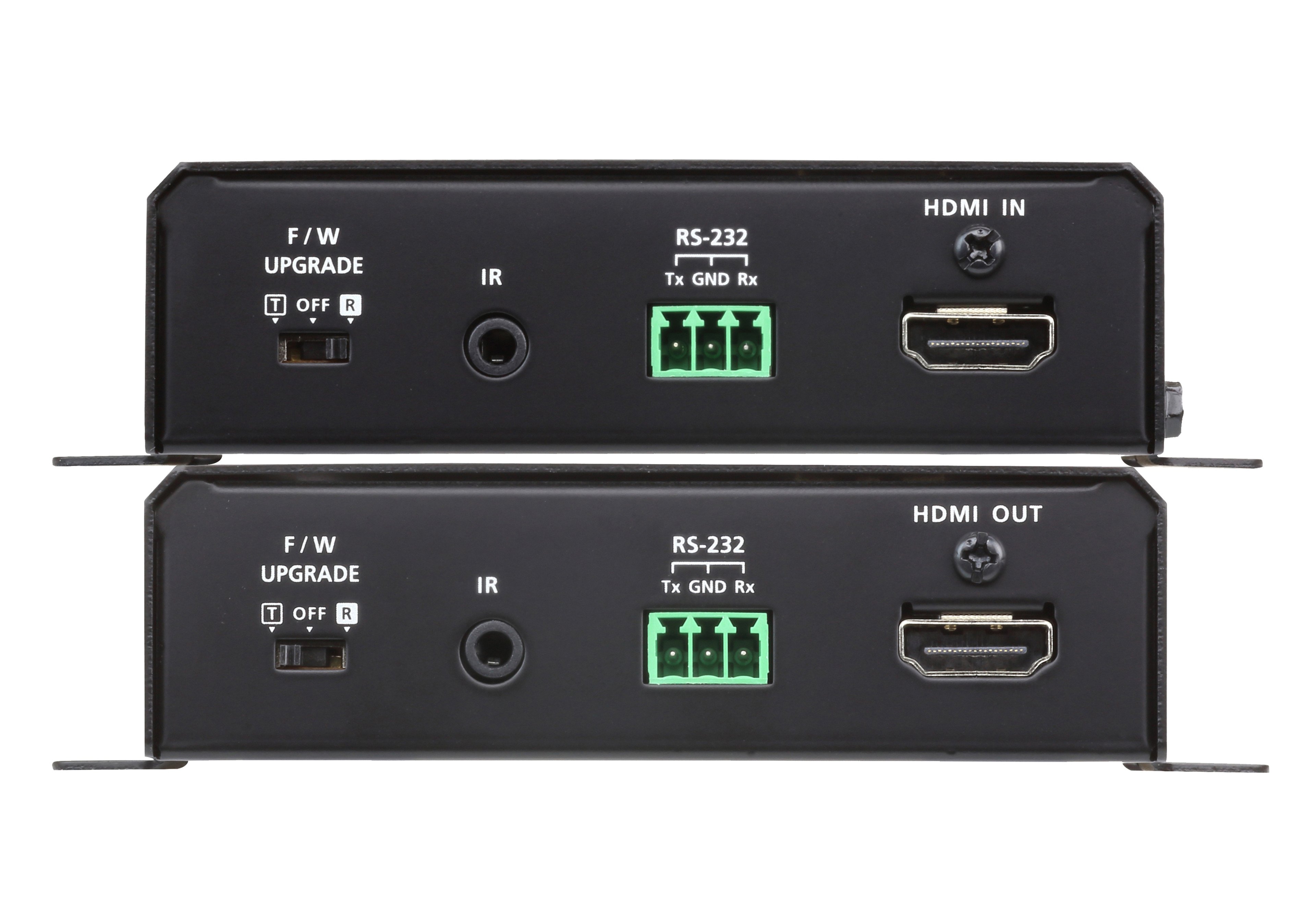

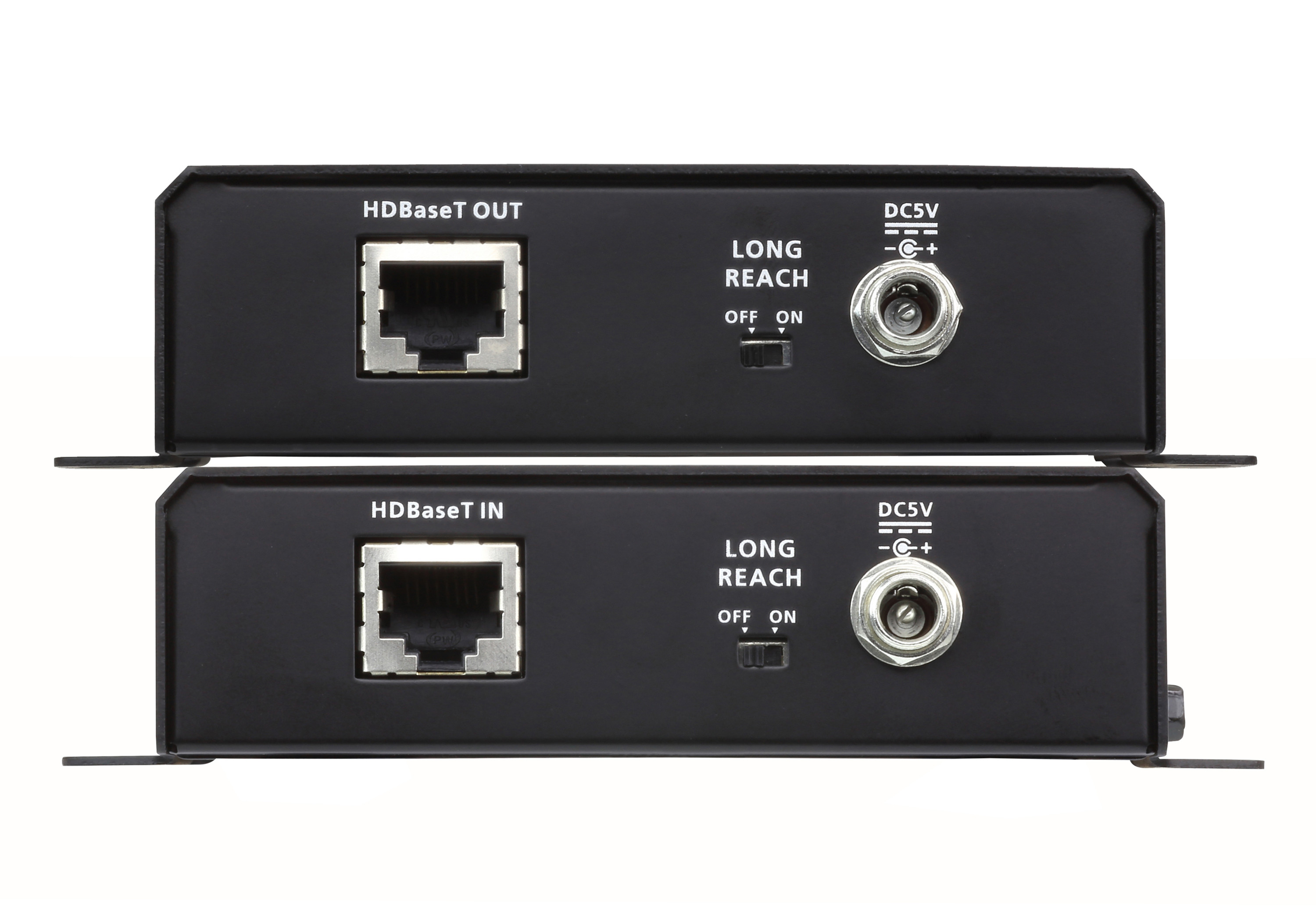

The VE1812 HDMI HDBaseT Extender with POH is the ideal solution for connecting equipment in remote locations up to 100m over a single Cat 5e / 6 / 6a cable. With Long Reach Mode enabled, the VE1812 can extend HDMI signal up to 150m @1080p. The VE1812 supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.
The VE1812 features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812 is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. The VE1812 is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.
Specifications:
| Product Type: |
Video Extender Transmitter/Receiver |
| Connectivity Technology: |
Wired |
| Form Factor: |
Rack-mountable |
| Brand Name: |
ATEN |
| Maximum Operating Distance: |
492.13 ft |
| Number of Network (RJ-45) Ports: |
2 |
| Product Family: |
VanCryst |
| Number of HDMI Inputs: |
1 |
| Media Type Supported: |
Twisted Pair |
| Number of Output Devices Supported: |
1 |
| Number of Input Devices Supported: |
1 |
| General Information |
|---|
| Product Type: |
Video Extender Transmitter/Receiver |
| Manufacturer Part Number: |
VE1812 |
| Manufacturer Website Address: |
http://www.aten.com/us/en/ |
| Manufacturer: |
ATEN Technology Inc |
| Product Model: |
VE1812 |
| Product Name: |
HDMI HDBaseT Extender with POH (4K@100m) (HDBaseT Class A) |
| Product Line: |
VanCryst |
| Brand Name: |
ATEN |
| Interfaces/Ports |
|---|
| Number of Network (RJ-45) Ports: |
2 |
| Network (RJ-45): |
Yes |
| Serial Port: |
Yes |
| Number of HDMI Inputs: |
1 |
| Number of HDMI Outputs: |
1 |
| HDMI In: |
Yes |
| HDMI Out: |
Yes |
| Media & Performance |
|---|
| Twisted Pair Cable Standard: |
Category 6a |
| Media Type Supported: |
Twisted Pair |
| Miscellaneous |
|---|
| Package Contents: |
- 1 x VE1812 HDMI HDBaseT Transmitter with POH
- 1 x VE1812 HDMI HDBaseT Receiver with POH
- 1 x Power Adapter
- 1 x IR Transmitter
- 1 x IR Receiver
- 2 x RS-232 Terminal Blocks
- 1 x User Instructions
|
| Environmentally Friendly: |
Yes |
| Environmental Certification: |
WEEE |
|
RoHS |
| Physical Characteristics |
|---|
| Form Factor: |
Rack-mountable |
| Transmitter Height: |
1.18" |
| Transmitter Width: |
4.84" |
| Transmitter Depth: |
5.53" |
| Receiver Depth: |
5.53" |
| Transmitter Weight (Approximate): |
2.03 lb |
| Technical Information |
|---|
| Connectivity Technology: |
Wired |
| Maximum Operating Distance: |
492.13 ft |
| Number of Output Devices Supported: |
1 |
| Number of Input Devices Supported: |
1 |
| Video |
|---|
| Graphics Modes: |
4K |
| Maximum Video Resolution: |
3840 x 2160 |
