Description:

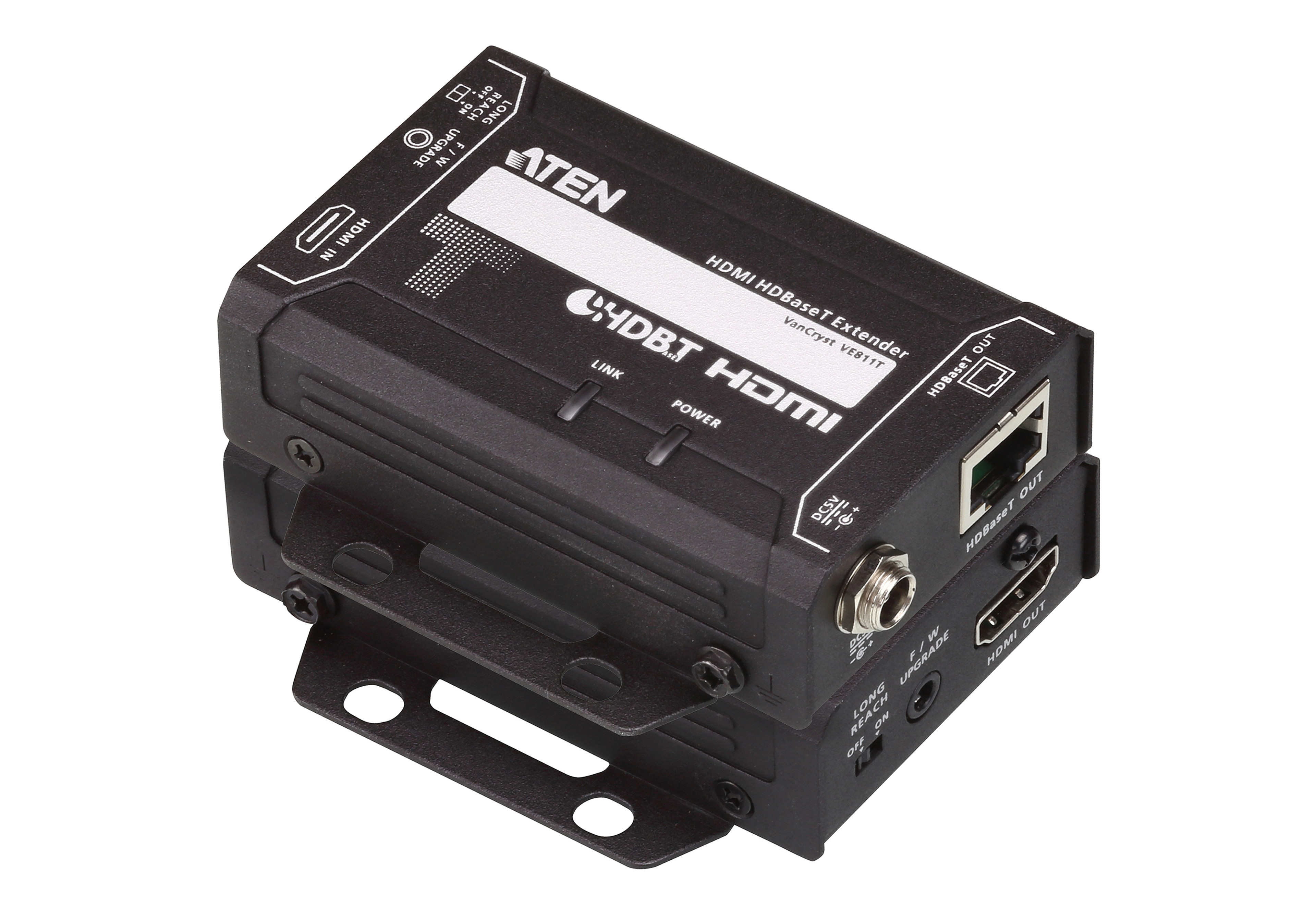

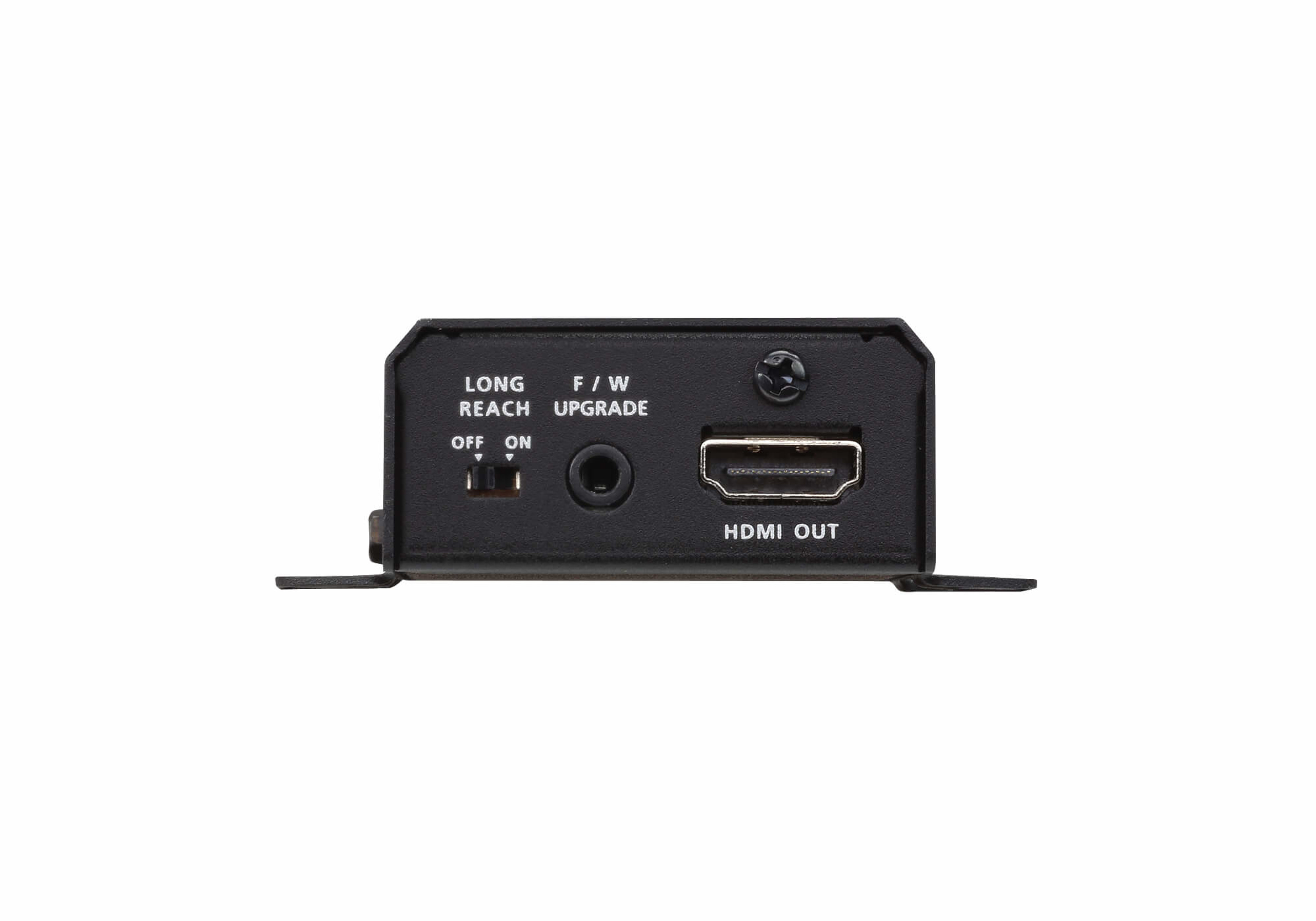

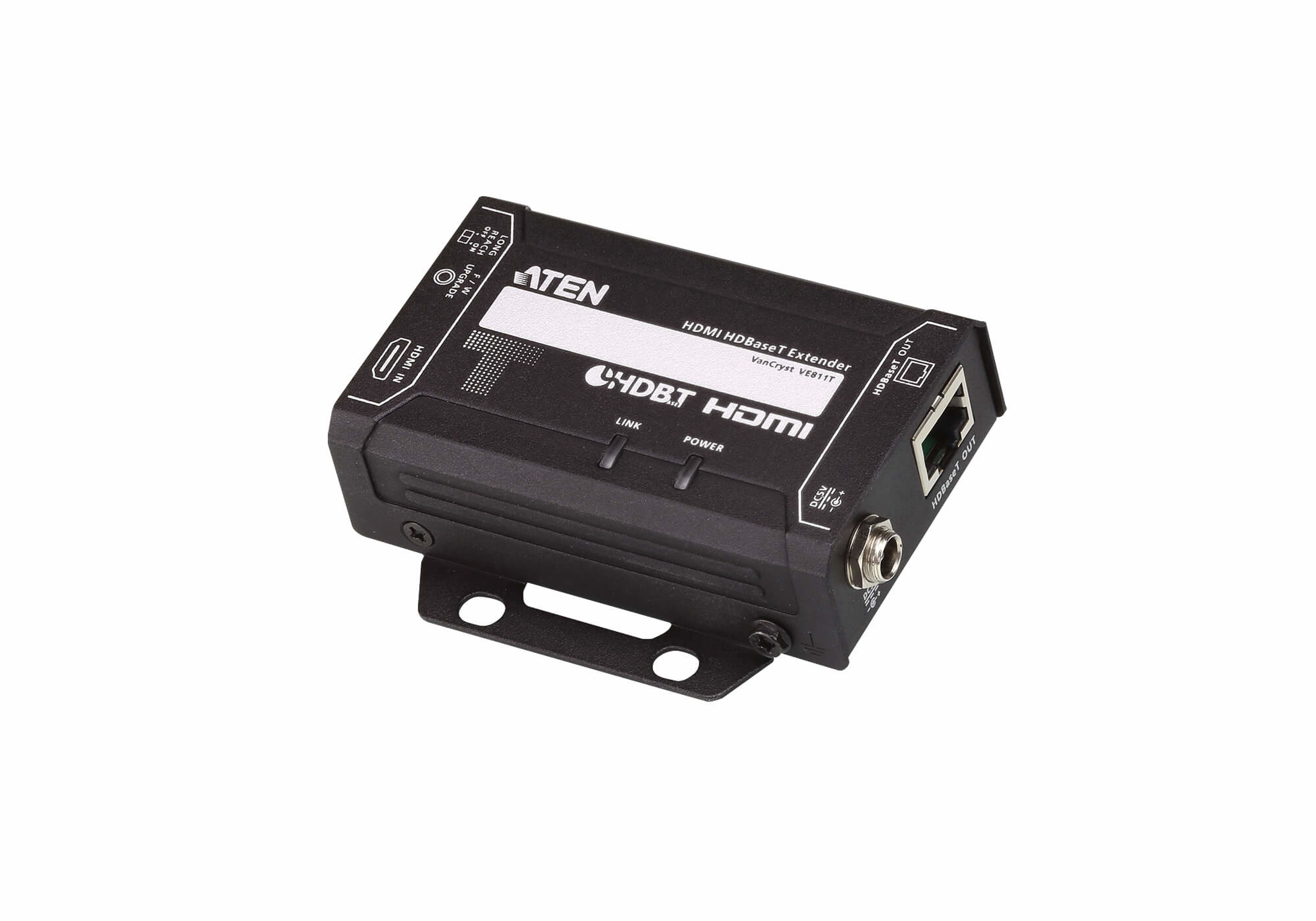

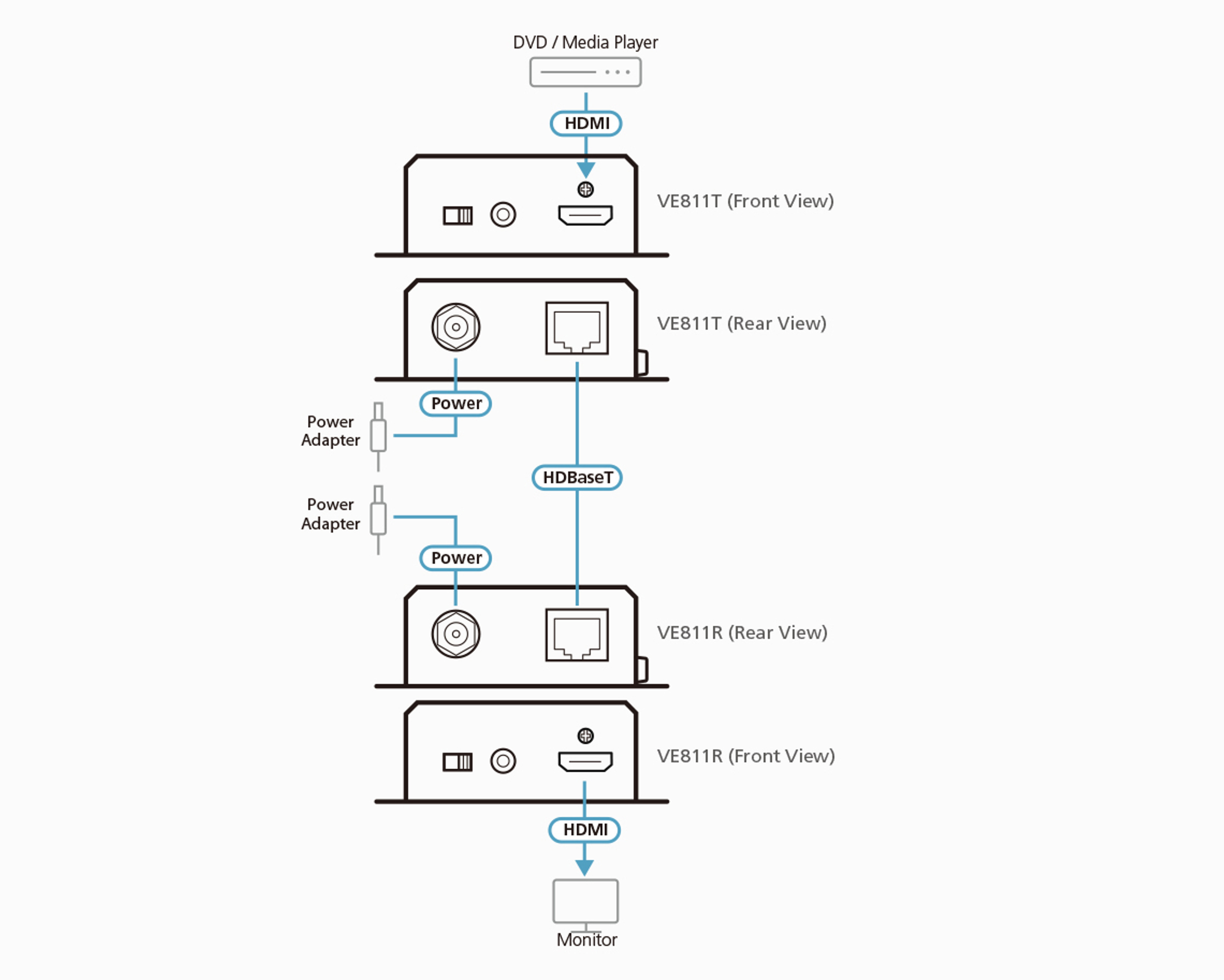

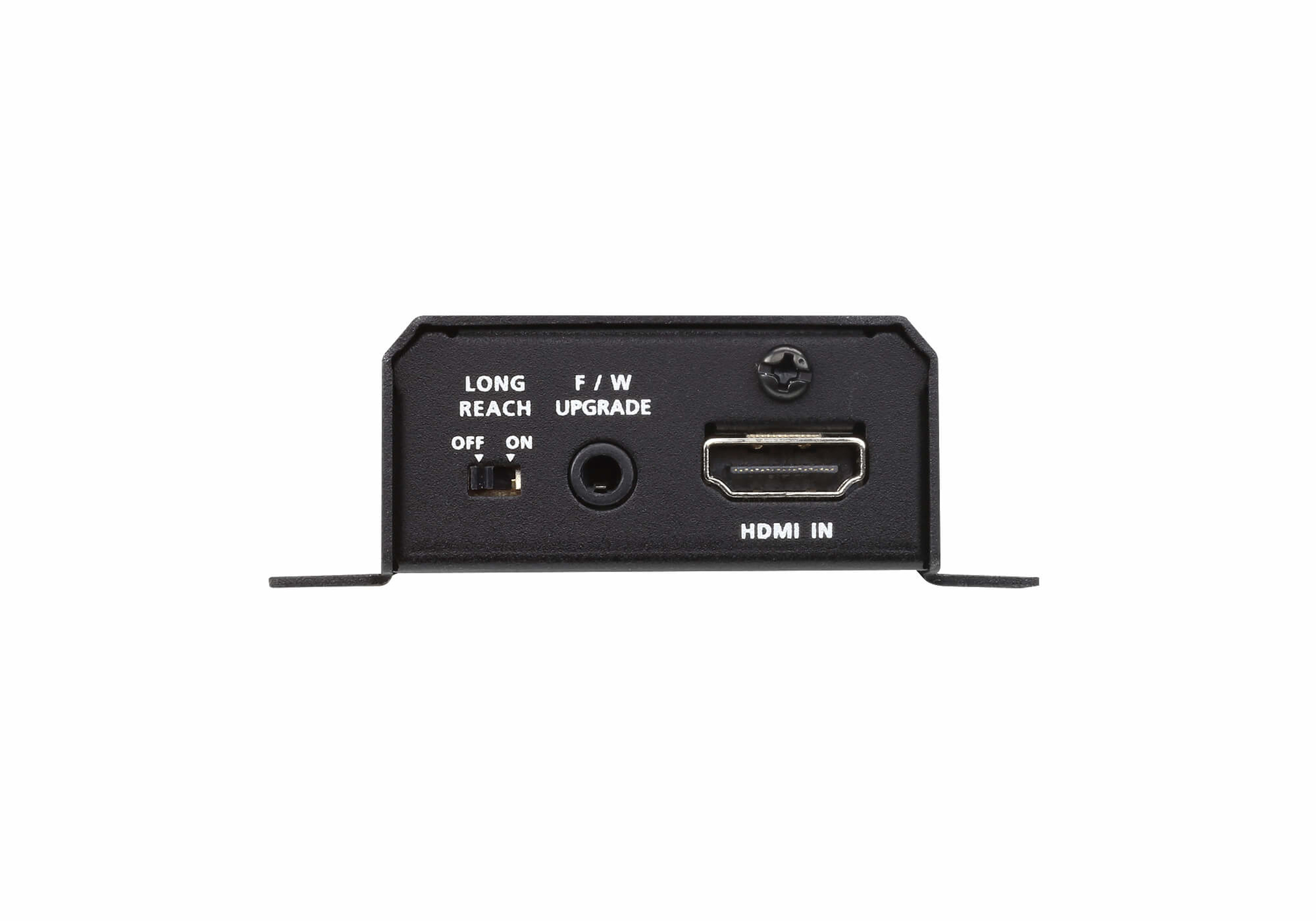

The ATEN VE811 HDMI HDBaseT Extender guarantees the optimum HDMI connection up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. The VE811 meets HDMI Specification features including 3D, Deep Color, HD lossless audio formats and CEC pass-through. It supports Dolby Digital 5.1, DTS HD audio and video signals at resolutions up to 4K. In addition, the VE811 supports long reach mode, providing an effective means for extending HDMI signals up to 150m over a single Cat 5e/6 cable.
Pushing the technology and design to the limit, the compact design makes the VE811 easy to mount in any location. Engineered for today's digital trends, the VE811 is ideal for meeting rooms, or any setting that requires high quality HDMI video to be extended for great distances.
Specifications:
| Product Type: |
Video Extender Transmitter/Receiver |
| Connectivity Technology: |
Wired |
| Form Factor: |
Rack-mountable |
|
Surface-mountable |
| Brand Name: |
ATEN |
| Maximum Operating Distance: |
492.13 ft |
| Number of Network (RJ-45) Ports: |
2 |
| Product Family: |
VanCryst |
| Number of HDMI Inputs: |
1 |
| Media Type Supported: |
Twisted Pair |
| Number of Output Devices Supported: |
1 |
| Number of Input Devices Supported: |
1 |
| General Information |
|---|
| Product Type: |
Video Extender Transmitter/Receiver |
| Manufacturer Part Number: |
VE811 |
| Manufacturer Website Address: |
http://www.aten-usa.com |
| Manufacturer: |
ATEN Technology Inc |
| Product Model: |
VE811 |
| Product Name: |
HDMI HDBaseT Extender (4K@100m) (HDBaseT Class A) |
| Product Line: |
VanCryst |
| Brand Name: |
ATEN |
| Interfaces/Ports |
|---|

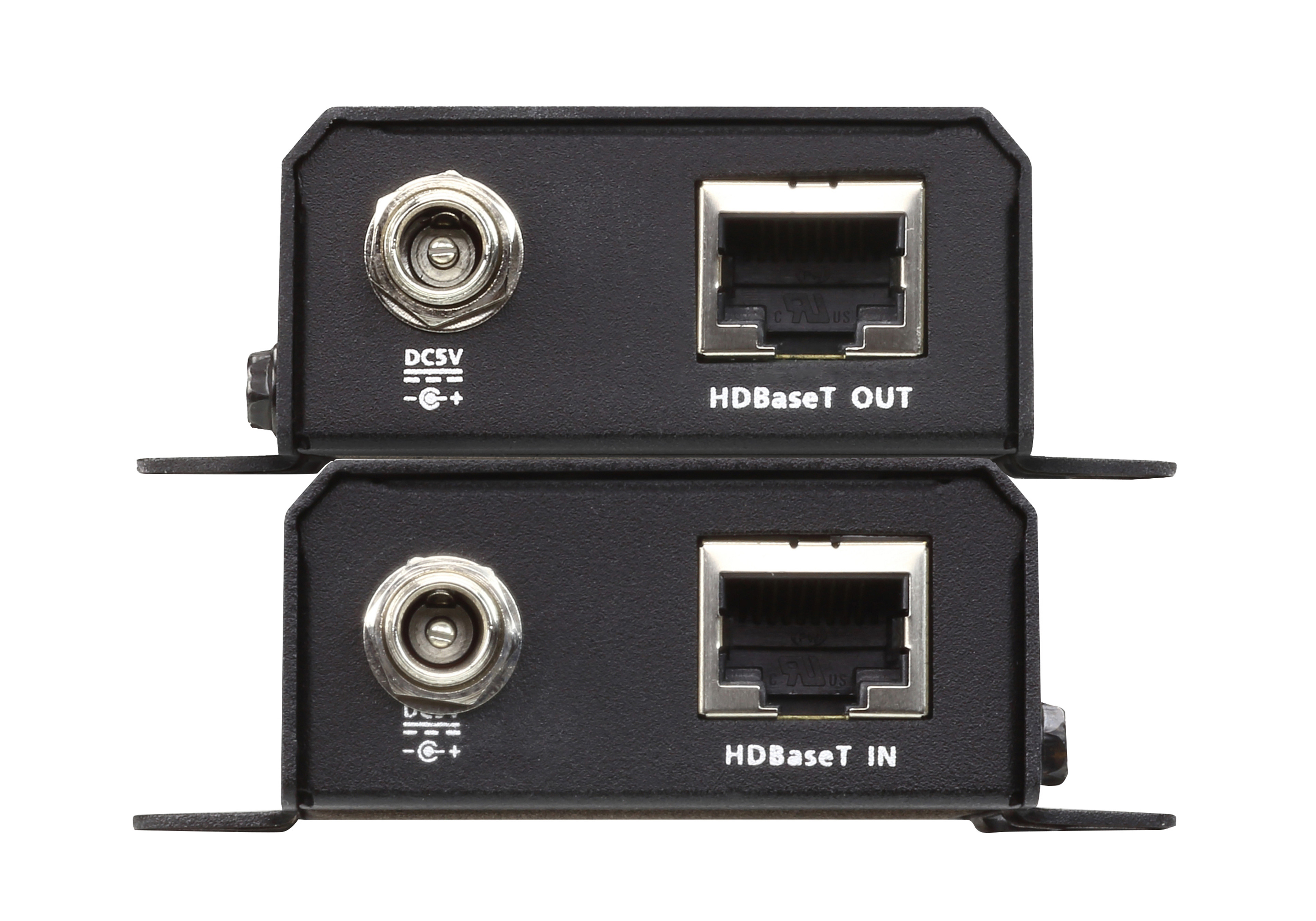

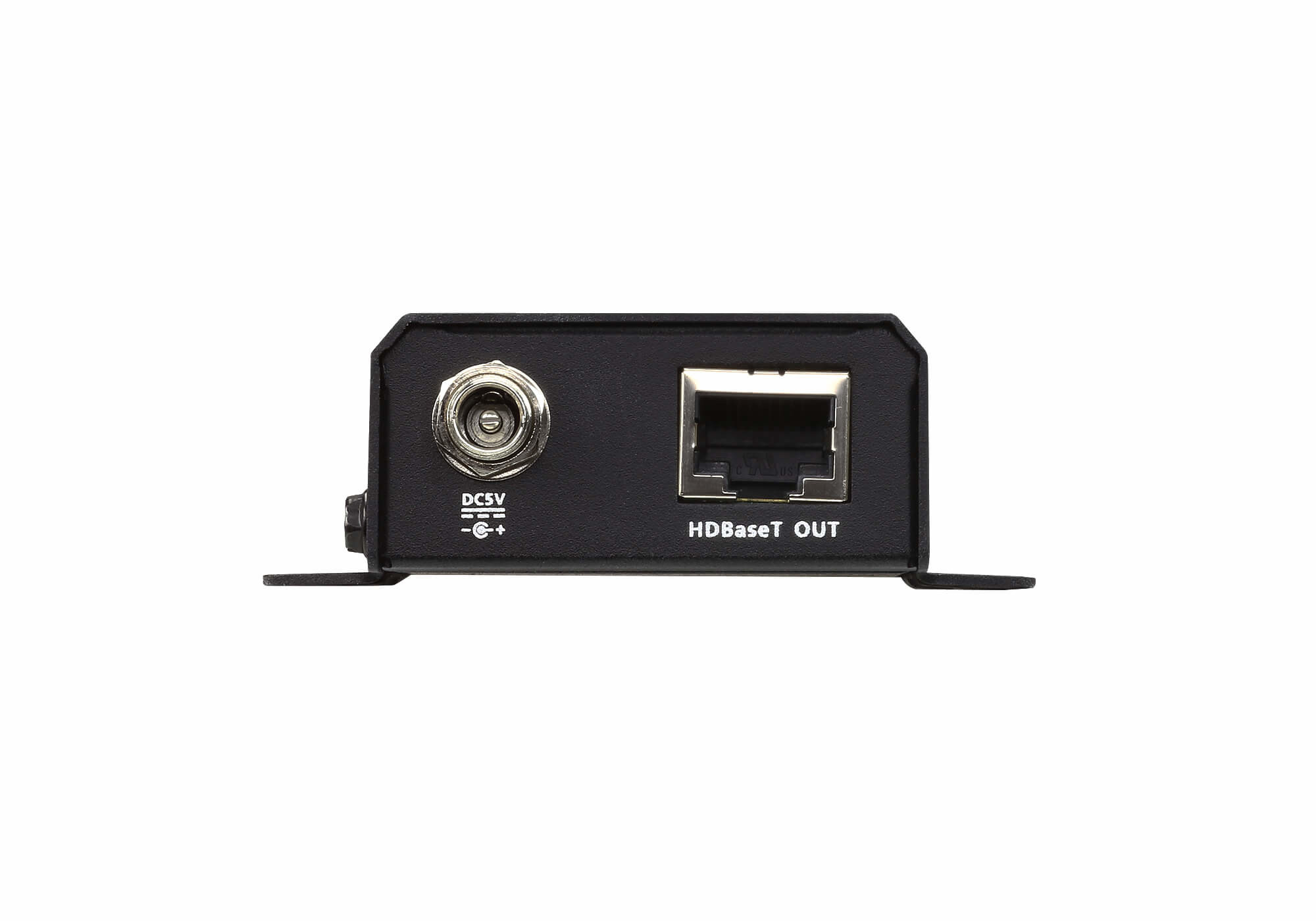

| Number of Network (RJ-45) Ports: |
2 |
| Network (RJ-45): |
Yes |
| Number of HDMI Inputs: |
1 |
| Number of HDMI Outputs: |
1 |
| HDMI In: |
Yes |
| HDMI Out: |
Yes |
| Media & Performance |
|---|
| Twisted Pair Cable Standard: |
Category 6a |
| Media Type Supported: |
Twisted Pair |
| Miscellaneous |
|---|
| Package Contents: |
- 1 x VE811T HDMI HDBaseT Transmitter
- 1 x VE811R HDMI HDBaseT Receiver
- 2 x Power Adapters
- 1 x User Instructions
|
| Environmentally Friendly: |
Yes |
| Environmental Certification: |
WEEE |
|
RoHS |
| Physical Characteristics |
|---|
| Form Factor: |
Surface-mountable |
|
Rack-mountable |
| Transmitter Height: |
0.97" |
| Transmitter Width: |
2.87" |
| Transmitter Depth: |
3.40" |
| Transmitter Weight (Approximate): |
11.64 oz |
| Technical Information |
|---|
| Connectivity Technology: |
Wired |
| Maximum Operating Distance: |
492.13 ft |
| Number of Output Devices Supported: |
1 |
| Number of Input Devices Supported: |
1 |
| Video |
|---|
| Graphics Modes: |
4K |
| Maximum Video Resolution: |
4096 x 2160 |
