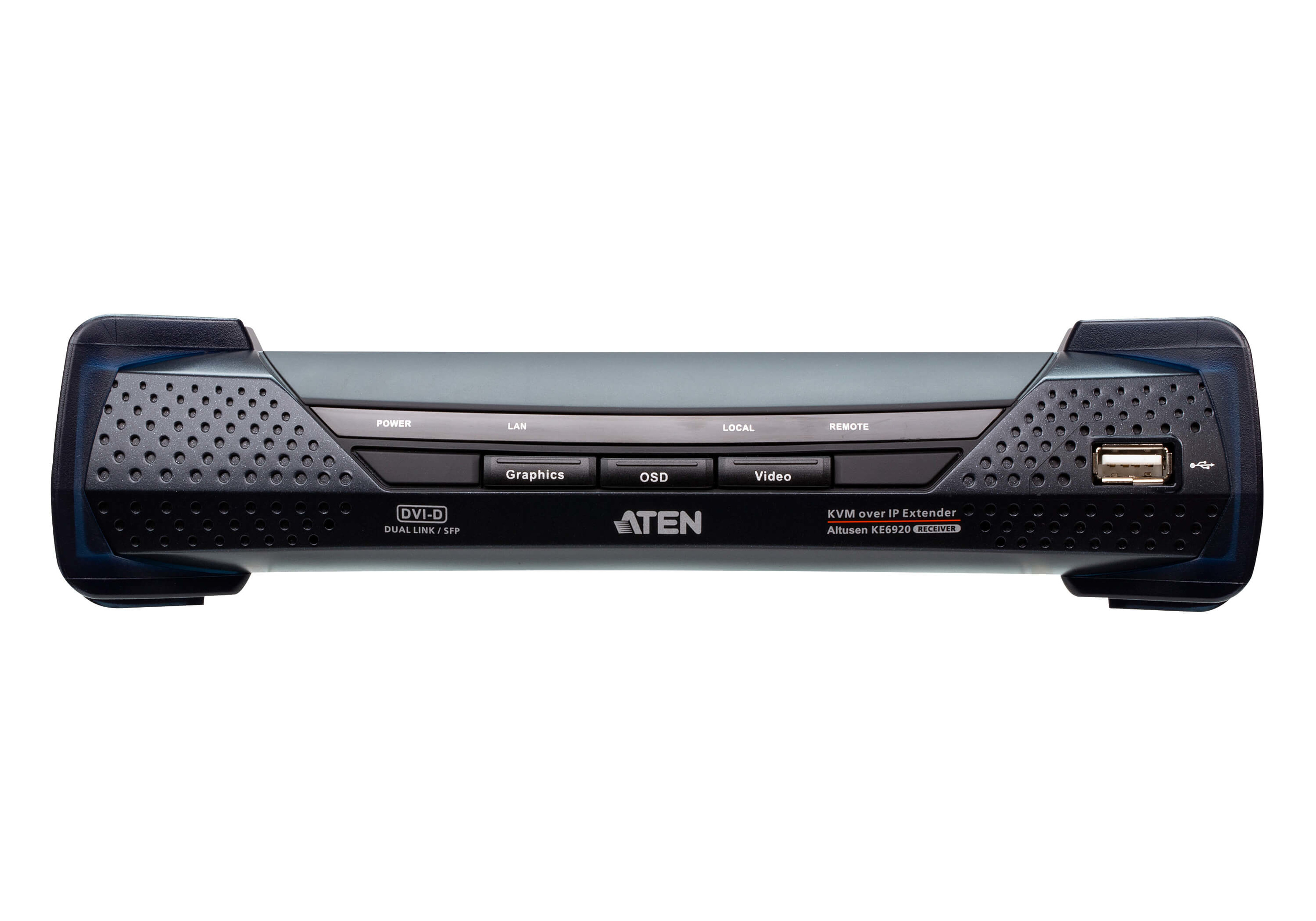

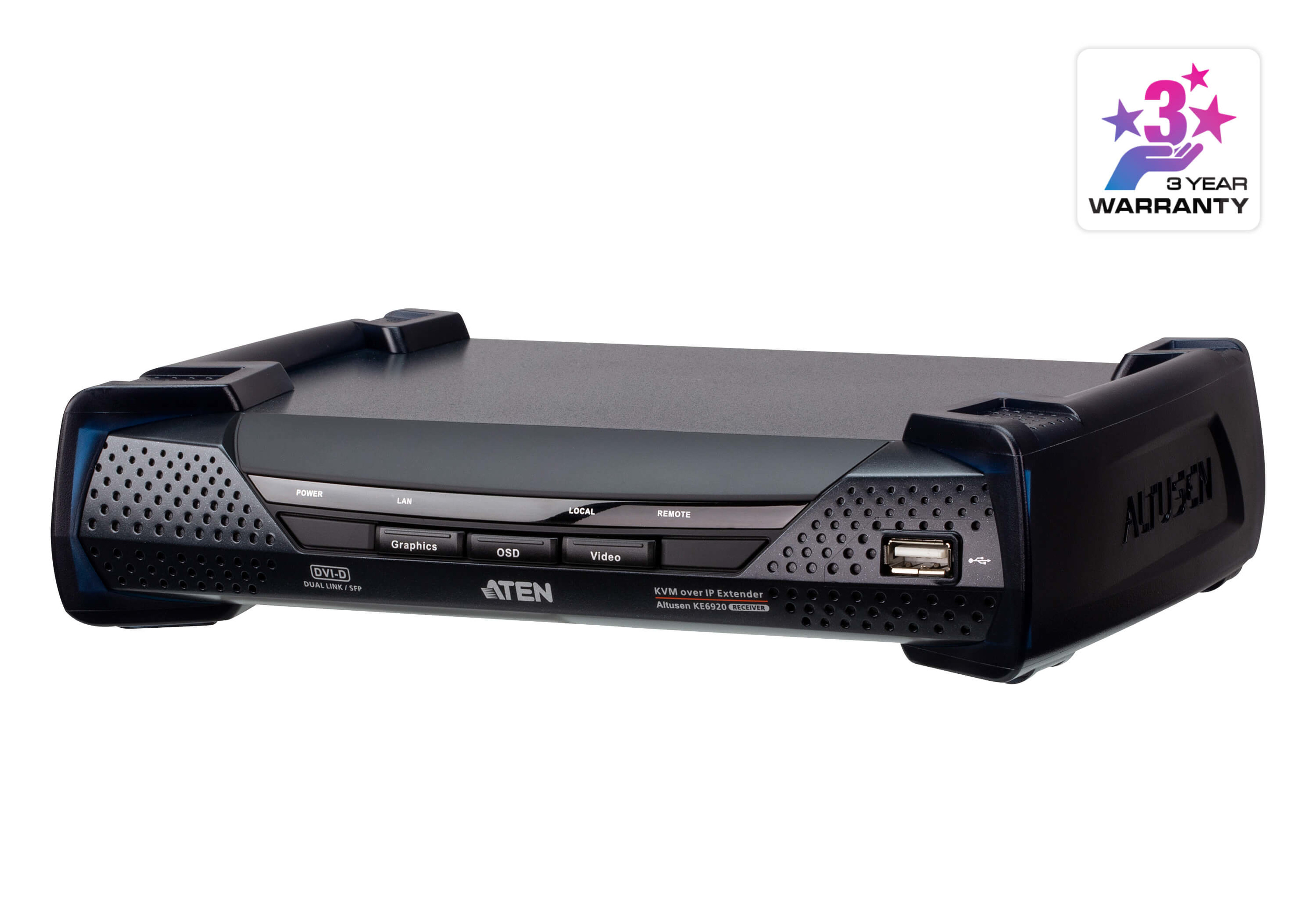

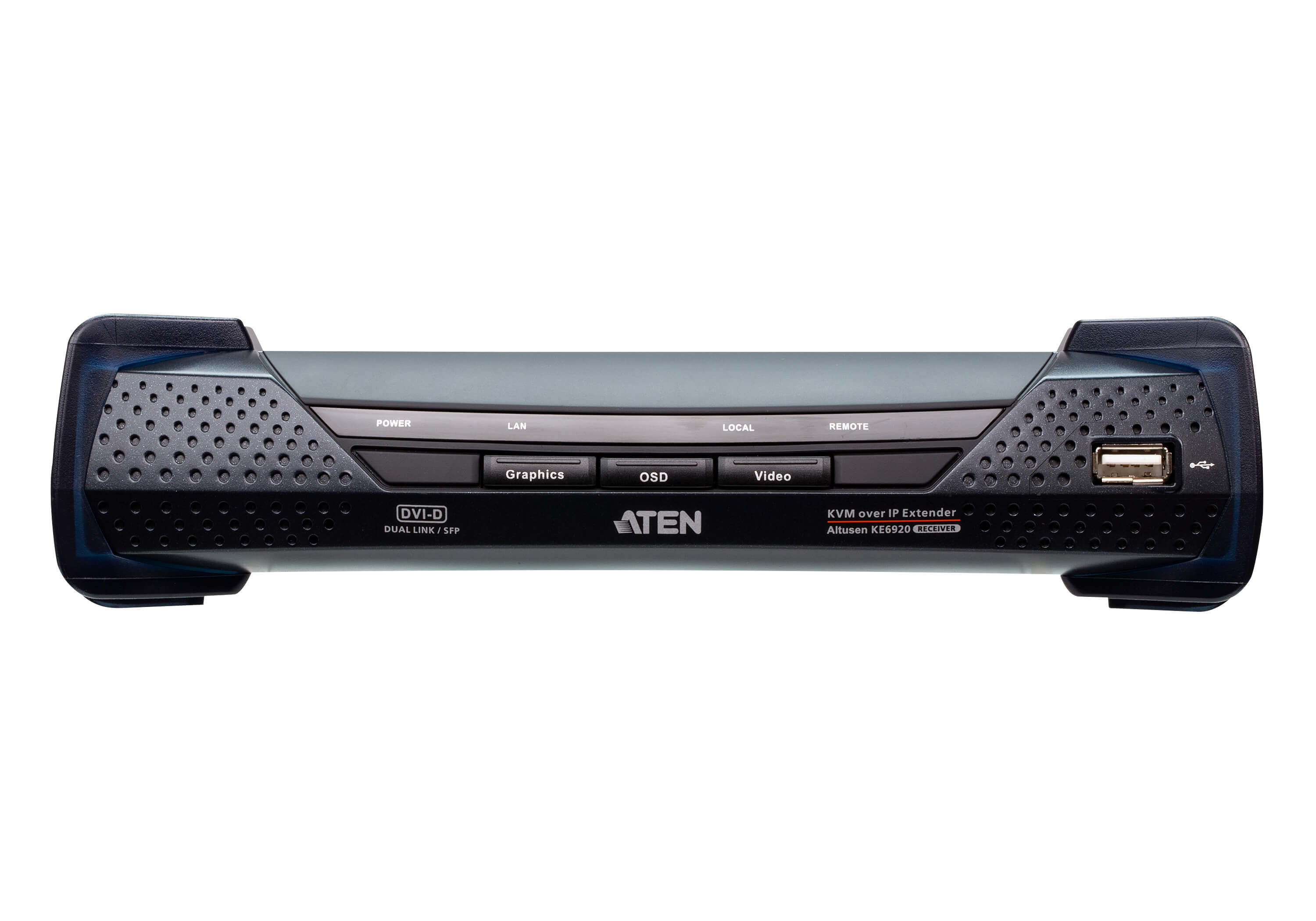

ATEN KE6920R DVI Dual Link KVM Over IP Receiver

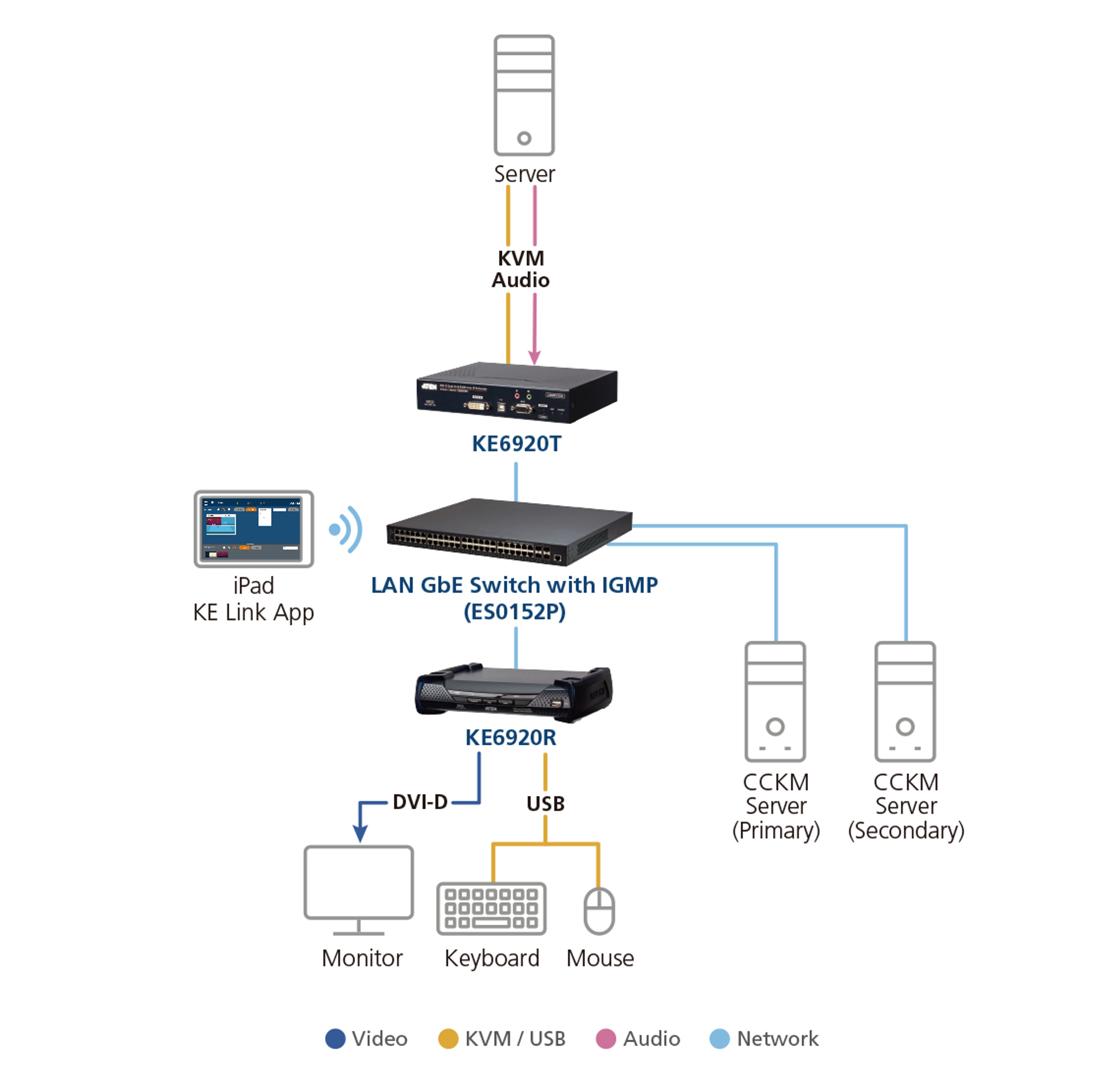

The KE6920R is a high-performance IP-based extender designed to provide seamless console access to computer systems from remote locations. This versatile device allows users to connect USB consoles (keyboard, mouse, DVI monitor) over an intranet, enabling secure placement of computer systems in controlled environments.
- High Video Resolution: Supports video resolutions up to 2560 x 2048 @ 50Hz, ensuring crystal-clear visuals.

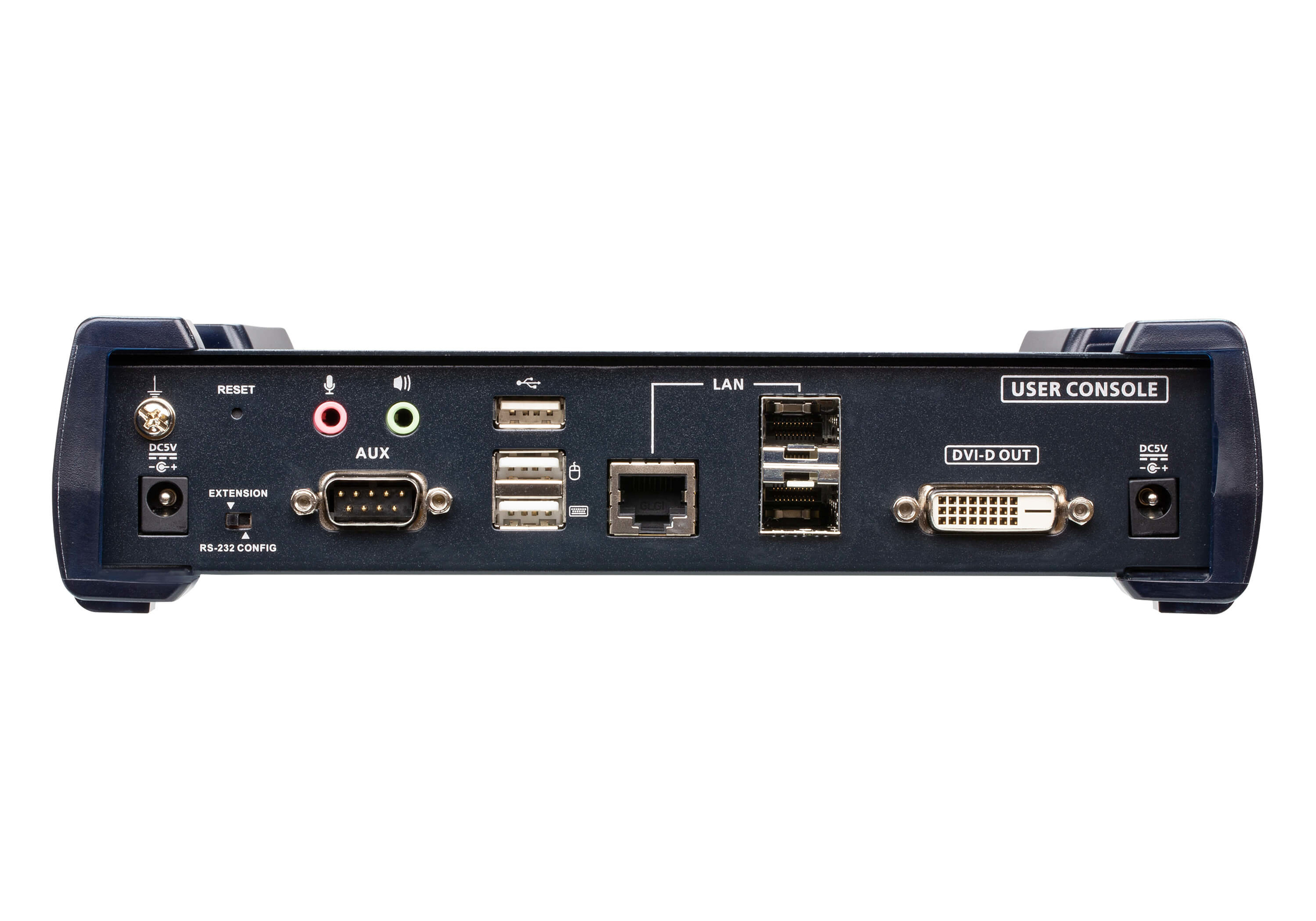

- Flexible Connectivity: Connects via RJ-45 or two SFP slots, allowing for direct or network connections.
- Extended Transmission: With SFP fiber modules, extend distances up to 10km for greater flexibility.
- Redundant Power Supply: Dual power supplies ensure dependable service and constant availability.
- Advanced Features: When integrated with KE Matrix Management Software, enjoy features like authentication lock, connection redundancy, and multi-display setups.
- Security: AES encryption and various authentication methods provide secure data transmission.
Whether for monitoring, controlling, or extending computer access, the KE6920R is adaptable for various environments, including command control centers, network operations, and retail surveillance.
Features
TypeReceiver
Connectivity technologyWired
Maximum digital resolution2560 x 2048 pixels
KVM port selectionOSD
Supported resolutionsUp to 2560 x 2048 @ 50Hz/2560 x 1600 @ 60Hz/2048 x 2048 @60Hz
Product colorBlack
MaterialMetal
LED indicatorsLink, Power
Receiver
Receiver local video port typeDVI-D
Receiver local keyboard/mouse port typeUSB
RJ-45 ports quantity (receiver)1
Ports & interfaces
USB port typeUSB Type-A
USB 2.0 ports quantity4
RJ-45 ports quantity1
PC Audio in✓
Power
AC adapter output voltage5 V
Power consumption (receiver) (max)8.86 W
Weight & dimensions
Receiver width6.77" (17.2 cm)
Receiver depth8.94" (22.7 cm)
Receiver height2.17" (5.5 cm)
Receiver weight2.8 lbs (1.27 kg)
Packaging content
AC adapter included✓
Quick installation guide✓
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 95%
