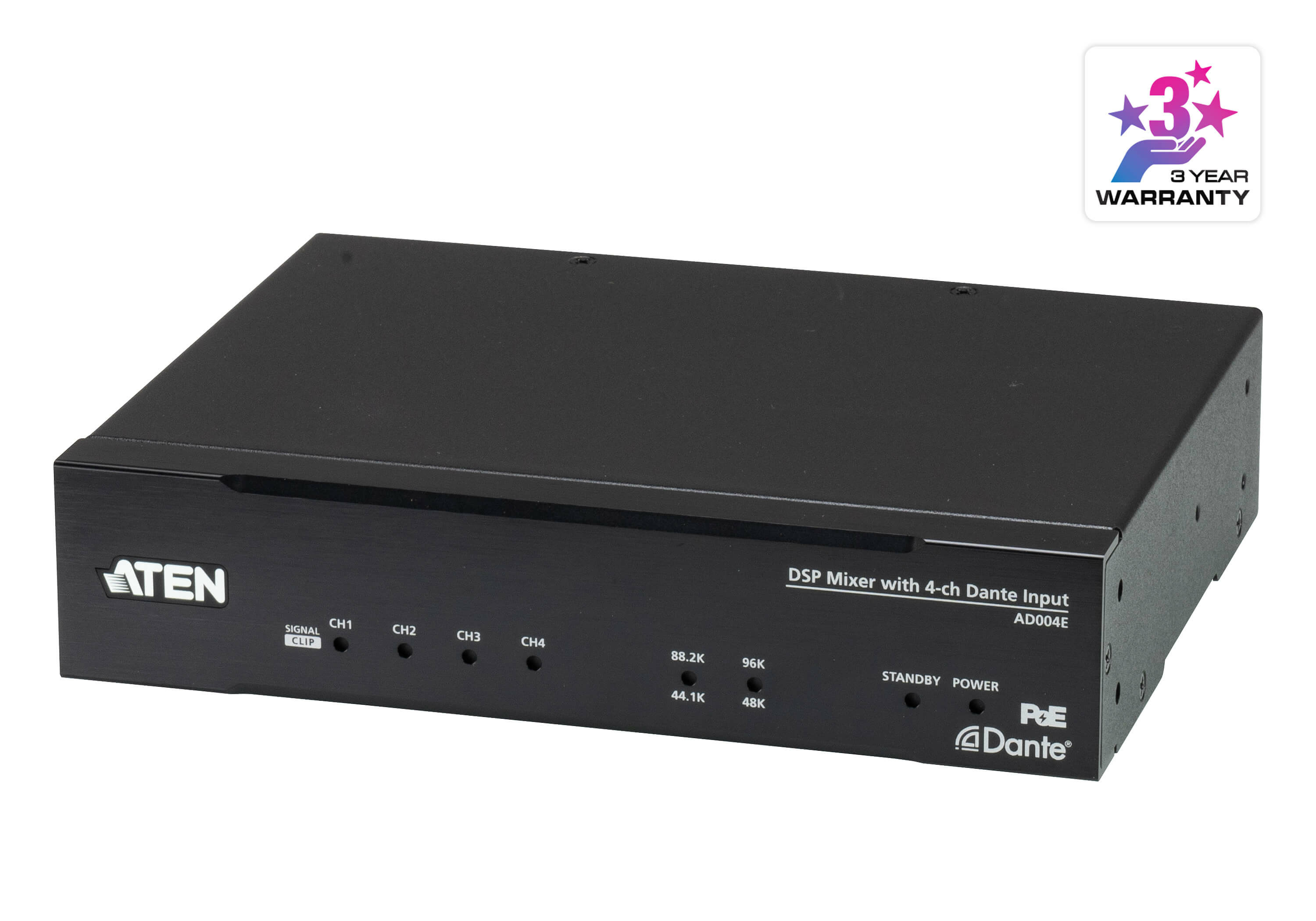

ATEN AD004E Digital Signal Processor (DSP)

The ATEN AD004E is a cutting-edge digital signal processor that seamlessly converts Dante inputs into 4-channel analog line outputs. This innovative device integrates both analog and digital audio systems through Dante AoIP media networking technology, providing a cost-effective solution that replaces cumbersome analog audio cables with easy-to-manage Cat cables.

Key features include:

• 24-bit support with sampling rate options of 44.1k, 48k, 88.2k, and 96 kHz, catering to various audio environments.
• A built-in DSP that allows for 24 presets and speaker functionality management via the PC-based app Audio Wizard or ATEN VK control system through LAN/RS-232.
• A DSP matrix mixer that enables users to assign Dante inputs to any of the four analog outputs.
• AES67 compliance for enhanced interoperability between different audio networking protocols.
• Selectable automatic Standby Mode that conserves energy by switching to standby when the signal level drops below a specified threshold.
• Power over Ethernet (PoE) functionality for redundancy operation, eliminating the need for additional wiring.
• Compact half-rack size chassis for flexible installation, making it easy to place under desks or on flat surfaces.

Ideal for professional audio applications in boardrooms, conference rooms, and hospitality venues, the AD004E enhances installation flexibility, reduces overall costs, and broadens application possibilities.
