Description:

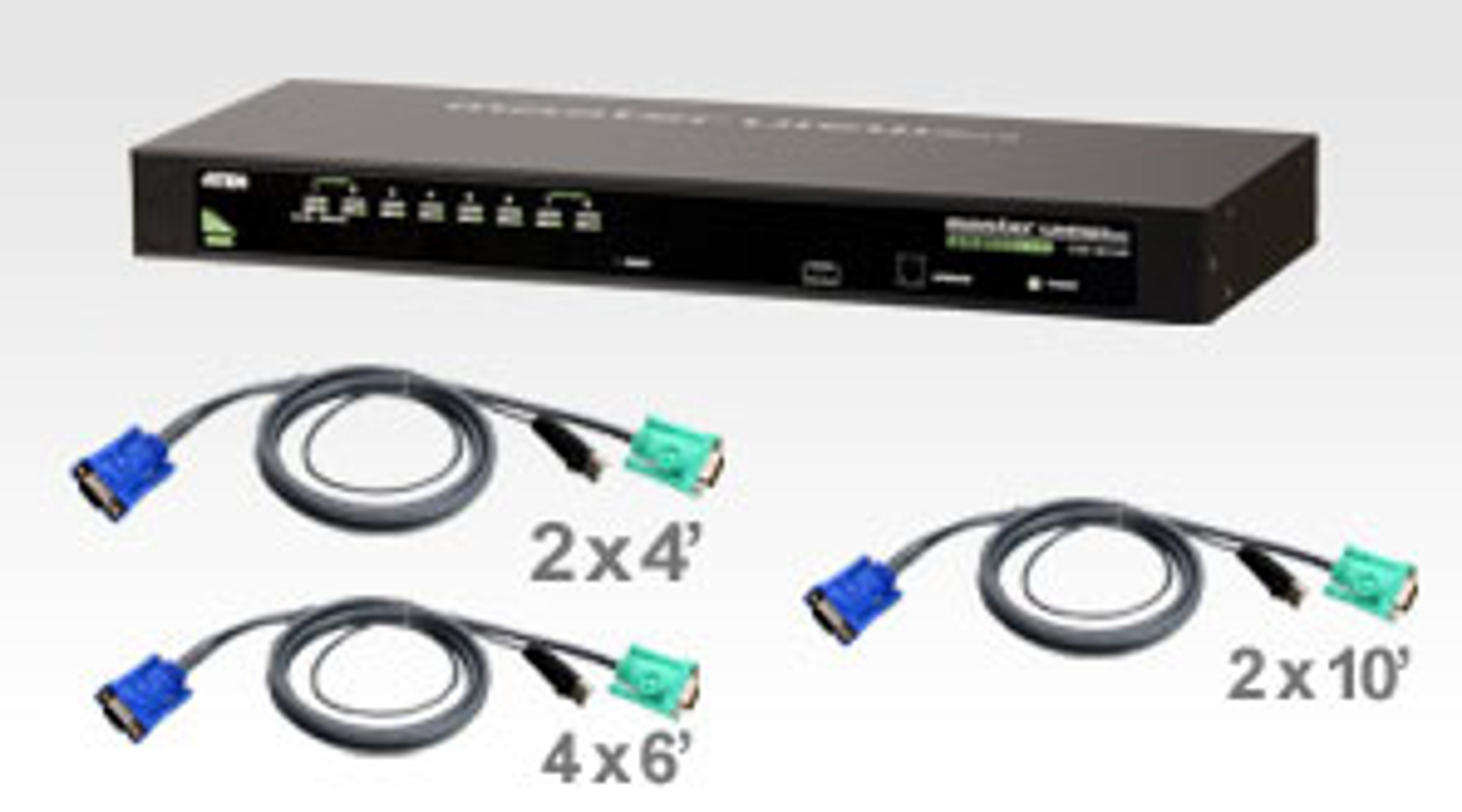

8-Port USB/PS2 combo KVM with 8 USB Cables
Features:
- One USB-PS/2 console controls 8 computers
- Cascade up to 2 levels - control up to 64 computers
- Dual Interface - supports computers with PS/2 or USB keyboards and mice
- Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
- Supports multimedia USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Superior video quality - up to 2048 x 1536; DDC2B
- Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
- Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
- Auto Scan feature for monitoring user-selected computers
- Hot pluggable - add or remove computers without having to power down the switch
Specifications:
| Computer Connections | Direct | 8 | |
| Max. | 64 (via Cascade) | ||
| Port Selection | OSD, Hotkeys, Pushbuttons | ||
| Connectors | Console Port | Keyboard | 1 x SPHD-18 Male (Yellow) |
| Video | |||
| Mouse | |||
| KVM Ports | Keyboard | 8 x SPHD-15 Female (Yellow) | |
| Video | |||
| Mouse | |||
| FW Upgrade | 1 x RJ-11 Female (Black) | ||
| Power | 1 x DC Jack | ||
| Switches | Port | 8 x Pushbutton | |
| FW Upgrade | 1 x Slide | ||
| LEDs | On Line | 8 (Orange) | |
| Selected | 8 (Green) | ||
| Power | 1 (Dark Green) | ||
| Emulation | Keyboard/Mouse | PS/2, USB | |
| Video | 2048 x 1536; DDC2B | ||
| Scan Interval | 1-255 Seconds | ||
| Power Consumption | DC 5.3 V; 5 W | ||
| Environment | Operating Temp. | 0-50˚C | |
| Storage Temp. | -20-60˚C | ||
| Humidity | 0-80% RH, Non-condensing | ||
| Physical Properties | Housing | Metal | |
| Weight | 4.2 lbs. (1.89 kg) | ||
| Dimensions (L x W x H) |
17 x 6.3 x 1.7 in. (43.30 x 16.00 x 4.40 cm) |
||
