Description:

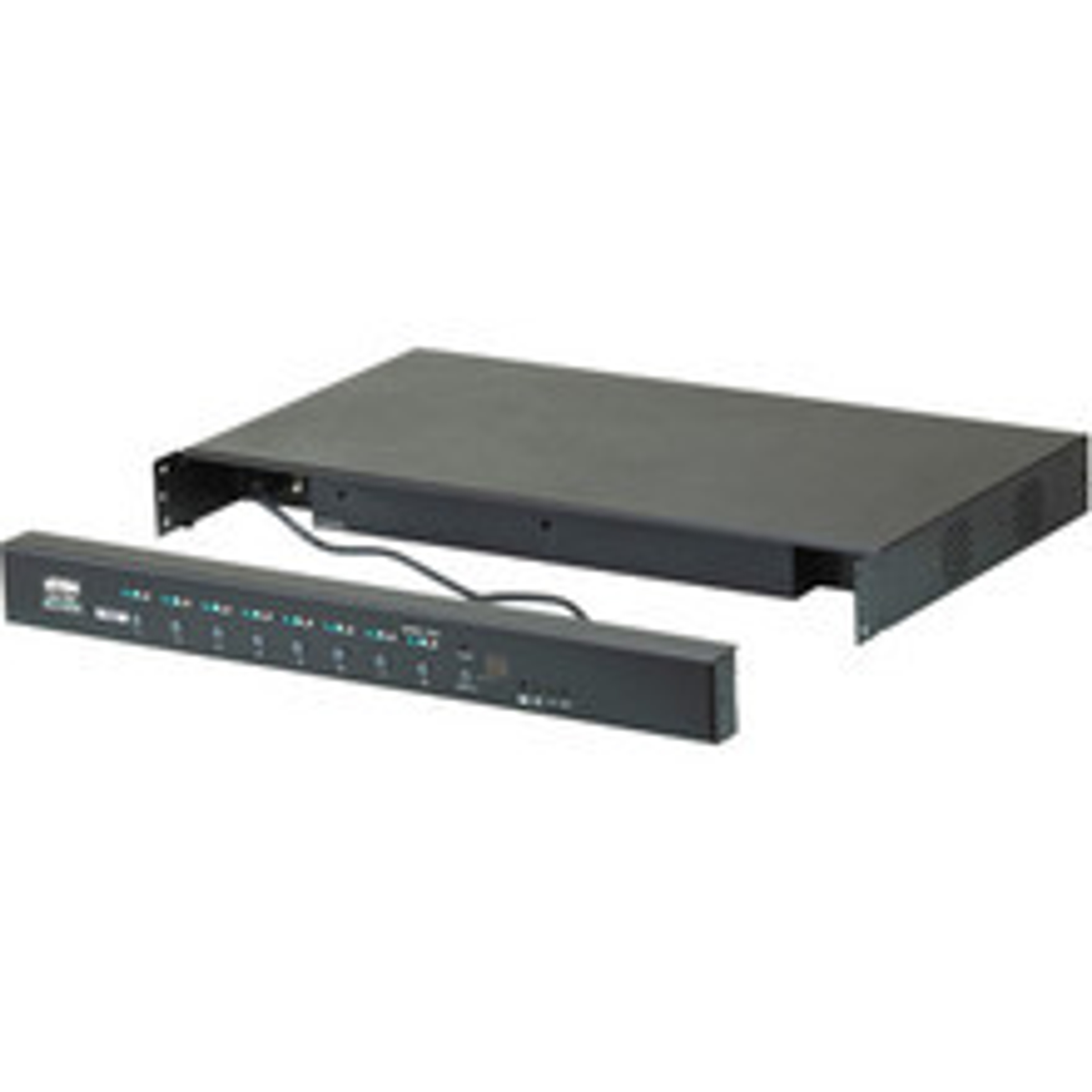

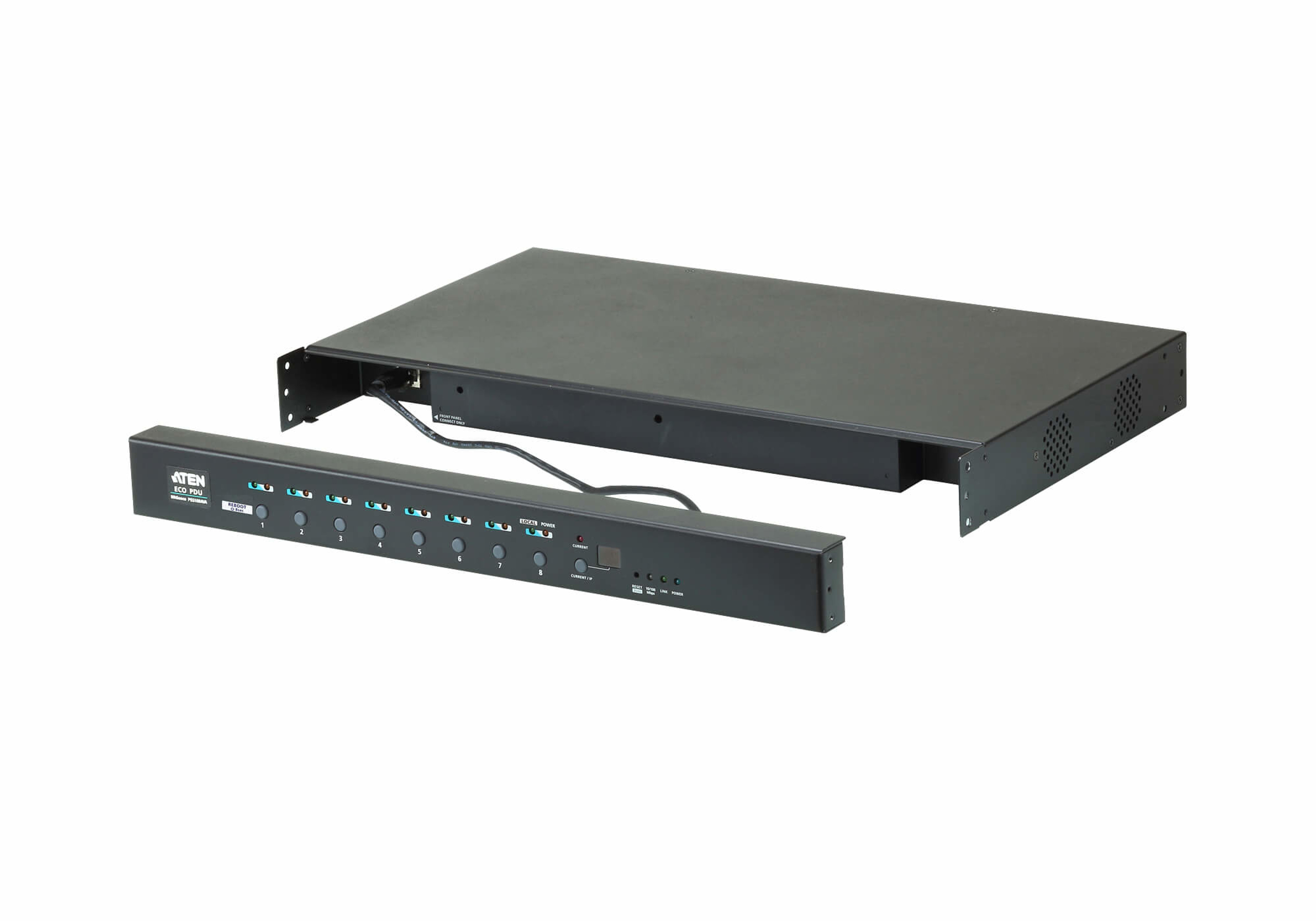

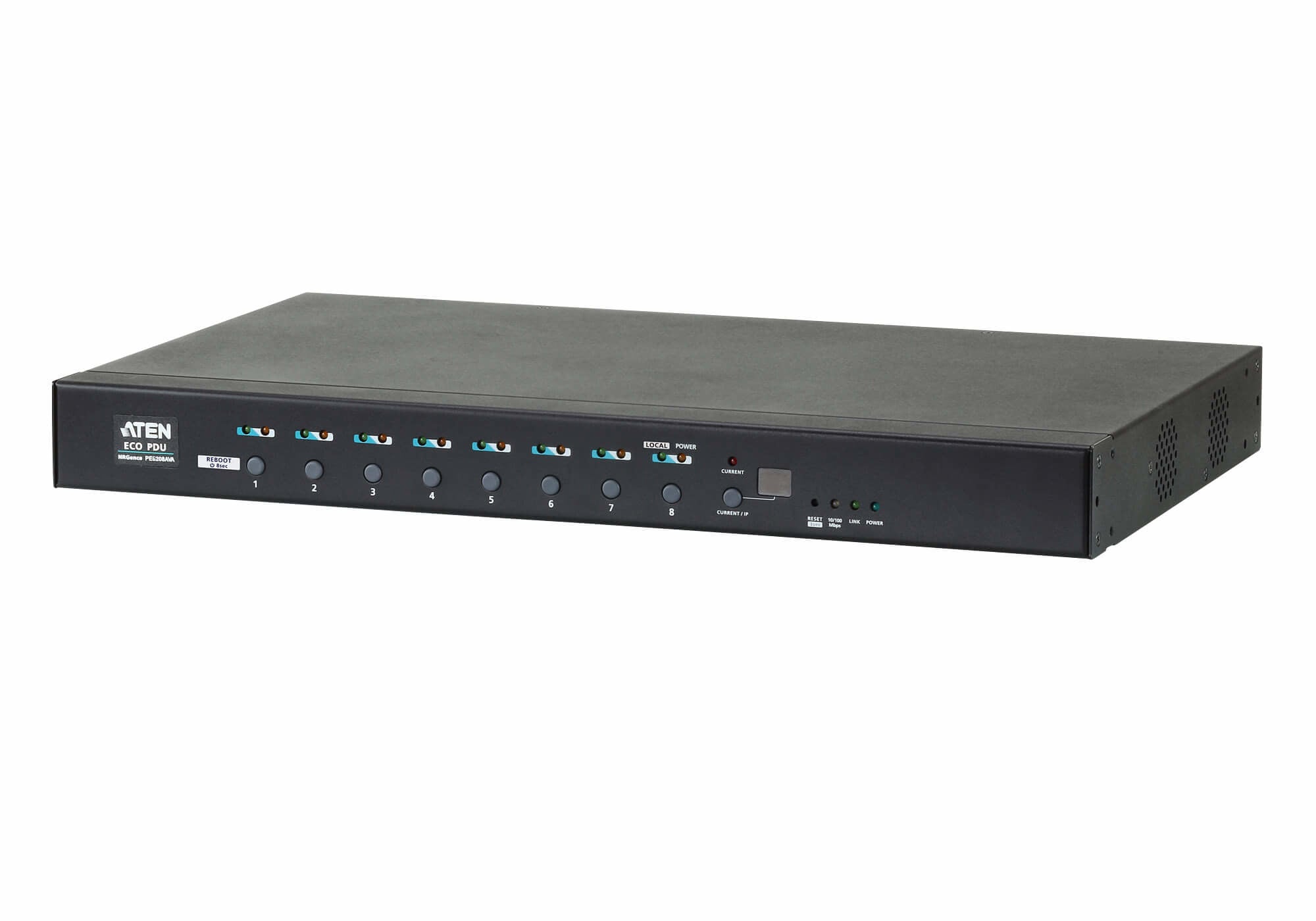

Ideal for Pro-A/V applications, the ATEN NRGence PE6108AV eco PDUs are intelligent, 1U rack PDUs that contain 8 AC outlets available in an IEC socket configuration. The unique design with detachable front panel is convenient and mounts with different Pro-A/V equipment in 19" racks with different depths. In addition to remotely controlling individual outlets over the LAN, the front panel pushbuttons offer an extra option to control the outlets locally, allowing the flexibility to easily shutdown Pro-A/V equipment on the spot or from a remote location - for reduced power consumption. The outlets feature a sequential power-ON function that ensures Pro-A/V systems are powered on safely. Furthermore, compatibility with the ATEN Control System and Control4 libraries allow the PE6108AV to integrate with any Pro-A/V equipment for full control of all devices without complex programming. The PE6108AV are optimal energy solutions for data centers as well. With the combination of ATEN eco PDUs and eco Sensors Energy Management software, a data center will be equipped with real-time monitoring, measurement, and analysis of energy consumption - with reports of power usage, PUE, RCI, and RTI to meet the ISO 50001 requirements. These indices reflect the data center's energy usage and offer energy saving suggestions for optimizing energy use and reducing costs
Specifications:
Product Type: |
PDU |
Input Voltage: |
120 V AC |
Output Voltage: |
220 V AC |
Input Receptacles: |
NEMA 5-15P |
Input Current: |
15 A |
Length: |
17" |
Output Receptacles: |
8 x NEMA 5-15R |
Protection Type: |
Overload Protection |
Rack Height: |
1U |
Brand Name: |
ATEN |
Input Voltage Range: |
100 V AC - 120 V AC |
Product Family: |
eco PDU |
PDU Type: |
Switched |
Remote Outlet Switching: |
Yes |
Power Rating (VA): |
1800 VA |
General Information |
Product Type: |
PDU |
Manufacturer Part Number: |
PE6108AV |
Manufacturer Website Address: |
http://www.aten-usa.com |
Packaged Quantity: |
1 |
Manufacturer: |
ATEN Technology Inc |
Product Name: |
8-Outlet eco PDU |
Product Line: |
eco PDU |
Brand Name: |
ATEN |
Interfaces/Ports |
Network (RJ-45): |
Yes |
Management |
Management: |
- TCP/IP
- UDP
- HTTP
- HTTPS
- SSL
- DHCP
- SMTP
- ARP
- NTP
- DNS
- Auto Sense
- Ping
- SNMP V1
- SNMP V2
- SNMP V3
- Telnet
|
Remote Outlet Switching: |
Yes |
Miscellaneous |
Package Contents: |
- 8-Outlet eco PDU
- 1 x Power Cord
- 1 x Mounting Kit
- 1 x RJ-45 Cable
- 10 x Cable Ties
- 1 x Footpad Set
- 1 x User Instructions
|
Environmentally Friendly: |
Yes |
Environmental Certification: |
RoHS |
|
WEEE |
Physical Characteristics |
Weight (Approximate): |
8.16 lb |
Length: |
17" |
Mount Type: |
Rack-mountable |
Rack Height: |
1U |
Height: |
1.7" |
Width: |
10.5" |
Power Description |
Input Voltage: |
120 V AC |
Output Voltage: |
220 V AC |
Input Current: |
15 A |
Input Voltage Range: |
100 V AC - 120 V AC |
Output Voltage Range: |
100 V AC to 120 V AC |
Power Rating (VA): |
1800 VA |
Technical Information |
Input Receptacles: |
NEMA 5-15P |
Output Receptacles: |
8 x NEMA 5-15R |
Protection Type: |
Overload Protection |
PDU Type: |
Switched |
