Description:

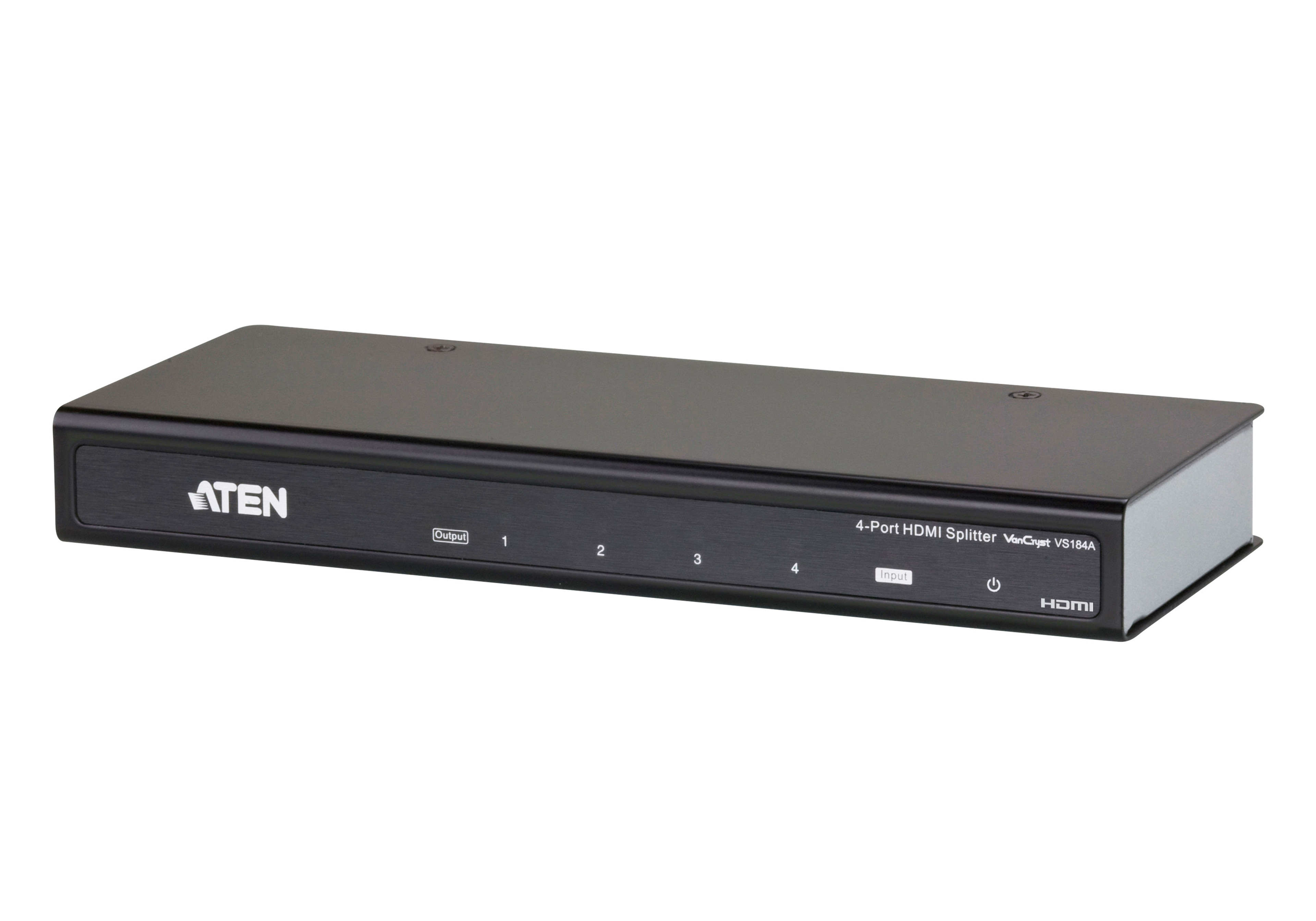

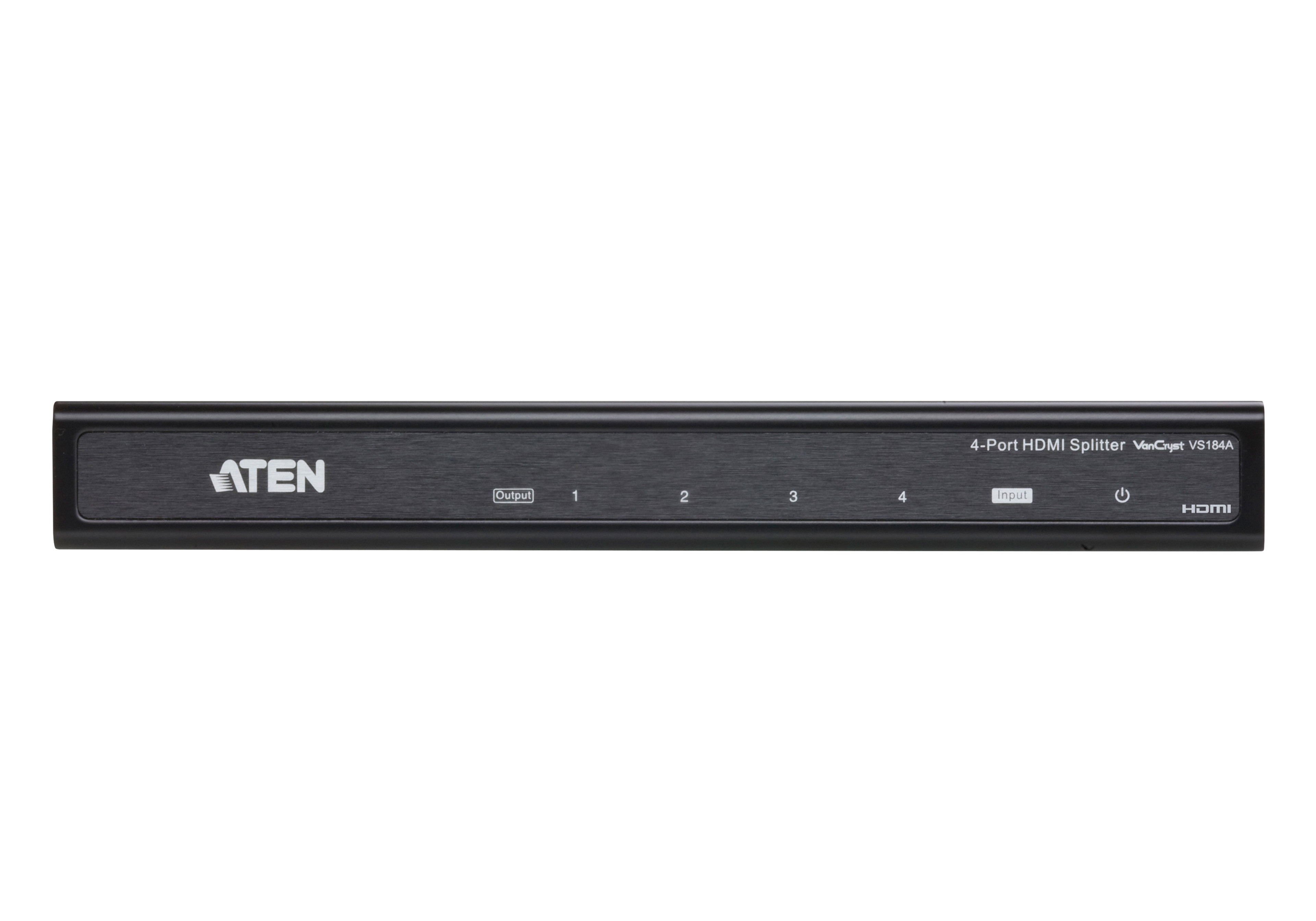

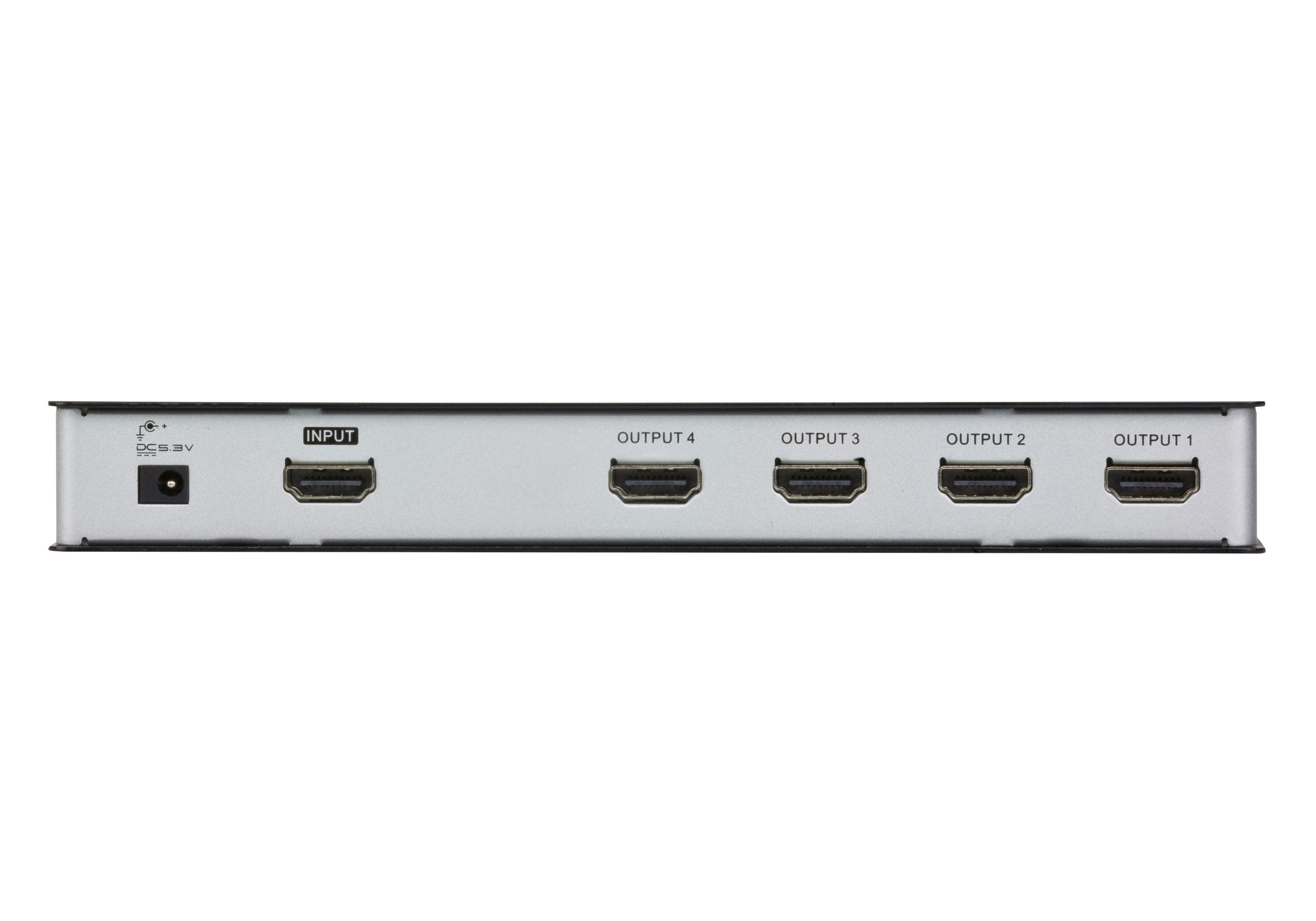

The VS184A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays. The VS184A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings
Specifications:
| Product Type: |
Signal Splitter |
| Brand Name: |
ATEN |
| Number of HDMI Inputs: |
1 |
| Number of HDMI Outputs: |
4 |
| General Information |
|---|
| Product Type: |
Signal Splitter |
| Manufacturer Part Number: |
VS184A |
| Manufacturer Website Address: |
http://www.aten-usa.com |
| Packaged Quantity: |
1 |
| Manufacturer: |
ATEN Technology Inc |
| Product Model: |
VS184A |
| Product Name: |
4-Port HDMI Splitter |
| Brand Name: |
ATEN |
| Interfaces/Ports |
|---|
| Number of HDMI Inputs: |
1 |
| Number of HDMI Outputs: |
4 |
| HDMI In: |
Yes |
| HDMI Out: |
Yes |
| Miscellaneous |
|---|
| Additional Information: |

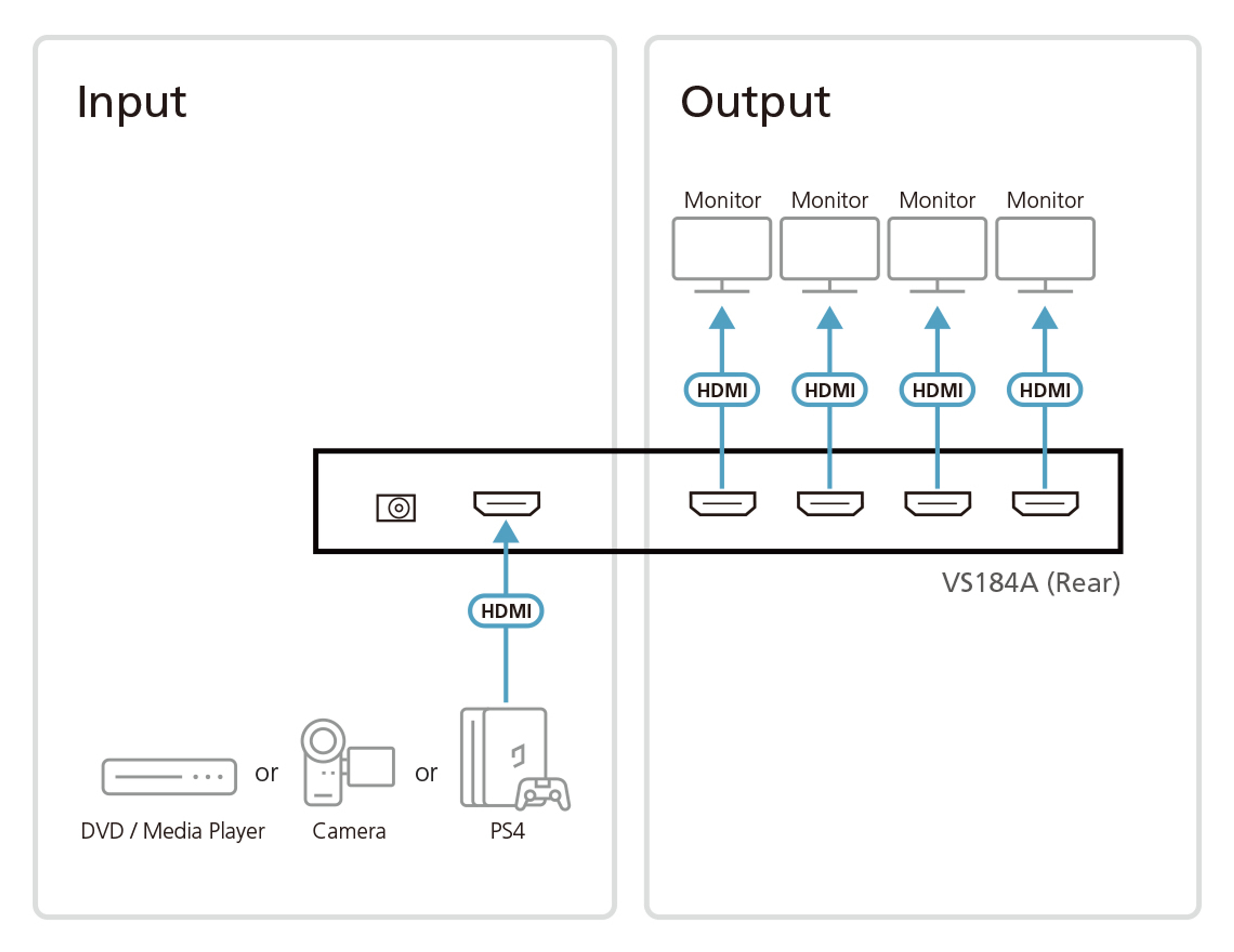

- Connects one HDMI source to four HDMI displays at the same time
- HDMI (3D, Deep Color, 4kx2k); HDCP Compatible
- Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
- Supports Dolby True HD and DTS HD Master Audio
- Long distance transmission - up to 15 m (24 AWG)
- Supports up to 340MHz bandwidth for high performance video
- Signaling rates up to 3.4 Gbits in support of 1080p display
- Plug-and-play - no software installation required
|
| Package Contents: |
- 4-Port HDMI Splitter
- 1 x Power Adapter
- 1 x HDMI Cable
- 1 x User Instructions
|
| Environmentally Friendly: |
Yes |
| Environmental Certification: |
WEEE |
|
RoHS |
| Physical Characteristics |
|---|
| Material: |
Metal |
| Weight (Approximate): |
1.04 lb |
| Length: |
7.9" |
| Height: |
1" |
| Width: |
3.1" |
| Power Description |
|---|
| Input Voltage: |
3 V DC |
