Description:

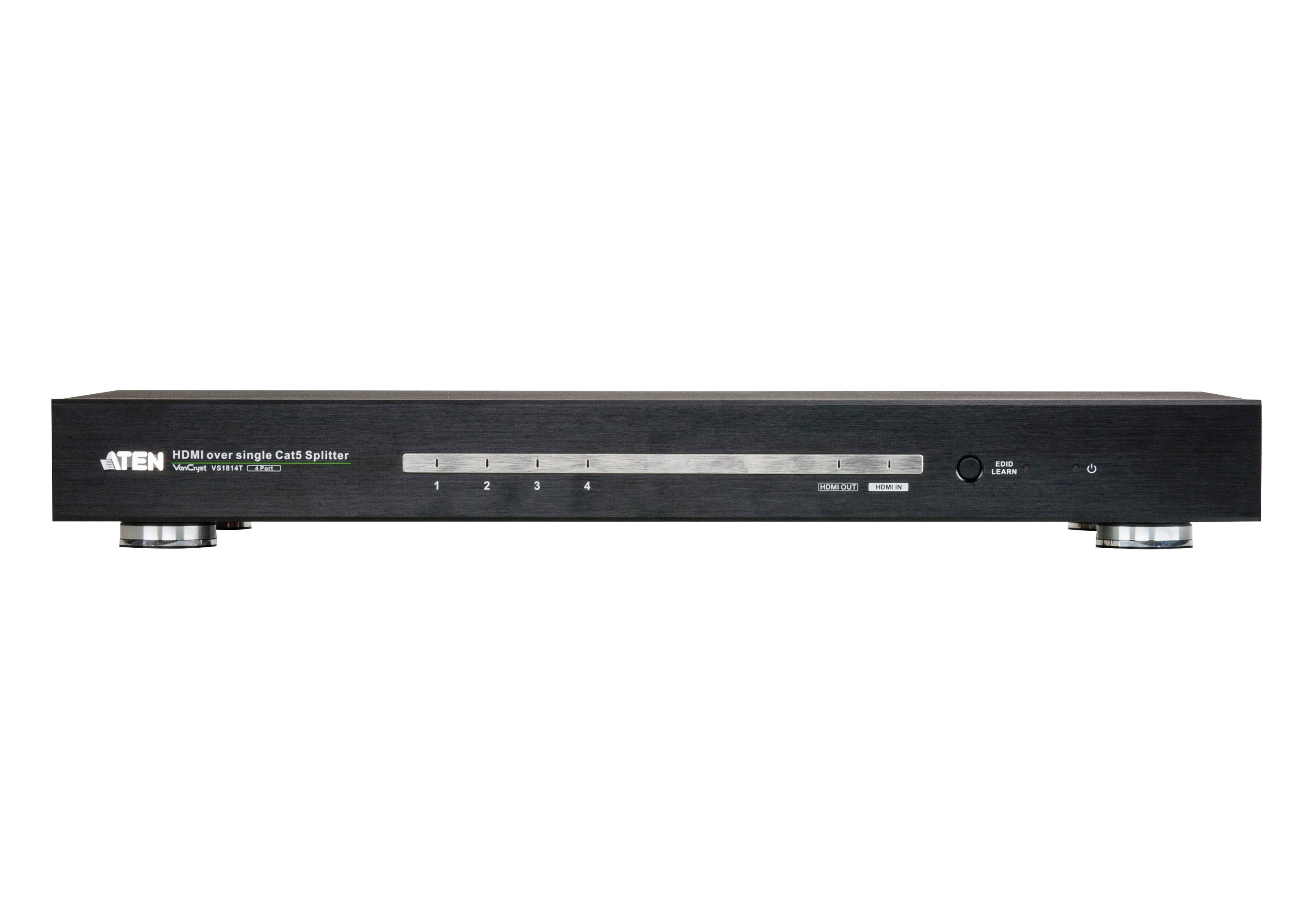

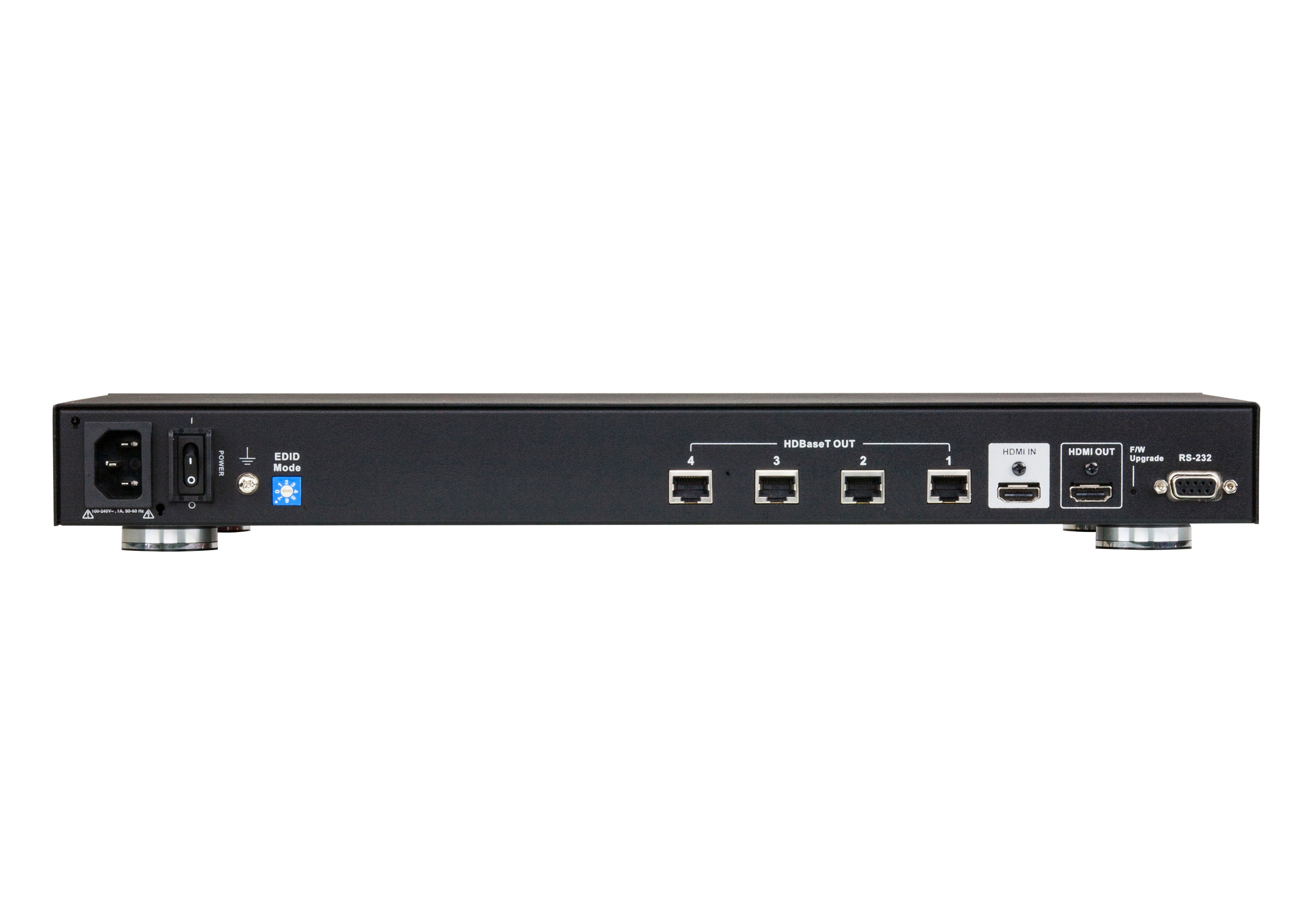

The ATEN VS1814T 4-Port HDMI over single Cat 5 Splitter provides a fast and efficient way of switching digital high definition video from one input source to 4 displays located up to 100m away. It implements HDBaseT extension technology to connect the VS1814T to receiver units over one single Cat 5e cable in order to transmit rich HDMI multimedia content in real time.
Specifications:
| Product Type: |
Video Extender Receiver |
| Connectivity Technology: |
Wired |
| Form Factor: |
Rack-mountable |
| Brand Name: |
ATEN |
| Maximum Operating Distance: |
330 ft |
| Number of Network (RJ-45) Ports: |
4 |
| Number of HDMI Inputs: |
1 |
| Media Type Supported: |
Twisted Pair |
| Number of Input Devices Supported: |
1 |
| General Information |
|---|
| Product Type: |
Video Extender Receiver |
| Manufacturer Part Number: |
VS1814T |
| Manufacturer Website Address: |
http://www.aten-usa.com |
| Manufacturer: |
ATEN Technology Inc |
| Product Model: |
VS1814T |
| Product Name: |
4-Port HDMI Over Single Cat 5 Splitter |
| Brand Name: |
ATEN |
| Interfaces/Ports |
|---|
| Number of Network (RJ-45) Ports: |
4 |
| Network (RJ-45): |
Yes |
| Serial Port: |
Yes |
| Number of HDMI Inputs: |
1 |
| Number of HDMI Outputs: |
1 |
| HDMI In: |
Yes |
| HDMI Out: |
Yes |
| Media & Performance |
|---|
| Twisted Pair Cable Standard: |
Category 5e |
| Media Type Supported: |
Twisted Pair |
| Miscellaneous |
|---|
| Package Contents: |
- 4-Port HDMI Over Single Cat 5 Splitter
- 1 x Power Cord
- 1 x Mounting Kit
- 1 x User Instructions
|
| Environmentally Friendly: |
Yes |
| Environmental Certification: |
WEEE |
|
RoHS |
| Physical Characteristics |
|---|
| Material: |
Metal |
| Form Factor: |
Rack-mountable |
| Length: |
17" |
| Receiver Height: |
2.20" |
| Receiver Width: |
10.30" |
| Receiver Weight (Approximate): |
4.60 lb |
| Power Description |
|---|
| Input Voltage: |
120 V AC |
|
230 V AC |
| Technical Information |
|---|
| Connectivity Technology: |
Wired |
| Maximum Operating Distance: |
330 ft |
| Number of Input Devices Supported: |
1 |
| Video |
|---|
| Graphics Modes: |
4K |
| Maximum Video Resolution: |
4096 x 2160 |
