Description:
With its unique design and innovative features, the CubiQ™ CS1794 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment. Combining a 4-port switch with a 2-port USB 2.0 hub, the CS1794 provides seamless HDMI signal switching between 4 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console.
The CS1794 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1794 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.
Ideal for multimedia applications in the office, the CubiQ™ CS1794 offers the ultimate in space-saving, streamlined KVM technology for the desktop.
Features:
- 4-port HDMI USB 2.0 KVMP™ Switch
- One USB console controls four HDMI-interface computers and two additional USB devices
- 2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification
- Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys
- HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant
- Dolby True HD and DTS HD Master Audio support
- Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
- Power on detection - If one of the computers is powered off, the CS1794 will automatically switch to the next powered-on computer
- Supports widescreen resolutions
- Multiplatform support - Windows, Linux,and Mac
- Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Complete keyboard emulation for error-free booting
- Mac keyboard support and emulation*
- Auto Scan Mode for monitoring all computers and HDMI devices
- Firmware Upgradable
* 1. PC keyboard combinations emulate Mac Keyboards
2. Mac keyboards only work with their own computers
Specifications:
| Computer Connections | 4 |
| Port Selection | Hotkey, Pushbutton |
| Connectors | |
| Console Ports | 2 x USB Type A Female (Black; rear panel) 1 x HDMI Type A Female (Black) 2 x Mini Stereo Jack Female (Green; 1 x front, 1 x rear) 2 x Mini Stereo Jack Female (Pink; 1 x front, 1 x rear) |

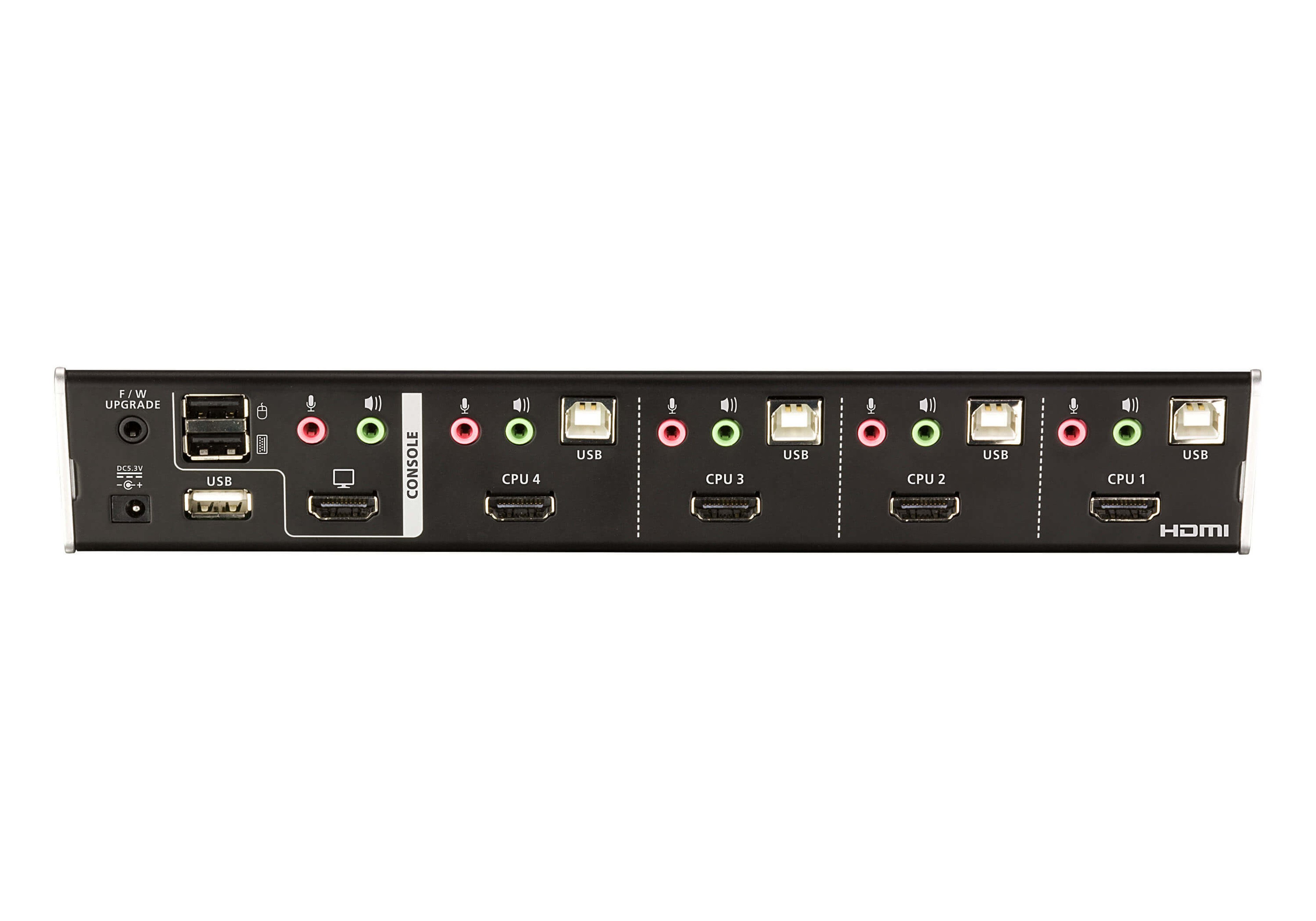

| KVM Ports | 4 x USB Type B Female (White) 4 x HDMI Type A Female (Black) 4 x Mini Stereo Jack Female (Green) 4 x Mini Stereo Jack Female (Pink) |
| Firmware Upgrade | 1 x 4-conductor 3.5mm Jack (Black) |
| Power | 1 x DC Jack |
| USB Hub | 2 x USB Type A Female (White; 1 x front panel; 1 x rear panel) |
| Switches | |
| Selected | 5 x Pushbutton |
| LEDs | |
| Audio | 5 (Green) |
| KVM | 5 (Orange) |
| USB | 5 (Green) |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | 1080p / 1920 x 1200 (DVI) |
| Scan Interval | 1-99 Seconds (Default: 5 sec.) |
| Power Consumption | DC 5.3 V, 4.8 W |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20-60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal, Plastic |
| Weight | 0.53 kg ( 1.17 lb ) |
| Dimensions (L x W x H) | 26.23 x 7.68 x 4.40 cm (10.33 x 3.02 x 1.73 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
