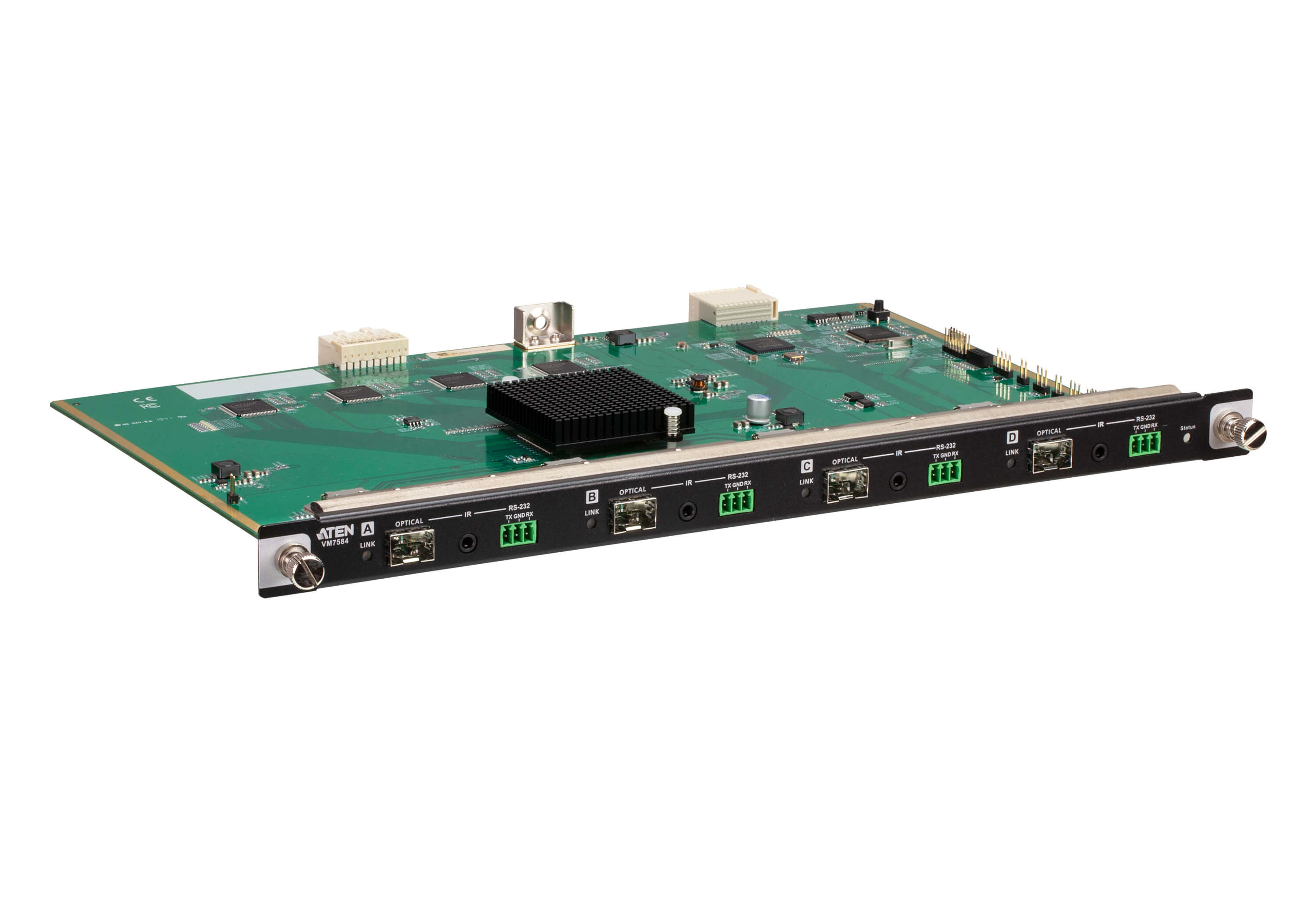

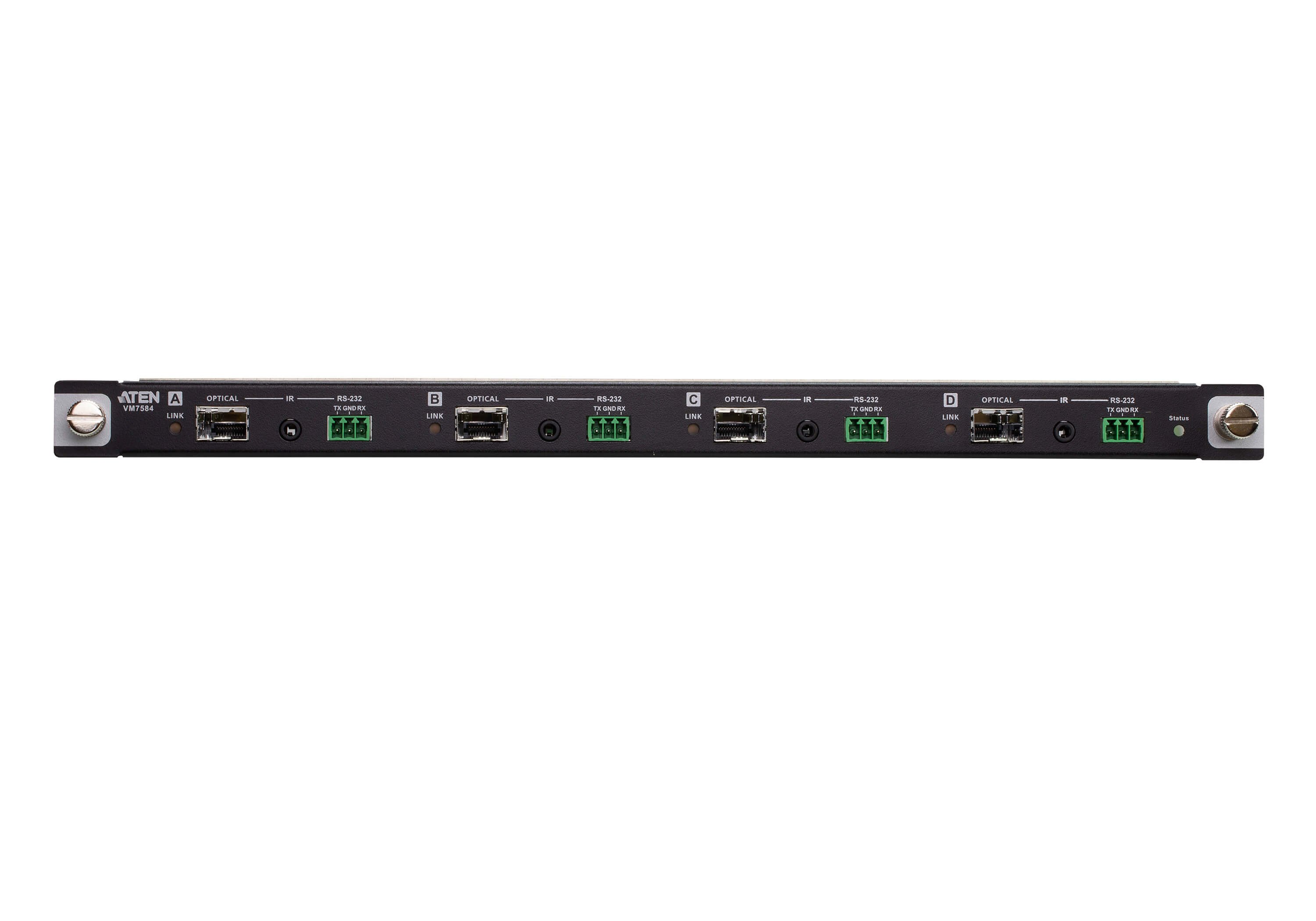

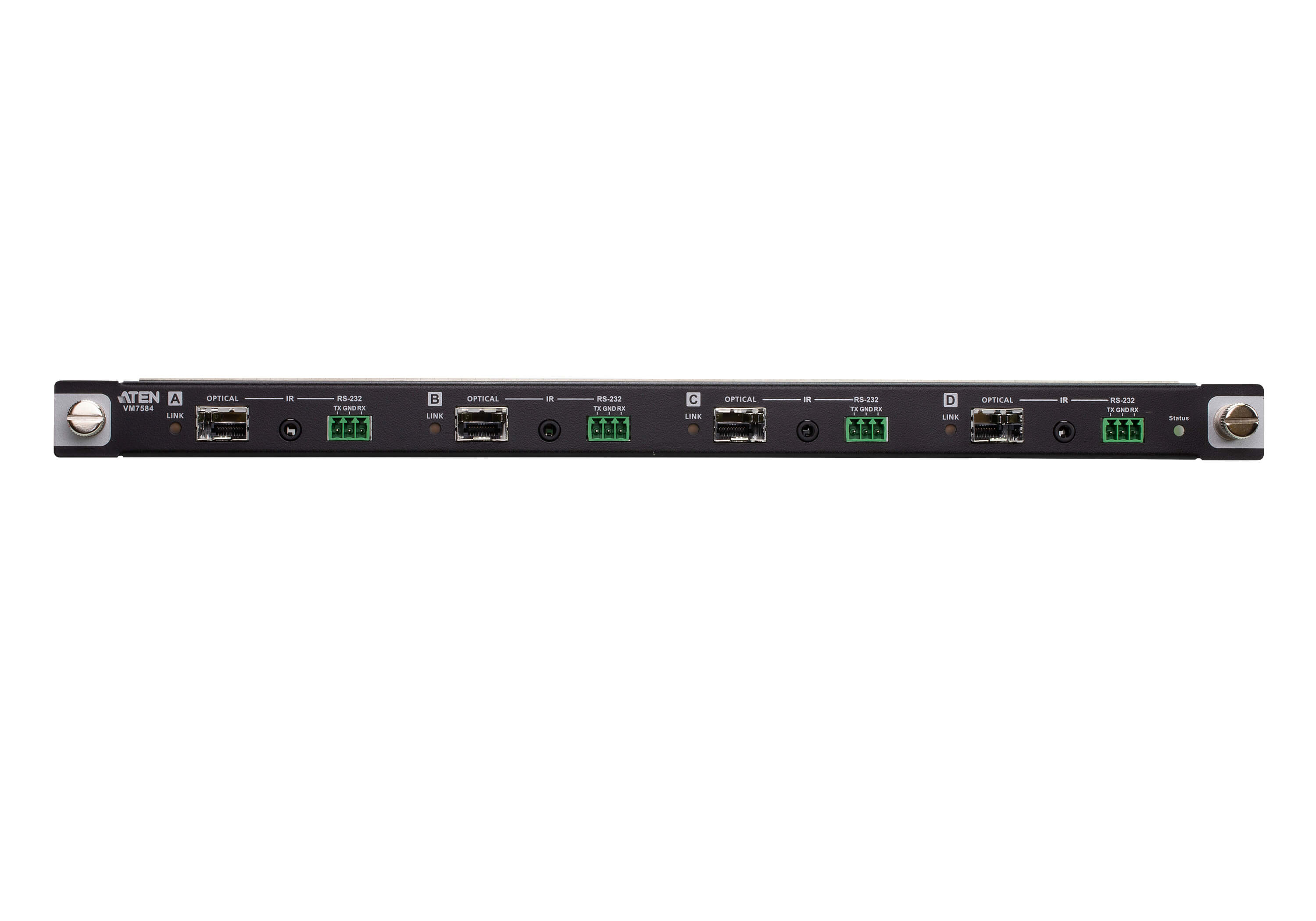

ATEN 4-Port 10G Optical Input Board

The VM7584 4-Port 10G Optical Input Board by Aten is designed to seamlessly route up to four HDMI sources to HDMI displays through optical extenders. This advanced board supports up to 16/32 input and output connections on an ATEN Modular Matrix Switch, providing exceptional flexibility for your AV setup.

Utilizing cutting-edge fiber optics technology, the VM7584 extends uncompressed 4K signals over impressive distances—up to 300 meters with the VM7584K1 (multimode) or 10 kilometers with the VM7584K2 (single-mode). This ensures a reliable, interference-free transmission of audio, video, IR, and RS-232 control signals through a single set of duplex cables.

Key features include:

• High data rate of 10.2 Gbps, meeting HDMI specifications for 3D, Deep Color, and 4K.
• Compatibility with VM3250, VM3200, and VM1600A, allowing for a mix-and-match of modular I/O boards.
• Bi-directional RS-232 and IR channels for versatile control options.
• EDID Expert technology for optimal display settings.
• Hot-swappable modules for easy integration and maintenance.

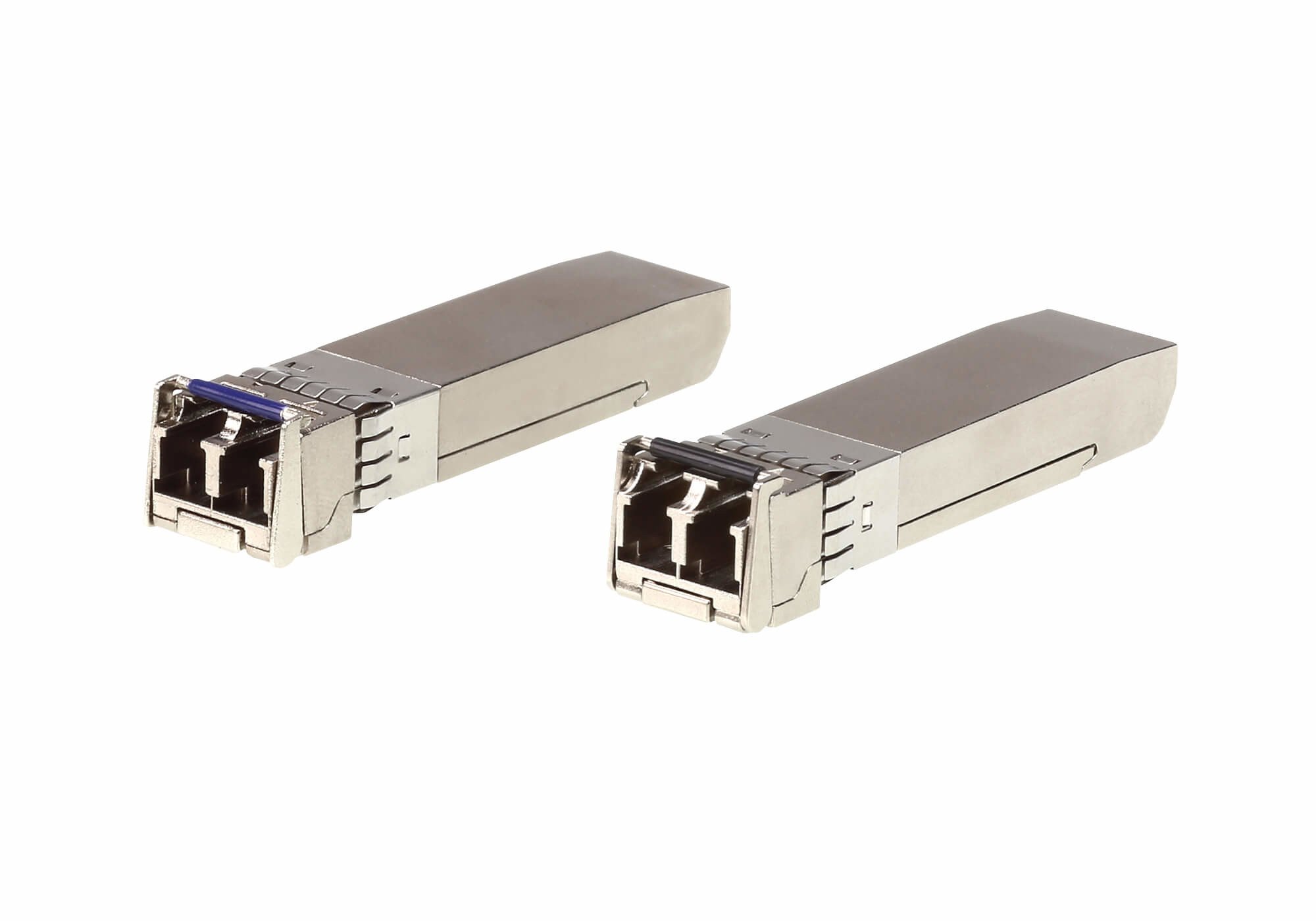

Included in the package are the VM7584 4-Port 10G Optical Input Board, four SFP+ modules, four 3-pole terminal blocks, an IR receiver, an IR emitter, and user instructions.
