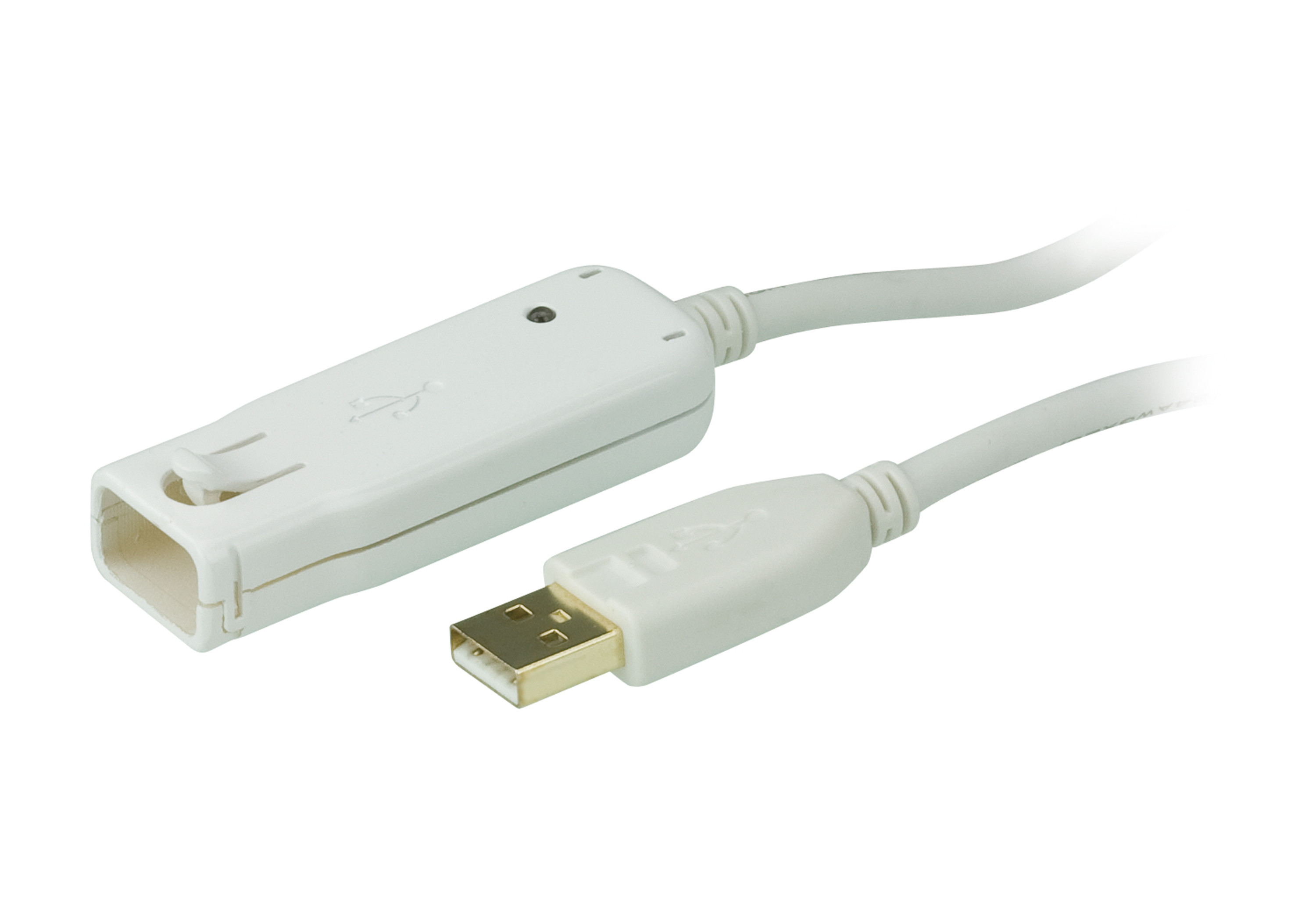

Description:
The UE2120 allows users to extend the distance between a computer and USB device up to 40 feet (12 m) via the active extender cable. USB signals transmitted through these cables maintain optimal signal integrity and meet USB 2.0 standards.
The UE2120 features a unique lockable mechanical design that securely links the male and female ends of the USB cable, ensuring stable connection between cables. Up to 5 extender cables can be chained together, so that cable distance is increased by up to 200 feet (60 m)
Features:
- Extends the distance to your USB device(s) up to 12 meters (40’)
- USB specification version 2.0 / 1.1 compliant
- Plug and play. No additional driver required
- Up to 5 extender cables can be chained for a distance of up to 60 meters (200')
- Lockable mechanical design for secure connection
- Bus powered. No power adapter required
- Multiplatform support – Windows, Mac
Specifications:
| Connectors | |
| USB Port | 1 x USB Type-A Male |
| Downstream | 1 x USB Type-A Female |
| LEDs | 1 (Green) |
| USB Specification | 2.0 / 1.1 For High / Full / Low Speed |
| Cable Length | 12 m |
| Environmental | |
| Operating Temperature | 0–40°C |
| Storage Temperature | -20–60°C |
| Humidity | 0–80% RH |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.56 kg ( 1.23 lb ) |
| Dimensions (L x W x H) | 6.40 x 2.20 x 1.30 cm (2.52 x 0.87 x 0.51 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
