Description:

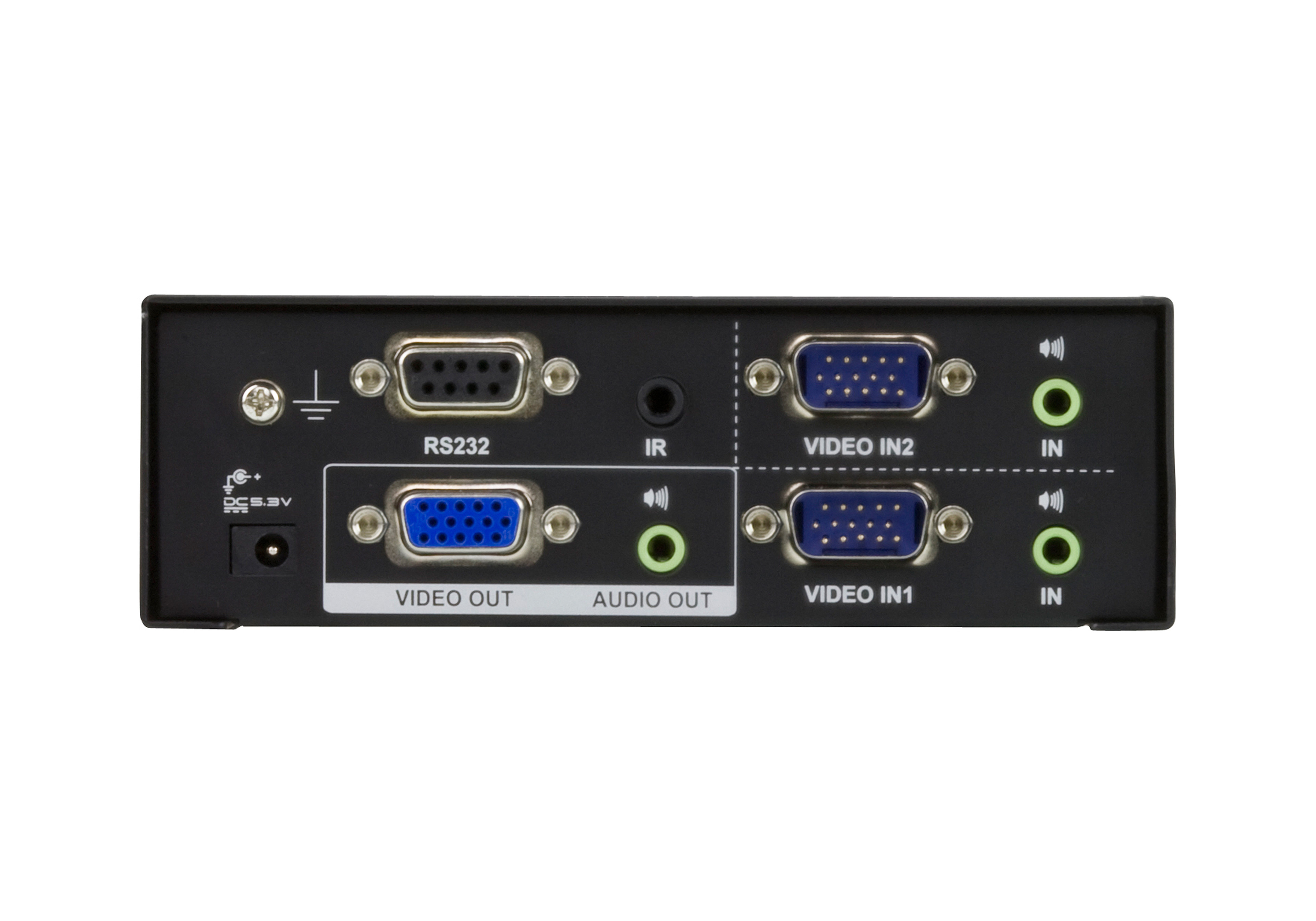

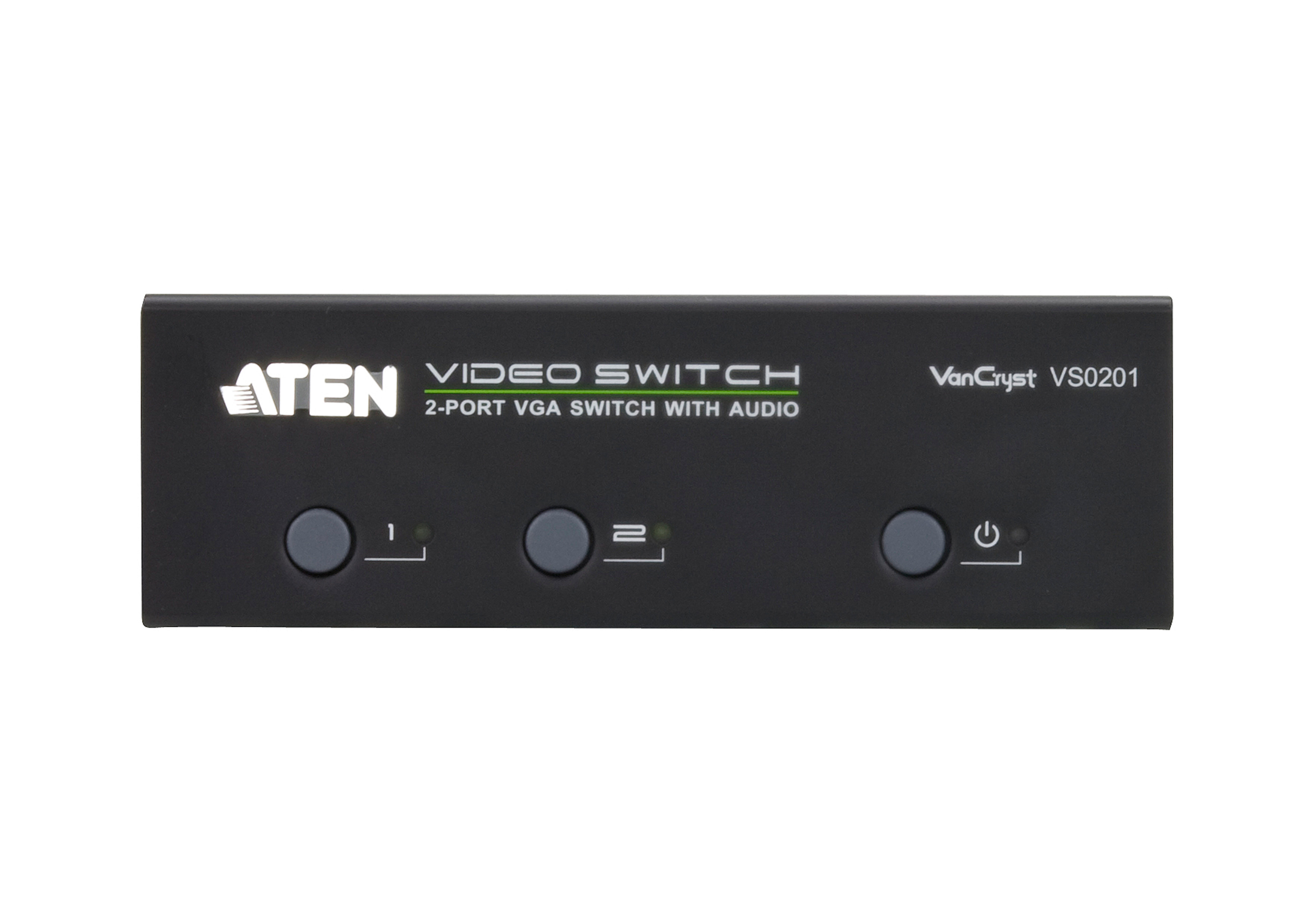

The VS0201 2-Port VGA Switch with Audio allows you to connect two audio/video source computers to a single monitor or projector with full audio and quickly switch between the devices for use.VS0201 built-in bi-directional RS-232 serial port for high-end system control, and advanced RS-232 control. The unit ´s bi-directional RS-232 serial port also allows serial devices, such as touchscreens and barcode scanners to be included in the installation. With the ability to use high-end serial control devices via RS-232 commands allows the VS0201 to be controlled by secondary systems with advanced functions such as; port switching, auto switching, front panel pushbutton lock, and Power on Detection. The VS0201 is perfect for the meeting room, media centers, class rooms, or any presentation environment requiring multiple audio/video sources to be accessed on a single display.
Specifications:
| Product Type: |
Audio/Video Switchbox |
| Manufacturer Part Number: |
VS0201 |
| Manufacturer Website Address: |
http://www.aten-usa.com |
| Packaged Quantity: |
1 |
| Manufacturer: |
ATEN Technology Inc |
| Product Name: |
2-Port VGA Switch with Audio |
| Brand Name: |
ATEN |
| Interfaces/Ports |
|---|
| Audio Line In: |
Yes |
| Audio Line Out: |
Yes |
| Serial Port: |
Yes |
| Number of VGA Outputs: |
1 |
| VGA In: |
Yes |
| VGA Out: |
Yes |
| Number of VGA Inputs: |
2 |
| Media & Performance |
|---|
| Maximum Operating Distance: |
213.25 ft |
| Miscellaneous |
|---|
| Package Contents: |
- 2-Port VGA Switch with Audio
- 1x Power Adapter
- 1x User Instructions
|
| Environmentally Friendly: |
Yes |
| Environmental Certification: |
RoHS |
|
WEEE |
| Physical Characteristics |
|---|
| Weight (Approximate): |
15.87 oz |
| Height: |
1.7" |
| Width: |
3" |
| Depth: |
5.1" |
| Power Description |
|---|
| Input Voltage: |
5.3 V DC |
| Power Consumption: |
550 mW |
| Technical Information |
|---|
| Connectivity Technology: |
Cable |
| Number of Displays Supported: |
1 |
| Number of Input Devices Supported: |
2 |
| Video |
|---|
| Graphics Modes: |
SVGA |
|
UXGA |
|
VGA |
|
WUXGA |
| Maximum Video Resolution: |
1920 x 1440 |
| Maximum Video Bandwidth: |
300 MHz |
