Description:

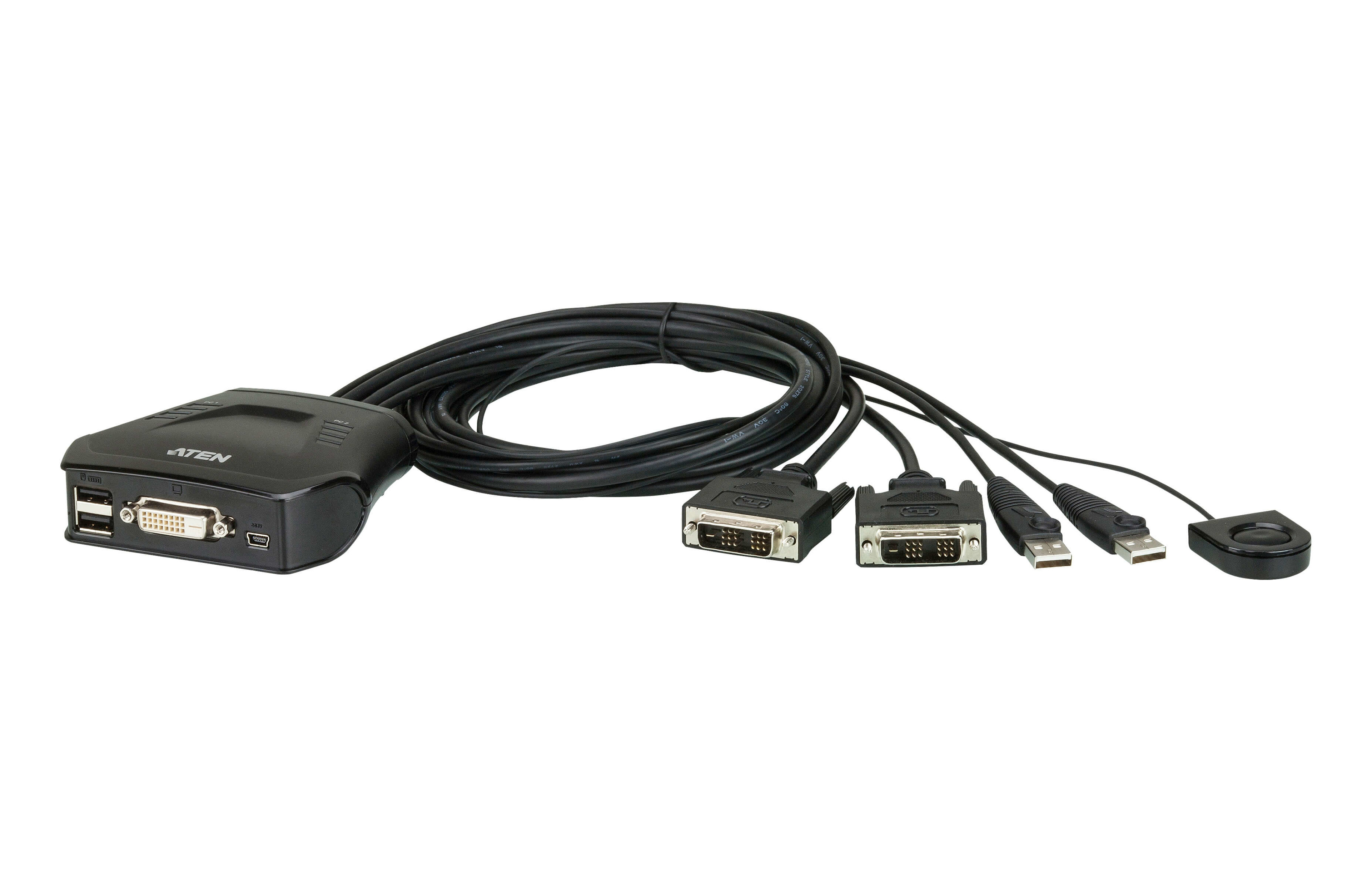

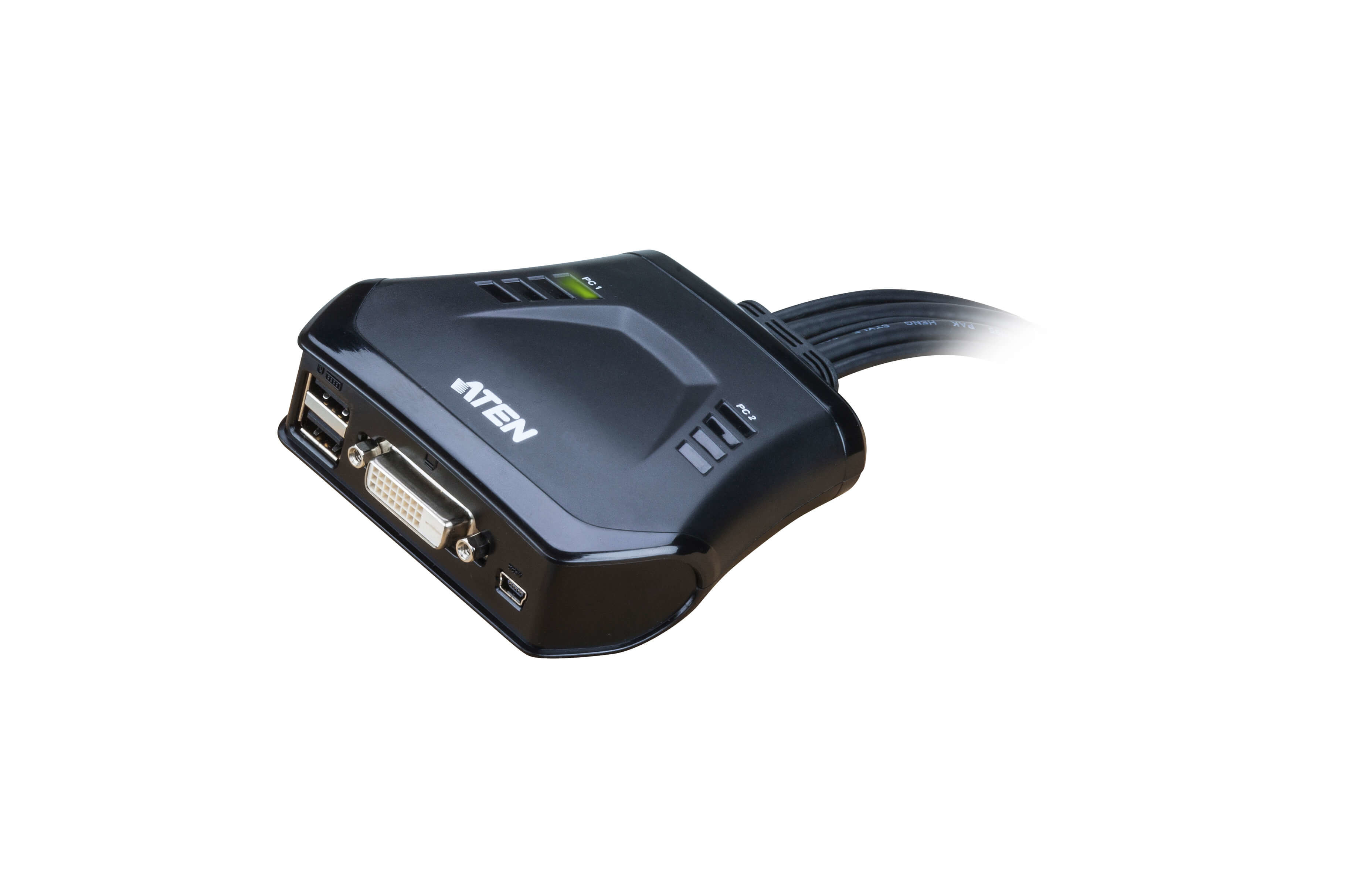

The CS22D 2-Port USB DVI KVM Switch is a control unit that allows access to two computers from a single USB and DVI console (keyboard, video and mouse). With the CS22D, you can access the computers conveniently via a Remote Port Selector.
The CS22D´s compact all-in-one design makes it ideal for multiplatform desktop applications
Features:
- One DVI-D video console controls two DVI-D USB interface computers
- Computer Selection via Remote Port Selector
- OS Support: Windows 2000, Windows XP, Windows Vista, 7, Mac, Sun and Linux
- Superior video quality- up to 1920 x 1200@60Hz
- Supports USB hot-plugging
- Non-powered
- Supports USB 2.0 device
Specifications:
| Computer Connections | 2 |
| Port Selection | Remote Port Selector |
| Connectors | |
| Console Ports | 2 x USB Type A Female (Black) 1 x DVI-I Female (Black) 1 x mini USB Type B Female (Black, Optional) |
| KVM Ports | 2 x USB Type A Male (Black) 2 x DVI-D Male (Black) |
| LEDs | |
| Selected | 2 (Green) |
| Video Resolution | DVI-D: 1920 x 1200 @ 60 Hz |
| Power Consumption | 5V, 2.5W |
| Environmental | |
| Operating Temperature | 0 - 50˚C |
| Storage Temperature | -20 - 60˚C |
| Humidity | 0 - 80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.34 kg ( 0.75 lb ) |
| Dimensions (L x W x H) | 9.96 x 9.36 x 3.01 cm (3.92 x 3.69 x 1.19 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
