Description:

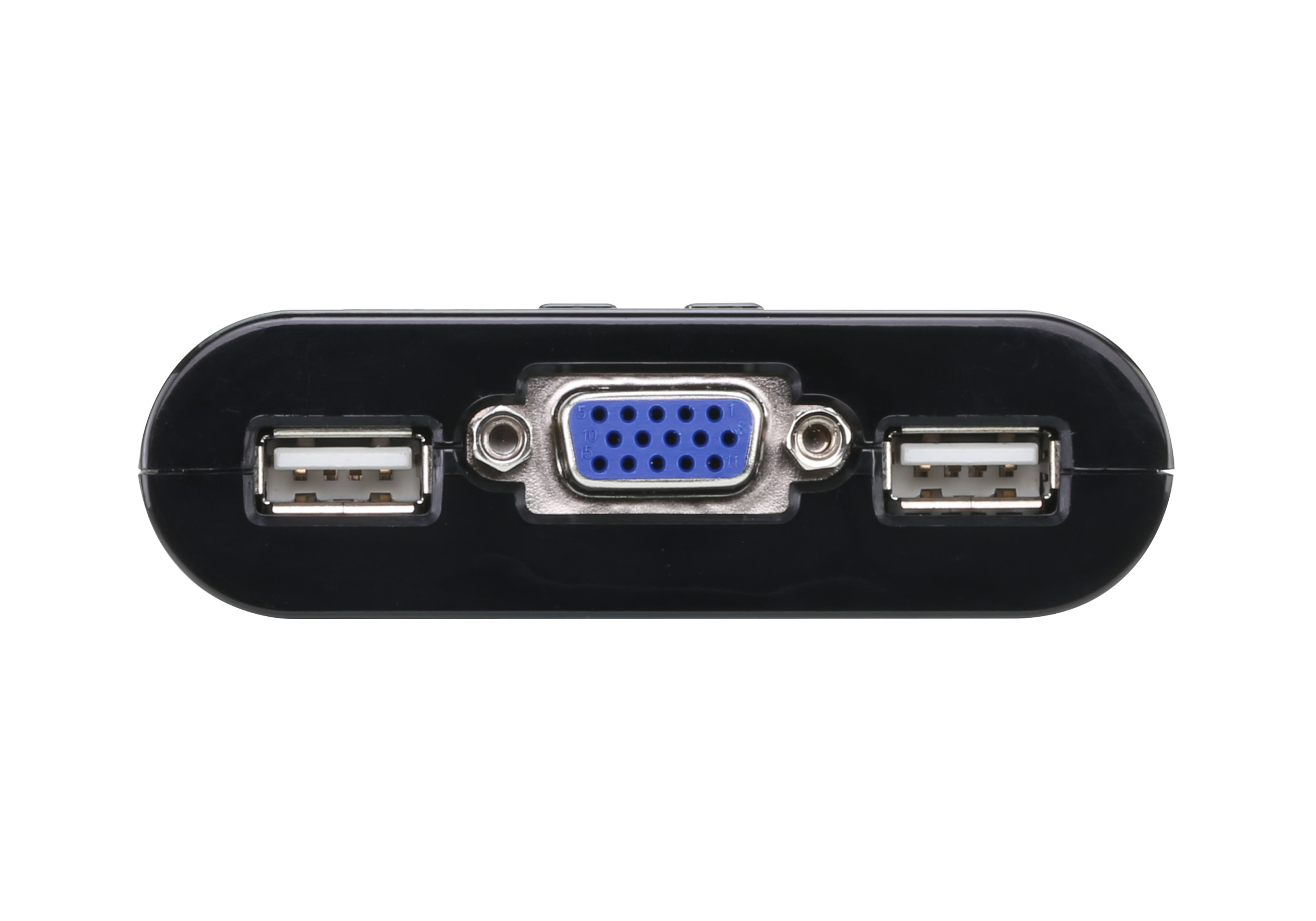

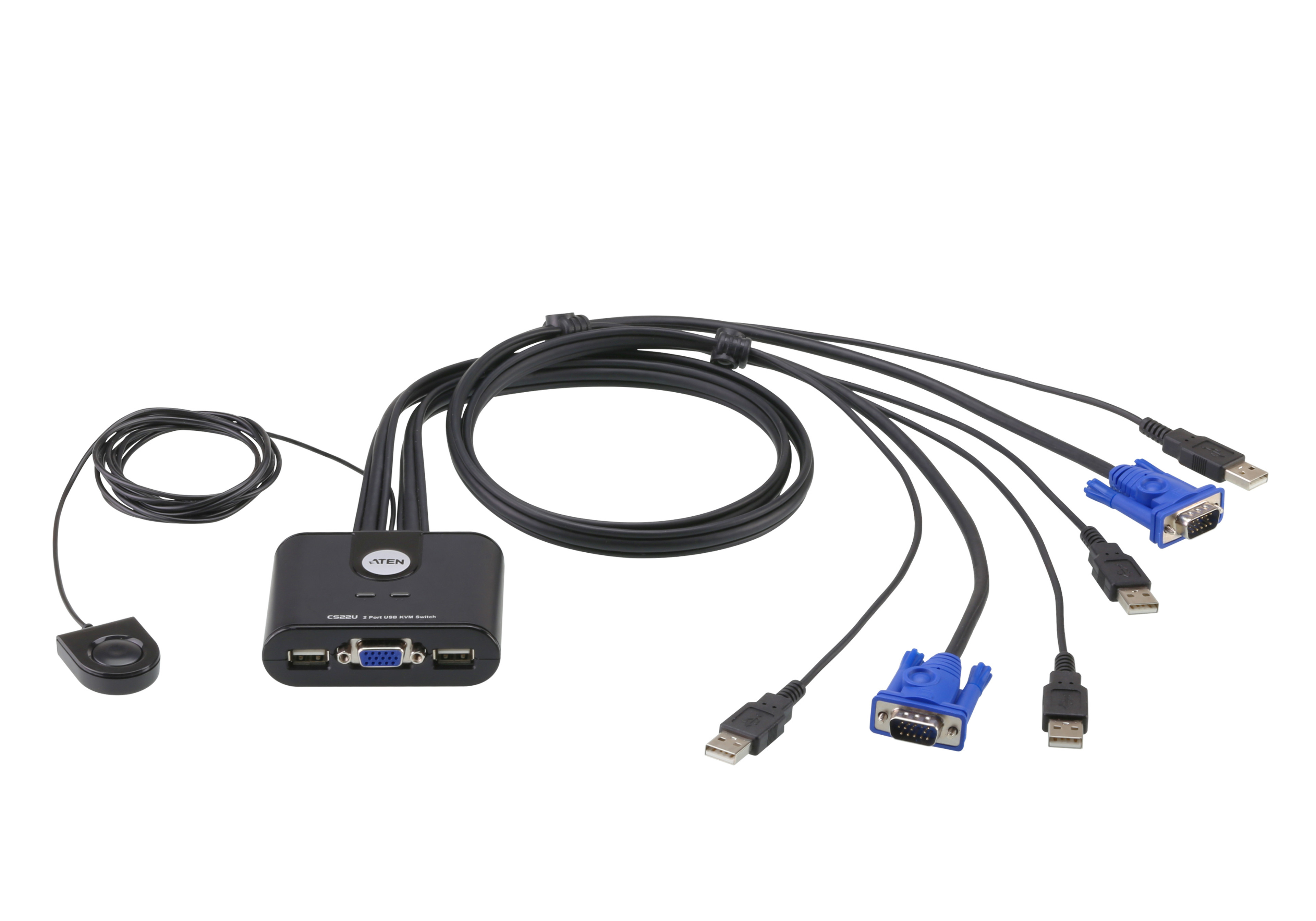

2-Port USB VGA Cable KVM Switch with Remote Port Selector
The CS22U's compact all-in-one design makes it ideal for multiplatform desktop applications that require high resolution video
Features:
- One USB console controls two USB computers
- Supports multifunction mice
- Multiplatform support - Windows, Mac, Linux and Sun
- USB mouse port can be used for USB 1.1 hub ad USB 1.1 peripheral sharing
- Superior video quality - up to 2048 x 1536; DDC2B
- Non-powered
Specifications:
| Computer Connections | 2 |
| Port Selection | Remote Port Selector |
| Connectors | |
| Console Ports | 2 x USB Type A Female (Black) 1 x HDB-15 Female (Blue) |
| KVM Ports | 4 x USB Type A Male (Black) 2 x HDB-15 Male (Blue) |
| LEDs | |
| Selected | 2 |
| Cable Length | |
| Computer | 0.9 m |
| Remote Port Selector | 1.8 m |
| Video | 2048 x 1536, DDC2B |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20-60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.30 kg ( 0.66 lb ) |
| Dimensions (L x W x H) | 8.24 x 7.01 x 2.46 cm (3.24 x 2.76 x 0.97 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
