Description:

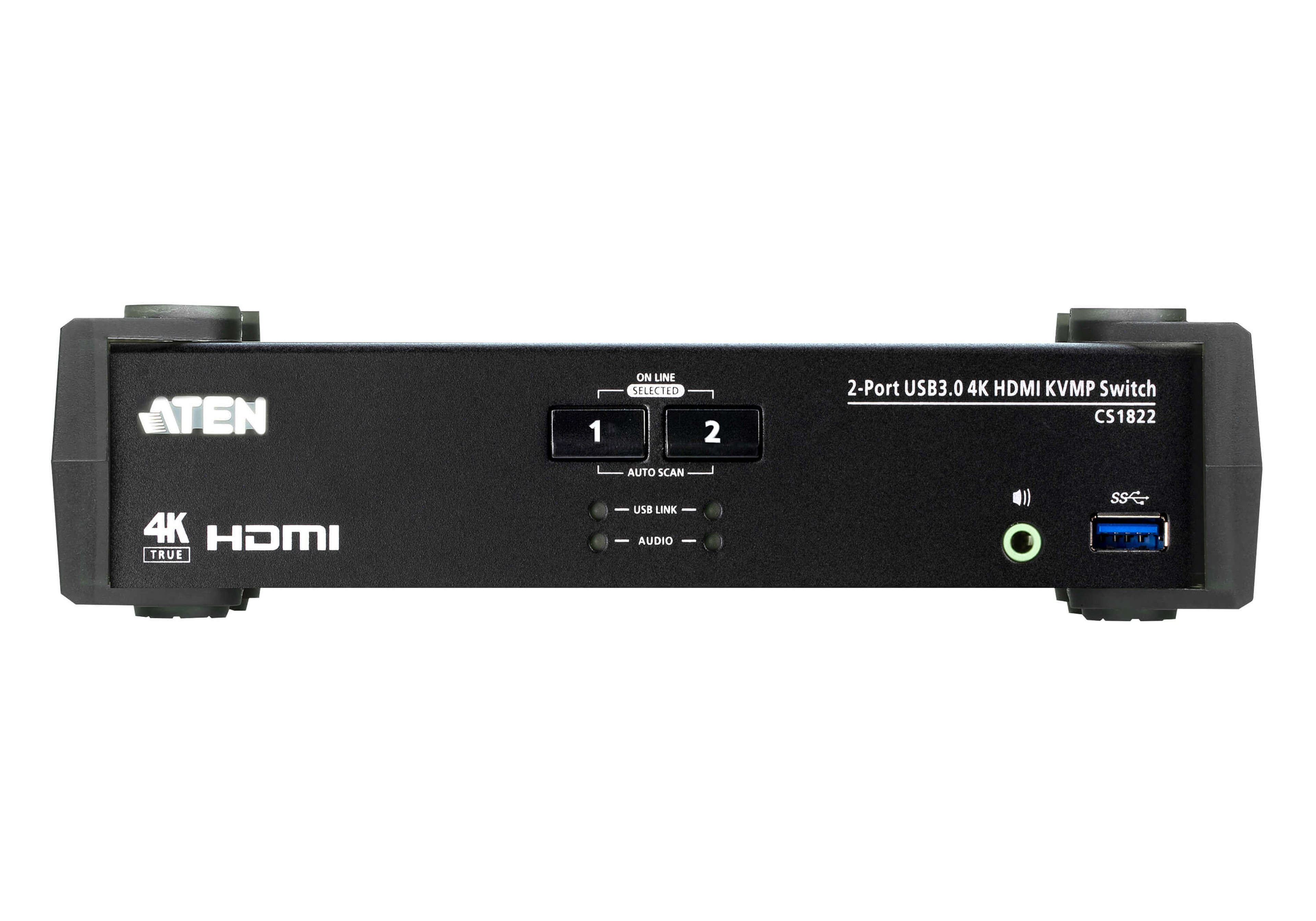

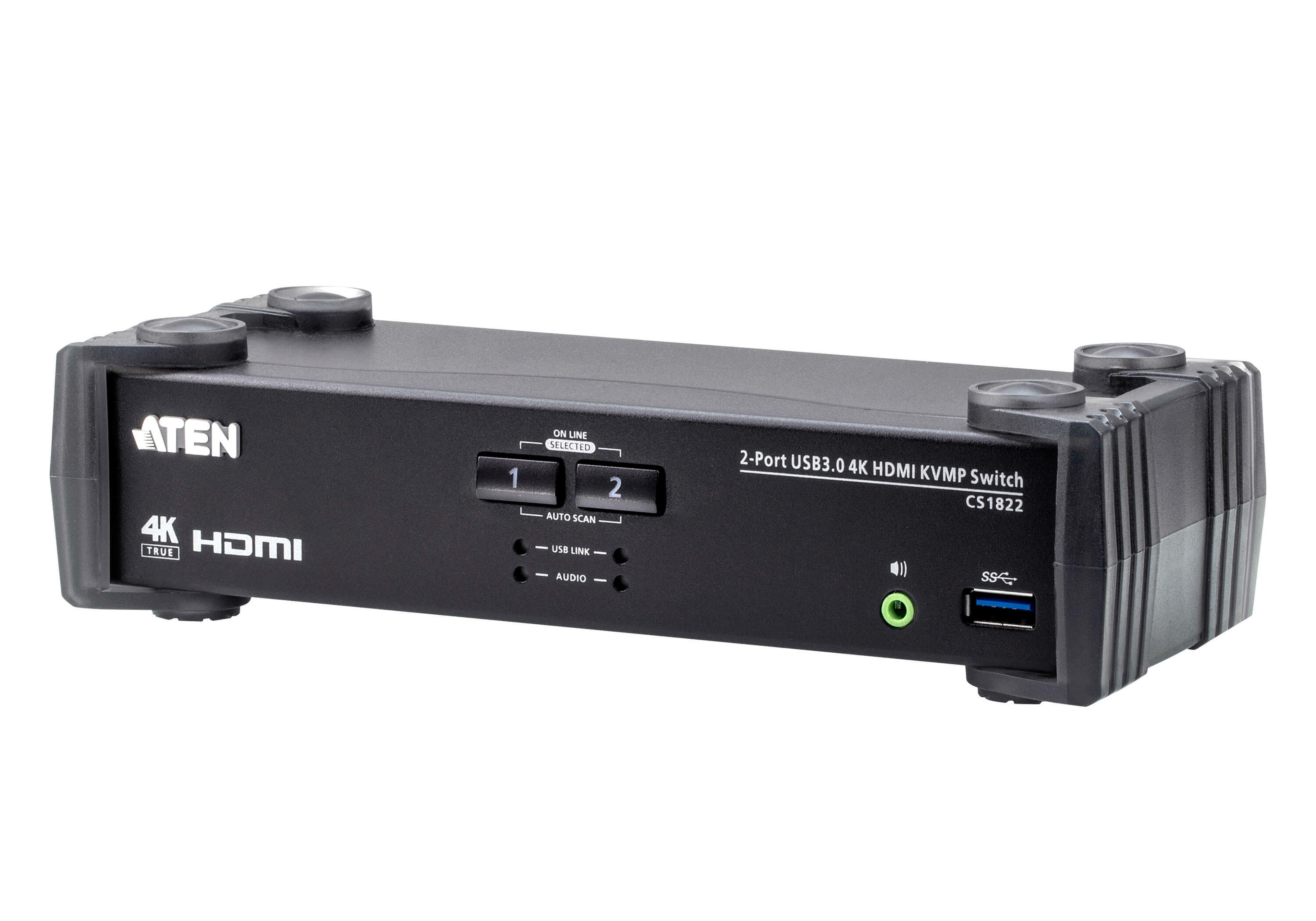

The ATEN CS1822 KVMP™ Switch offers effortless management of two HDMI interface computers from a single USB keyboard, mouse and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), the CS1822 optimizes user experience of multitasking. With patented ATEN technology - Video DynaSync™, users can enjoy better display resolution and faster switching between systems. What's more, the default EDID mode is available for smooth power-up, high-quality display and eliminates monitor compatibility issue.
In addition, the CS1822 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB 3.1 Gen 1 hub, the CS1822 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations and share USB peripherals with ease.
Integrating these outstanding functionalities, the CS1822 provides a great advantage for those doing CGI work, graphic design, video post production, etc. to operate multiple tasks smoothly
Specifications:
| Product Type: |
KVM Switchbox |
| Form Factor: |
Desktop |
| Brand Name: |
Aten |
| Maximum Video Resolution: |
4096 x 2160 |
| USB: |
Yes |
| HDMI: |
Yes |
| Number of Computers Supported: |
2 |
| Number of Local Users Supported: |
1 |
| General Information |
|---|
| Product Type: |
KVM Switchbox |
| Manufacturer Part Number: |
CS1822 |
| Manufacturer Website Address: |
http://www.aten.com/us/en/ |
| Packaged Quantity: |
1 |
| Manufacturer: |
ATEN Technology, Inc |
| Product Model: |
CS1822 |
| Product Name: |
2-Port USB 3.0 4K HDMI KVMP Switch |
| Brand Name: |
Aten |
| Interfaces/Ports |
|---|
| USB: |
Yes |
| HDMI: |
Yes |

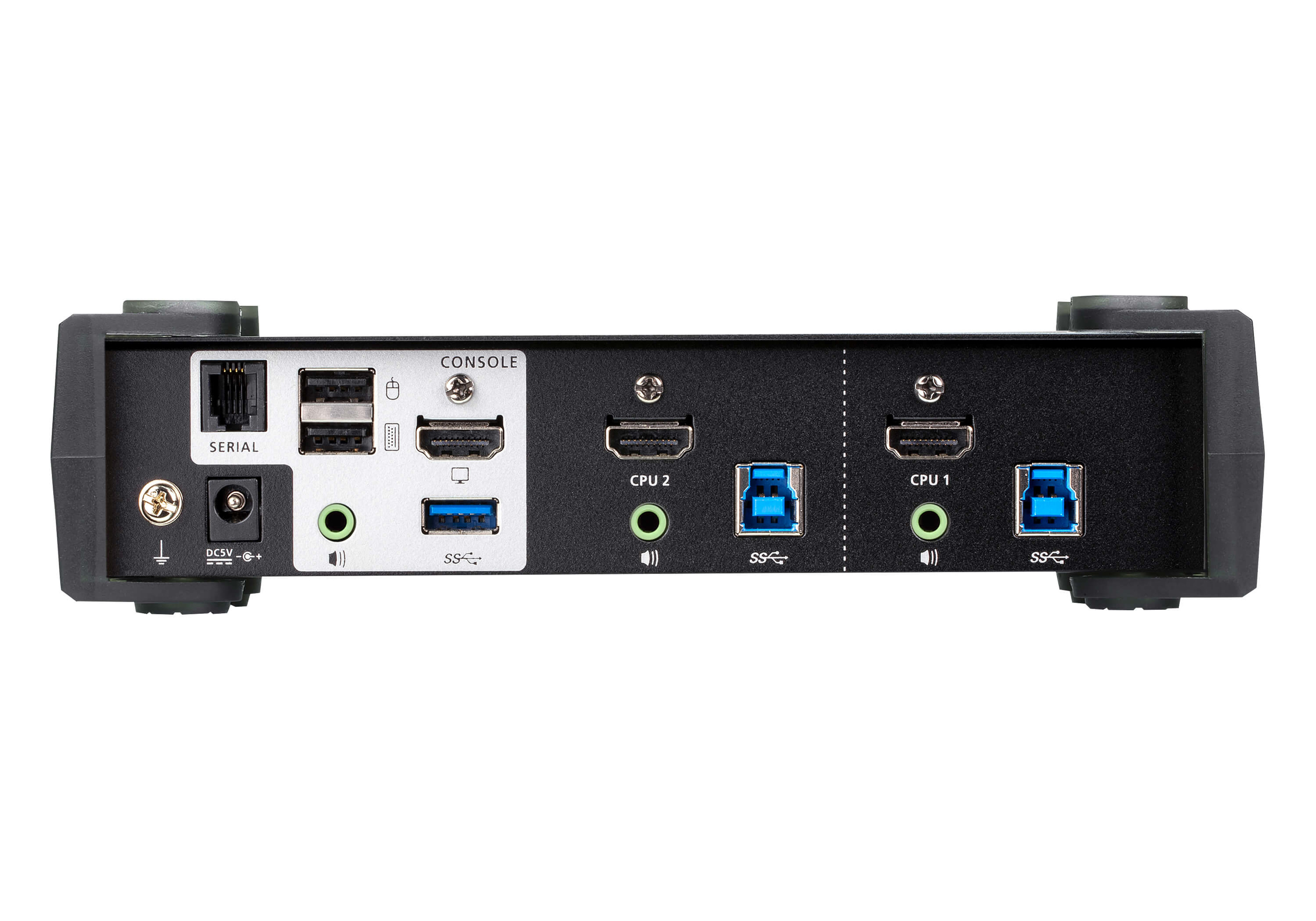

| Number of HDMI Ports: |
3 |
| Number of USB Ports: |
6 |
| Miscellaneous |
|---|
| Package Contents: |
- 2-Port USB 3.0 4K HDMI KVMP Switch
- 2 x HDMI 2.0 Cables
- 2 x USB 3.0 Cables
- 2 x Audio Cables
- 1 x Power Adapter
- 1 x User Instructions
|
| Environmentally Friendly: |
Yes |
| Environmental Certification: |
RoHS |
|
WEEE |
| Physical Characteristics |
|---|
| Weight (Approximate): |
1.63 lb |
| Form Factor: |
Desktop |
| Height: |
2.2" |
| Width: |
3.5" |
| Depth: |
8.3" |
| Technical Information |
|---|
| Number of Computers Supported: |
2 |
| Number of Local Users Supported: |
1 |
| Video |
|---|
| Maximum Video Resolution: |
4096 x 2160 |
