Description:

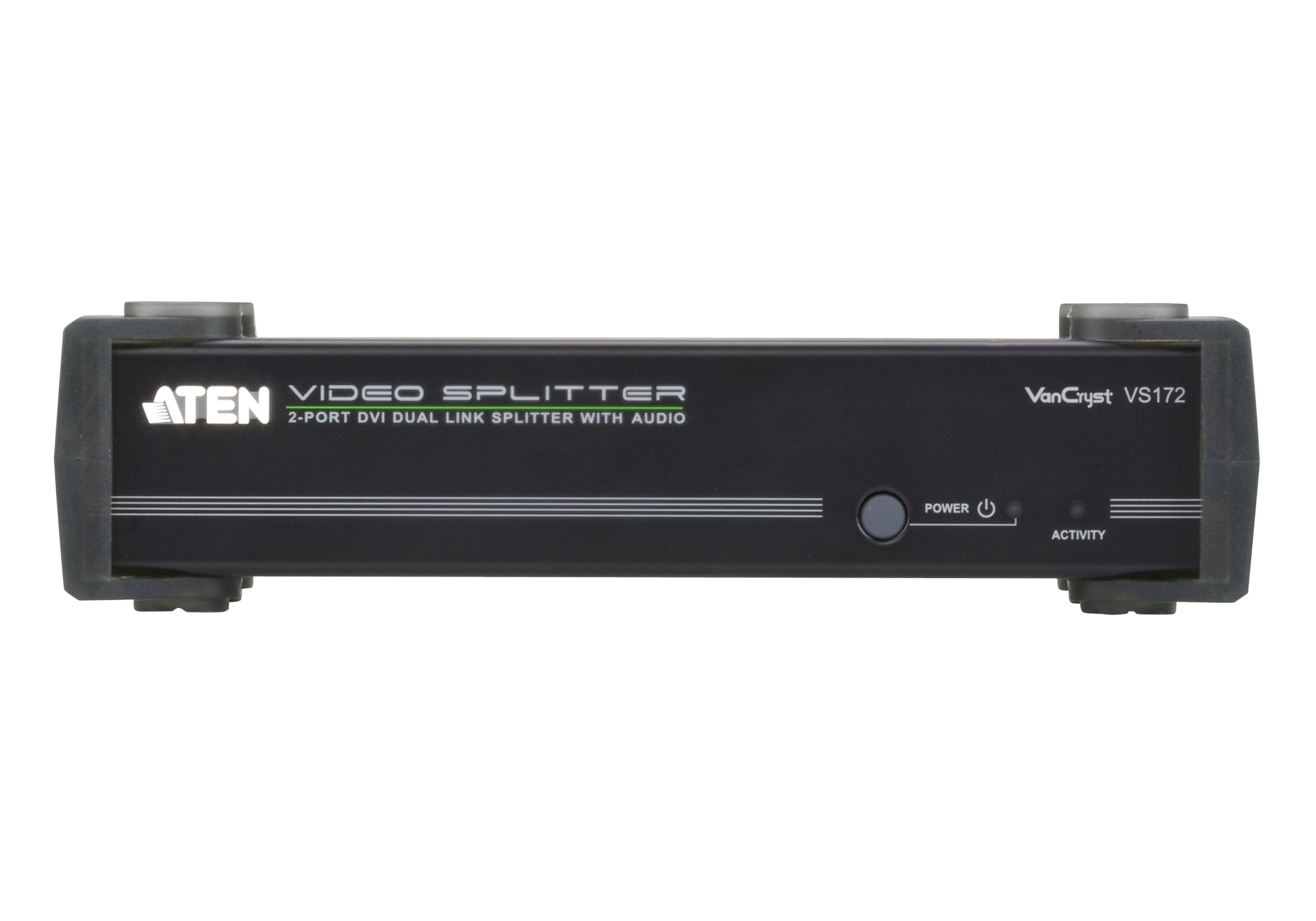

2-Port DVI Dual Link Splitter + Audio/RS232
- Displays DVI audio/video to multiple DVI-compatible monitors or projectors
- Superior video quality – up to 2560 x 1600 @ 60Hz and 1080p
- Cascadable to 3 levels – provides up to 64 video signals
- Audio enabled
- Features RS-232 serial port for command controls
- RS-232 Chain Control – use RS-232 commands to control cascaded devices via a DVI Cable
- EDID Expert – selects the optimum EDID settings via RS-232
Note:

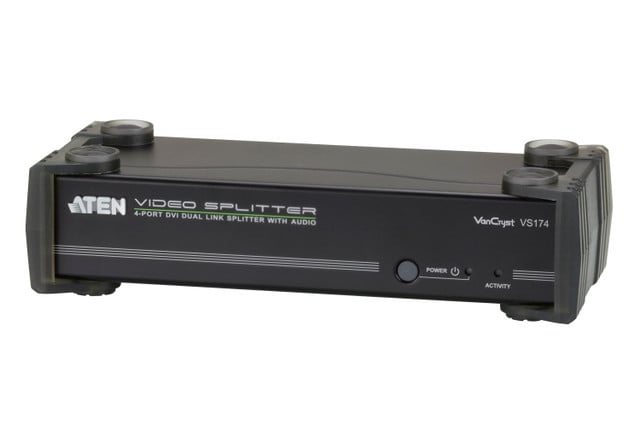

* The VS174 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)
** HDCP is not supported
Specifications:
| Video Input | |
| Interfaces | 1 x DVI-D Female (White) |
| Impedance | 100 Ώ |
| Max. Distance | 1.8 m |
| Video Output | |
| Interfaces | 4 x DVI-D Female (White) |
| Impedance | 100 Ώ |
| Video | |
| Max. Data Rate | 13.5 Gbps (2.25 Gbps Per Lane) |
| Max. Pixel Clock | 225 MHz |
| Max. Resolution | Up to 2560 x 1600 |
| Max. Distance | Up to 5 m |
| Audio | |
| Input | 1 x Mini Stereo Jack Female (Green) |
| Output | 4 x Mini Stereo Jack Female (Green) |
| Control | |
| RS-232 | Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
| EDID Settings | EDID Mode: Default / Port 1 / Auto |
| Power | |
| Connectors | 1 x DC Jack |
| Consumption | 5.3 VDC, 5.6W |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.73 kg ( 1.61 lb ) |
| Dimensions (L x W x H) | 21.00 x 8.80 x 5.55 cm (8.27 x 3.46 x 2.19 in.) |
| Carton Lot | 5 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
