Description:

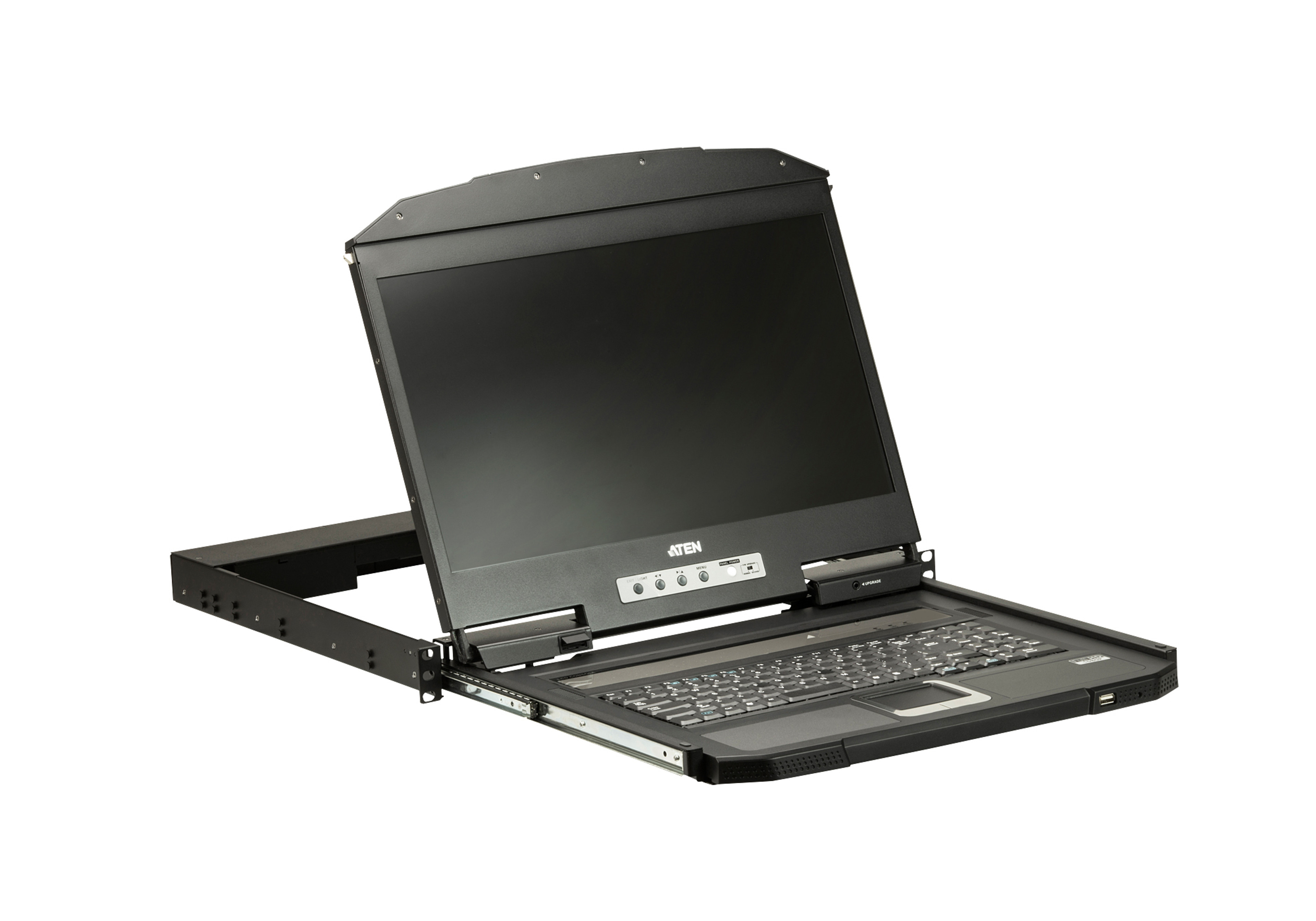

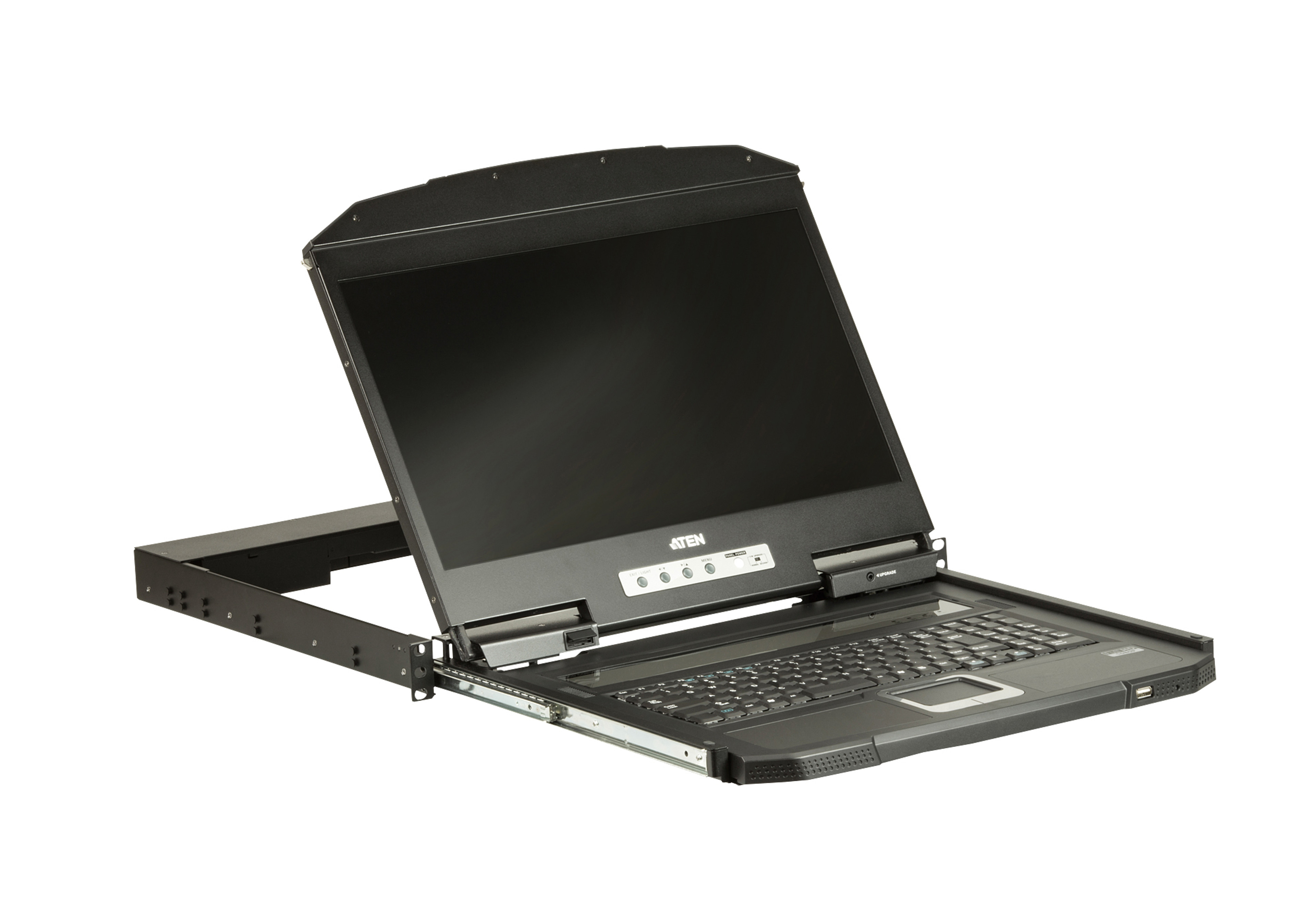

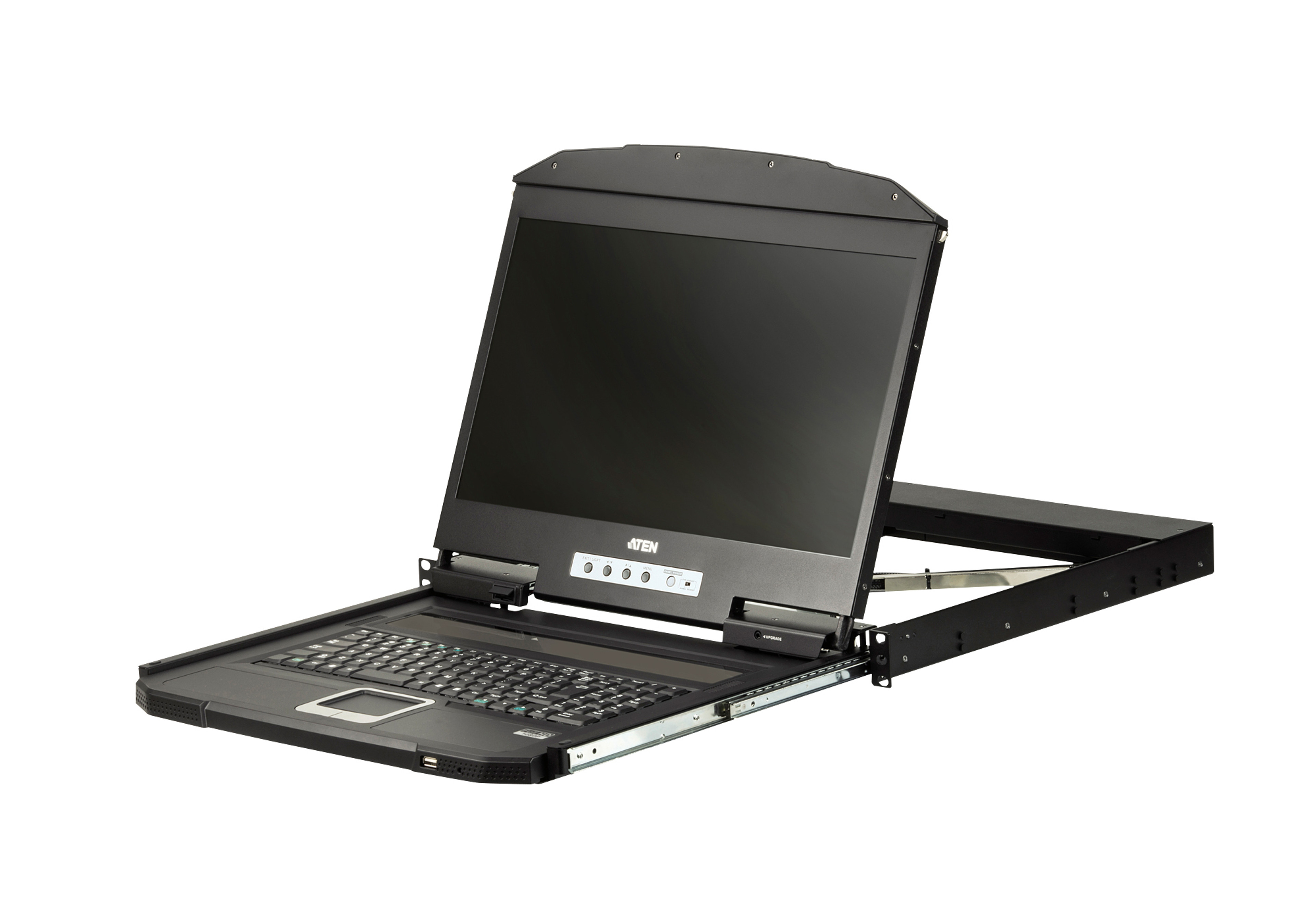

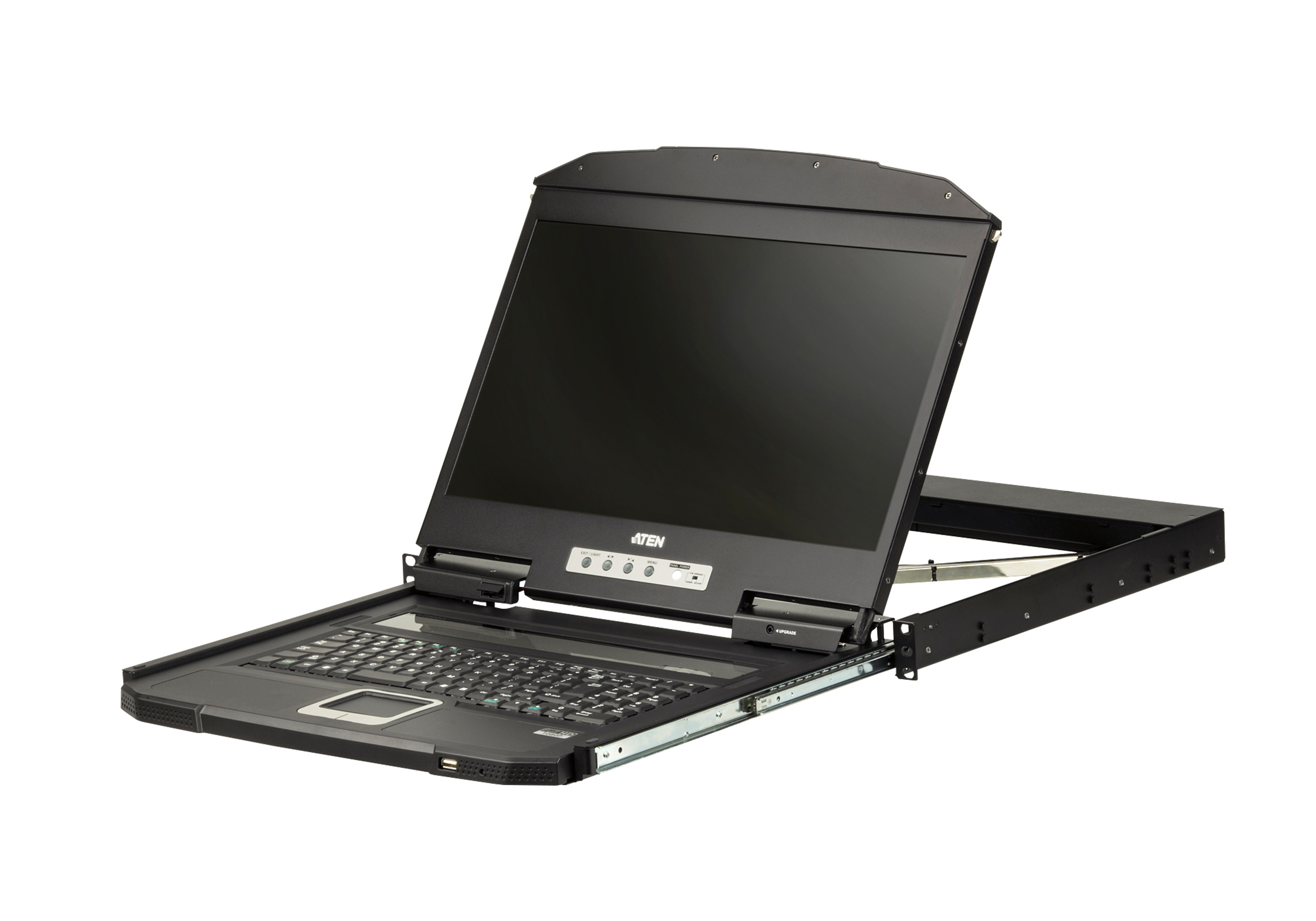

The CL3100 USB VGA LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipmentcabinets,and is especially suitable for shallow racks. The CL3100 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.

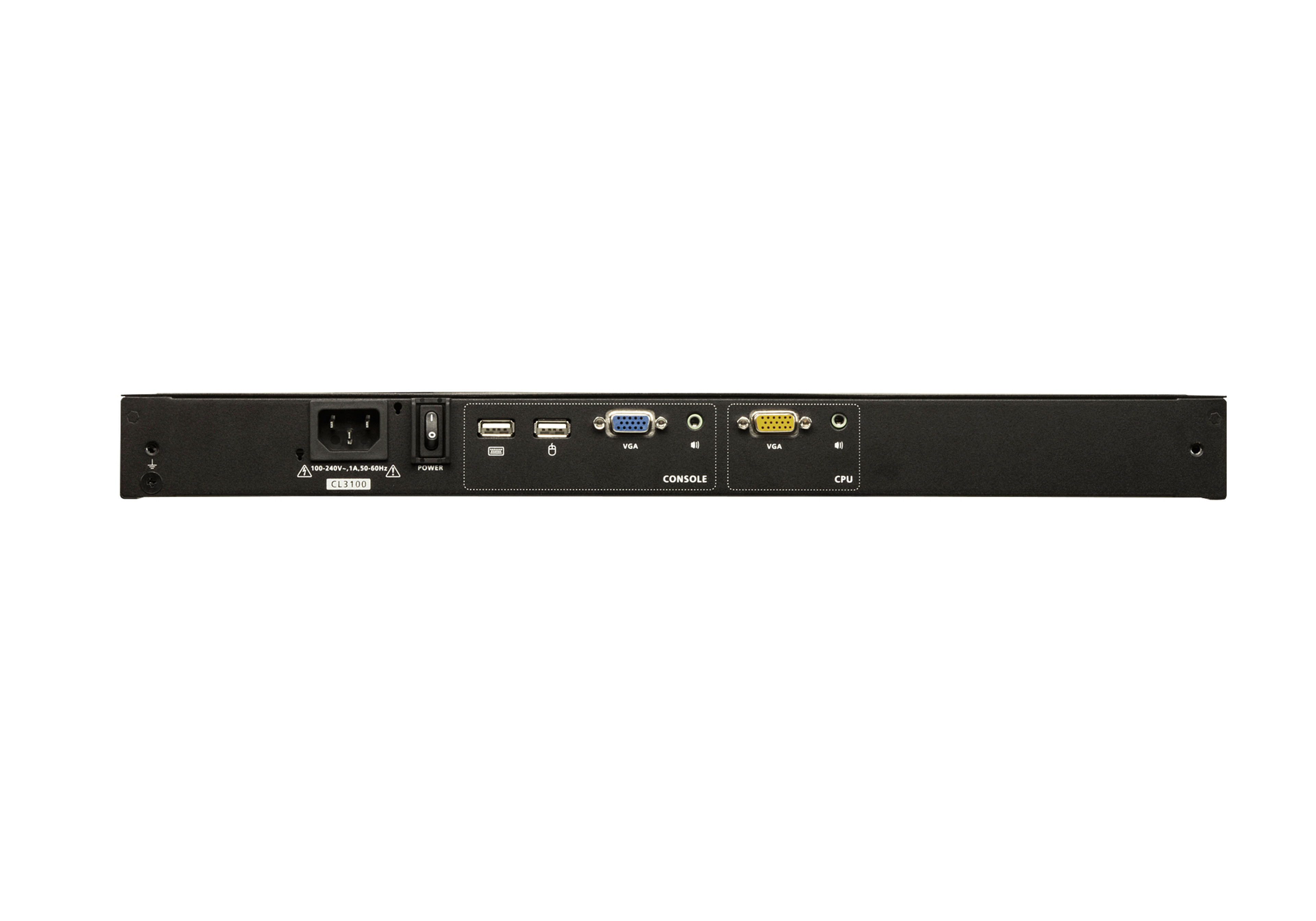

The CL3100 is a dedicated front end sliding console for compatible VGA KVM switches. For added convenience, users can choose to manage the computer from an external console. The CL3100 features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse and VGA monitor) are provided on the rear panel. The CL3100 also includes two mini stereo ports for connecting audio speakers.
With a rich feature set, the CL3100 is designed to exceed the requirements for space utility optimization, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.
Specifications:
| Function | CL3100NX |
| Computer Connections | |
| Direct | 1 |
| Console Selection | Hotkey |
| Connectors | |
| External Console Ports | 1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) |
| KVM Ports | 1 x SPHD Female (Yellow) 1 x 3.5mm Audio Jack Female (Green) |
| USB Port | 1 x USB Type A Female |
| Firmware Upgrade | 1 x 3.5mm Audio Jack Female (Black) |
| Power | 1 x 3-prong AC Socket |
| Switches | |
| Reset | 1 x Semi-recessed Pushbutton |
| Firmware Upgrade | 1 x Slide Switch |
| Power | 1 x Rocker Switch |
| LCD Power | 1 x Pushbutton |
| LCD Adjustment | 4 x Pushbutton |
| LEDs | |
| Power | 1 x KVM Console (Dark Green) 1 x LCD (Orange) |
| Lock | 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | |
| Input Video Resolution | 1920 x 1200 @ 60 Hz |
| Panel Spec | |
| LCD Module | 18.5" TFT-LCD |
| Resolution | 1366 x 768 @ 60Hz |
| Pixel Pitch | 0.3 mm x 0.3 mm |
| Response time | 5 ms |
| Viewing Angle | 170° (H), 160° (V) |
| Contrast Ratio | 1000 : 1 |
| Support Color | 16.7M colors |
| Luminance | 250 cd/m² |
| Maximum Input Power Rating | 100–240 V AC, 50/60 Hz, 1 A |
| Power Consumption | AC110:13.8W:80BTU AC220:14.1W:81BTU |
| Environmental | |
| Operating Temperature | 0–40°C |
| Storage Temperature | -20–60°C |
| Humidity | 0–80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal + Plastic |
| Weight | 9.07 kg ( 19.98 lb ) |
| Dimensions (L x W x H) | 48.06 x 47.70 x 4.28 cm (18.92 x 18.78 x 1.69 in.) |
| Body Dimensions(L x W x H) | 44.92 x 43.00 x 4.28 cm |
| Note | Body Dimensions exclude I/O ports, handles, and mounting brackets. |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
