Ports & interfaces

Number of computers controlled1

Keyboard port typeUSB

Mouse port typeUSB

Video port typeVGA

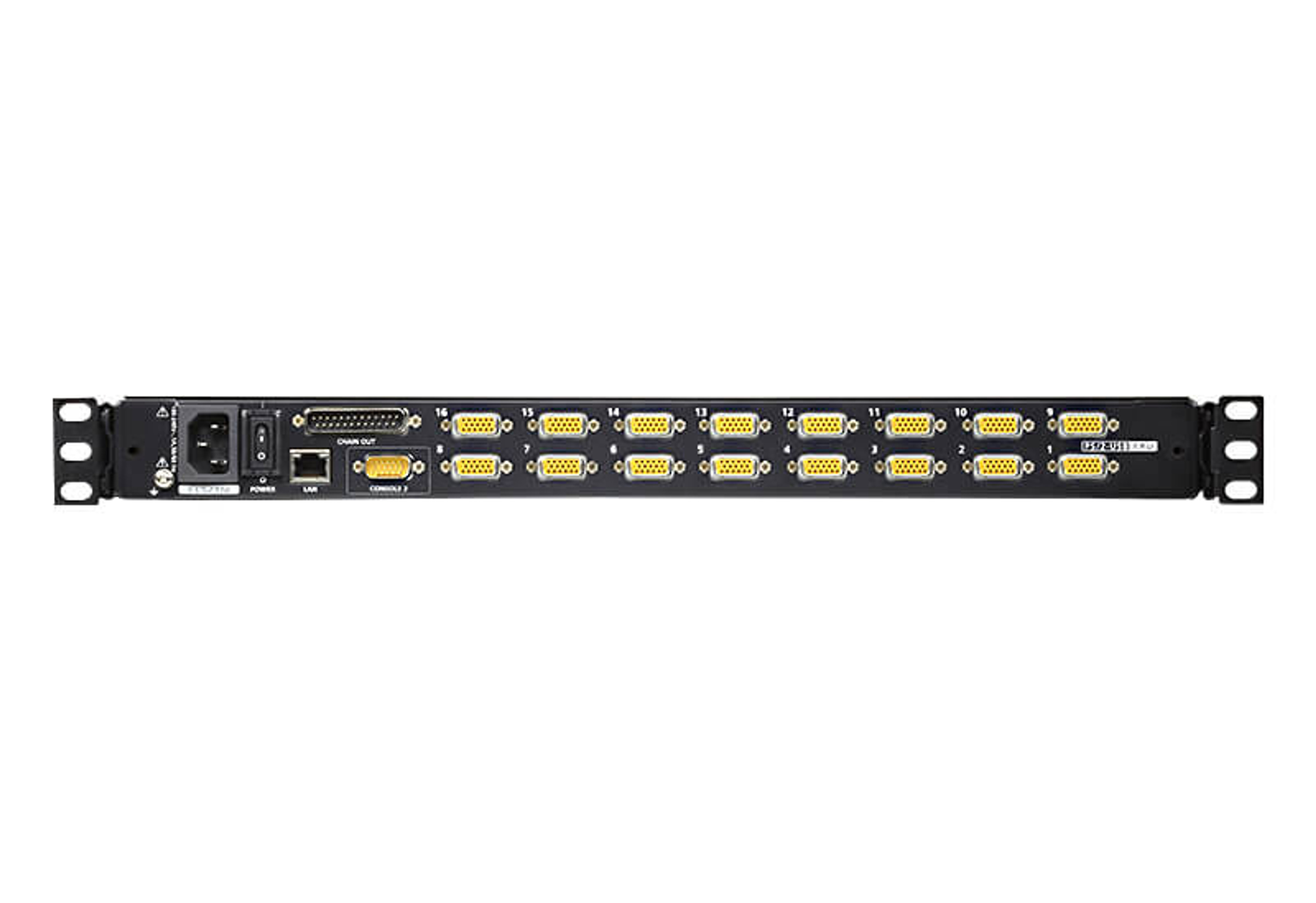

VGA (D-Sub) ports quantity16

Console portsVGA (D-Sub)

USB hub✓

USB 2.0 Type-A hub ports quantity2

USB connector typeUSB Type-A

Network

Ethernet LAN✓

Ethernet LAN (RJ-45) ports1

Performance

HD typeWUXGA

Maximum resolution1920 x 1200 pixels

Video bandwidth75 Hz

Scan interval1,255 s

Firmware upgradeable✓

Design

Rack mounting✓

Product colorBlack

Housing materialMetal, Plastic

LED indicators✓

Hot keys✓

Display

Built-in display✓

DisplayLCD

Display diagonal19"

Power

Power sourceAC

Input voltage100 - 240 V

AC input frequency50-60 Hz

Input current1 A

Operational conditions

Operating temperature (T-T)0 - 50 °C

Storage temperature (T-T)-20 - 60 °C

Operating relative humidity (H-H)0 - 80%

Storage relative humidity (H-H)0 - 80%

Weight & dimensions

Width27.1" (689.2 mm)

Depth18.9" (480 mm)

Height1.73" (44 mm)

Weight31.5 lbs (14.3 kg)

Packaging data

Package width26.3" (668 mm)

Package depth32.8" (833 mm)

Package height5.31" (135 mm)

Package weight38.1 lbs (17.3 kg)

Packaging content

Quick installation guide✓

Manual✓

Logistics data

Master (outer) case net weight31.5 lbs (14.3 kg)

Harmonized System (HS) code85176200

Master (outer) case width26.3" (668 mm)

Master (outer) case length32.8" (833 mm)

Master (outer) case height5.31" (135 mm)

Master (outer) case weight38.1 lbs (17.3 kg)

Quantity per master (outer) case1 pc(s)
