Description:

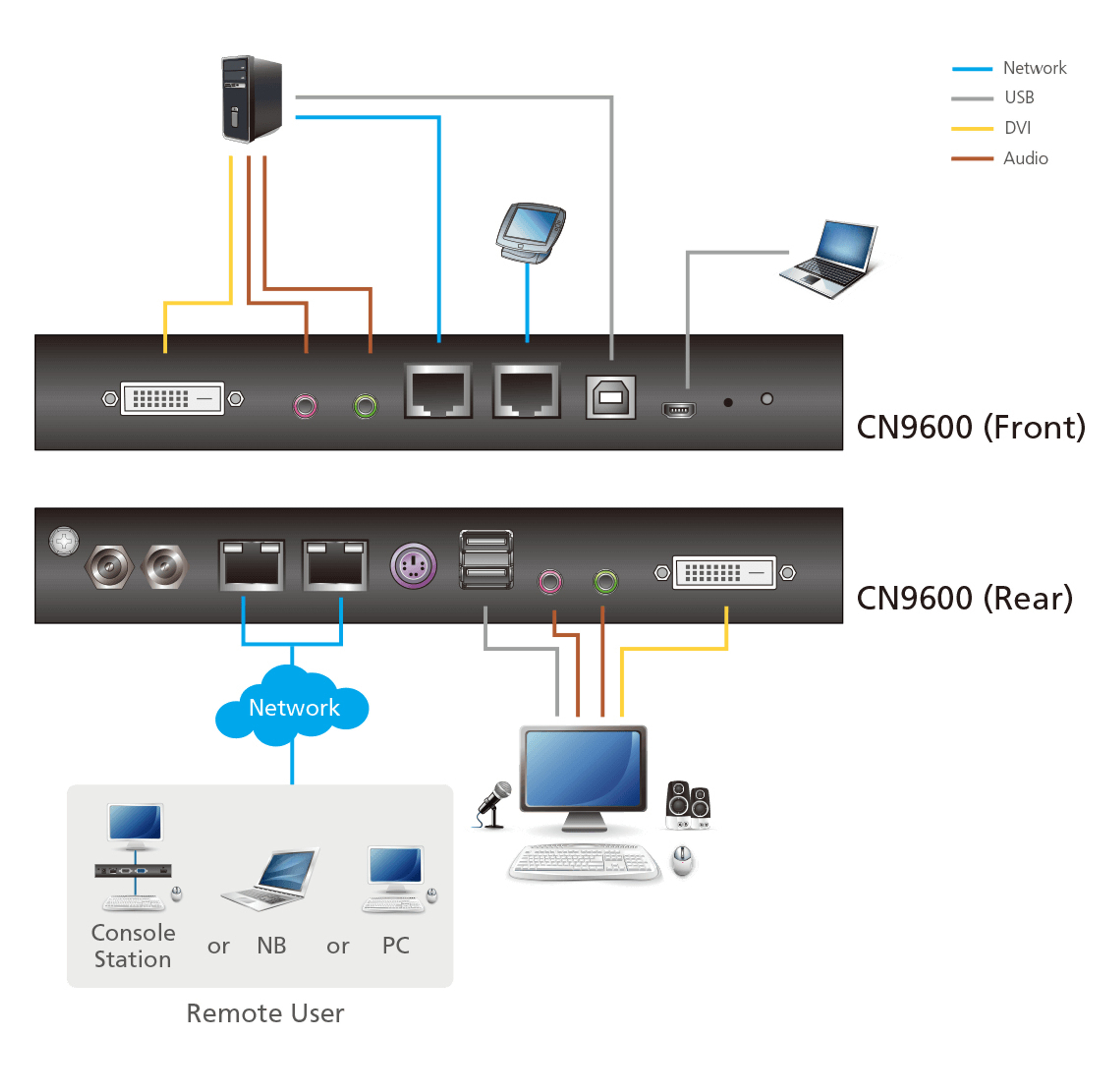

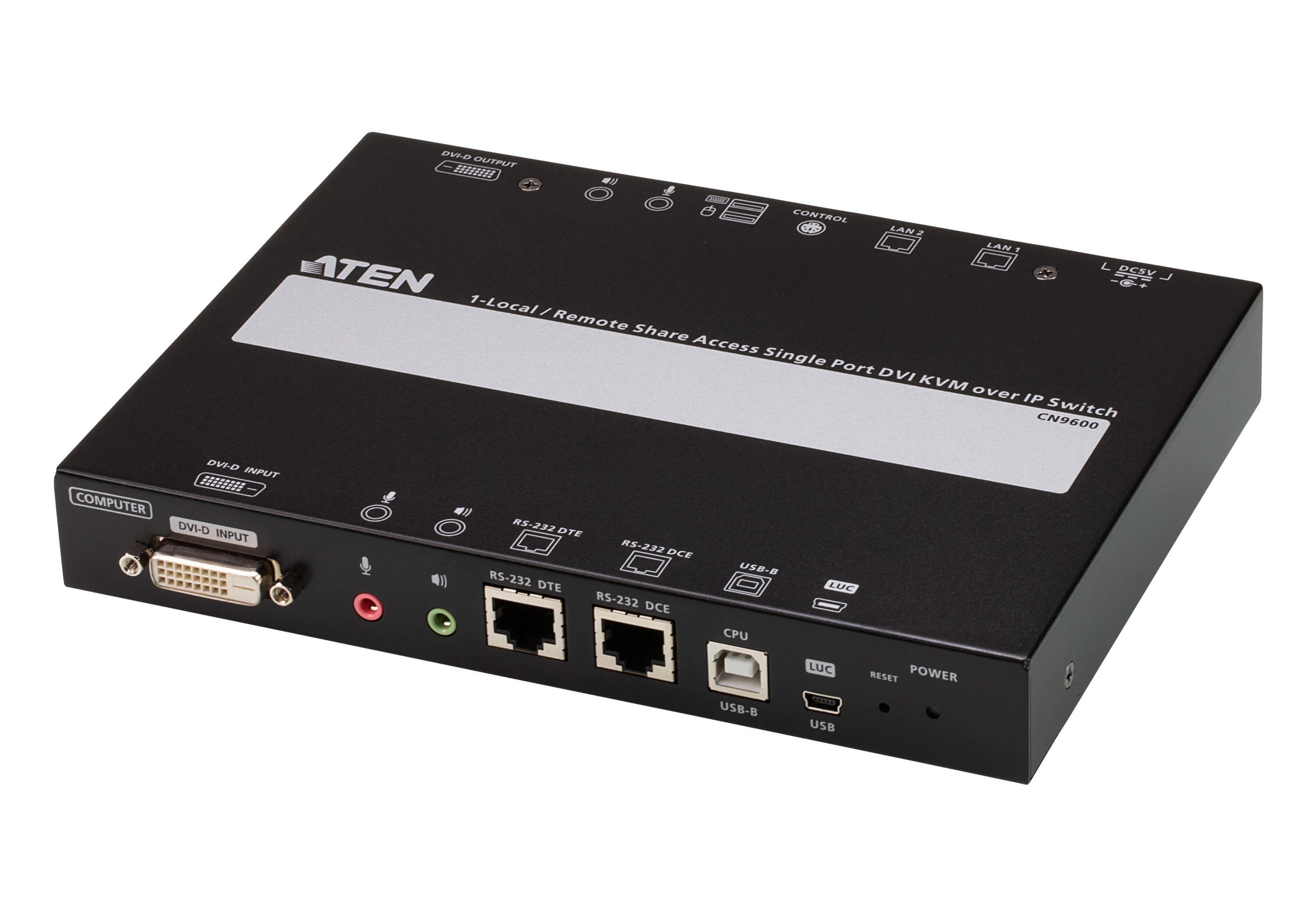

The CN9600 DVI KVM over IP Switch is a cost-efficient over-IP device, which allows remote access of digital video, audio and virtual media via remote control of a PC or workstation. The CN9600 enables over-IP capability by connecting compatible ATEN DVI KVM switch and/or LCD console, such as the CS1768 (8-Port USB DVI/Audio KVM Switch) or the CL3800 (DVI LCD Console). The CN9600 expands on previous models by providing a more compact, slimmer space-saving design for utility optimization, and a FPGA graphics processor that offers better image and video quality to enhance user experience, while also meeting the RS-232 DTE/DCE standards for serial control.
Specifications:
| Product Type: |
KVM Console/Extender |
| Connectivity Technology: |
Wired |
| Form Factor: |
Rack-mountable |
| Brand Name: |
Aten |
| Maximum Video Resolution: |
1920 x 1200 |
| USB: |
Yes |
| DVI: |
Yes |
| Network (RJ-45): |
Yes |
| PS/2 Port: |
Yes |
| Number of Computers Supported: |
1 |
| Number of Local Users Supported: |
1 |
| Device Type: |
KVM Extender |
| General Information |
|---|
| Product Type: |
KVM Console/Extender |
| Manufacturer Part Number: |
CN9600 |
| Manufacturer Website Address: |
http://www.aten.com/us/en/ |
| Packaged Quantity: |
1 |
| Manufacturer: |
ATEN Technology, Inc |
| Product Model: |
CN9600 |
| Product Name: |
1-Local/Remote Share Access Single Port DVI KVM over IP Switch |
| Brand Name: |
Aten |

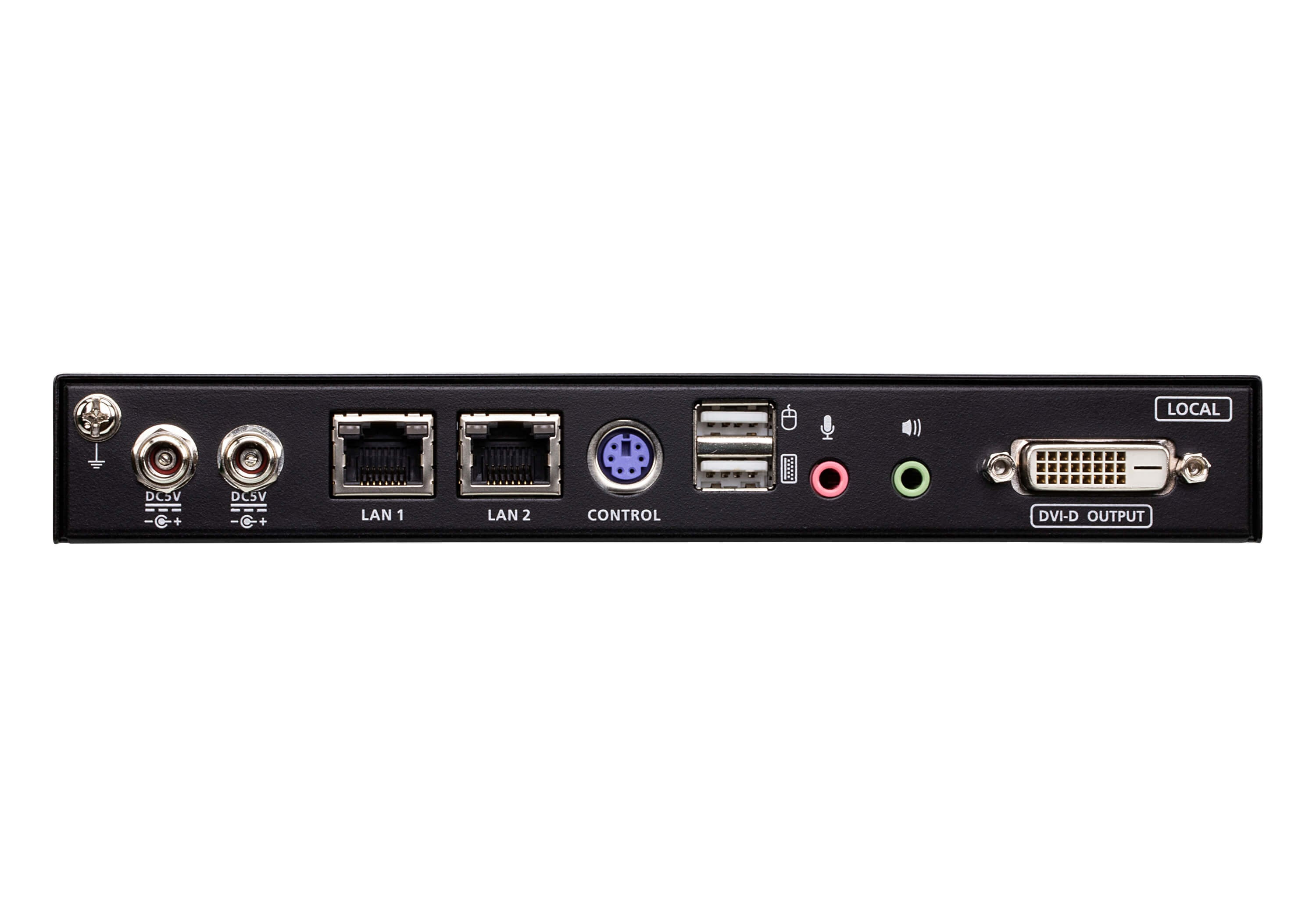

| Interfaces/Ports |
|---|
| Microphone: |
Yes |
| USB: |
Yes |
| DVI: |
Yes |
| Headphone: |
Yes |
| Number of Network (RJ-45) Ports: |
2 |
| Network (RJ-45): |
Yes |
| Number of USB Ports: |
4 |
| PS/2 Port: |
Yes |
| Number of PS/2 Ports: |
1 |
| Number of DVI Ports: |
2 |
| Miscellaneous |
|---|
| Additional Information: |
- Dimensions (L x W x H) 20.00 x 15.49 x 2.85 cm
- Housing Metal
- Weight 0.84 kg ( 1.85 lb )
|
| Package Contents: |
- 1-Local/Remote Share Access Single Port DVI KVM over IP Switch
- 1 x KVM Cable (DVI-D, USB, Audio; 1.8 m/6 ft)
- 1 x USB Cable (1.8 m/6 ft)
- 1 x Power Adapter
- 1 x Mounting Kit
- 1 x User Instructions
|
| Environmentally Friendly: |
Yes |
| Environmental Certification: |
RoHS |
|
WEEE |
| Physical Characteristics |
|---|
| Form Factor: |
Rack-mountable |
| Technical Information |
|---|
| Connectivity Technology: |
Wired |
| Number of Computers Supported: |
1 |
| Number of Local Users Supported: |
1 |
| Device Type: |
KVM Extender |
| Video |
|---|
| Maximum Video Resolution: |
1920 x 1200 |
