3" Core PermaSleeve Heatex Polyolefin 16 to 10 Gauge Blue Marking Sleeves
Brady
SALE PRICE$1,743.29
REGULAR PRICE $2,379.00
UPC:662820819110
MFG#:2HX-187-2-BL-4
Product Category:Printer Labels
Additional information
Overview

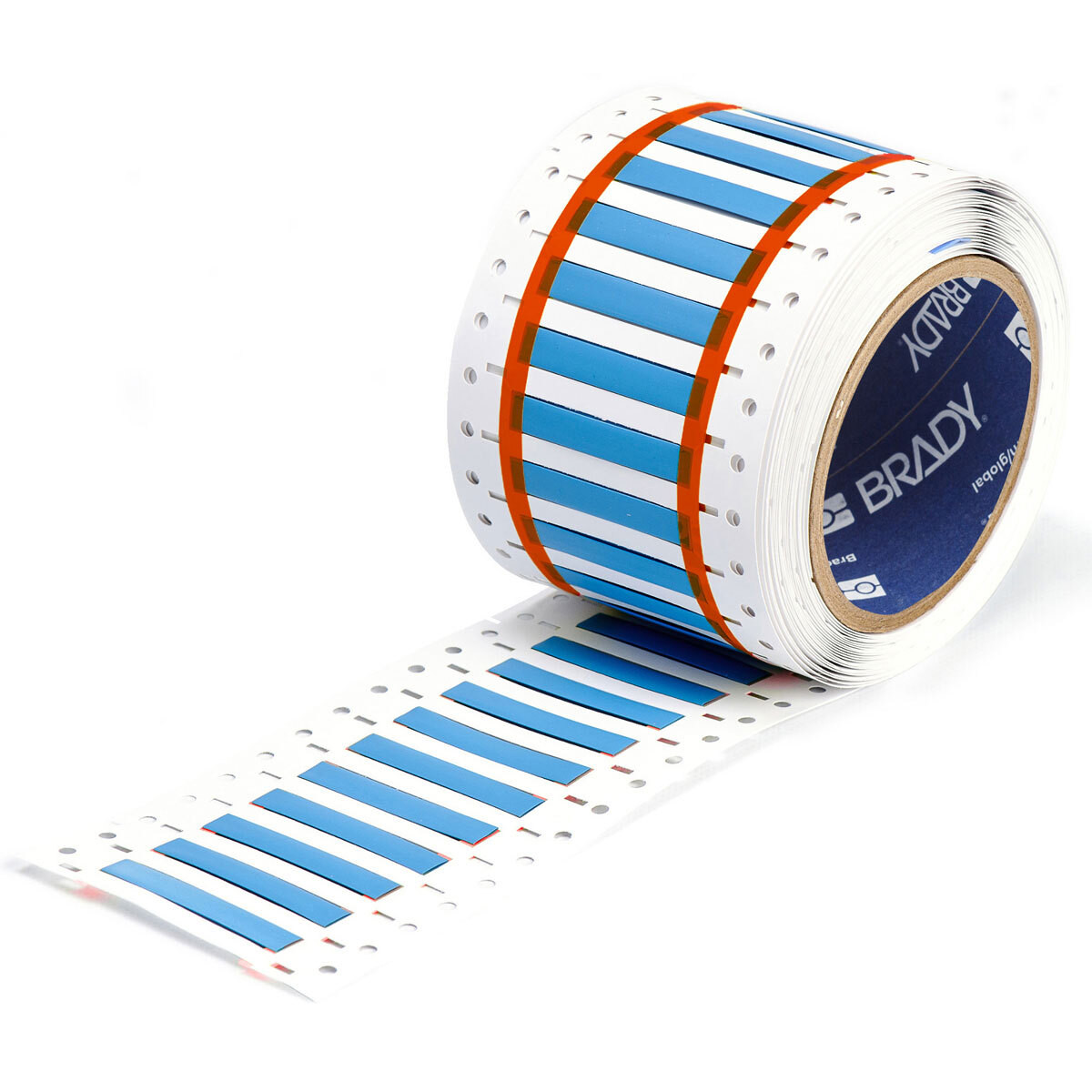

Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.
- Supplied roll form in a flattened format on a carrier designed for use with computer driven printers
- Meets SAE-AMS-DTL-23053/5 Class 1 & 3, SAE-AS-81531, MIL-STD-2002
- Tested per ASTM E162 and ASTM E662
- Operating temperature of -40°F to 248°F (-40°C to 120°C)
- This roll has i75-series smart properties on the core that when used in the Brady i7500 printer in conjunction with i75-series smart ribbons, eliminates the need to adjust heat, speed, sensor location and mode, eliminates the need to calibrate out blank wasted labels, and warns the operator if a non-approved ribbon is used with this roll.
- If used in any other 3 inch core printer this roll will function as a manual roll
- A ribbon is required to print this material. Use Part Number R6402
Specifications
| Key Characteristics | ||
| Product Number | 117183 | |
| UPC | 662820819110 | |
| UOM | Roll of 10000 Each | |
| Quantity per Roll | 10000 | |
| Trade Name | PermaSleeve® | |
| Brand Name | Brady® |
| Dimensions | Dimensions | 0.335 in H x 0.5 in W |
| Height | 0.335 in | |
| Width | 0.5 in | |
| Sleeve Size | 0.187 in Dia x 0.5 in W | |
| Vertical Repeat | 0.625 in | |
| Recovered Diameter | 0.094 in | |
| Recovered Wall Thickness | 0.02 in | |
| Web Width | 3.49 in | |
| Diameter as Supplied | 0.187 in | |
| Core Diameter | 3 in |
| Material Characteristics | ||
| Material | Heat-shrink Polyolefin |
