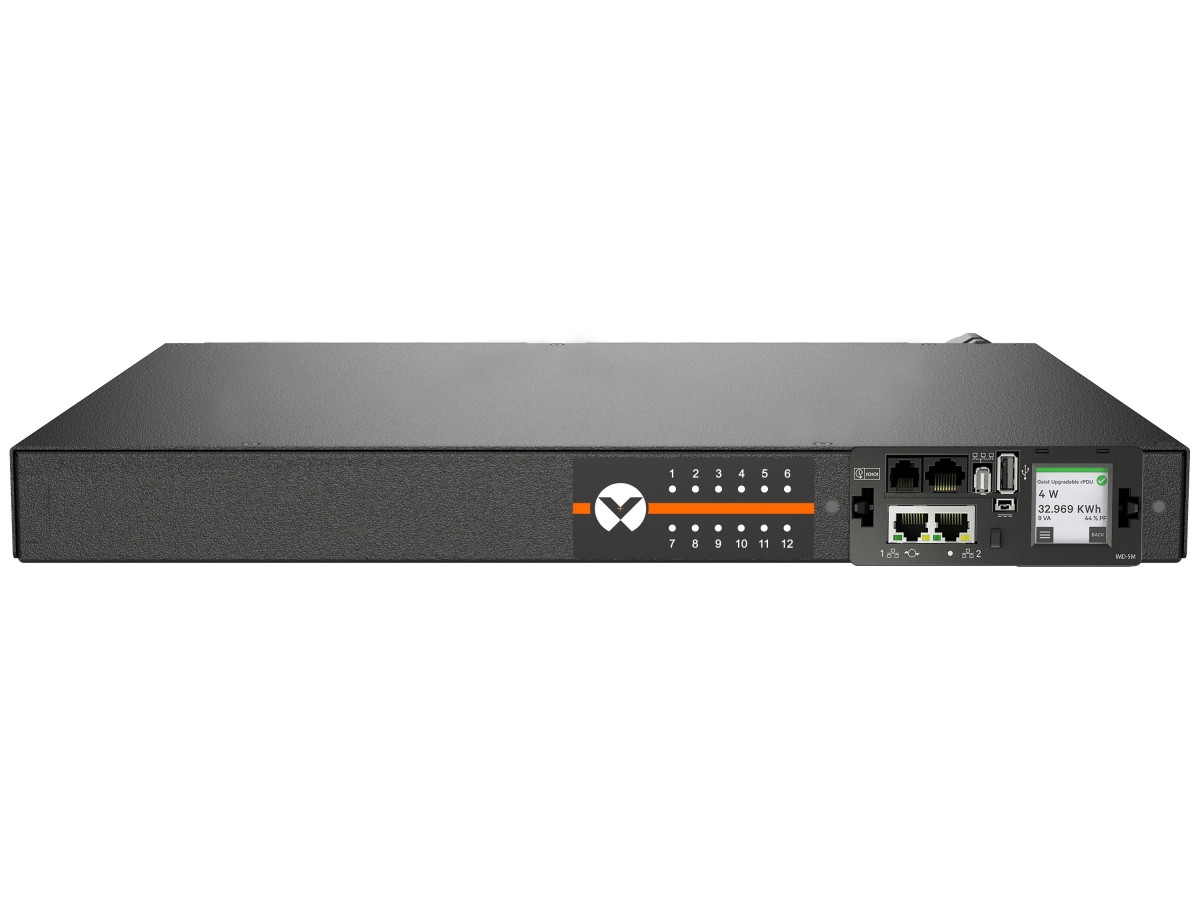

Vertiv Geist Switched Unit Level Monitored Rack PDU VP52100 is a 20A, 120V 1U horizontal

Vertiv

SALE PRICE
$979.00

REGULAR PRICE $1,551.00
MFG#:VP52100
Product Category:PDU
Rack Mounting Style:Horizontal

Additional information

Description:

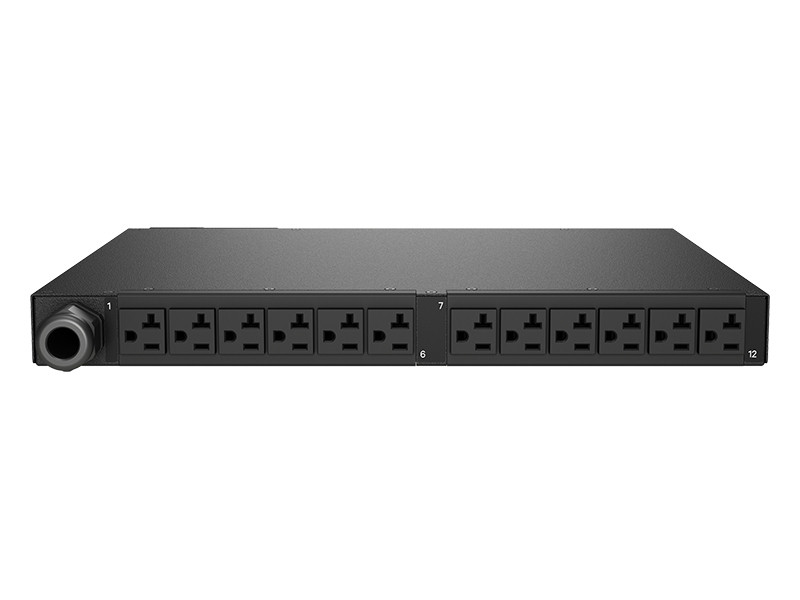

Switched Unit Level Monitored Rack PDU VP52100 is a 20A, 120V 1U horizontal with input power monitoring and outlet level switching. It has 12 NEMA 5-20R receptacles and a NEMA L5-20P providing 1.9kW of power capacity. A Switched rPDU allows you to turn off outlets to avoid accidental overloads and remotely power cycle equipment to reboot unresponsive equipment. The unit is equipped with an environmental sensor port and dual ethernet ports for IP aggregation.

  • Outlet level control to turn on, turn off, or reboot individual outlets.
  • Bi-stable latching relays significantly reduce idle power draw.
  • Upgradeable and Hot-Swappable monitoring device.
  • Local and remote power monitoring with accuracy of +/- 1% (ANSI & IEC Standards)
  • VLC (Visible Light Communication)
  • Environmental monitoring with the addition of optional sensors.
  • High Temperature Grade 60°C for high temperature environments.
  • Simple and quick installation in all standard racks or cabinets with included mounting brackets.
  • TAA compliant.

Specifications:

Network (RJ-45)Yes
Package Contents
  • rPDU VP52100 12-Outlets PDU
  • Mounting Brackets
Country of OriginUnited States
Environmentally FriendlyYes
TAA CompliantYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Input Voltage120 V AC
Output Voltage120 V AC
Input Current20 A
Input Voltage Range100 V AC - 120 V AC
Power Rating (Watt)1900 W
Product TypePDU
Manufacturer Part NumberVP52100
Manufacturer Website Addresshttp://www.vertiv.com/
ManufacturerVertiv
Product ModelVP52100
Product NamerPDU VP52100 12-Outlets PDU
Product SeriesrPDU
Brand NameGeist
Protection TypeOverload Protection
Accidental Power Shutdown
Plug/Connector TypeNEMA L5-20P
PhaseSingle Phase
Receptacle TypeNEMA 5-20R
PDU TypeSwitched
Receptacle Detail12 x NEMA 5-20R
Plug/Connector Detail1 x NEMA L5-20P
Weight (Approximate)10 lb
Form FactorHot-swappable
Mount TypeCabinet-mountable
Rack-mountable
Rack Height1U
Height1.7"
Width17"
Depth12"
Mounting OrientationHorizontal
