Zonit uATS1-LV-Y3C13-515-6 Micro Automatic Transfer Switch

Description:

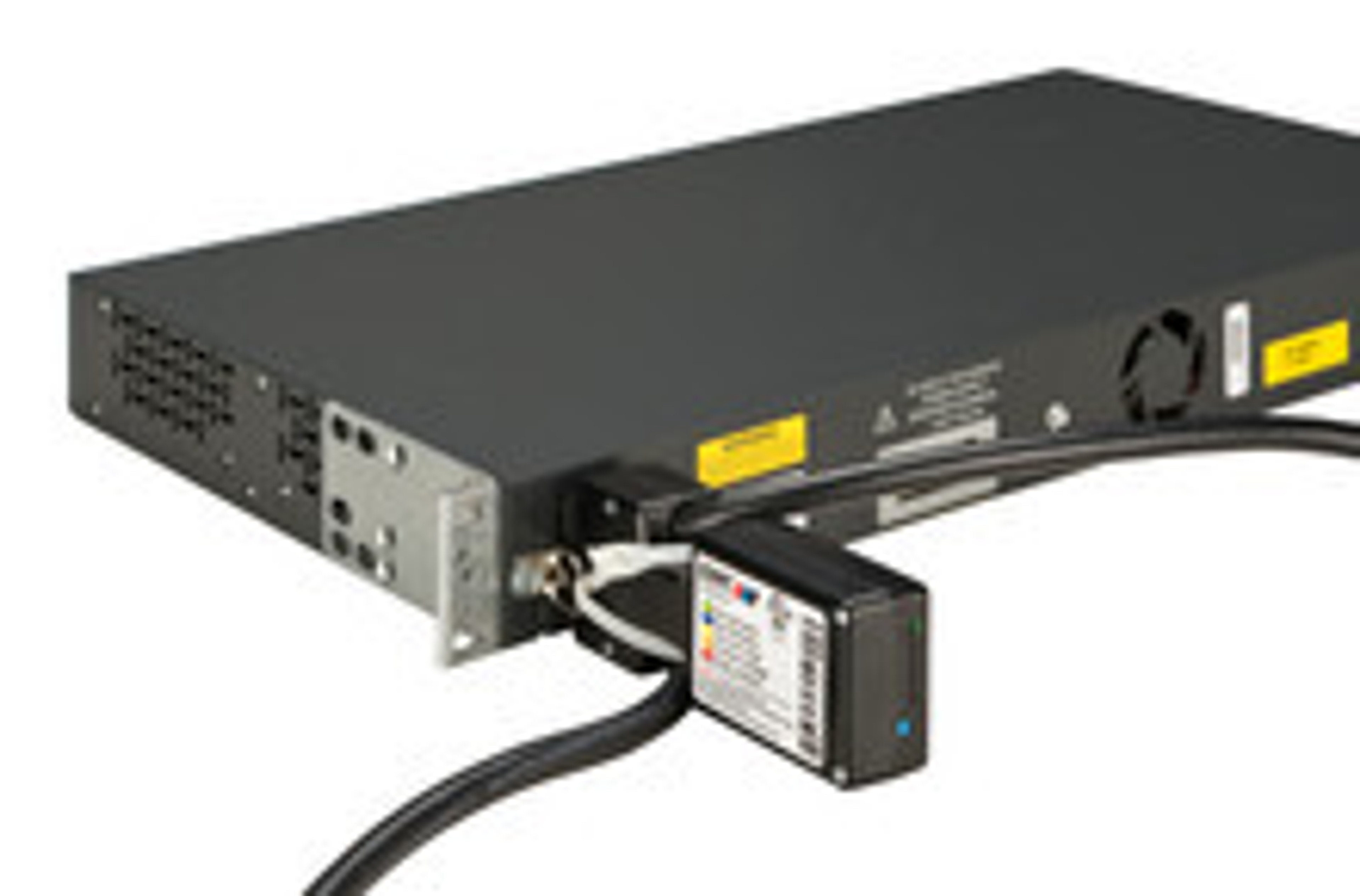

The Zonit Micro Automatic Transfer Switch (μATS™) is the world’s smallest ATS and solves the problem of supplying A+B redundant power to single power supply devices. The μATS™ draws power from A and monitors power quality. The μATS™ will automatically switch to secondary B power when A fails or becomes degraded in quality. The μATS™ will switch back to A when it returns and is of sufficient quality. The μATS™ will transfer regardless of phase angle between A and B. DETAILS

Specifications:

Rated Input Voltage - 120V

Rated Maximum Amperage 12A

Rated Input Frequency 50/60 Hz

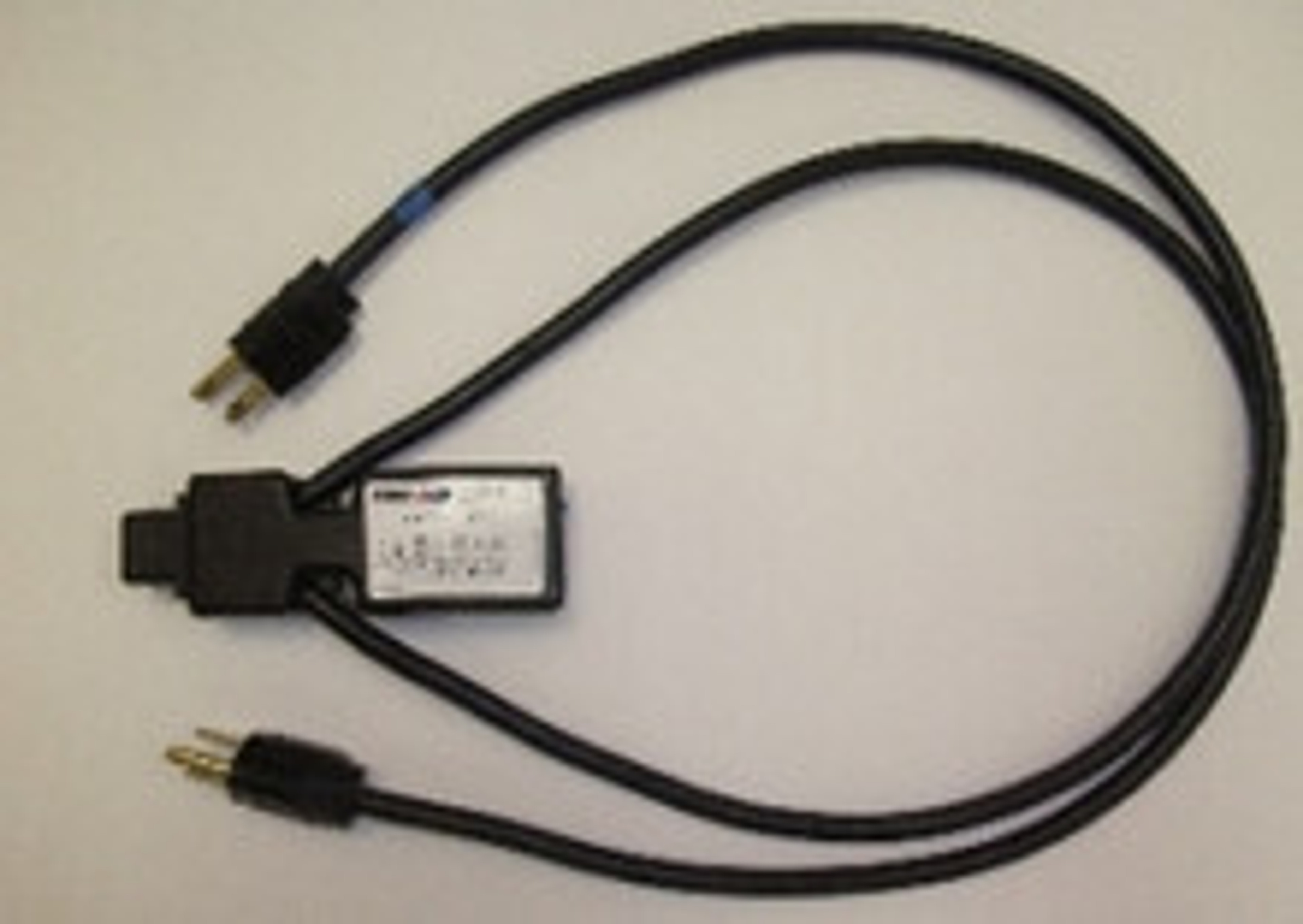

Standard Input Cords Pair of 2-foot 16/3AWG with NEMA 5-15P plugs

Standard Output Single IEC C13 receptacle

Optional Corded Output IEC C13 receptacleon 9" cord

Internal Overload ProtectionVirtual Circuit Breaker set at rated amperage with reset switch

Transfer Time A-B: 12-14msB-A: 6-8ms

Max. Power Consumption @ 120V on A: 5 ma@ 120V on B: 13 ma

Dimensions (L x W x D) 0.75 x 1.60 x 4.25 in(19 x 40.9 x 108 mm)

Weight 0.9 lb (0.4 kg)

Shipping Weight Qty 1: 1.1 lb (0.5 kg)Qty 25: 24.5 lb (11.1 kg)

Elevation – Operating 0 to 10,000 ft(0 to 3000m)

Elevation – Storage 0 to 50,000 ft(0 to 15000m)

Temperature – Operating 23 to 104°F(-5 to 40°C)

Temperature – Storage -13 to 149°F(-25 to 65°C)

Operating Humidity 0 to 95%Non-condensing

Safety Verification UL/cUL File E34023
