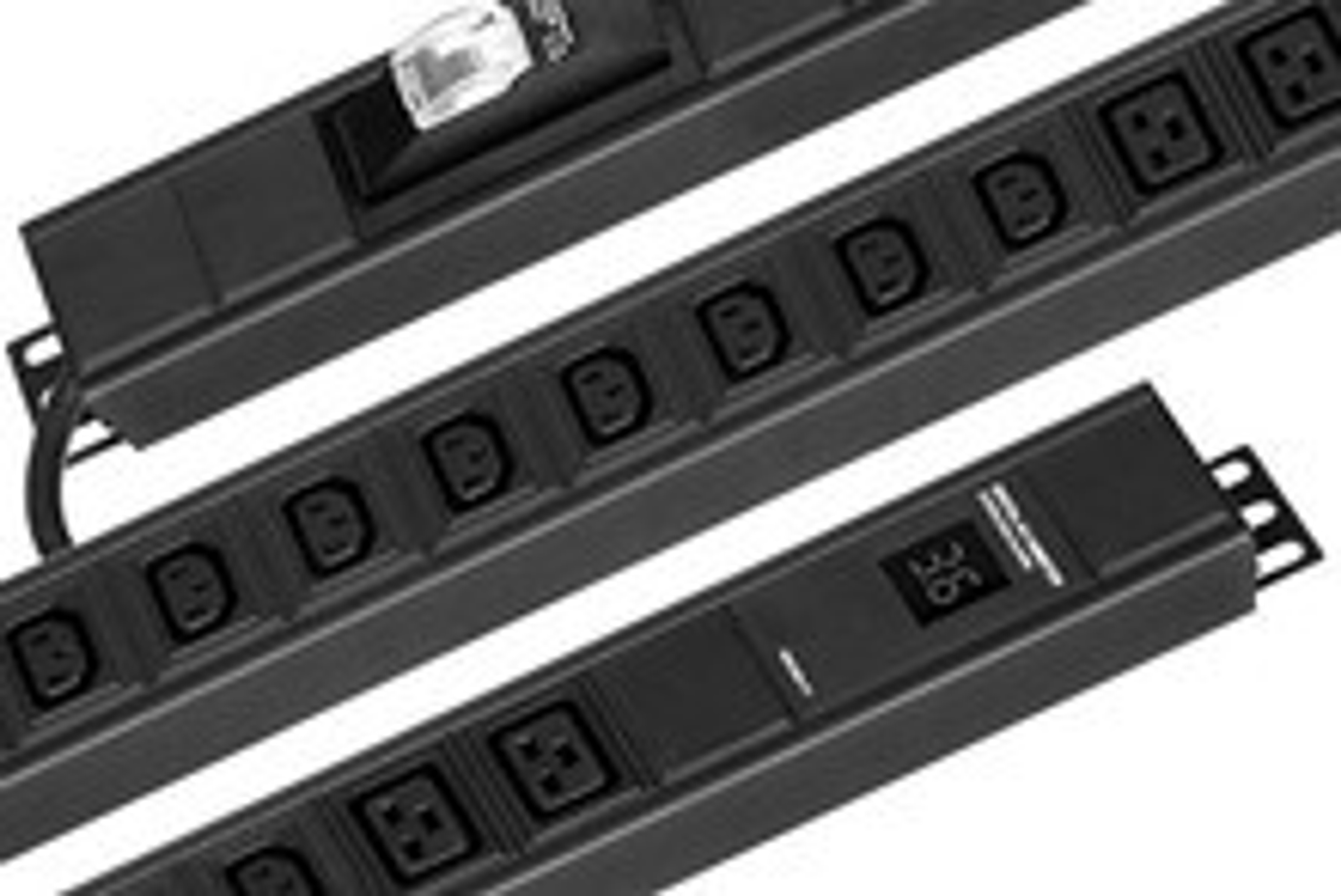

Server Technology C3B36RL-DCJE0AT3 Basic 0U PDU

Server Technology C3B36RL-DCJE0AT3 Basic 0U PDU

Server Technology

Regular Price $980.00
Discount Price: $823.00
Shipping:
Free Shipping
Product Overview:

Basic, 0U, 36 RamLock HDOT Outlets (18 C13 + 18 Cx), 208V/3-Phase Delta (L-L)/30A, Input: NEMA L15-30P

MFG#:
C3B36RL-DCJE0AT3
Product Category:
PDU
Platform:
PRO3X
Metering and Switching:
Basic
Total Outlets:
36
Plug Type:
NEMA L15-30P
Input Phase:
3 Phase Delta (L-L)
Power Capacity:
8.6 kW
Input Voltage:
208 V
Input Monitoring:
none
Input Current:
30
Input Current Rating:
24
Form Factor:
0U
Rack Mounting Style:
Vertical
Branch Monitoring:
None
Alt Phase:
FALSE
Adding to cart… The item has been added

Description

This all new Server Technology Basic PDU features RamLock, a self-locking, elbow-catch mechanism to prevent accidental cord disconnects on standard network power cords along with HDOT Cx, a hybrid C13/C19 outlet that accepts either an IEC C14 or C20 plug. The PDU features dedicated HDOT C13 outlets and HDOT Cx which can be treated as either a C13 or C19 outlet.

Specifications:

Inputs

Input Voltage (V): 208
Input Plug: NEMA L15-30P
Input Current (A): 30
Input Current Rated (A): 24
Input Power Capacity (kW): 8.6

Outputs

Connector Rating
(18) x IEC 60320/C13 North American Rating: ≤ 12A @208V L-L (15A Peak)
(18) x Cx North American Rating: ≤ 16A @208V L-L (20A Peak)

Branch Circuit Protection

UL489 Compliant 2-pole, 20A trip circuit breakers, three (3) branch, rating: ≤ 16A, 10 kAIC Interrupt Rating

Physical

Dimensions: 70.0in tall x 2.2in wide x 2.5in deep [1778mm x 56mm x 64mm]

Environmental

Operating Environment: 32°F to 140°F / 0°C to 60°C | 8%RH to 90%RH non-condensing | 6,500ft/2km elevation
Storage Environment: -40°F to 185°F / -40°C to 85°C | 8%RH to 90%RH non-condensing | 50,000ft/15km elevation
Quiescent / Unloaded Power Draw: < 10W for all configurations

Communications & Security

Not Applicable

Certifications

North American:
Safety (TUVR certified, cTUVus mark)
  • UL Std. 60950-1, 62368-1
  • CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1

Measurement Accuracy

Input Measurement Accuracy:
LED Current = ± 10% at 0.1 amp (0.3 - 9.9 amps) and 1 amp (> 9.9 amps) resolution
GUI Current = ± 5% at 0.01 amp resolution (above 0.25 amp)
!
