Description:

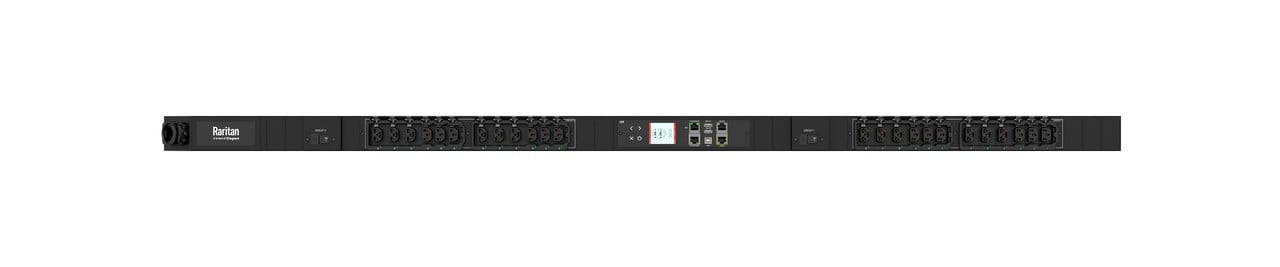

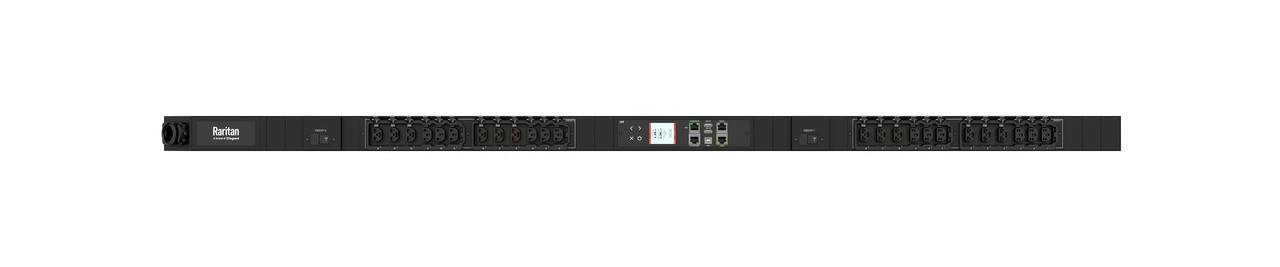

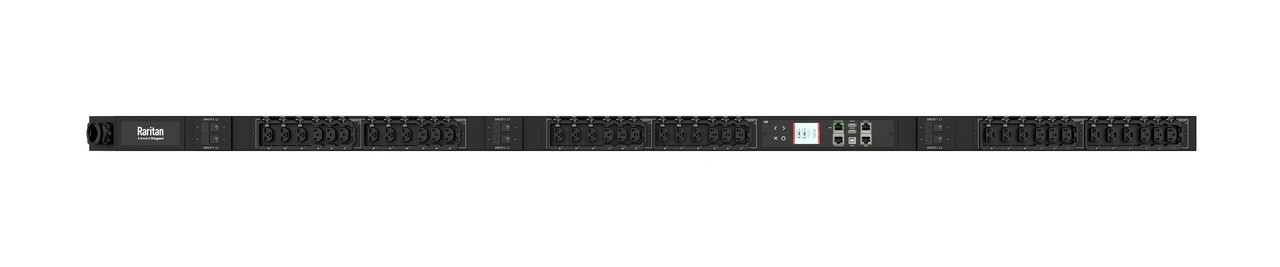

Raritan PX4-5884-E7 24-Outlets PDU - Switched with Metered-by-Outlet - NEMA L6-30P (2P3W) - 12 x IEC 60320 C13, 12 x CX - 230 V AC - Branch Circuit, Circuit Breaker, Overcurrent Protection - Network (RJ-45) - 9.84 ft Cord Length - Button Mount - Hot-swappable
Features - PDU improves efficiency, uptime and growth of data centers
- Remotely monitor your equipment without any worries with Switched with Metered-by-Outlet
- Single Phase phase PDU provides optimal power output with added usability
- NEMA L6-30P (2P3W) plug/connector type for reliable, productive connectivity and optimal power output
- IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
- 230 V AC input voltage for maximum feasibility and added productivity
Specifications:
| Interfaces/Ports | | Network (RJ-45) | Yes | | Management | | Management | - HTTP(s)
- SSH (CLI)
- Telnet
- RS-232 (Serial)
- SNMP version v2/v3
- SMTP
- JSON-RPC API
- MODBUS-TCP
- Redfish API
| | Remote Outlet Switching | Yes | | Miscellaneous | | Environmentally Friendly | Yes | | Environmental Compliance | Restriction of Hazardous Substances (RoHS) | | Environmental Conditions | | Maximum Operating Temperature | 140°F (60°C) | | Minimum Storage Temperature | -22°F (-30°C) | | Maximum Storage Temperature | 176°F (80°C) | | Minimum Operating Humidity | 5% | | Maximum Operating Humidity | 95% | | General Information | | Product Type | PDU | | Manufacturer Part Number | PX45884E7K1 | | Manufacturer Website Address | http://www.legrand.us | | Manufacturer | Legrand Group | | Product Model | PX4-5884-E7 | | Product Name | PX4-5884-E7 24-Outlets PDU | | Product Series | PX4 | | Brand Name | Raritan | | Physical Characteristics | | Weight (Approximate) | 12.02 lb | | Form Factor | Hot-swappable | | Mount Type | Button Mount | | Cord Length | 9.84 ft | | Height | 60.6" | | Width | 2.2" | | Depth | 2.6" | | Product Color | Red | | | Power Description | | Circuit Breaker | Yes | | Input Voltage | 230 V AC | | | 230 V AC | | Output Voltage | 208 V AC | | | 208 V AC | | Input Current | 24 A | | Input Voltage Range | 200 V AC - 240 V AC | | | 200 V AC - 240 V AC | | Input Frequency | 60 Hz | | Output Voltage Range | 200 V AC - 240 V AC | | | 200 V AC - 240 V AC | | Power Rating (VA) | 5800 VA | | Technical Information | | Features | Onboard Display | | | Multi-color LCD | | Protection Type | Circuit Breaker | | | Branch Circuit | | | Overcurrent Protection | | Plug/Connector Type | NEMA L6-30P (2P3W) | | Phase | Single Phase | | Receptacle Type | CX | | | IEC 60320 C13 | | PDU Type | Switched with Metered-by-Outlet | | | Switched with Metered-by-Outlet | | Locking Receptacles | SecureLock | | Receptacle Detail | 12 x IEC 60320 C13 | | | 12 x CX | | Plug/Connector Detail | 1 x NEMA L6-30P (2P3W) | |
