Description:

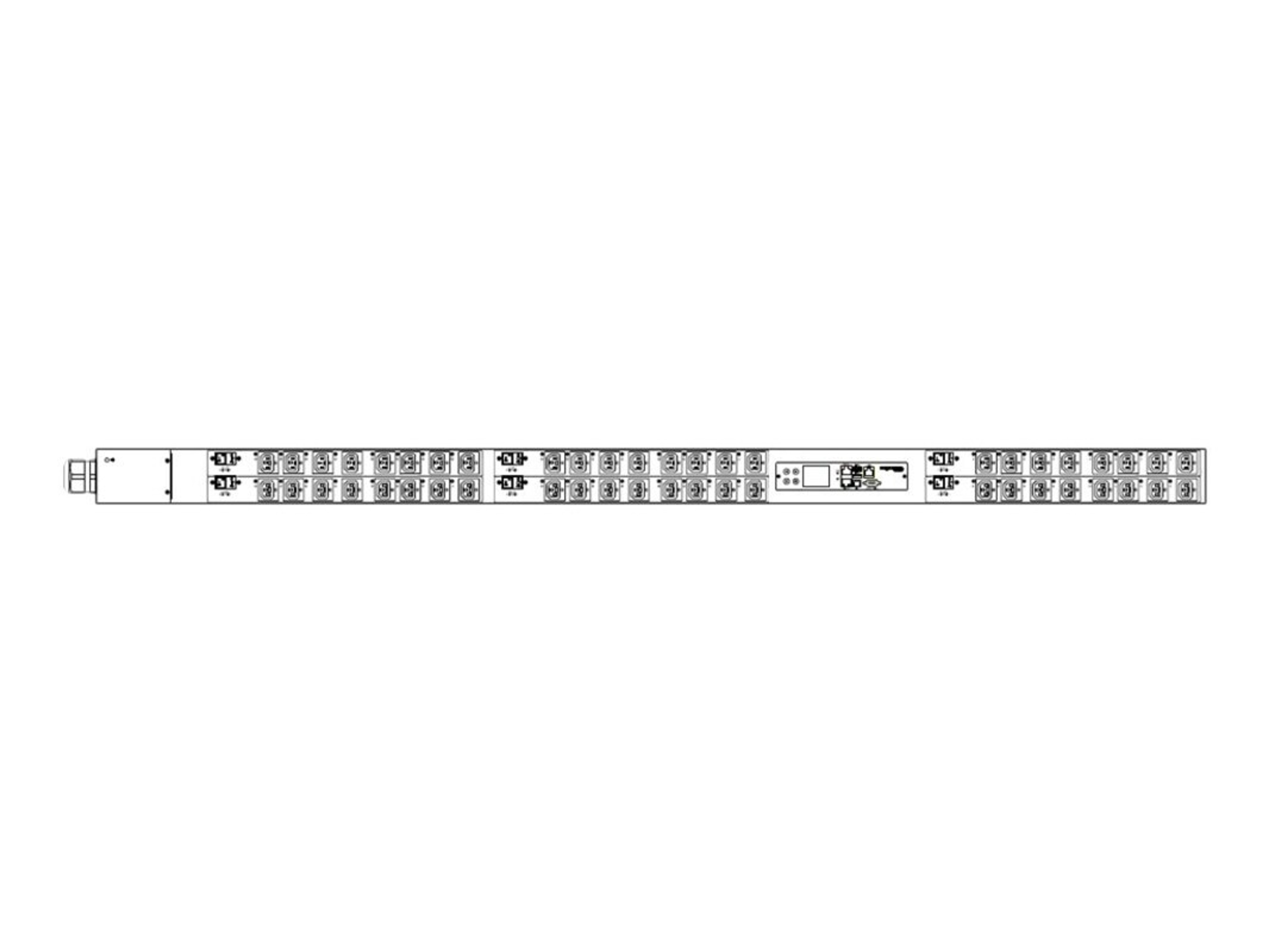

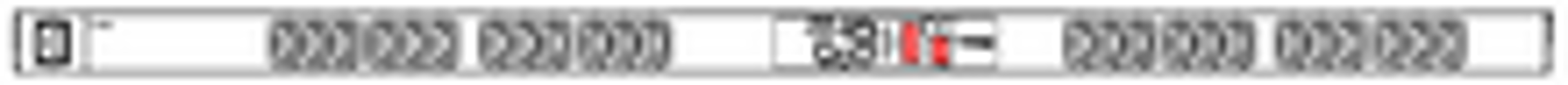

Monitored and switched rack power distribution unit (0U [vertical], 1.9kVA, 24 outlets). INPUT: 120v, 20a - NEMA L5-20P plug (2P3W); OUTPUT: 24@ C13 outlets; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet; Remote Outlet Switching (Normally-Open Relays); 3-digit LED user-selectable display (voltage, current, or active power : per line). Local display of alarms and configuration information(name, ratings, IP/Networking); Onboard embedded processor with minimum 400MHz clock speed, 16MB NOR Flash, and 64MB SDRAM; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Environmental monitoring [temp/humidity] capable of up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP/PXE, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Max Dimensions 52mm x 65mm x 1297mm (2.1in x 2.6in x 51.1in). Max Weight 3.5 kg. Maximum ambient temperature 60C at full load.
Specifications
Input
Input Plug
NEMA L5-20P (2P3W)
Nominal Voltage
120V
Maximum Input Current
20A
Rated Input Current
16A
Power Capacity
1.9kVA
Cord Length
3m
Nominal Voltage
120V
Receptacles (Output Connections)
(24) IEC320 C13
Overload Protection
NA
Dimensions (WxDxH)
2.1in x 2.6in x 51.1in; 52mm x 65mm x 1298mm
Unit Weight
3.5 kg
Shipping Weight
5.5 kg
Shipping Dimensions
185mm x 120mm x 1408mm
Mounting
G2-RACK-FOR-ZU
Operating Temperature/Environment
60 C
Operating Relative Humidity
85%
Operating Elevation
0-10000ft
Regulatory Approvals
UL
Warranty
Standard 2 years manufacturer warranty
