Description:
Even modest-size data centers and server rooms have a large number of IT assets, from servers to storage to networking equipment, that need to be tracked. Often this is done ad hoc, using Excel® spreadsheets and Visio® diagrams which become very labor intensive and are often error-prone. Missing just a few moves, adds or changes can quickly make a spreadsheet asset-tracking system obsolete. Often this asset information is out of date within weeks.
With Raritan’s unique Asset Management Tags (AMTs) and Asset Management Sensors (AMSs), data center operators can now have an accurate, automated, real-time inventory of all IT assets and their locations, down to the 1U level. AMT and AMS can be combined with Raritan’s dcTrack® data center infrastructure management (DCIM) software which is designed to track assets, determine capacity in a number of areas and manage adds, moves or changes.
The asset tag is based on a 1-Wire unique ID chip that has a 64-bit value to create a unique AMT. The ID chip is molded in a round, plastic carrier together with a metal ring and a gold contact to provide an electrical connection to the asset tag reader, the AMS. The AMS segments are modular and have a magnetic backing to allow easy installation on metal rack rails. A port is available on one end to provide a connection to Raritan’s SNMP gateways – PX® intelligent rack PDUs or the EMX environment/rack controller. Combine the AMT and the AMS with Raritan's dcTrack to give your data center operators a powerful DCIM solution.
Asset Management Tag (AMT)
- Unique electronic 64-bit value, 1-Wire ID chip
- Unique scannable ID bar code matching the electronic ID chip
- Industrial adhesive patch to attach tag to IT device
- Magnetic connector to attach tag to the AMS
Asset Management Sensor (AMS)
- 42U, 45U, 48U and 54U rack options
- Magnetic connector for AMT, one per 1U space
- Multicolored LEDs, one per 1U space
- Magnetically mounts to existing racks

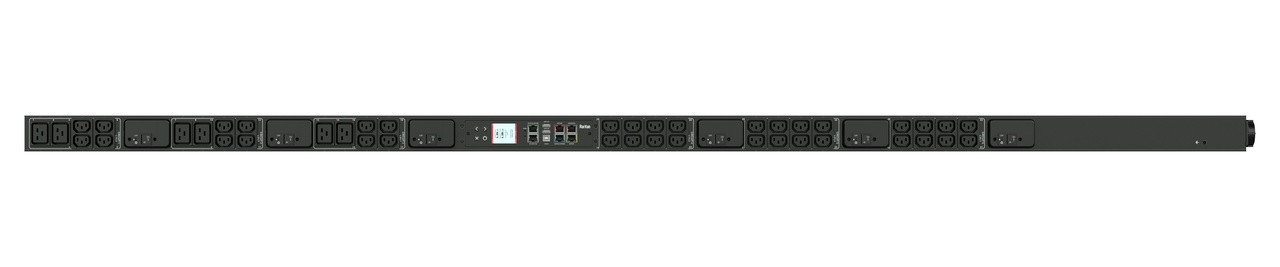

- Connects to Raritan PX intelligent rack PDU, PX inline meters and EMX environment/rack controller. (PX firmware version 2.2 or higher, EMX firmware version 2.0 or higher)
- PX and EMX provide power to the AMS so no extra power supply is needed
AMS Gateway: Raritan EMX or PX
- Raritan’s EMX environment/rack controller and PX rack iPDU act as the AMS SNMP gateway via standard UTP cable and RJ-45 interconnects
- EMX and PX provide power to the AMS
- The SNMP interface can be used by any third-party asset management system. It offers the following features:
o Reading all asset tag IDs per rack and its physical location within a rack
o SNMP TRAP in case of an asset tag ID change event
o Setting an RGB color LED indicator for each 1U slot
dcTrack Data Center Infrastructure Management (DCIM) Software
- Visualize a group of cabinet elevations
- View asset details such as make, model, maintenance period, current, add and edit server, and network devices
- Alert for physical changes at the rack to ensure asset accuracy
