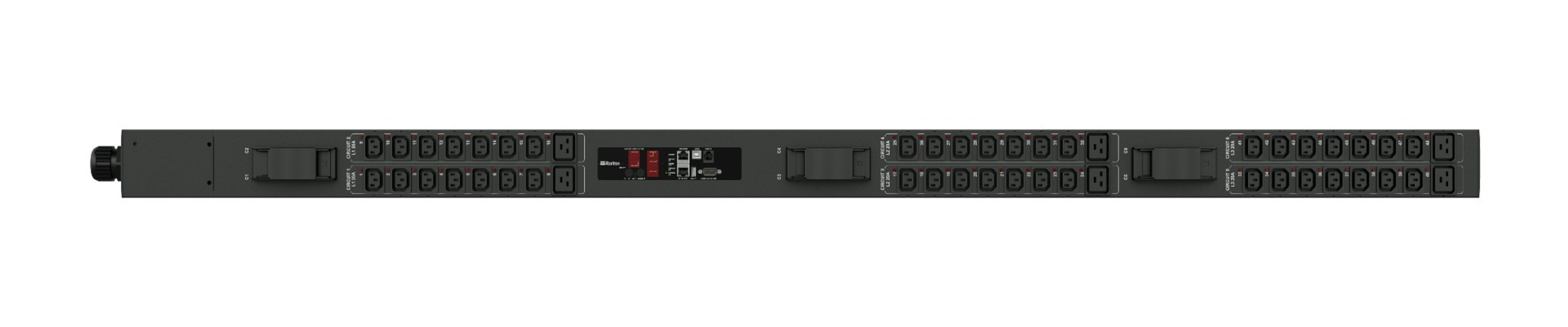

Raritan PX2-2901U 3PH 400V AC 30A 48 outlets Zero U PDU
Raritan
SALE PRICE$1,995.00
REGULAR PRICE $2,463.00
3PH, 400V AC, 30A (24A/PH rated); 48 outlets: 42x C13, 6x C19; plug: NEMA L22-30P (Wye Top-top feed), 16.6kVA; Unit Metered/Switched, Zero U vertical PDU
Additional information
Description:
Monitored and switched rack power distribution unit (0U [vertical], 17.3kVA, 48 outlets). INPUT: 415v (3-phase WYE), 30a - NEMA L22-30P plug (4P5W); OUTPUT: 42@ C13, 6@ C19 outlets; on 6@ 1-pole, 20a Overcurrent Protectors; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per breaker/fuse; Remote Outlet Switching (Normally-Open Relays); 3-digit LED user-selectable display (voltage, current, or active power : per line or per breaker). Local display of alarms and configuration information(name, ratings, IP/Networking); Onboard embedded processor with minimum 400MHz clock speed, 16MB NOR Flash, and 64MB SDRAM; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Environmental monitoring [temp/humidity] capable ñ up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP/PXE, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Breaker metering and alarming (0V detection). Max Dimensions 89mm x 65mm x 1780mm (3.5in x 2.6in x 70.1in). Max Weight 5.9 kg. Maximum ambient temperature 60C at full load.
Features
Securelock
Energy Metering
Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering Accuracy
ISO/IEC 62053-21 1%
Remote Outlet Switching
Yes
Metering per input line
Yes for all models
Metering per Branch Circuit Breaker
Yes
Environmental Sensor Ready
Yes
Compatible Sensors
Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.
Cascading
Yes, Max 16 PDUs can be daisy chained using a USB connection. Note: Firmware version 3.3.10 or above is required.
Networking
(10/100/1000 Base T) Ethernet, Secondary redundant (10/100 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).
Onboard Display
3-digit LED user-selectable display (voltage, current, or active power : per line or per breaker). Auto-flip orientation
Specifications
Input
Input Plug
NEMA L22-30P (4P5W)
Nominal Voltage
415V
Maximum Input Current
30A
Rated Input Current
24A
Power Capacity
17.3kVA
Cord Length
3m
Output
Nominal Voltage
240V
Receptacles (Output Connections)
(42) IEC320 C13
(6) IEC320 C19
Overload Protection
(6) [Moeller] FAZ-C20/1-NA
Physical
Dimensions (WxDxH)
3.5in x 2.6in x 70.1in; 89mm x 65mm x 1780mm
Unit Weight
5.9 kg
Shipping Weight
7.9 kg
Shipping Dimensions
370mm x 160mm x 2110mm
Mounting
Tool-less Button Mount
Environmental
Operating Temperature/Environment
60 C
Operating Relative Humidity
85%
Operating Elevation
0-6000ft
Conformance
Regulatory Approvals
UL
Warranty
Standard 2 years manufacturer warranty
