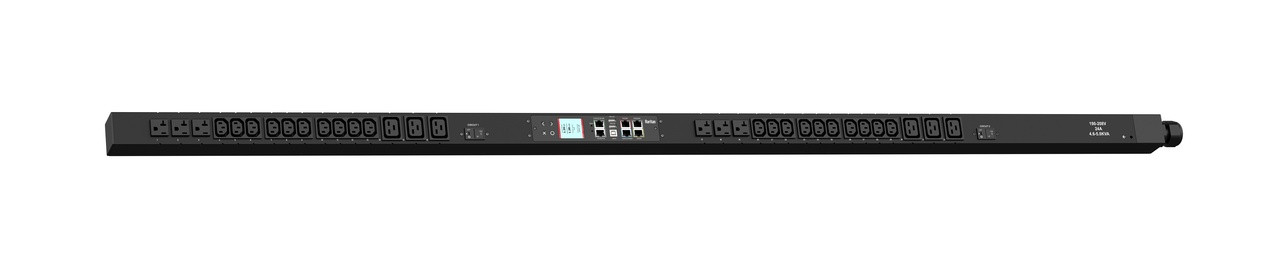

Raritan PX3-1039V 3PH 208V AC 30A 32 outlets Zero U PDU

Raritan PX3-1039V 3PH 208V AC 30A 32 outlets Zero U PDU

Raritan

MSRP: $2,709.30
Regular Price $2,303.00
Discount Price: $2,222.00
(You save $487.30 )
Shipping:
Free Shipping
Product Overview:

3PH, 208V AC, 30A (24A/PH rated); 32 outlets: 20x C13, 6x C19, 6x NEMA 5-20R; plug: NEMA L14-30P (Wye Bottom-bottom feed), 8.6kVA; Unit Metered, Zero U vertical PDU

MFG#:
PX3-1039V
Product Category:
PDU
Platform:
PX3
Metering and Switching:
PDU Metered
Total Outlets:
32
Plug Type:
NEMA L14-30P
Input Phase:
1 Phase (L-N)
Power Capacity:
5 kW
Input Voltage:
208 V
Input Current:
30
Form Factor:
0U
Manufactures Website:
https://www.raritan.com
Manufactures Product Page:
https://www.raritan.com/product-selector/pdu-detail/PX3-1039V
Model or Line:
PX3
Adding to cart… The item has been added

Description:

Monitored rack power distribution unit (0U [vertical], 5kVA, 32 outlets). INPUT: 208v, 30a - NEMA L14-30P plug (3P4W); OUTPUT: 20@ C13, 3@ C19 outlets; on 2@ 2-pole, 20a Overcurrent Protectors; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per breaker/fuse; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM. Cascading upto 16 PDU's using single Ethernet or USB connection. Environmental monitoring [temp/humidity] capable – up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Dual 10/100/1000 Ethernet port. Breaker metering and alarming (0V detection). Max Dimensions 52mm x 55mm x 1780mm (2.1in x 2.2in x 70.1in). Max Weight 6.95 kg. Maximum ambient temperature 60C at full load.

Features

  • img-features_placeholderSecurelock
  • img-features_placeholderRemovable Controller


Energy Metering

Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor

Metering Accuracy

ISO/IEC 62053-21 1%

Remote Outlet Switching

No

Metering per input line

Yes for all models

Metering per Branch Circuit Breaker

Yes

Environmental Sensor Ready

Yes

Compatible Sensors

Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.

Cascading

Yes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection.

Networking

(10/100/1000 Base T) Ethernet, Secondary redundant (10/100/1000 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).

Onboard Display

Color, matrix LCD display : Voltage, current, or active power (per line or per breaker); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation

Specifications

Input

Input Plug

NEMA L14-30P (3P4W)

Nominal Voltage

208V

Maximum Input Current

30A

Rated Input Current

24A

Power Capacity

5kVA

Cord Length

3m

Output

Nominal Voltage

208V

Receptacles (Output Connections)

(20) IEC320 C13

(6) IEC320 C19

(6) NEMA 5-20R

Overload Protection

(2) LEGBXA66-20

Physical

Dimensions (WxDxH)

2.1in x 2.2in x 70.1in; 52mm x 55mm x 1780mm

Unit Weight

6.95 kg

Shipping Weight

9 kg

Shipping Dimensions

280mm x 115mm x 2055mm

Mounting

Tool-less Button Mount

Environmental

Operating Temperature/Environment

60 C

Operating Relative Humidity

85%

Operating Elevation

0-6000ft

Conformance

Regulatory Approvals

UL

Warranty

Standard 2 years manufacturer warranty

img-pdu_mechanical_diagram
!
