Raritan PX2-2148R 1PH 120V AC 20A 12 outlets Zero U
Raritan
SALE PRICE$575.00
REGULAR PRICE $710.00
1PH, 120V AC, 20A (16A rated); 12 outlets: 12x NEMA 5-20R; plug: NEMA 5-20P (Top-top feed), 1.9kVA; Unit Metered/Switched, Zero U vertical PDU
Additional information
Description:

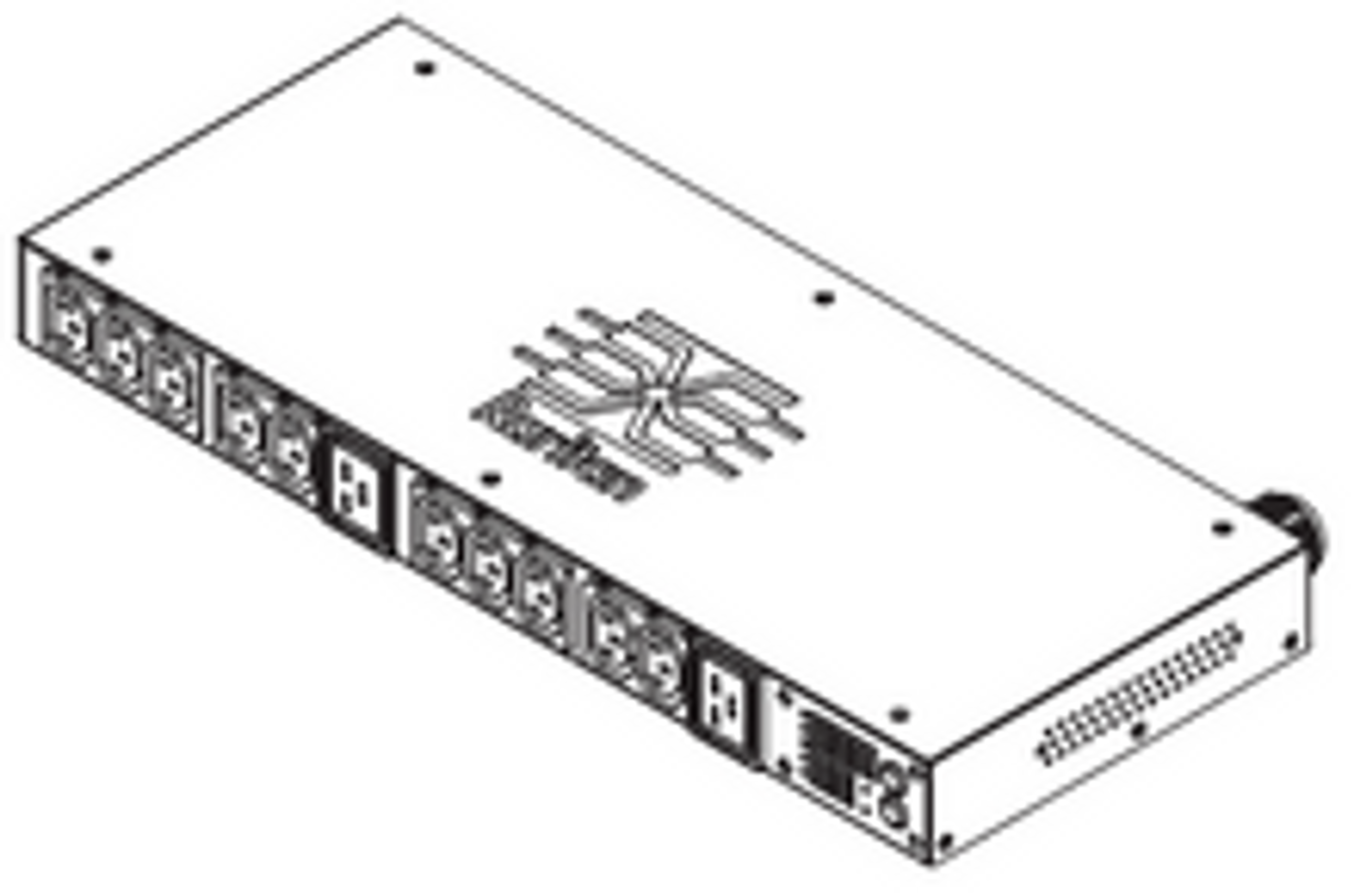

Monitored and switched rack power distribution unit (1U [horizontal], 7.4kVA, 12 outlets). INPUT: 230v, 32a - IEC 60309 2P+E 6h 32A plug (2P3W); OUTPUT: 10@ C13, 2@ C19 outlets; on 2@ 1-pole, 16a Overcurrent Protectors; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per breaker/fuse; Remote Outlet Switching (Normally-Open Relays); 3-digit LED user-selectable display (voltage, current, or active power : per line or per breaker). Local display of alarms and configuration information(name, ratings, IP/Networking); Onboard embedded processor with minimum 400MHz clock speed, 16MB NOR Flash, and 64MB SDRAM; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Environmental monitoring [temp/humidity] capable ñ up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP/PXE, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Breaker metering and alarming (0V detection). Max Dimensions 440mm x 183mm x 44mm (17.3in x 7.2in x 1.7in). Max Weight 9 kg. Maximum ambient temperature 50C at full load.
Features
Securelock
Energy Metering
Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering Accuracy
ISO/IEC 62053-21 1%
Remote Outlet Switching
Yes
Metering per input line
Yes for all models
Metering per Branch Circuit Breaker
Yes
Environmental Sensor Ready
Yes
Compatible Sensors
Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.
Cascading
Yes, Max 16 PDUs can be daisy chained using a USB connection. Note: Firmware version 3.3.10 or above is required.
Networking
(10/100/1000 Base T) Ethernet, Secondary redundant (10/100 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).
Onboard Display
3-digit LED user-selectable display (voltage, current, or active power : per line or per breaker). Auto-flip orientation
Specifications
Input
Input Plug
IEC 60309 2P+E 6h 32A (2P3W)
Nominal Voltage
230V
Maximum Input Current
32A
Rated Input Current
32A
Power Capacity
7.4kVA
Cord Length
3m
Output
Nominal Voltage
230V
Receptacles (Output Connections)
(10) IEC320 C13
(2) IEC320 C19
Overload Protection
(2) Airpax LEGBX6-37483-16-V
Physical
Dimensions (WxDxH)
17.3in x 7.2in x 1.7in; 440mm x 183mm x 44mm
Unit Weight
9 kg
Shipping Weight
14 kg
Shipping Dimensions
415mm x 320mm x 570mm
Mounting
100-89-8430-00
Environmental
Operating Temperature/Environment
50 C
Operating Relative Humidity
85%
Operating Elevation
0-6000ft
Conformance
Regulatory Approvals
CE
Warranty
Standard 2 years manufacturer warranty
