Vertiv MXT5120-VGA Matrix Transmitter- KVM / audio

Avocent Matrix Transmitter MXT5120 - KVM / audio / USB extender - USB

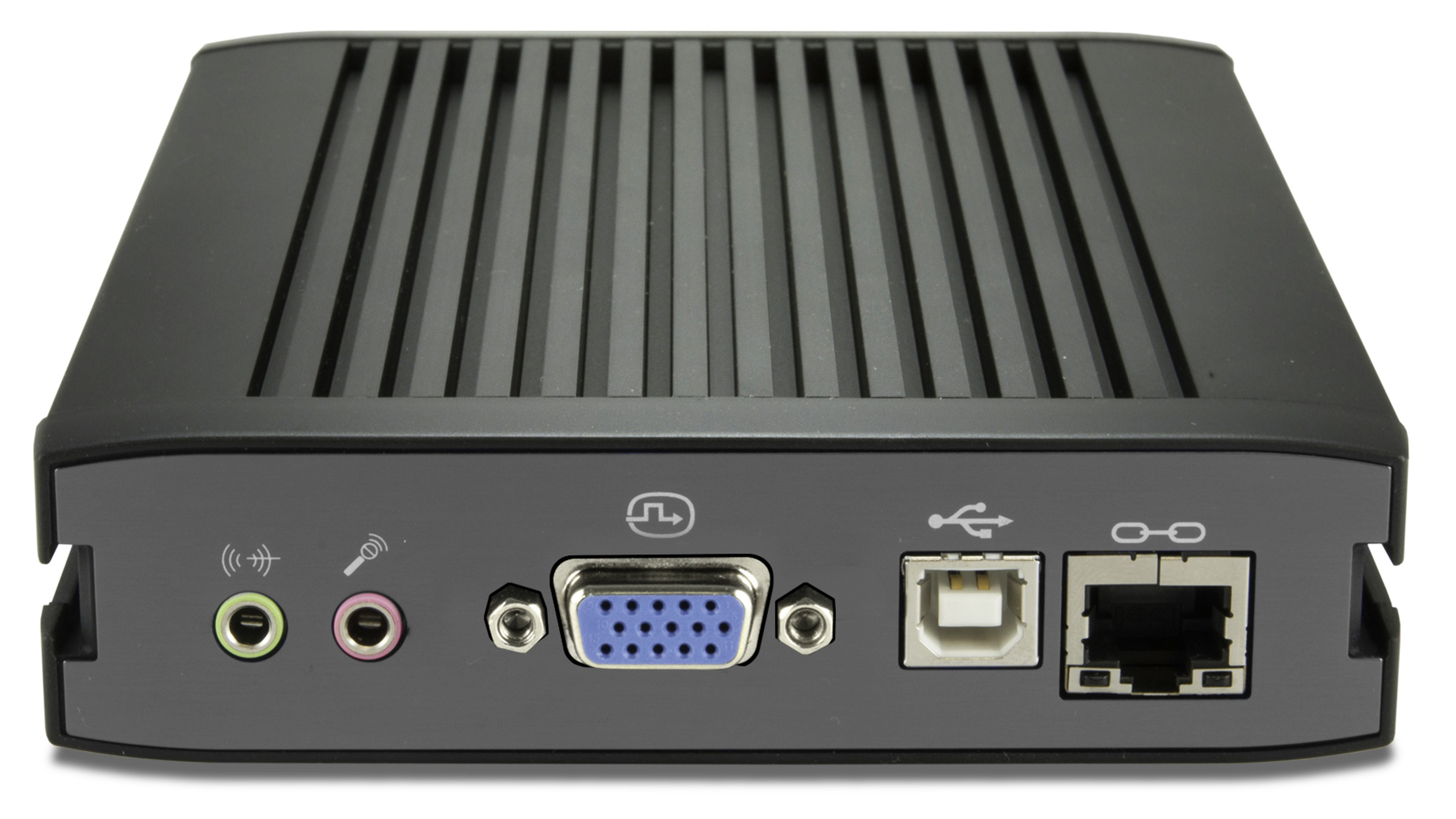

The Vertiv Avocent Matrix MXT 5210 VGA transmitter is a component of the Vertiv Avocent Matrix High Performance KVM switching system that operates with receivers and transmitters to provide a fully digital matrix switching solution. A proprietary single switch or network of switches provides the distribution of data streams between transmitters and receivers, connected via a single shielded twisted pair (STP) CAT 5e/6 cable. The system provides real-time switching between keyboard, video and mouse (KVM) and USB peripherals from a target computer. The system may be used with devices intended to address digital signage and Pro A/V to deliver an enhanced digital matrix switching solution for applications such as broadcast, post-production and control centers in a broad range of applications. The Vertiv Avocent Matrix MXT 5210 transmitter provides one network port, one USB port and one VGA port for video resolution up to 1920x1200. It also includes Vertiv Avocent Cable CBL 0087, USB keyboard & mouse & VGA video cable & audio - 3 ft.

Specifications:

Product Description Avocent Matrix Transmitter MXT5120 - KVM / audio / USB extender Device Type KVM / audio / USB extender - USB Form Factor External Power Over Ethernet (PoE) PoE Dimensions (WxDxH) 4.8 in x 6.2 in x 1.2 in Weight 22.57 oz

General

Device Type KVM / audio / USB extender Form Factor External Built-in Devices Status LCD

Networking

Connectivity Technology Wired Keyboard / Mouse Interface USB Features Fanless

Expansion / Connectivity

Interfaces 1 x USB 2.0 - Type B female ¦ 1 x KVM (PoE) - RJ-45 female ¦ 1 x VGA - HD-15 female ¦ 1 x audio - mini jack female ¦ 1 x microphone - mini jack female

Power

Power Over Ethernet (PoE) PoE

Dimensions & Weight

Width 4.8 in Depth 6.2 in Height 1.2 in Weight 22.57 oz
