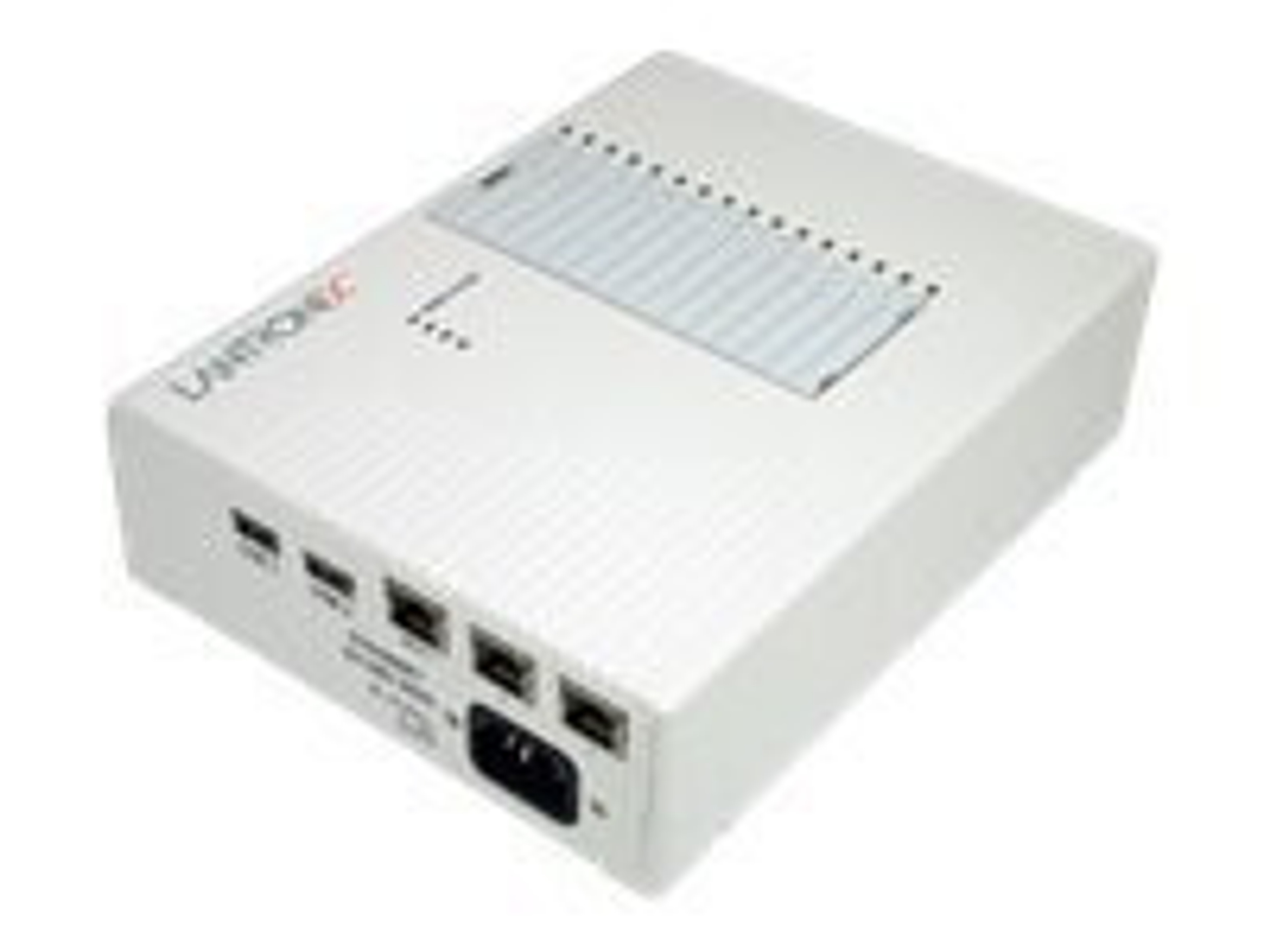

Lantronix EDSOR08P-01 Medical Device Server EDS MD

Name: Lantronix EDSOR08P-01 Medical Device Server EDS MD
Brand: Lantronix
SKU: EDSOR08P-01
Availability: InStock

Lantronix

SALE PRICE
$1,167.00
REGULAR PRICE $1,178.75

Product Overview:

Lantronix Medical Device Server EDS MD - Device server - 8 ports - Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232

MFG#:EDSOR08P-01

Product Category:Serial Console Servers

Product Description:

Lantronix Medical Device Server EDS MD - Device server - 8 ports - Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232

Going above and beyond the IEC-60601 requirement, EDS-MD provides galvanic isolation on all ports to ensure the highest levels of safety. Virtual COM ports can be mapped to EDS-MD and encrypted at both ends of the communication, allowing the transport of sensitive information to and from remote device servers over the Internet with the highest level of security.

Main Specifications

Product Description	Lantronix Medical Device Server EDS MD - device server
Device Type	Device server
Enclosure Type	External
Dimensions (WxDxH)	7.5 in x 8.3 in x 2.4 in
Weight	1.8 lbs
Processor	1 x ARM ARM11 600 MHz
RAM Installed ( Max )	256 MB
Flash Memory Installed (Max)	8 MB
Ports Qty	8
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Remote Management Protocol	Telnet, HTTP, SSH, CLI
Features	Firmware upgradable, wall mountable, temperature sensor, reset button, port isolation
OS Required	Microsoft Windows Server 2003, Microsoft Windows Vista / XP, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2008 (32/64-bits)
Power	AC 120/230 V ( 50/60 Hz )
Manufacturer Warranty	5 years warranty

Extended Specifications

General

Device Type	Device server
Width	7.5 in
Depth	8.3 in
Height	2.4 in
Weight	1.8 lbs

Processor / Memory / Storage

Processors Installed	1 x ARM ARM11 600 MHz
Max Supported Qty	1
RAM Installed ( Max )	256 MB SDRAM
Flash Memory Installed (Max)	8 MB

Networking

Form Factor	External
Ports Qty	8
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Remote Management Protocol	Telnet, HTTP, SSH, CLI
Status Indicators	Power, system, link/activity
Features	Firmware upgradable, wall mountable, temperature sensor, reset button, port isolation
Encryption Algorithm	RC4, MD5, AES, SHA-1, SSL 3.0, SSL 2.0
Authentication Method	Secure Shell v.2 (SSH2)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, USB 2.0

Expansion / Connectivity

Expansion Slot(s)	1 (total) / 1 (free) x SD Memory Card
Interfaces	8 x serial - RS-232 - RJ-45 2 x Hi-Speed USB - 4 pin USB Type A 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45

Miscellaneous

Mounting Kit	Included
Compliant Standards	UL, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, IEC 60601-1-2, CISPR 22, FCC Part 15 B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, UL 60601-1, RoHS, EN 61000-4-8, UL 60950-1 Second Edition, EN 60601-1-2, REACH, CSA C22.2 No. 601.1, CISPR 11, VCCI V-3

Power

Power Device	Power supply - internal
Voltage Required	AC 120/230 V ( 50/60 Hz )
Power Consumption Operational	23 Watt

Software / System Requirements

Software Included	Lantronix DeviceInstaller, Secure Com Port Redirector
OS Required	Microsoft Windows Server 2003, Microsoft Windows Vista / XP, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2008 (32/64-bits)

Manufacturer Warranty
