Description

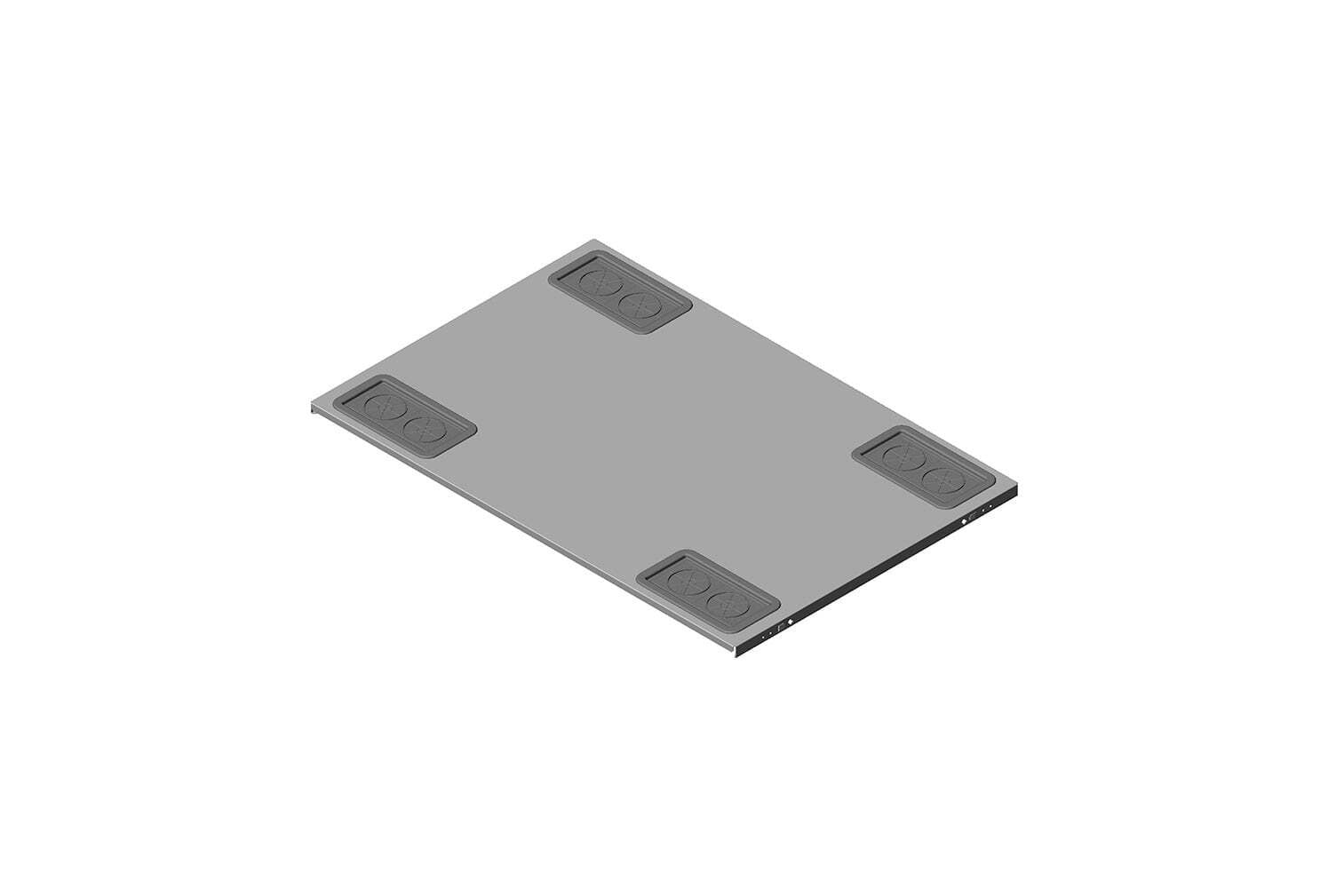

Top Panel with Grommets for ZetaFrame™ Cabinet Overview
Solid single-piece top panel with large grommet-sealed cable openings in each corner contains airflow within the cabinet while allowing cables toenter/exit the top panel.
- Use in traditional hot/cold aisle environments or with aisle containment for front-to-rear airflow through the cabinet; not compatible with Vertical Exhaust Duct
- (4) cable openings, (1) per corner, are 4.5”W x 9”D (114 mm x 228 mm) without cover, sized for large power plugs
- Includes (4) plastic, snap-on grommets that seal cable openings and can be cut to pass cables
- Tool-less, drop-in design with integrated spring button secures top panel to the cabinet frame without additional installation hardware
- Features integral electrical bonding, no bonding strap required
- Material: Steel top panel
- Finish: Black or Glacier White; grommets are black
- Select part number to match the width, depth and color of the cabinet
Specifications:
Cabinet Width:
31.5"W (800 mm)
Color:
Glacier White
Depth:
43.3" (1099.82 mm)
