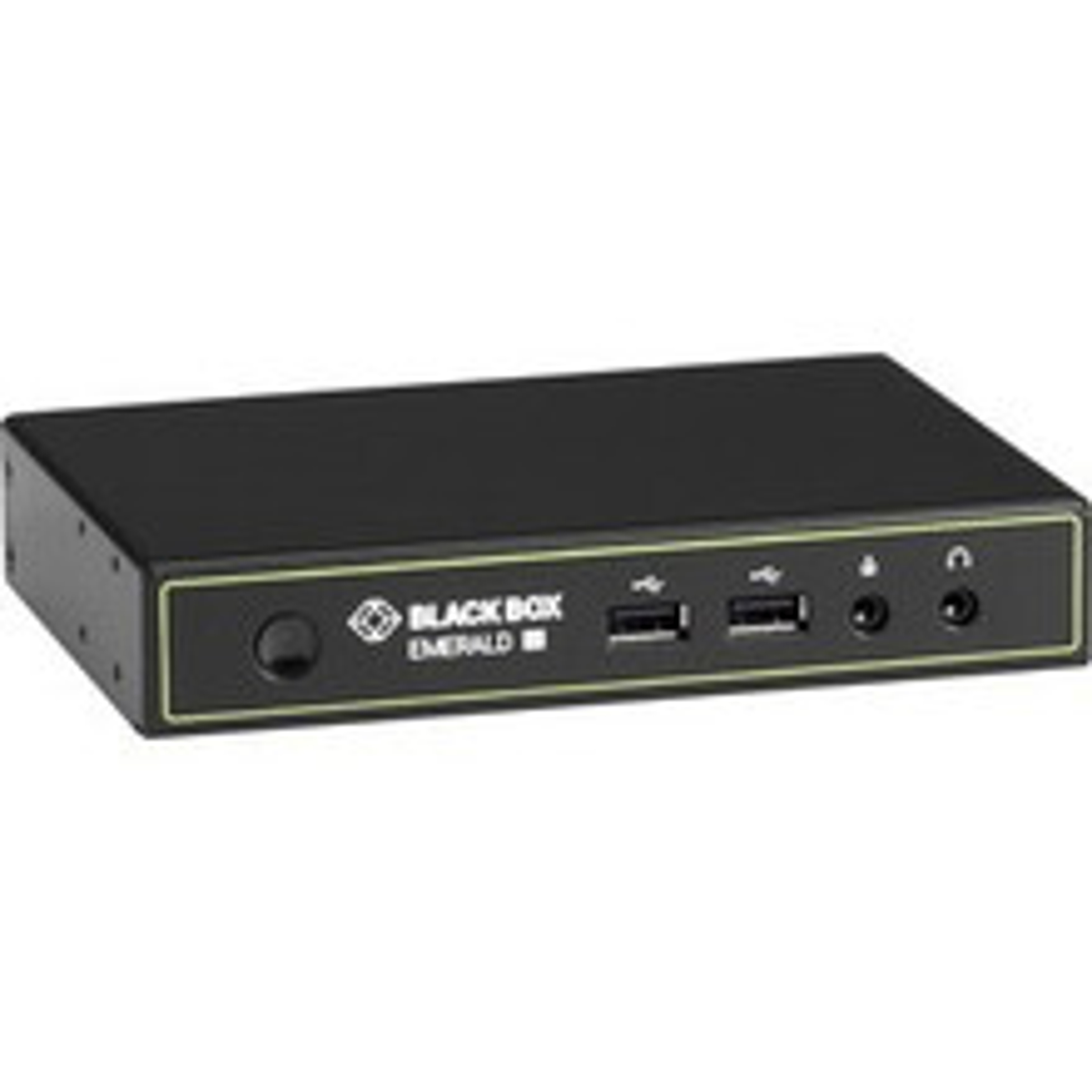

Black Box Emerald SE KVM-over-IP - DVI-D, USB 2.0, Audio, RJ45 - 1 Computer(s) - 328 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 1 x Network (RJ-45) - 4 x USB - 2 x DVI - 120 V AC, 240 V AC Input Voltage - For PC, Linux, Mac
High-performance KVM
Emerald SE provides users with a seamless desktop experience anywhere on a TCP/IP network while allowing the actual hardware to be housed in a corporate data center or in the cloud. The performance of Emerald SE allows easy deployment on standard corporate networks and even across WANs. The solution enables the same experience of a desktop PC even for media-rich applications, like video and photo editing.
Emerald SE provides Full HD DVI-D with resolutions up to 1920 x 1200, transparent USB and bi-directional analog audio. Link them in a point-to-point KVM extension over CATx up to 328 ft./100 m or even further using an IP or WAN connection. Or Connect multiple transmitters and receivers to an Emerald or IP switch to create a matrix switching setup.
Specifications:
| Warranty |
| Limited Warranty |
2 Year |
| Video |
| Maximum Video Resolution |
1920 x 1200 |
| Graphic Mode |
WUXGA |
| Physical Characteristics |
| Receiver Height |
1.15" |
| Receiver Width |
6.20" |
| Receiver Depth |
4.20" |
| Receiver Weight (Approximate) |
1.36 lb |
| Technical Information |
| Connectivity Technology |
Wired |
| Maximum Operating Distance |
328 ft |
| Number of Computers Supported |
1 |
| Device Type |
KVM Extender |
| Power Description |
| Input Voltage |
240 V AC |
| |
120 V AC |
| Frequency |
50 Hz |
| |
60 Hz |
| Power Consumption |
6.50 W |
| Input Voltage Range |
100V AC to 240V AC |
|
| Interfaces/Ports |
| Microphone |
Yes |
| USB |
Yes |
| DVI |
Yes |
| Headphone |
Yes |
| Number of Network (RJ-45) Ports |
1 |
| Network (RJ-45) |
Yes |
| Number of USB Ports |
4 |
| Number of DVI Ports |
2 |
| Miscellaneous |
| Package Contents |
- Emerald SE KVM-over-IP - DVI-D, USB 2.0, Audio, RJ45
- 1 x 5VDC Power Supply with Power Cord
|
| Platform Supported |
Linux |
| |
PC |
| |
Mac |
| Country of Origin |
Ireland |
| Environmentally Friendly |
Yes |
| Environmental Certification |
RoHS |
| |
WEEE |
| General Information |
| Product Type |
KVM Extender Receiver |
| Manufacturer Part Number |
EMD2002SE-R |
| Manufacturer Website Address |
http://www.blackbox.com |
| Packaged Quantity |
1 |
| Manufacturer |
Black Box Corporation |
| Product Model |
EMD2002SE-R |
| Product Name |
Emerald SE KVM-over-IP - DVI-D, USB 2.0, Audio, RJ45 |
| Product Line |
Emerald SE |
| Brand Name |
Black Box |
|
