Description:

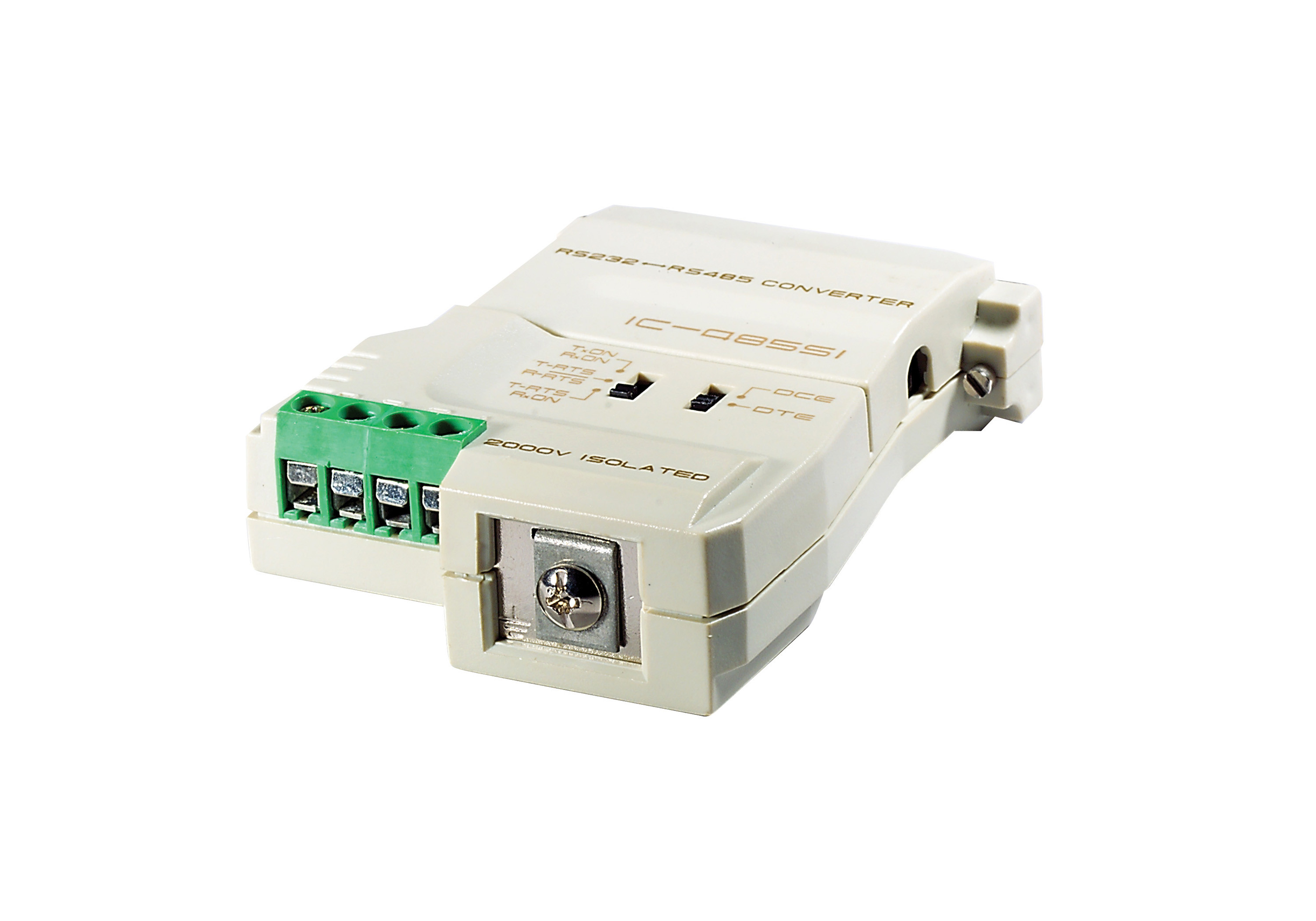

IC485S is a 2-way converter for converting RS-232 signals to and from RS-422/RS-485 signals in long-distance applications up to 1200 m (4000 ft.). It supports the connection of up to 32 hubs and features monitoring to confirm the data passing between devices.
Features:
- Data transmission controlled by the RTS signal.
- DCE/DTE selectable.
- Point to point, multidrop, and simplex/duplex link selection.
- Four wire full duplex; two wire half duplex.
- Compact size.
- Cable distance of up to 1200m (4000 ft.).
- Monitor configuration support.
- Supports baud rates up to 115.2kbps.
- OS Support: Windows 2000, Windows XP
Specifications:
| Connectors | 1 DB-25 Female (RS-232) RS-485 / RS-422 Four Terminal Block 1x RJ-11 Female |
| Switches | DCE, DTE, Monitor TxON, RxON TxRTS, RxRTS TxRTS, RxON |
| Power Consumption | DC9V, 1.35W (Max) |
| Signal Range | 1200 m [4000'] (Max) |
| Data Rate | Up to 100 Kbps under 1200 m [4000'] |
| Environmental | |
| Operating Temperature | 0 ~50˚C |
| Storage Temperature | -20 ~ 60˚C |
| Humidity | 0~80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.05 kg ( 0.11 lb ) |
| Dimensions (L x W x H) | 7.90 x 5.45 x 2.10 cm (3.11 x 2.15 x 0.83 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
