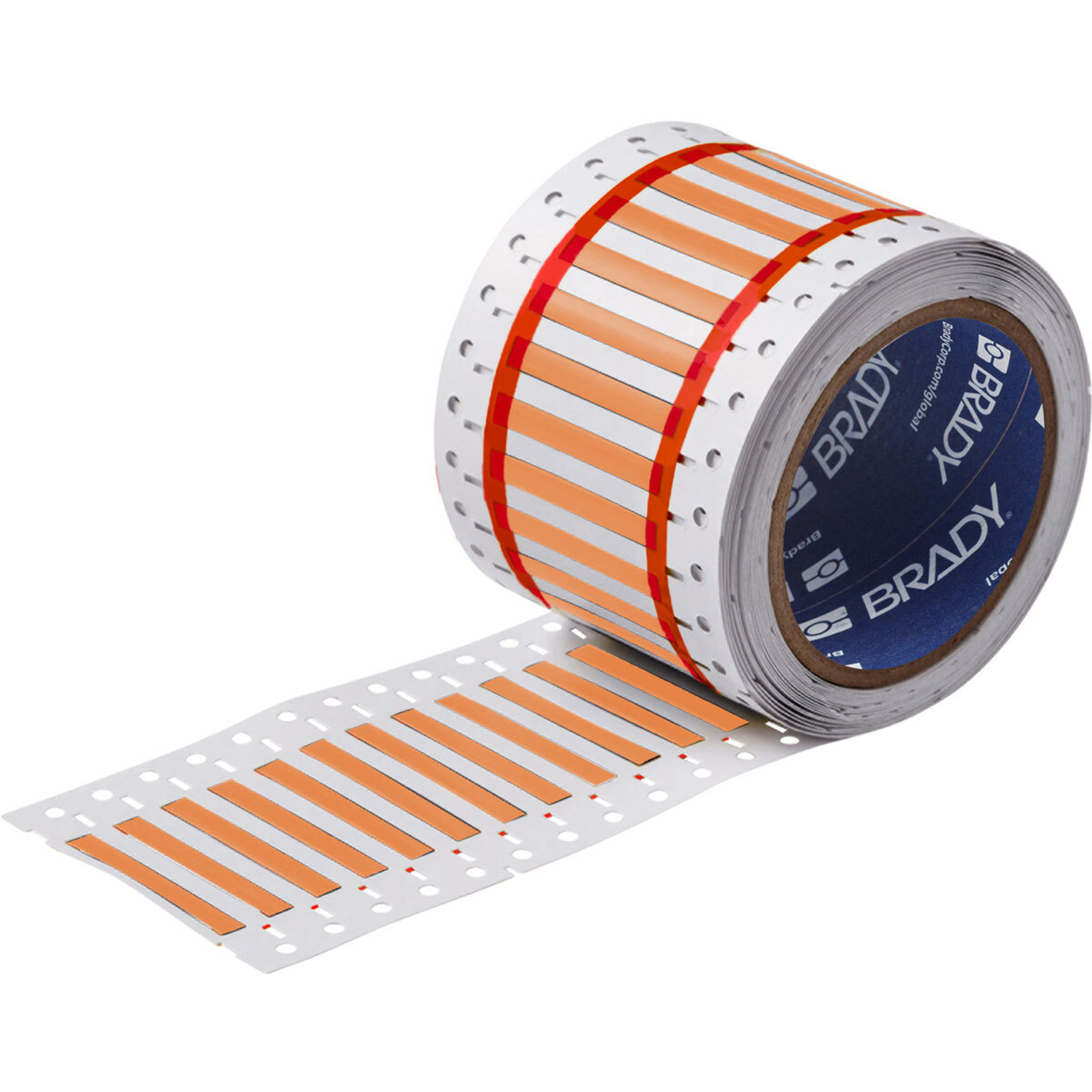

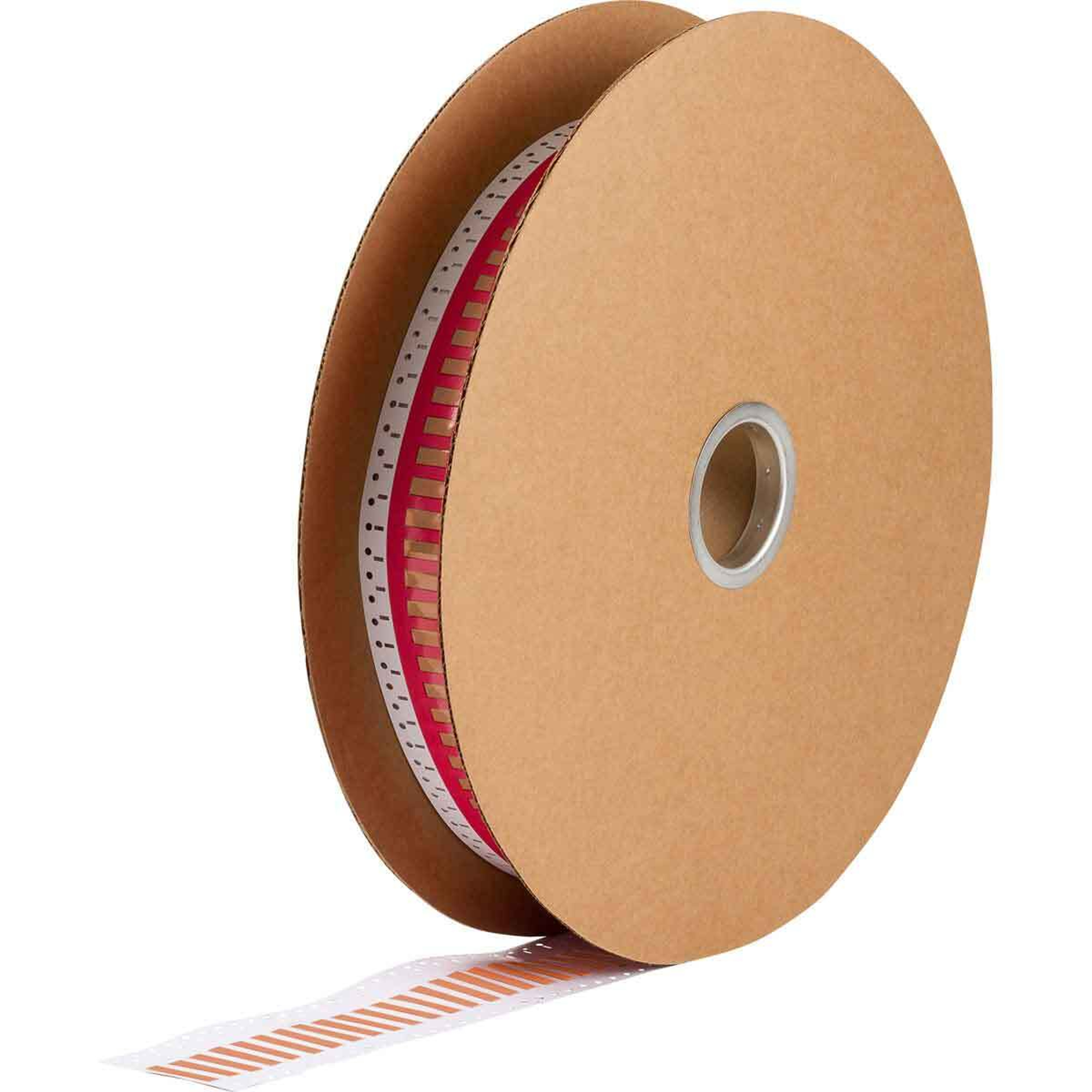

3" Core PermaSleeve Heatex Polyolefin 16 to 10 Gauge Wire Marking Sleeves Overview Specifications
Brady
SALE PRICE$1,743.29
REGULAR PRICE $2,379.00

UPC:662820818878
MFG#:2HX-187-2-OR-4
Product Category:Printer Labels
Additional information
Overview
Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.
- Supplied roll form in a flattened format on a carrier designed for use with computer driven printers
- Meets SAE-AMS-DTL-23053/5 Class 1 & 3, SAE-AS-81531, MIL-STD-2002
- Tested per ASTM E162 and ASTM E662
- Operating temperature of -40°F to 248°F (-40°C to 120°C)
- This roll has i75-series smart properties on the core that when used in the Brady i7500 printer in conjunction with i75-series smart ribbons, eliminates the need to adjust heat, speed, sensor location and mode, eliminates the need to calibrate out blank wasted labels, and warns the operator if a non-approved ribbon is used with this roll.
- If used in any other 3 inch core printer this roll will function as a manual roll
- A ribbon is required to print this material. Use Part Number R6402
Specifications
Key Characteristics | ||
Product Number | 117159 | |
UPC | 662820818878 | |
UOM | Roll of 10000 Each | |
Quantity per Roll | 10000 | |
Trade Name | PermaSleeve® | |
Brand Name | Brady® |
Dimensions | Dimensions | 0.335 in H x 0.5 in W |
Height | 0.335 in | |
Width | 0.5 in | |
Sleeve Size | 0.187 in Dia x 0.5 in W | |
Vertical Repeat | 0.625 in | |
Recovered Diameter | 0.094 in | |
Recovered Wall Thickness | 0.02 in | |
Web Width | 3.49 in | |
Diameter as Supplied | 0.187 in | |
Core Diameter | 3 in |
Material Characteristics | ||
Material | Heat-shrink Polyolefin |
